Specifications & Consumer information
BULB WATTAGE
Light BulbWattage Bulb type
Front Headlamps(Low)
55 H7SLL
Headlamps(Low)- HID type* 35D3S
Headlamps(High) 55 H7LL
Front turn signal lamps 28 PY28/8W
Front position lamps LED LED
Front fog lamps 27 GE881
Front Side marker
LED
LED
Side Repeater lamps (Outside Mirror)* LED LED
Rear Bulb type
Rear Stop/Tail lamps (outside) 27 or 8 P27/8W
Rear tail lamps (Inside) 8 P27/8W
Side marker
5
W5W
LED type Rear Stop lamps
LED LED
Rear Tail lamps LED LED
Side marker
LED
LED
Rear turn signal lamps 27 PY27W
Back-up lamps 18 W18W
High mounted stop lamp* LED LED
License plate lamps 5 FESTOON
Interior Map lamps 10 W10W
Room lamps 10 FESTOON
Personal lamps* 8 FESTOON
Vanity mirror lamps* 5 FESTOON
Glove box lamp 5 FESTOON
Luggage lamp 10 FESTOON
* If equipped
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:01 PM Page 3

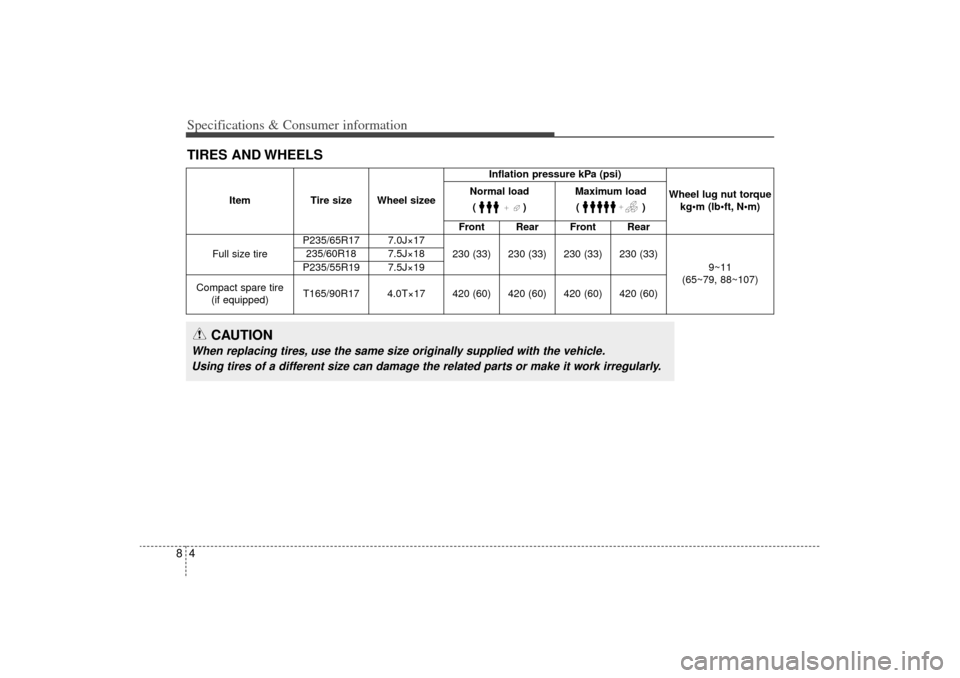

Specifications & Consumer information48TIRES AND WHEELS
ItemTire size Wheel sizee Inflation pressure kPa (psi)
Wheel lug nut torque kg•m (lbft, Nm)
Normal load
()
Maximum load()
Front Rear Front Rear
Full size tire P235/65R17 7.0J×17
230 (33) 230 (33) 230 (33) 230 (33)
9~11
(65~79, 88~107)
235/60R18 7.5J×18
P235/55R19 7.5J×19
Compact spare tire (if equipped) T165/90R17 4.0T×17 420 (60) 420 (60) 420 (60) 420 (60)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:01 PM Page 4

85
Specifications & Consumer information

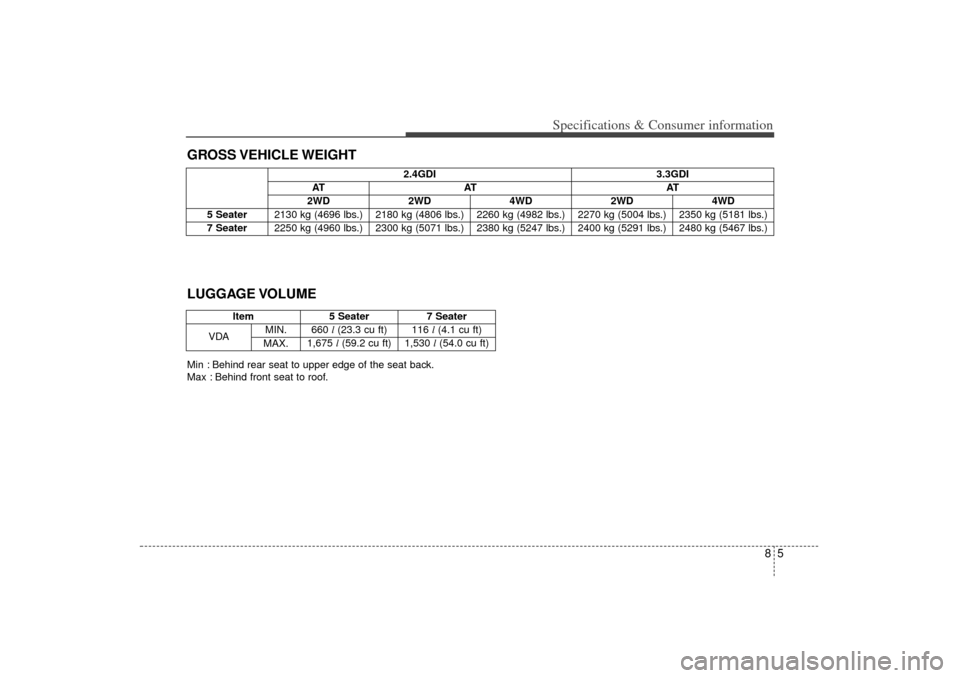

GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
ltem5 Seater 7 Seater
VDA MIN.
660
l(23.3 cu ft) 116 l(4.1 cu ft)
MAX. 1,675
l(59.2 cu ft) 1,530 l(54.0 cu ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
2.4GDI 3.3GDI
ATAT AT2WD2WD4WD2WD4WD
5 Seater
2130 kg (4696 lbs.) 2180 kg (4806 lbs.) 2260 kg (4982 lbs.) 2270 kg (5004 lbs.) 2350 kg (5181 lbs.)
7 Seater2250 kg (4960 lbs.) 2300 kg (5071 lbs.) 2380 kg (5247 lbs.) 2400 kg (5291 lbs.) 2480 kg (5467 lbs.)
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:01 PM Page 5

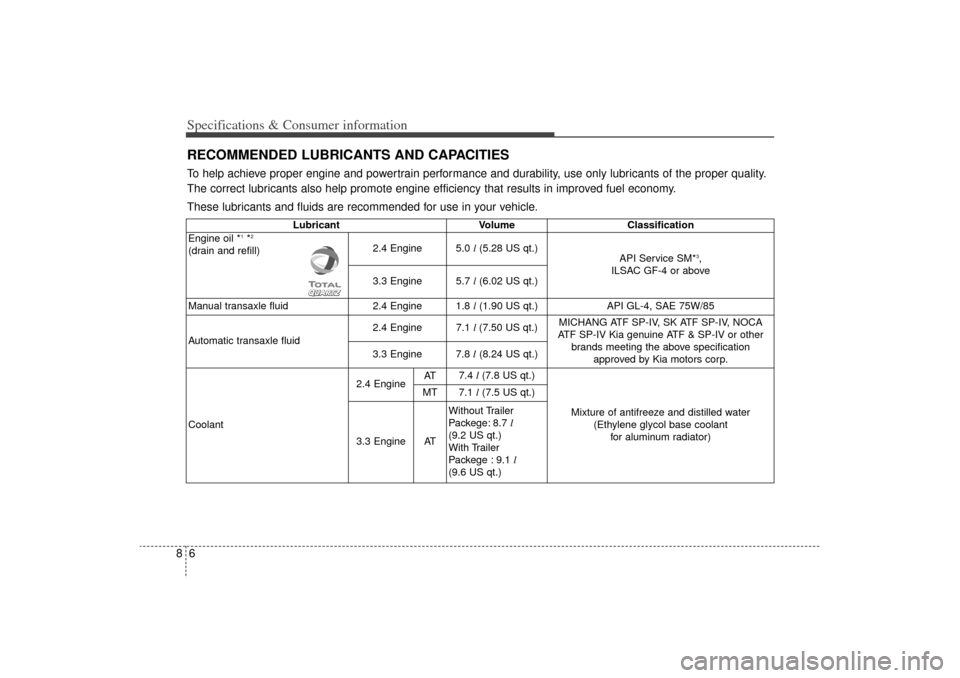

Specifications & Consumer information68RECOMMENDED LUBRICANTS AND CAPACITIES To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolume Classification
Engine oil *
1*2
(drain and refill) 2.4 Engine
5.0
l(5.28 US qt.)
API Service SM*
3,
ILSAC GF-4 or above
3.3 Engine 5.7
l(6.02 US qt.)
Manual transaxle fluid 2.4 Engine 1.8
l(1.90 US qt.)
API GL-4, SAE 75W/85
Automatic transaxle fluid 2.4 Engine
7.1
l (7.50 US qt.) MICHANG ATF SP-IV, SK ATF SP-IV, NOCA
ATF SP-IV Kia genuine ATF & SP-IV or other brands meeting the above specification approved by Kia motors corp.
3.3 Engine
7.8
l(8.24 US qt.)
Coolant 2.4 Engine
AT
7.4
l (7.8 US qt.)
Mixture of antifreeze and distilled water(Ethylene glycol base coolant for aluminum radiator)
MT
7.1 l(7.5 US qt.)
3.3 Engine AT Without Trailer
Packege: 8.7
l
(9.2 US qt.)
With Trailer
Packege : 9.1 l
(9.6 US qt.)
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:01 PM Page 6

87
Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3If the API service SM or ACEA A5 engine oil is not available in your country, you are able to use API service SL or ACEA A3. Lubricant Volume Classification

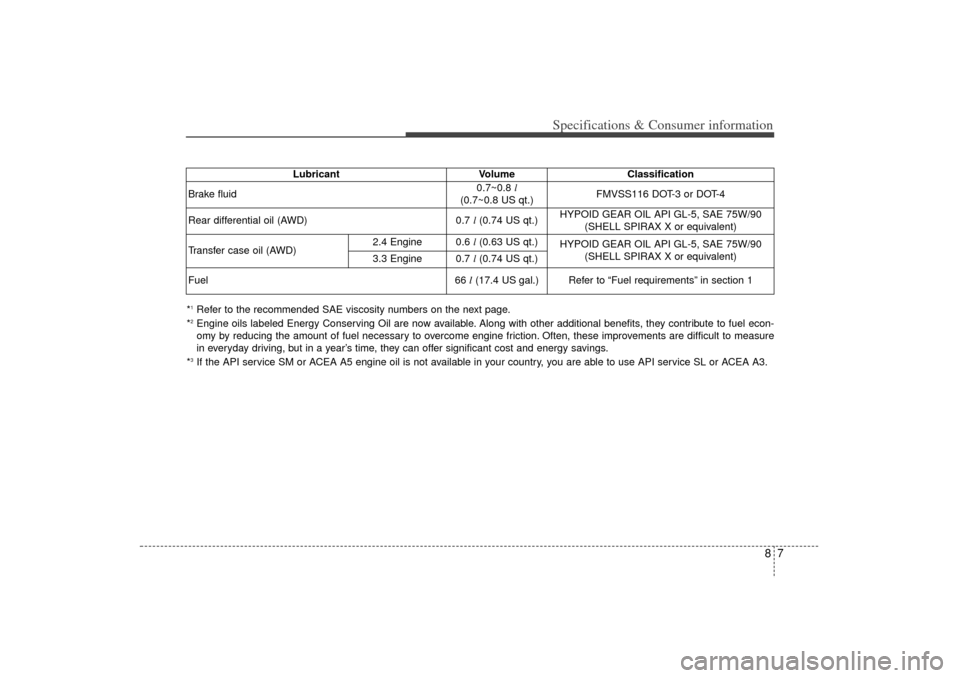

Brake fluid 0.7~0.8
l
(0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Rear differential oil (AWD) 0.7
l(0.74 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (AWD) 2.4 Engine
0.6
l(0.63 US qt.)
HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
3.3 Engine 0.7
l(0.74 US qt.)
Fuel 66
l(17.4 US gal.)
Refer to “Fuel requirements” in section 1
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:01 PM Page 7

Specifications & Consumer information88Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check-ing or draining any lubricant.This is especially important industy or sandy areas and whenthe vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering theengine and other mechanismsthat could be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1°C
(°F)
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-30 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
5W-30, 5W-40
5W-20 (5W-30)
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:01 PM Page 8

89
Specifications & Consumer information

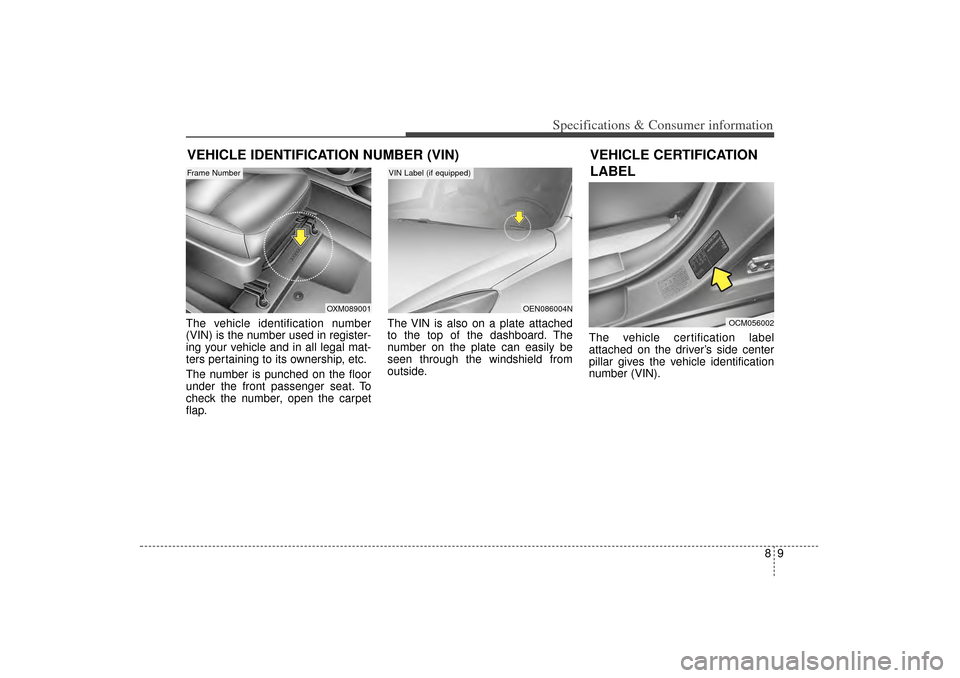

VEHICLE IDENTIFICATION NUMBER (VIN)The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the front passenger seat. To
check the number, open the carpet
flap.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OCM056002
VEHICLE CERTIFICATION
LABEL
OEN086004N
OXM089001
VIN Label (if equipped)
Frame Number
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:02 PM Page 9

Specifications & Consumer information10

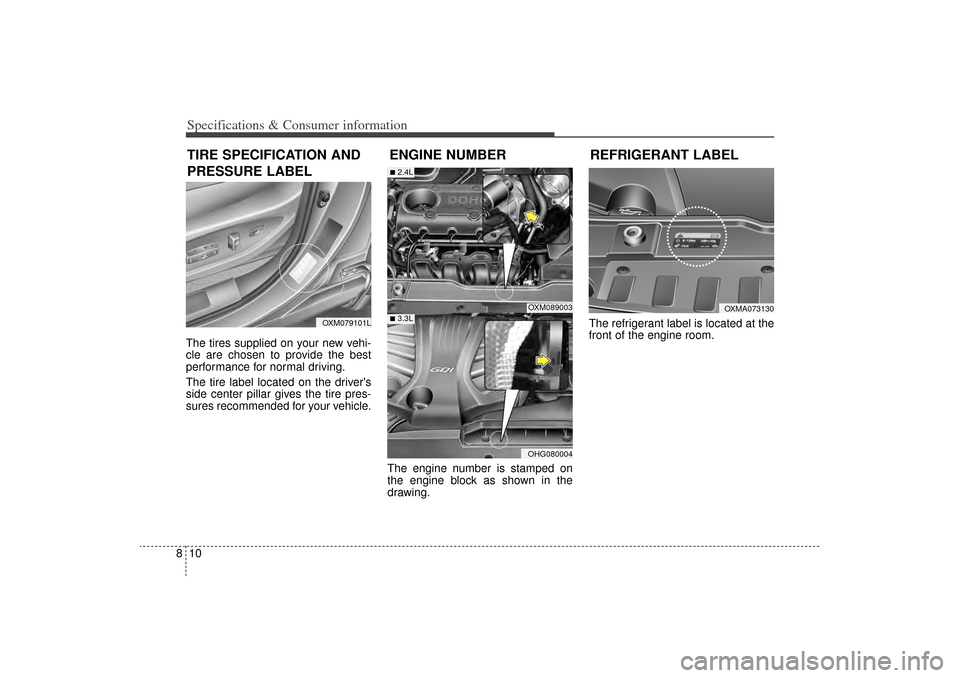

8The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.
The engine number is stamped on
the engine block as shown in the
drawing.The refrigerant label is located at the
front of the engine room.TIRE SPECIFICATION AND
PRESSURE LABEL
ENGINE NUMBER
OXM079101L
OXM089003
■2.4L■3.3L
OHG080004
REFRIGERANT LABEL
OXMA073130
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:02 PM Page 10
