KIA Sorento 2016 3.G Owner's Manual

777
Maintenance
DescriptionFuse ratingProtected component
ABS 3 7.5AESC Control Module, Multipurpose Check Connector
ECU 1 10APCM, [G6DH] IDB (Injector Driver Box)
IG 2 40ARLY. 4 (Start Relay), PDM (IG2) Relay, Ignition Switch
POWER
OUTLET 1 20AFront Power Outlet & Cigarette Lighter
SENSOR 6 7.5A[G4KH] Brake Vacuum Switch, Vacuum Pump
POWER
OUTLET 2 20AFront Power Outlet
CRUISE 7.5ASmart Cruise Control Radar
ECU 4 20A[G4KJ/G4KH] PCM (E-CVVT Relay)
WIPER 25AWiper Low Relay
DEICER 15AFront Deicer Relay
ECU 5 20A[G4KJ/G4KH] PCM (E-CVVT Relay)
IG 1 40APDM (IG1) Relay, PDM (ACC) Relay, Ignition Switch
SENSOR 4 10A[G4KJ/G4KH] Oxygen Sensor (Up/Down)
[G6DH] PCM, Oxygen Sensor #1/#2/#3/#4
SENSOR 5 15A[G4KJ/G4KH]PCM
[G6DH] IDB (Injector Driver Box)
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 77

Maintenance
78
7
DescriptionFuse ratingProtected component
POWER
OUTLET 3 20ARear Power Outlet
SENSOR 1 20A[G4KJ/G4KH] Ignition Coil #1/#2/#3/#4 [G6DF] Ignition Coil #1/#2/#3/#4/#\
5/#6, Condecser #1/#2
SENSOR 3 10A[G4KJ/G4KH] Fuel Pump Relay [G6DF] Fuel Pump Relay, PCM
POWER
OUTLET 4 20ALuggage Power Outlet
REAR
HEATED 40ARear Defogger Relay
SENSOR 2 10A
[G4KJ/G4KH] E/R Junction Block (Cooling Fan 1 Relay), Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Canister Close Valve, Variable Intake Solenoid Valve, RCV Control Solenoid Valve (G4KH)
[G6DH] E/R Junction Block (Cooling Fan 1 Relay), Variable Intake Solenoid Valve #1/#2, Purge Control Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), PCM, Canister close valve
FUEL PUMP 20AFuel Pump Relay
HORN 15AHorn Relay
B/ALARMHORN 10ABurglar Alarm Horn Relay
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 78

779
Maintenance

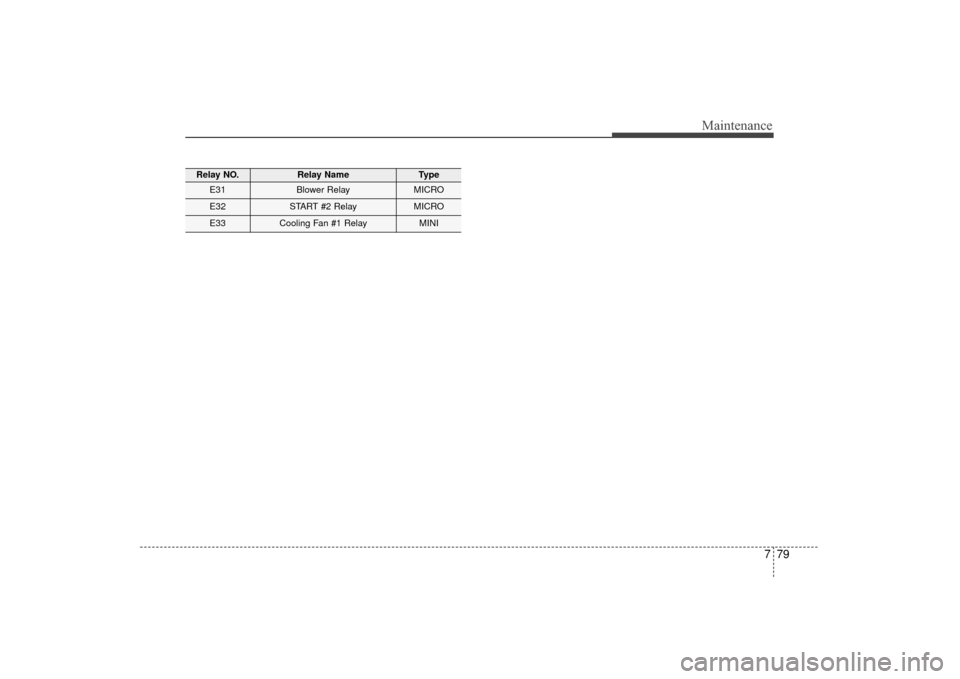

Relay NO.Relay NameType
E31Blower RelayMICRO
E32START #2 RelayMICRO
E33Cooling Fan #1 RelayMINI
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 79

Maintenance
80
7
LIGHT BULBS
Please prepare lamps with appropri-
ate standards in case of emergen-
cies. (Refer to chapter 8 for further
information)
When changing lamps and sorts,
first turn off the engine at a safe
place, firmly apply the side brake and
take out the battery’s negative (-) ter-
minal.Use only the bulbs of the specified
wattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed from an operating
lamp activated by electricity, the
fuse box’s electronic device may
scan it as a malfunction.
Therefore, a lamp malfunction
history may be recorded in
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp may blink temporarily. Since this
occurrence is due stabilization
function of the vehicle’s electronic
control device, if the lamp lights
up normally after temporary
blinking, there is no problem in
the vehicle.
However, if the lamp continues to
blink several times or turn off
completely, there may be an error
in the vehicle’s electronic control
device. So please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING - Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned-
out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do no cleanheadlamp lens with chemicalsolvents or strong detergents.
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 80

781
Maintenance
If you don’t have necessary tools, the
correct bulbs and the expertise, con-
sult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If unauthentic parts or substandard
lights are used when changing lights,
it may lead to fuse disconnection and
malfunction, and other wiring dam-
ages.
Do not install extra lamps or LED to
the vehicle. If supplementary lights
are installed, it may lead to lamp mal-
function and flickering of the lights. In
addition, the fuse box and other writ-
ing may be damaged.Front lamp bulb replacement(1) Headlamp (High and DRL)
(2) Headlamp (Low)
(3) Turn signal lamp
(4) Side marker lamp
(5) Position lamp
(6) Fog lamp (if equipped)
OUMA074027
OUMA074114
■Type A
■Type B
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 81

Maintenance
82
7
Headlamp bulb Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
WARNING - HID
Headlamp low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the light bulb does not
operate, have your vehicle
checked by an authorized Kia
dealer.
OXM079200N
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 82

783
Maintenance
Headlamp (bulb type) -high/low
1. Open the hood.
2. Remove the headlamp assemblyfrom the body of the vehicle
3. Remove the headlamp bulb cover by turning it counterclockwise.
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb by pulling it out.
6. Inset a new bulb into the socket. 7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8. Install the headlamp bulb cover by turning it clockwise.
Turn signal lamp
Follow the steps 1 to 3 from the pre-
vious page.
4. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket
OUM074108L
Turn signal
OUM074053L
High lamp Low lamp
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 83

Maintenance
84
7
6. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
7. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
✽ ✽NOTICE
If bulb will not rotate inside socket,
remove bulb, rotate 180°, and try
again.
Front fog lamp bulbs
(if equipped)
1. Remove the front bumper under cover.
2. Reach your hand into the back of the front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing. 5. Install the new bulb-socket into the
housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
6. Connect the power connector to the socket.
7. Reinstall the front bumper under cover.
✽ ✽NOTICE
Always have the headlamp aiming
adjusted after an accident or after
the headlamp assembly is reinstalled
at an authorized Kia dealer.OUMA074109
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 84

785
Maintenance
Headlamp low (HID), Positionlamp (LED)/Side markerlamp(LED) replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
✽ ✽ NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer
to last twice as long or longer than
halogen bulbs depending on their
frequency of use. They will probably
require replacement at some point
in the life of the vehicle. Cycling the
headlamps on and off more than
typical use will shorten HID lamps
life. HID lamps do not fail in the
same manner as halogen incandes-
cent lamps. If a headlamp goes out
after a period of operation but will
immediately relamp when the head-
lamp switch is cycled it is likely the
HID lamp needs to be replaced. HID
lamping components are more com-
plex than conventional halogen
bulbs thus have higher replacement
cost.
Side repeater lamp replace-
ment
If the light bulb does not
operate,have the vehicle checked by
an authorized Kia dealer. A skilled
technician should check or repair the
side repeater lamp, for it may dam-
age related out side mirror parts of
the vehicle.
OUM074028
UM CAN (ENG) 7.qxp 12/1/2014 1:19 PM Page 85

Maintenance
86
7

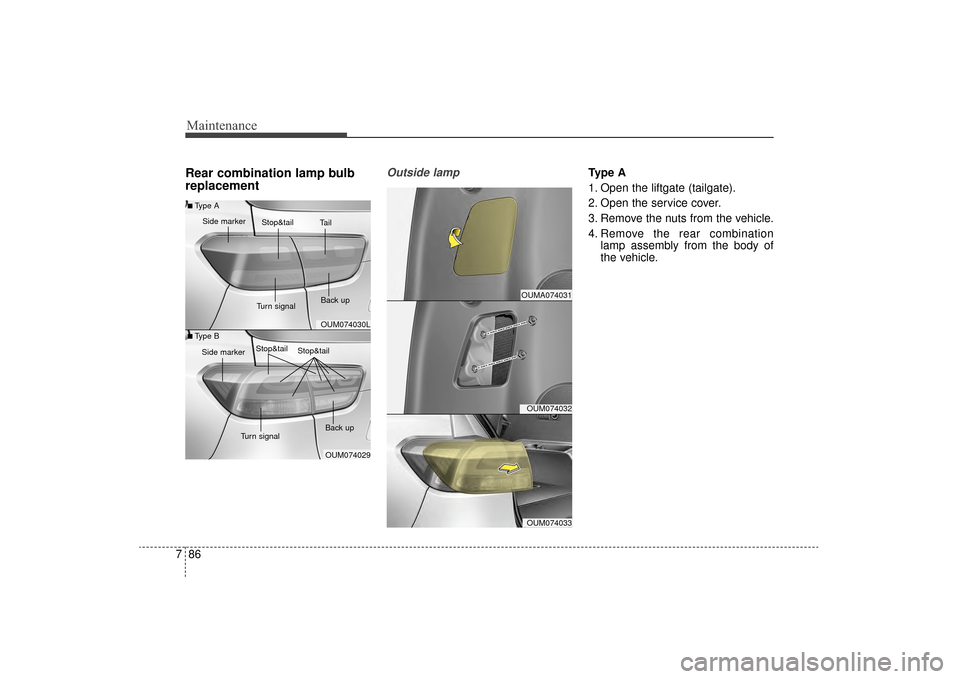

Rear combination lamp bulb
replacementOutside lampType A
1. Open the liftgate (tailgate).
2. Open the service cover.
3. Remove the nuts from the vehicle.
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
OUMA074031
OUM074032
OUM074033
OUM074030L
OUM074029
■Type A
■ Type B
Stop&tail Tail
Turn signal Back up
Turn signal Back up
Stop&tailStop&tail
Side marker
Side marker
