KIA Sorento 2016 3.G Owner's Manual

68
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil *1*2(drain and refill)
Recommends (or equivalent)
Gasoline Engine
Theta II 2.0 T-GDI4.8 l(5.07 US qt.)
ACEA A5 or above
* If the ACEA A5 engine oil is not available in
your country, you are able to use API service
SL, IL SAC GF-3, ACEA A3.
Theta II 2.4 GDI4.8 l(5.07 US qt.)
API Service SM or above/
ILSAC GF-4 or above/ACEA A5 or above
* If the API service SM, ILSAC GF-4, ACEA A5
engine oil is not available in your country, you
are able to use API service SL, IL SAC GF-3,
ACEA A3.
Lambda II 3.3 GDI5.7 l(6.02 US qt.)
ACEA A5 or above
* If the ACEA A5 engine oil is not available in
your country, you are able to use API service
SL, IL SAC GF-3, ACEA A3.
Automatic transaxle fluidGasolineEngine
Theta II 2.0 T-GDI7.8 l(8.24 US qt.)
ATF SP-IV or equivalentTheta II 2.4 GDI7.1 l(7.50 US qt.)
Lambda II 3.3
GDI7.8 l(8.24 US qt.)
UM CAN (ENG) 8.qxp 12/1/2014 1:13 PM Page 6

87
Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.

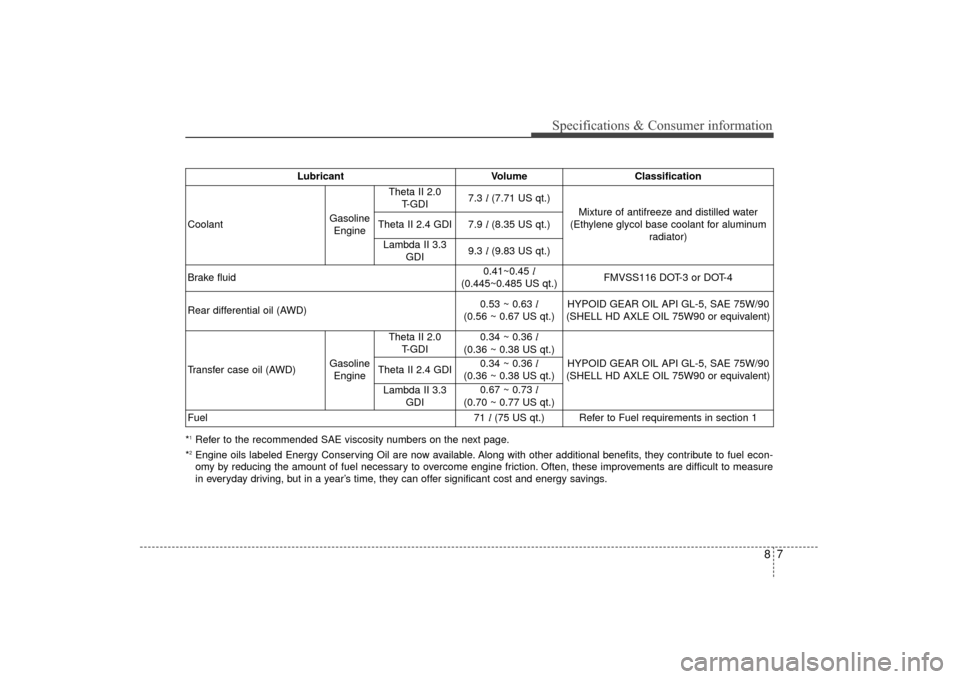

Lubricant VolumeClassification
CoolantGasoline Engine
Theta II 2.0 T-GDI7.3 l(7.71 US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Theta II 2.4 GDI7.9 l(8.35 US qt.)
Lambda II 3.3
GDI9.3 l(9.83 US qt.)
Brake fluid0.41~0.45 l
(0.445~0.485 US qt.)FMVSS116 DOT-3 or DOT-4
Rear differential oil (AWD)0.53 ~ 0.63 l
(0.56 ~ 0.67 US qt.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL HD AXLE OIL 75W90 or equivalent)
Transfer case oil (AWD)Gasoline Engine
Theta II 2.0 T-GDI0.34 ~ 0.36 l
(0.36 ~ 0.38 US qt.)
HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL HD AXLE OIL 75W90 or equivalent)Theta II 2.4 GDI0.34 ~ 0.36 l
(0.36 ~ 0.38 US qt.)
Lambda II 3.3 GDI0.67 ~ 0.73 l
(0.70 ~ 0.77 US qt.)
Fuel71 l(75 US qt.)Refer to Fuel requirements in section 1
UM CAN (ENG) 8.qxp 12/1/2014 1:13 PM Page 7

88
Specifications & Consumer information
Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged. Engine oil viscosity (thick-
ness) has an effect on fuel economy
and cold weather operating (engine
start and engine oil flowability).
Lower viscosity engine oils can pro-
vide better fuel economy and cold
weather performance, however,
higher viscosity engine oils are
required for satisfactory lubrication in
hot weather. Using oils of any viscos-
ity other than those recommended
could result in engine damage. When
choosing an oil, consider the range
of temperature your vehicle will be
operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.

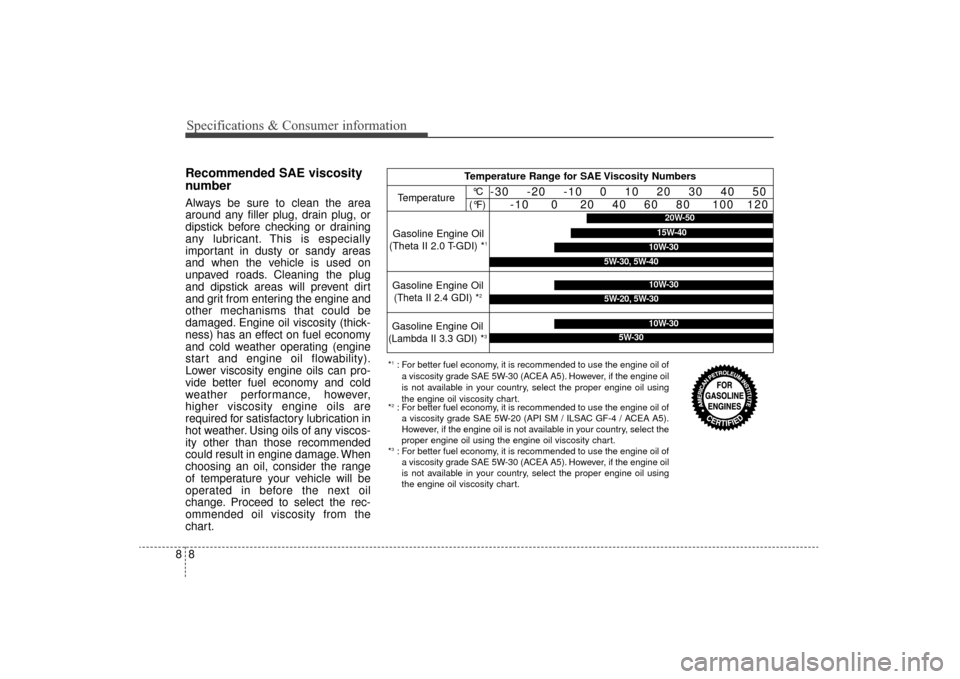

Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gasoline Engine Oil
(Theta II 2.0 T-GDI) *1
20W-50
10W-30
15W-40
5W-30, 5W-40
*1: For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-30 (ACEA A5). However, if the engine oil
is not available in your country, select the proper engine oil using
the engine oil viscosity chart.
*
2: For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4 / ACEA A5).
However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
*
3: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-30 (ACEA A5). However, if the engine oil
is not available in your country, select the proper engine oil using
the engine oil viscosity chart.
Gasoline Engine Oil(
Theta II 2.4 GDI) *210W-30
5W-20, 5W-30
Gasoline Engine Oil
(
Lambda II 3.3 GDI) *3
10W-30
5W-30
UM CAN (ENG) 8.qxp 12/1/2014 1:13 PM Page 8

89
Specifications & Consumer information
VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the front passenger seat.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
OUM084001
■
Frame number
OUM084005
■VIN label
OUM084004
UM CAN (ENG) 8.qxp 12/1/2014 1:14 PM Page 9

10
8
Specifications & Consumer information
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.

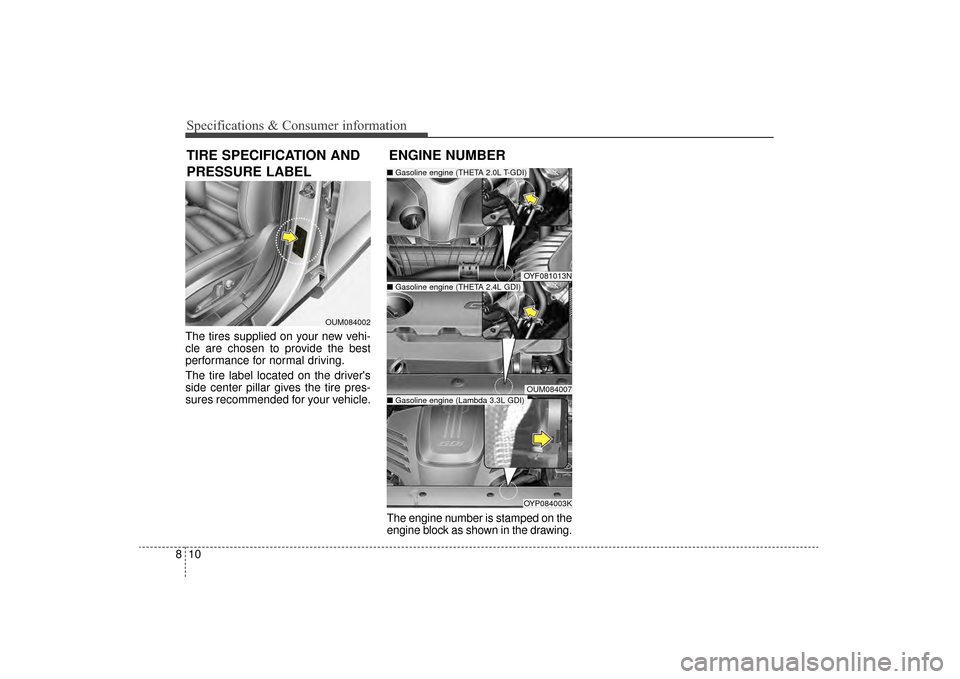

The engine number is stamped on the
engine block as shown in the drawing.
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL
OUM084002
OYF081013N
OUM084007
OYP084003K
■ Gasoline engine (THETA 2.4L GDI)
■Gasoline engine (THETA 2.0L T-GDI)
■Gasoline engine (Lambda 3.3L GDI)
UM CAN (ENG) 8.qxp 12/1/2014 1:14 PM Page 10
