Page 38 of 92
35
Favorites
Select PHONE key in the head unit
▶ and then
Favorites .
Name Description
Favorites Lists the phone numbers
saved as Favorites. Select
from the list to dial the num-
ber.
Add New
Adds a new number to
Favorites.
Delete
Items Deletes numbers that you
select from Favorites.
Delete
All Deletes all of the numbers
from Favorites.
Contacts
Select PHONE key in the head unit
▶ and then
Contacts.
Name Description
Contacts List The list of Contacts.
Select from the list to
dial the number.
Information
Displays contact infor-
mation.
Download Downloads contacts
from your mobile
phone.
Search by
Name Searches Contacts
for the name that you
enter.
Search by
Number Searches Contacts
for the number that
you enter.
Add to
Favorites Adds a phone num-
ber to Favorites.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E
< & / > " 7 / 2 3 ( J O E E ß
y
Page 39 of 92
36
Recommendations
Required for
Successful Voice
Recognition
1. Voice recognition supports only
the commands that are displayed
on the screen and written in the
User’s Guide.
2. To ensure the correct recognition
and execution of your command,
say your command when you hear
the beep after a voice prompt.
3. Voice recognition automatically
ends if:
1) A call is incoming or outgoing
2) A media (USB or iPod, etc.) is
connected or disconnected
3) The front or rear view camera
is operated (optional)
4) The car engine starts or stops
5) A system key, such as
RADIO
or
MEDIA is selected
6) An emergency occurs, for
example re-searching for the
route after the navigation
route has been lost
4. The microphone that recognizes
your voice is located over the
head part in the driver’s seat.
To make your commands bet-
ter understood, keep your body
straight in the driver’s seat when
speaking the command. 5.
Speaking naturally and clearly will
ensure better recognition of your
voice commands.
6. In the following cases voice rec-
ognition will be affected by ambi-
ent noise.
1) The sound of the wind if any
window or the sun roof is
open.
2) A strong wind blowing from
the air vents. Set climate con-
trol to blow softer than level 3.
3) Vibrations from passing
through a tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
Voice Recognition
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 40 of 92
37
Starting/Ending
and Setting Voice
Recognition
Starting Voice
Recognition
Press the key briefly (less
than 0.8 seconds) on the steering
wheel remote control to activate
voice recognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bot- tom of the screen to end voice
recognition.
2. Press and hold (over 0.8 sec- onds) the
key on the
steering wheel remote control to
end voice recognition.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 50 of 92
47
Siri Eyes Free
How to start Siri
If you want to use Siri, you have
to connect your iOS device to
Multimedia system through
Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri with long
pressing
key on the steer-
ing wheel.
How to use Siri
When you access the Siri screen
with long pressing
key on
the steering wheel, you can press
Speak button and then you can
speak what you want. Please see
the Multimedia system only supports
“Phone” related functions. Other
functions will be performed in your
iOS device. If you press voice key
shortly, Siri would re-start. If you
press voice key long, Siri would be
terminated and the screen would go
back to the previous screen. Eyes-
Free mode would be activated auto-
matically while you driving. When
shifting gears into P or putting the
Parking break on, Eyes-Free mode
would be deactivated automatically.
i Information
Functions and feedbacks from voice commands via Siri are executed in iOS
device. If iOS version will be changed,
functions and feedbacks can be
changed according to iOS device.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 51 of 92
48
About Pairing Mobile Phones
QI cannot pair my mobile phone, what is the cause?
A
Check to see that the mobile phone supports Bluetooth® function. Verify
if Bluetooth on the cell phone is set to OFF. If so, set it to ON. If the cell
phone still can’t be registered, try again after turning Bluetooth off and on,
or delete the device registration on the AVN and cell phone and then regis-
ter the cell phone again.
Q
What is the difference between pairing a mobile phone and connecting a mobile phone?
A
Pairing occurs through authenticating the head unit and mobile phone. Mobile phones paired to the head unit can be connected and disconnected \
until the paired mobile phone is deleted from the system. Bluetooth
®
Handsfree features, such as making/answering calls or managing contacts,
are supported only in mobile phones connected with the head unit.
Q
What is a Passkey?
A
A passkey is the password used to authenticate the connection between the head unit and mobile phone. The passkey only needs to be entered
once when pairing the mobile phone for the first time.
The initial passkey is 0000. You can change it with
SETUP Ü
Phone Ü
Bluetooth System Info Ü
Passkey menu options.
FA Q
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 52 of 92
![KIA SORENTO 2016 Navigation System Quick Reference Guide 49
About Making/Answering Phone Calls
Q
How can I answer a call?
A
When there is an incoming call, a notification pop-up will become displa\
yed. To answer the incoming call, press the
Accept butto](/img/2/54709/w960_54709-51.png "KIA SORENTO 2016 Navigation System Quick Reference Guide 49
About Making/Answering Phone Calls
Q
How can I answer a call?
A
When there is an incoming call, a notification pop-up will become displa\
yed. To answer the incoming call, press the
Accept butto")
49
About Making/Answering Phone Calls
Q
How can I answer a call?
A
When there is an incoming call, a notification pop-up will become displa\
yed. To answer the incoming call, press the
Accept button using the center
controller or the
key on the steering remote controller. To reject the
call, press the
Reject button on the screen or press and hold (over 0.8
seconds) the
key on the steering remote controller.
Q
What should I do if I am talking on the Handsfree but want to switch the call
to the mobile phone?
A
While on a call, press the key on the steering remote controller or
press the
Use Private button at the bottom of the Phone screen to switch
the call to your mobile phone.
About Bluetooth® Wireless Technology/
Head Unit Use Environment
Q
What is the range of my wireless connection?
A The wireless connection can be used within 15 yards.
Q
How many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
Q
Why is call quality sometimes poor?
A
Check the reception sensitivity of the mobile phone when call quality
becomes worsened. The call quality may deteriorate when the signal
strength is low. Call quality may also worsen if metal objects, such as bev-
erage cans, are placed near the mobile phone. Check to see if there are
metal objects in the vicinity of the mobile phone. The call sound and quality
may differ depending on the type of mobile phone.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 53 of 92
50
Pandora Radio Mode
Press the “Pandora” icon after selecting All Menus or the INFO hard-key to
enter Pandora Radio mode.
Pandora Radio Mode Screen Controls
Pandora Radio
Name Description
Mode Displays currently operating mode.
Station Info Shows the station name currently playing.
Track Info Shows the artist/title information currently playing.
Play Time Displays the current play time.
Thumb
DownIf you don’t like the music currently playing, press this button to move to the
next music and to minimize the number of playbacks of similar genre music.
You can move to the next song up to specific number of times
which Pandora allows
Thumb up If you like the genre of the music currently playing, press this but-
ton to send a “Thumb Up” signal to Pandora so that more similar
music will play.
Play/Pause Plays/pauses the current song
SKIP Moves to the next track
You can move to the next song up to specific number of times which
pandora allows
Station List Moves to the station list screen.
Menus
Bookmark Track
Adds the music currently playing to the bookmarks list.
Bookmark Artist
Adds the artist of the music currently playing to the bookmarks list. You can view your bookmarked artists and songs from your
Pandora profile online. Go to pandora.com, then click on the
“Your Profile” button above the player. That will bring up a page
with your stations, bookmarked artists, and bookmarked songs.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 56 of 92
53
SiriusXM Data
About SiriusXM™
Data Service
The SiriusXM™ Data Service is
a paid membership Satellite radio
service which provides users with
traffic, stock, sports, and weather
information.
However, weather information is not
supported for vehicles purchased in
Canada.
Accessing
SiriusXM™ Data
Press the “SiriusXM Data” icon after
selecting
All Menus or the INFO
head unit key to enter the
SiriusXM™ Data mode.
SiriusXM™ Weather
Announcement
At the “SiriusXM Data” screen, press
the “Weather” icon to enter the
Weather Announcement mode.
Weather Forecast
This service provides current
weather information and weather
forecasts for the next five days in
your region. To change the region,
press the
Other City button and
select the desired region.
Warnings and Advisories
This service provides weather
warnings and advisories, such as
tornado, storm, Floodflood, etc. as
symbols on the Navigation map.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 57 of 92
54
SiriusXM™ Traffi c
Information
At the “SiriusXM Data” screen, press
the “Traffic” icon to enter the Traffic
Announcement mode.
SiriusXM™ Fuel
Price Information
At the “SiriusXM Data” screen, press
the “Fuel Prices” icon to enter the
Fuel Prices Information mode.
Search for Nearby Stations,
and Register Key Locations as
Favorite Stations.
Search for nearby stations with the
“Nearby Stations” menu.
It shows station locations, starting
from the nearest one, and select
“Nearest” menu on the top right side
to further sort them by price or brand
name.
Select the ★ button to the right of
the list to register key locations as
a Favorite Station so that you can
go there again with the

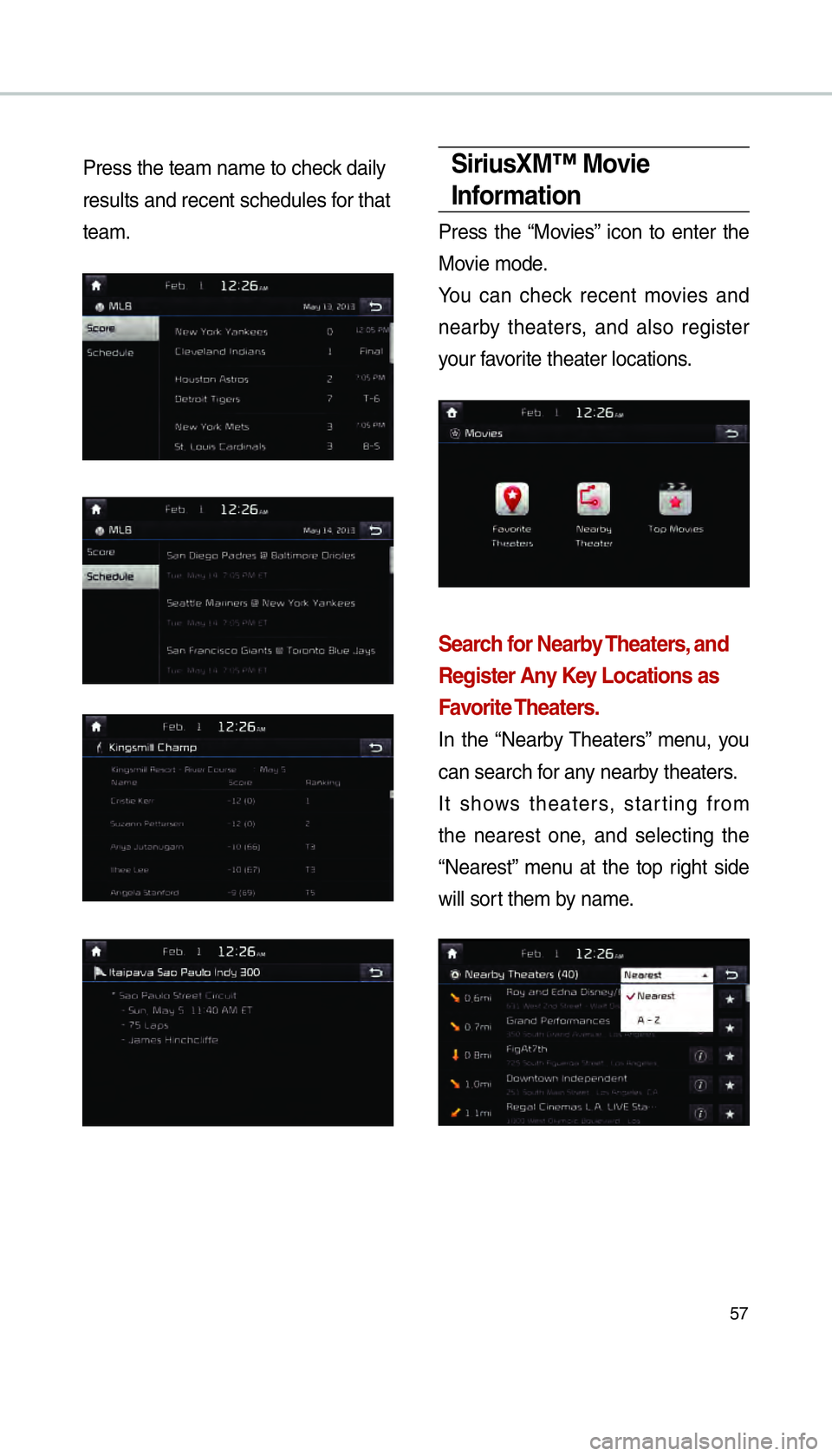

Page 60 of 92
57
Press the team name to check daily
results and recent schedules for that
team.SiriusXM™ Movie
Information
Press the “Movies” icon to enter the
Movie mode.
You can check recent movies and
nearby theaters, and also register
your favorite theater locations.
Search for Nearby Theaters, and
Register Any Key Locations as
Favorite Theaters.
In the “Nearby Theaters” menu, you
can search for any nearby theaters.
It shows theaters, starting from
the nearest one, and selecting the
“Nearest” menu at the top right side
will sort them by name.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
