key KIA SORENTO 2016 Navigation System Quick Reference Guide

65

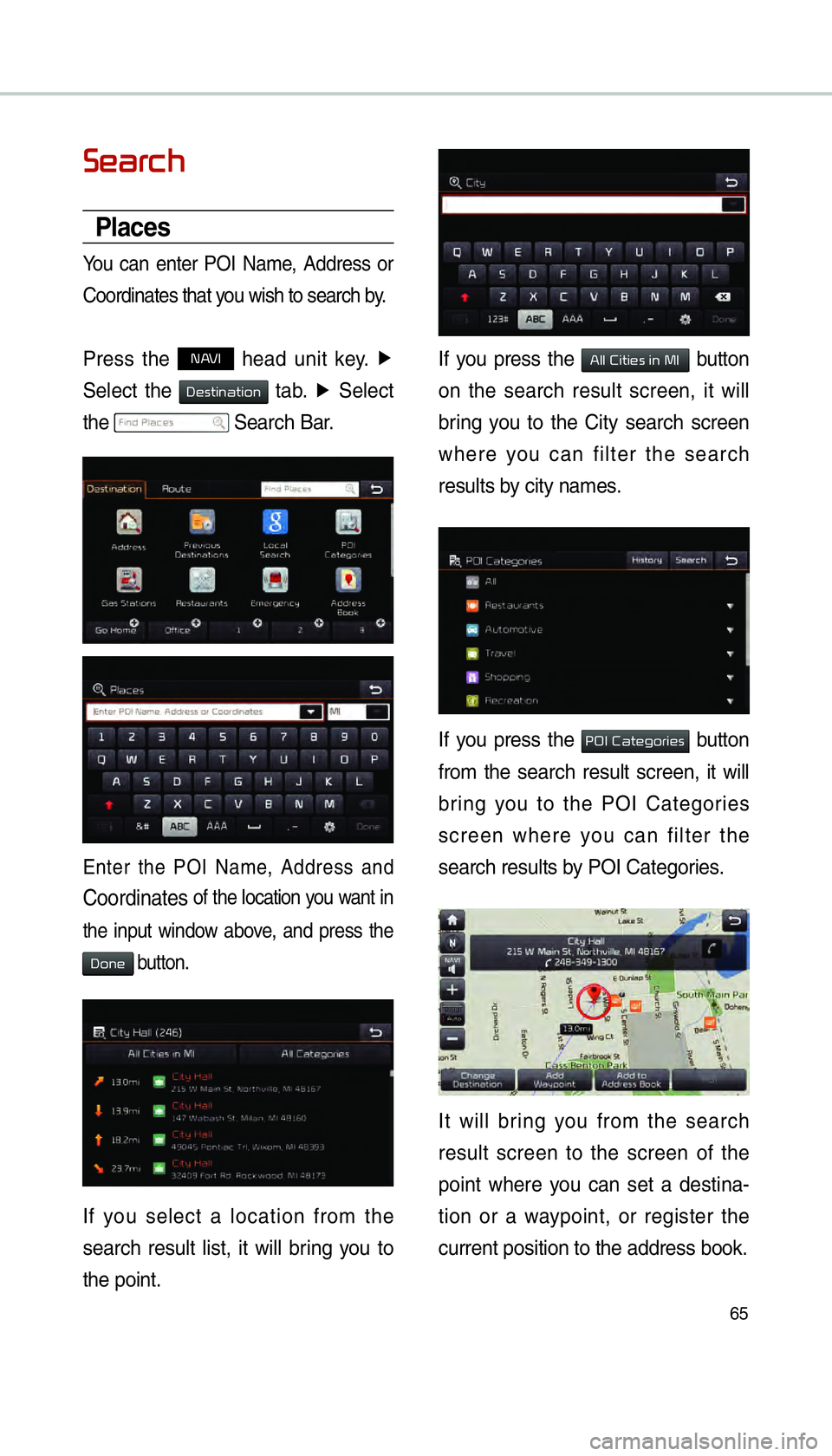

Search
Places
You can enter POI Name, Address or
Coordinates that you wish to search by.
Press the NAVI head unit key. Ü

Select the
Destination tab. Ü
Select
the
Search Bar.
Enter the POI Name, Address and
Coordinates of the location you want in
the input window above, and press the
Done button.
If you select a location from the
search result list, it will bring you to
the point.
If you press the All Cities in MI button
on the search result screen, it will
bring you to the City search screen
where you can filter the search
results by city names.
If you press the POI Categories button
from the search result screen, it will
bring you to the POI Categories
screen where you can filter the
search results by POI Categories.
It will bring you from the search
result screen to the screen of the
point where you can set a destina-
tion or a waypoint, or register the
current position to the address book.
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y


66

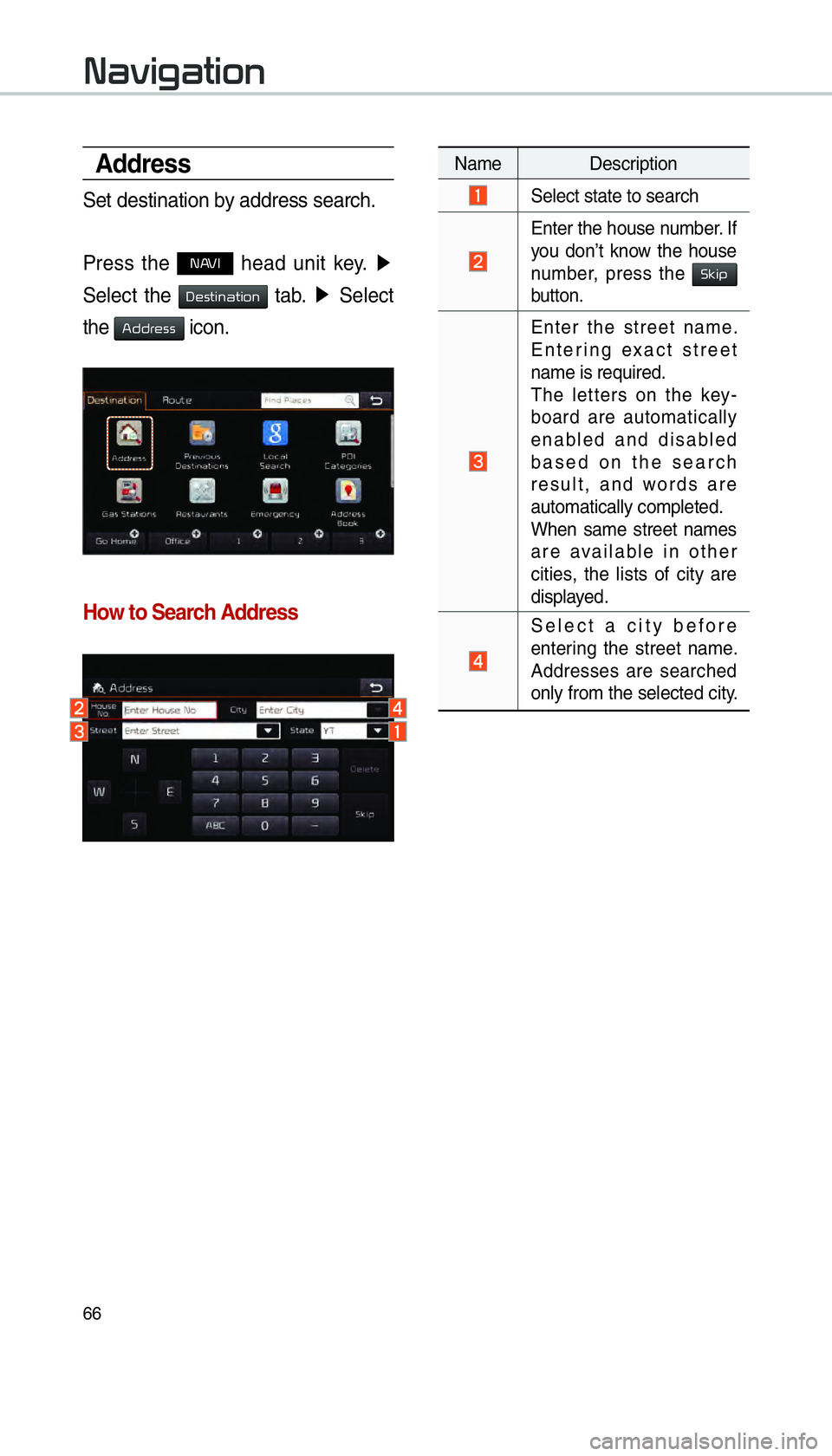

Address
Set destination by address search.
Press the
NAVI head unit key. ▶

Select the
Destination tab. ▶
Select
the
Address icon.
How to Search Address
Name Description
Select state to search
Enter the house number. If
you don’t know the house
number, press the Skip
button.
Enter the street name.
Entering exact street
name is required.
The letters on the key-
board are automatically
enabled and disabled
based on the search
result, and words are
automatically completed.
When same street names
are available in other
cities, the lists of city are
displayed.

Select a city before
entering the street name.
Addresses are searched
only from the selected city.
Navigation
,@6.@(<&/>"7/
23(JOEE



<&/>"7/
23(JOEE





ß
y


67

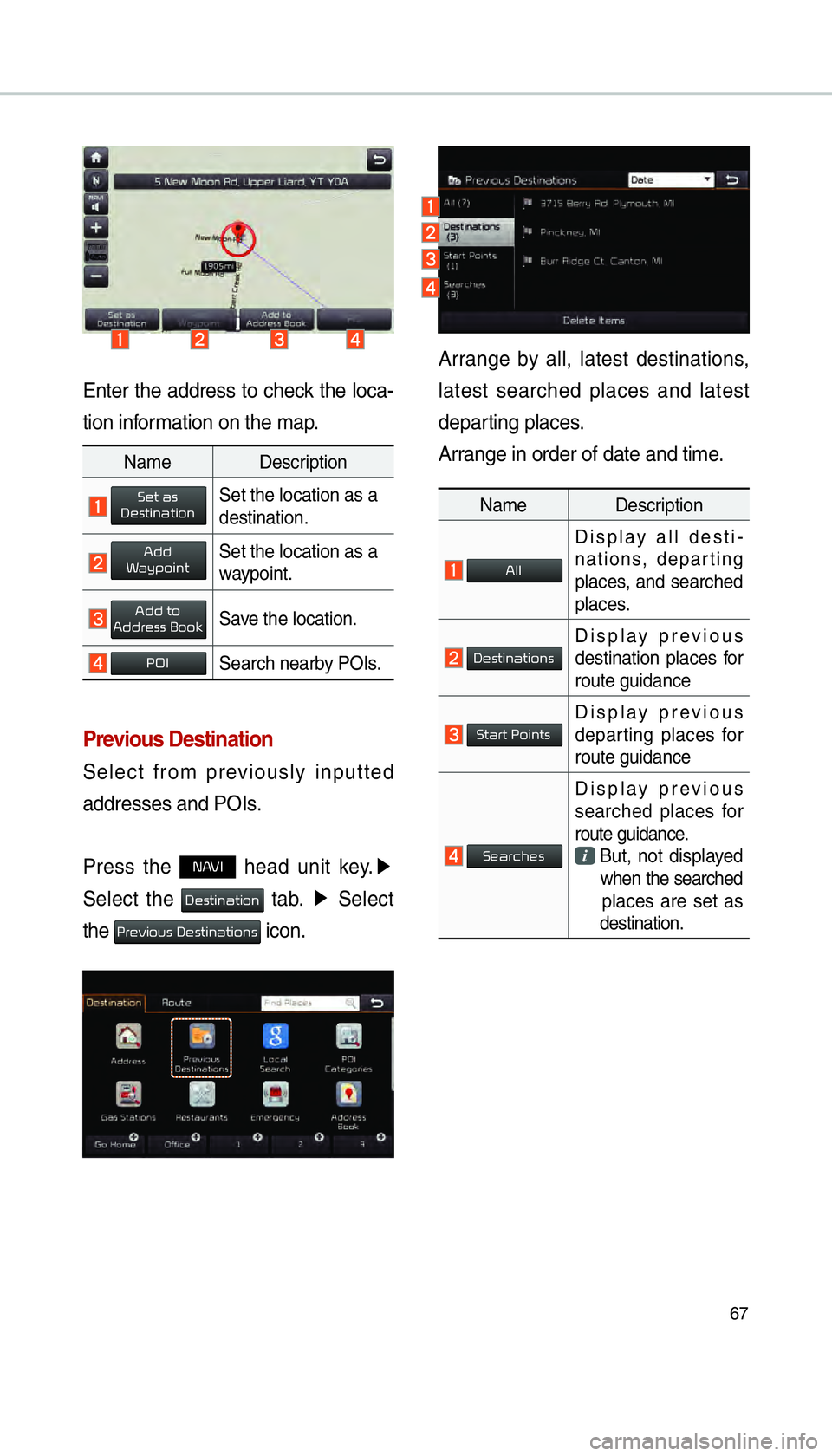

Enter the address to check the loca-
tion information on the map.
Previous Destination
Select from previously inputted
addresses and POIs.
Press the
NAVI head unit key.▶

Select the
Destination tab. ▶
Select
the
Previous Destinations icon.
Arrange by all, latest destinations,
latest searched places and latest
departing places.
Arrange in order of date and time.
Name Description
All
Display all desti-
nations, departing
places, and searched
places.
DestinationsDisplay previous
destination places for
route guidance
Start PointsDisplay previous
departing places for
route guidance
Searches
Display previous
searched places for
route guidance.
But, not displayed
when the searched
places are set as
destination.
Name Description
Set asDestinationSet the location as a
destination.
AddWaypointSet the location as a
waypoint.
Add toAddress BookSave the location.
POISearch nearby POIs.
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y


68

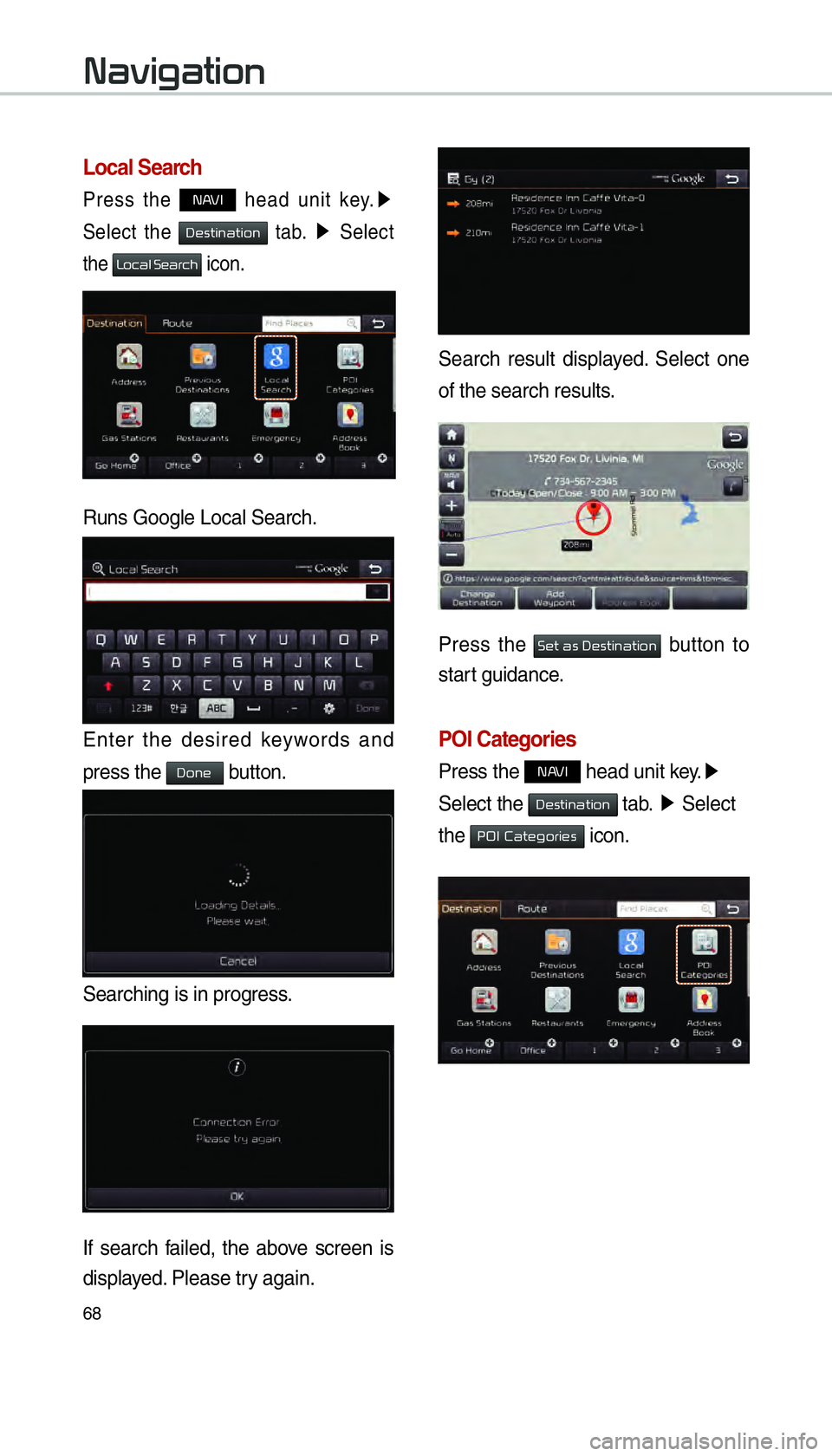

Local Search
Press the NAVI head unit key.▶

Select the
Destination tab. ▶
Select
the
Local Search icon.
Runs Google Local Search.
Enter the desired keywords and
press the
Done button.
Searching is in progress.
If search failed, the above screen is
displayed. Please try again. Search result displayed. Select one
of the search results.
Press the
Set as Destination button to
start guidance.
POI Categories
Press the NAVI head unit key. ▶

Select the
Destination tab. ▶
Select
the
POI Categories icon.
Navigation
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y


69

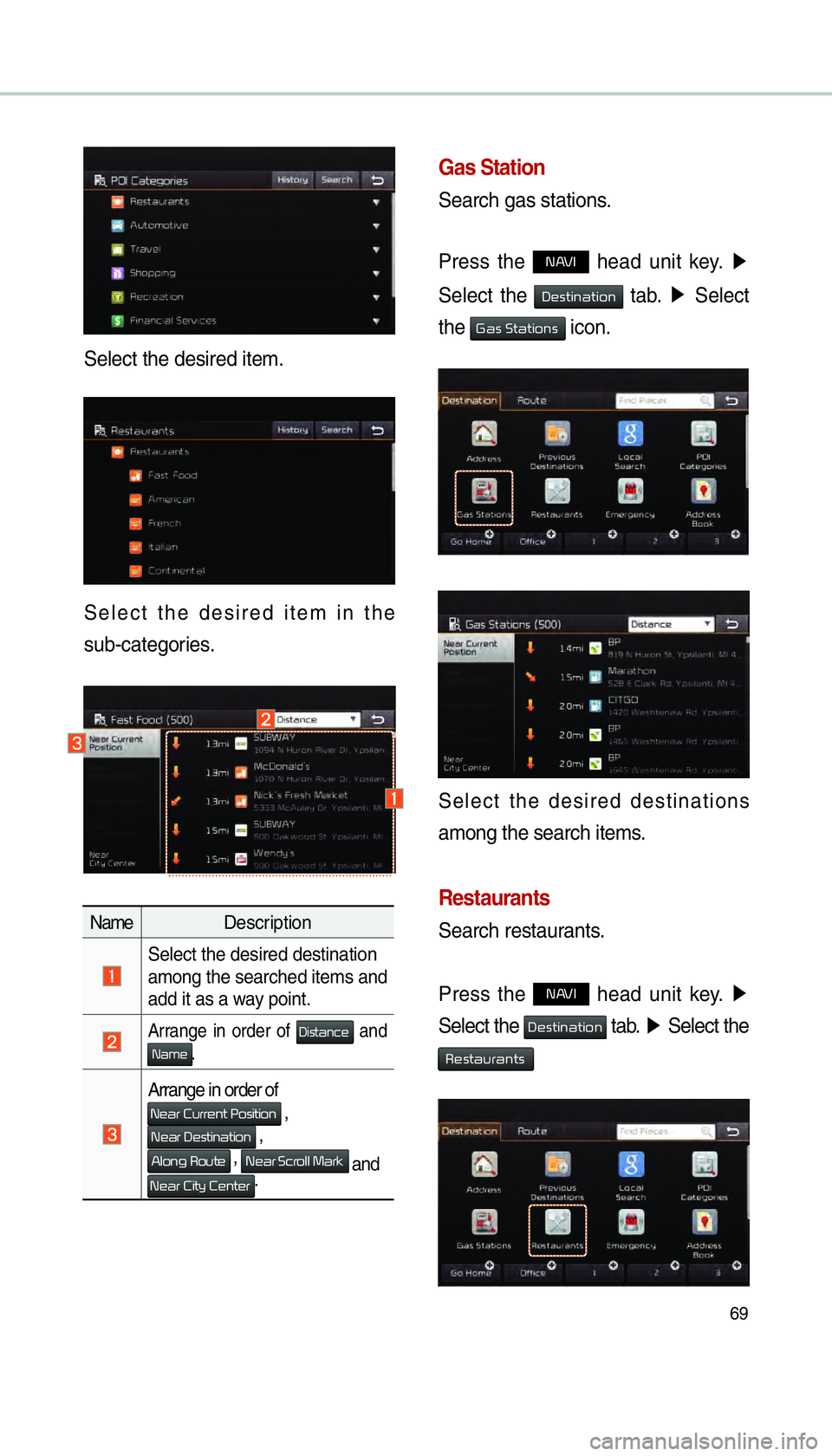

Select the desired item.
Select the desired item in the
sub-categories.
NameDescription
Select the desired destination
among the searched items and
add it as a way point.
Arrange in order of Distance and Name.
Arrange in order of
Near Current Position ,
Near Destination ,
Along Route , Near Scroll Mark
and
Near City Center.
Gas Station
Search gas stations.
Press the
NAVI head unit key.
▶

Select the
Destination tab. ▶
Select
the
Gas Stations icon.
Select the desired destinations
among the search items.
Restaurants
Search restaurants.
Press the
NAVI head unit key. ▶

Select the
Destination tab. ▶
Select the
Restaurants
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y


70
Select the desired destination
among the searched items.
Emergency
Search emergency facilities.
Press the
NAVI head unit key. ▶

Select the
Destination tab. ▶
Select the
Emergency
Check the current location informa-
tion and select the desired item in
the sub menu (ex. Police Station)
Select the desired destination
among the searched items.
Address Book
Search the destination with the
address book.
Press the
NAVI head unit key. ▶

Select the
Destination tab. ▶
Select
the
AddressBook
Select the desired group.
Save in the Favorite Places, then
route can be set easily by using
3 buttons such as
Go Home and
Office on the button of the menu.
Navigation
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y


71
Phone Number
Press the NAVI head unit key.▶

Select the
Phone Number to search
POI by phone.
Search destination by phone number.
Name Description
Select the desired destination
from the searched items.
Edit the destination.

Register a new destination.
Delete the desired item.
Type phone number to search. To
search for a list of numbers, press
Done when results are narrowed
and the button
Done is activated.
Select the desired destination
among the searched items.
Press the Set as Destination button to
start guidance.
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y


72

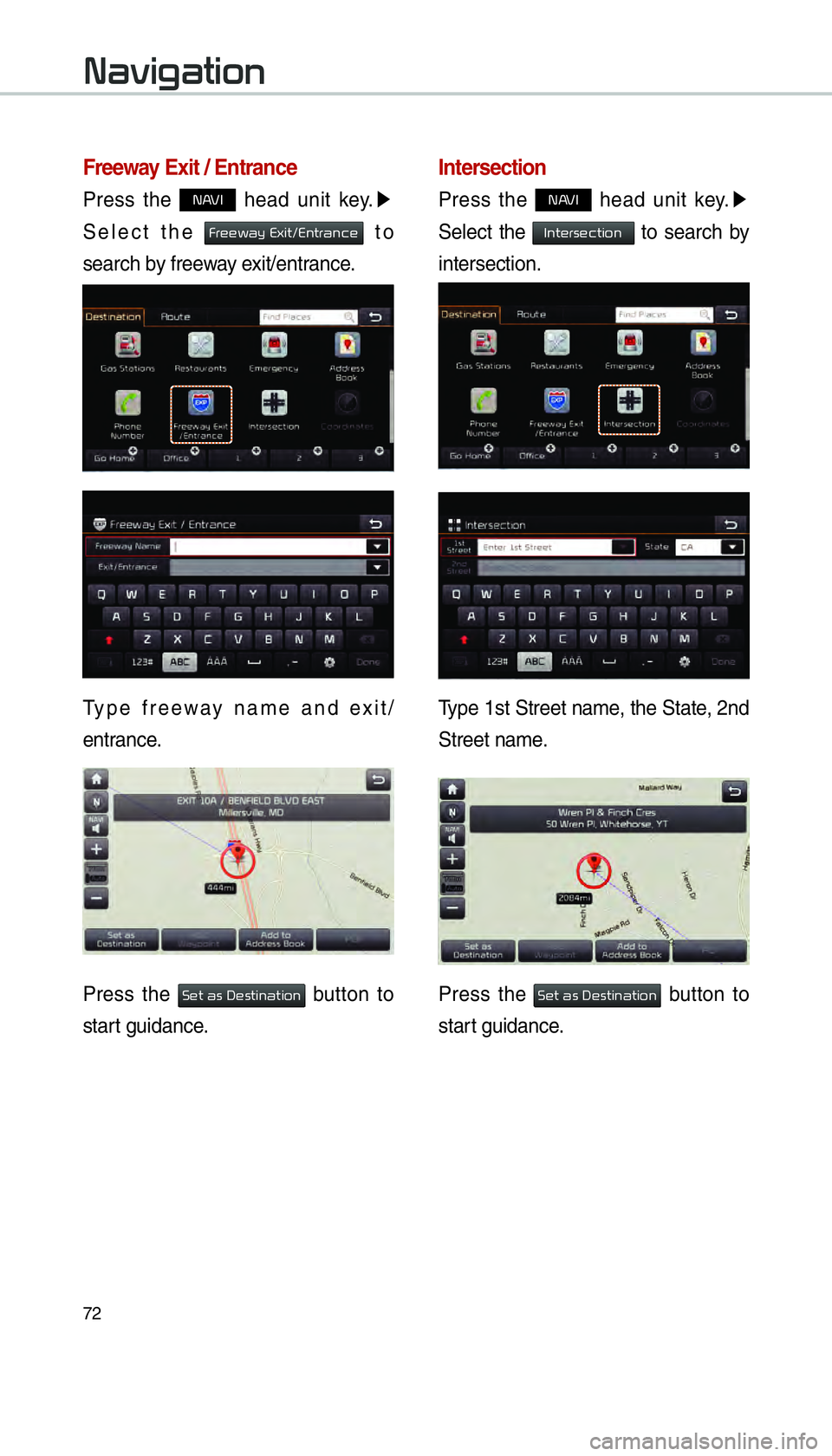

Freeway Exit / Entrance
Press the NAVI head unit key.▶

Select the
Freeway Exit/Entrance to
search by freeway exit/entrance.
Type freeway name and exit/
entrance.
Press the Set as Destination button to
start guidance.
Intersection
Press the NAVI head unit key. ▶

Select the
Intersection to search by
intersection.
Type 1st Street name, the State, 2nd
Street name.
Press the Set as Destination button to
start guidance.
Navigation
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y


73
Coordinates
Press the NAVI head unit key.▶

Select the
Coordinates to search by
coordinates.
There are two ways to search by
coordinates (D.M.S or Decimal
degrees). After typing coordinates,
press the
Done button to search.
Press the Set as Destination button to
start guidance.
Favorite Places
Set the route using your favorite
places.
Press the
NAVI head unit key. ▶

Select the
Destination tab. ▶
Select
from our favorite places
On the button where locations are
not registered, the
icon is dis-
played. When a location is regis-
tered, the
button disappears and
the buttons 1 to 3 are displayed as
the registered place names.
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y


75
All Routes
When the alternative routes option
is enabled in navigation setting, two
routing options are displayed based
on faster time and shorter distance.
Faster Time : Select time optimized
route, being the fastest roads.

Shorter Distance : Select short
distance, irrespective of how fast or
slow progress will be calculated.
Name Description
Faster Time
Display total dis-
tance, travel time,
and toll fees. Select
the desired route.
Start GuidanceStart the guidance
with the route.
Route OptionsChange the route
option.
Route PreviewPreview turn-by-
turn list.
Edit RouteEdit the route.
Total Display total dis-
tance of the route.
Freeway Display length of
freeway on the
route.
Toll Road Display length of toll
road on the route.
FerryDisplay length of
Ferry route on the
route.
The route will be calculated using
the option “Faster Time” by default.
Alternative routes can be suggested
if necessary,
SETUP key
▶ Navigation
Icon ▶
Route ▶
Alternative : ON
,@6.@(<&/>"7/
23(JOEE


 <&/>"7/
23(JOEE





ß
y
