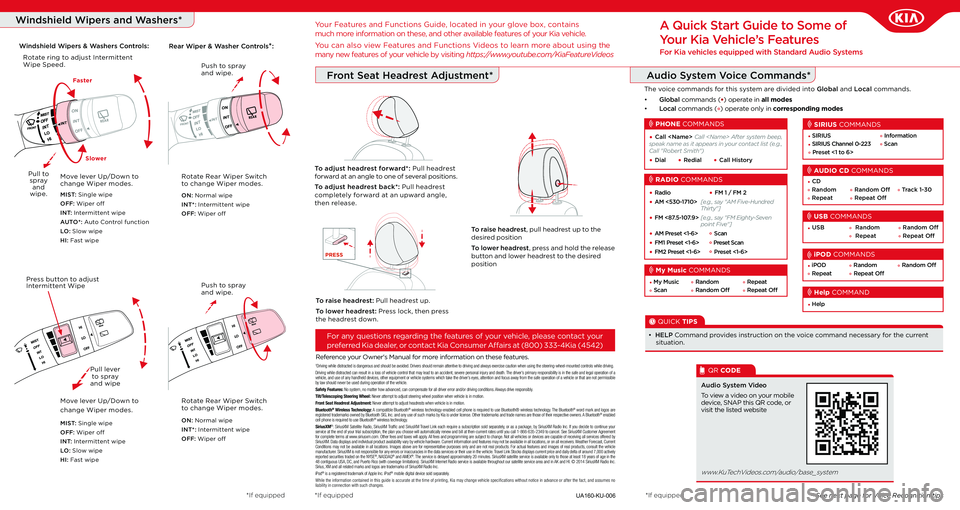

KIA SORENTO 2017 Quick Start Guide Base Audio

Audio System Voice Commands*
Windshield Wipers and Washers*
UA160-KU-006
Reference your Owner's Manual for more information on these features.
See next page for Voice Recognition tips
For any questions regarding the features of your vehicle, please contact your
preferred Kia dealer, or contact Kia Consumer Affairs at (800) 333-4Kia (4542)
Your Features and Functions Guide, located in your glove box, contains
much more information on these, and other available features of your Kia vehicle.
You can also view Features and Functions Videos to learn more about using the
many new features of your vehicle by visiting https://www.youtube.com/KiaFeatureVideos
A Quick Start Guide to Some of
Your Kia Vehicle’s Features
For Kia vehicles equipped with Standard Audio Systems
The voice commands for this system are divided into Global and Local commands.
• Global commands (●) operate in all modes
• Local commands (°) operate only in corresponding modes
• Call Call After system beep, speak name as it appears in your contact list (e.g., Call "Robert Smith")
• Dial • Redial • Call History
PHONE COMMANDS
• SIRIUS
• SIRIUS Channel 0-223
° Preset <1 to 6>
° Information
° Scan
SIRIUS COMMANDS
• CD
° Random ° Random Off ° Track 1-30
° Repeat ° Repeat Off
AUDIO CD COMMANDS
• My Music ° Random ° Repeat
° Scan ° Random Off ° Repeat Off
My Music COMMANDS• iPOD ° Random ° Random Off
° Repeat ° Repeat Off
iPOD COMMANDS
QR CODE
To view a video on your mobile device, SNAP this QR code, or visit the listed website
Audio System Video
www.KuTechVideos.com/audio/base_system
• USB ° Random ° Random Off
° Repeat ° Repeat Off
USB COMMANDS
• HELP Command provides instruction on the voice command necessary for the current situation.
QUICK TIPS
*If equipped*If equipped*If equipped
Front Seat Headrest Adjustment*
†Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution \
when using the steering-wheel-mounted controls while driving.Driving while distracted can result in a loss of vehicle control that ma\
y lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that a\
re not permissible by law should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in moti\
on.Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.Bluetooth® Wireless Technology: A compatible Bluetooth® wireless technology-enabled cell phone is required to use Bluetooth®\
wireless technology. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations,\
or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data \
services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000\
actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2014 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc\
. iPod® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately.While the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance or after the fact, and assumes no liability in connection with such changes.
RADIO COMMANDS
• Radio • FM 1 / FM 2
• AM <530-1710> [e.g., say "AM Five-Hundred Thirty"]
• FM <87.5-107.9> [e.g., say "FM Eighty-Seven point Five"]
• AM Preset <1-6> ° Scan
• FM1 Preset <1-6> ° Preset Scan
• FM2 Preset <1-6> ° Preset <1-6>
• Help
Help COMMANDTo raise headrest: Pull headrest up.
To lower headrest: Press lock, then press the headrest down.
PRESS
To raise headrest, pull headrest up to the desired position
To lower headrest, press and hold the release button and lower headrest to the desired position
To adjust headrest forward*: Pull headrest forward at an angle to one of several positions.
To adjust headrest back*: Pull headrest completely forward at an upward angle, then release.
Windshield Wipers & Washers Controls:Rear Wiper & Washer Controls*:
Move lever Up/Down to change Wiper modes.
M I S T: Single wipe
OFF: Wiper off
I N T: Intermittent wipe
AUTO*: Auto Control function
LO: Slow wipe
HI: Fast wipe
Pull to sprayand wipe.
Rotate ring to adjust Intermittent Wipe Speed. Push to spray and wipe.
ON: Normal wipe
INT*: Intermittent wipe
OFF: Wiper off
Rotate Rear Wiper Switch to change Wiper modes.
Faster
Slower
Move lever Up/Down to
change Wiper modes.
M I S T: Single wipe
OFF: Wiper off
I N T: Intermittent wipe
LO: Slow wipe
HI: Fast wipe
Pull lever to spray and wipe
Push to spray and wipe.
ON: Normal wipe
INT*: Intermittent wipe
OFF: Wiper off
Rotate Rear Wiper Switch to change Wiper modes.
Press button to adjust Intermittent Wipe

Copying Songs to My Music
Media Mode allows you to copy songs from USB Devices, and store them in My Music
1 For Red Illumination Displays, while the song is playing, press MENU key then scroll to Copy then press knob to confirm
For Full Color Displays, press Copy on screen
2 Once copying is complete, you can listen to the copied music file in My Music by pressing the
MEDIA key repeatedly until My Music appears on the display
Listening to your iPod®
1 Connect an iPod® device or, if an iPod® device is already connected, repeatedly press the
MEDIA key until iPod® appears on the display
NOTE: Use the iPod® cable that was supplied with your device
Manually Selecting iPod® Music
1 Turn the FILE / TUNE knob on the Audio System to scan through music categories
2 When you find the desired selection, press the FILE / TUNE knob to play
Listening to Music from your Bluetooth® Wireless Technology Device
1 If not already done, pair your Bluetooth® wireless technology device to the Audio System
2 Press the MEDIA key, until Bluetooth® Audio is displayed on the screen
3 Press the Seek/Track key to scroll through music songs
4 For Red Illumination Displays, to pause a track or song streaming from your Bluetooth®
wireless technology device, press the FILE / TUNE knob. Press again to resume play
For Full Color Displays, press PLAY/PAUSE button on screen
When adjusting the steering wheel in and out, the effort is reduced if the wheel is lifted upward when pulling out/pushing in.
There are two ways to use the steering wheel control buttons to place a call.
NOTE: Remember to always wait for the beep before speaking any commands
These buttons on your steering wheel provide you with "hands free" control over your mobile phone equipped with Bluetooth® wireless technology and Audio System.
TALK Button(push to place a call with vocal command prompts)
RECEIVE CALL Button(push to display call history, or to answer an incoming call)
END CALL Button
*If equipped*If equipped*If equipped
Press the RECEIVE CALL button
Press the TALK button (Wait for system to beep. Some systems may offer prompts to assist in placing call)
1
2
Using Steering Wheel Control Buttons†*
Climate Control Systems
NOTE: Climate Control System options and the appearance and location of icons on the system in your vehicle may differ, as equipped
Fan speed control switch/knob*
Temperature control switch/knob*
Front windshield defroster button*
Automatic climate control button*
Recirculated air button
Climate information screen*
Air conditioning ON/OFF button
Rear windshield defroster button*
Mode selection button(s)*
Dual temperature control mode*
System OFF*
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
Climate Control System functions differ between systems and vehicles. Presented below are descriptions of the most common control functions:
QUICK TIPS
• Keep interior glass surfaces as clean as possible to reduce window fogging
• Defrost Mode activates A/C and opens Fresh Air Vent
• When Automatic Climate Control is set to Auto Operation, the A/C indicator will NOT illuminate. The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity.
QUICK TIPS
Automatic and Manual Defrosting / Defogging
Max Defrost:
Select Defrost Mode
Select Max Fan Speed
Set Temperature to Hot
1
2
3
Defogging:
Select Defrost Mode
Select Max Fan Speed
Select desired Temperature†
1
2
3
†If moisture appears on windshield, adjust Temperature Control Knob to a warmer temperature
QUICK TIPS
The Kia Voice Recognition System may have difficulty understanding some accents or uncommon names. When using Voice Recognition to place a call, speak in a moderate tone, with clear pronunciation. Voice Recognition performance can be improved by ensuring all windows and sunroof are closed, and that Climate Control System fan speed has been lowered to reduce noise in the cabin.
To maximize the use of Voice Recognition, consider these guidelines when storing contacts:
• Use full names vs. short or single syllable names (“John Smith” vs. “Dad”, “Smith Residence” vs. “Home”)
• Avoid using special characters or hyphens (@, &, #, /, -, *, +, etc.)
• Avoid using acronyms (“In Case Emergency” vs. “ICE”)
• Spell words completely, no abbreviations (“Doctor Goodman” vs. “Dr. Goodman”)
NOTE: Always wait for the beep before speaking any commands.
Voice Recognition and Phone Contact Tips
Snap this tag with a QR code reader app on your smart phone to view a video.

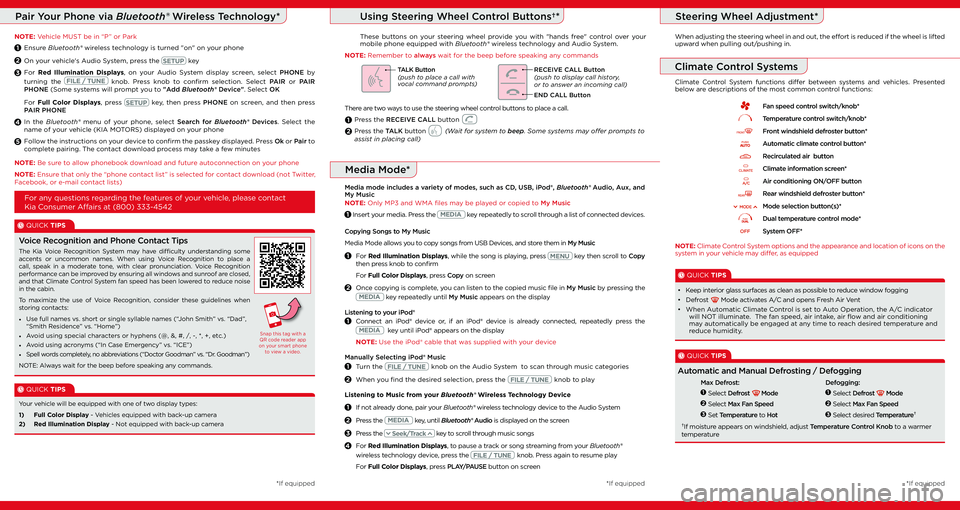

Pair Your Phone via Bluetooth® Wireless Technology*
NOTE: Vehicle MUST be in “P” or Park
Ensure Bluetooth® wireless technology is turned "on" on your phone
On your vehicle's Audio System, press the SETUP key
For Red Illumination Displays, on your Audio System display screen, select PHONE by
turning the FILE / TUNE knob. Press knob to confirm selection. Select PAIR or PAIR PHONE (Some systems will prompt you to "Add Bluetooth® Device". Select OK
For Full Color Displays, press SETUP key, then press PHONE on screen, and then press PAIR PHONE
In the Bluetooth® menu of your phone, select Search for Bluetooth® Devices. Select the name of your vehicle (KIA MOTORS) displayed on your phone
Follow the instructions on your device to confirm the passkey displayed. Press Ok or Pair to complete pairing. The contact download process may take a few minutes
1
2
3
4
5
1 Insert your media. Press the MEDIA key repeatedly to scroll through a list of connected devices.
Media Mode*
Media mode includes a variety of modes, such as CD, USB, iPod®, Bluetooth® Audio, Aux, and My MusicNOTE: Only MP3 and WMA files may be played or copied to My Music
Steering Wheel Adjustment*
For any questions regarding the features of your vehicle, please contact
Kia Consumer Affairs at (800) 333-4542
NOTE: Be sure to allow phonebook download and future autoconnection on your phone
NOTE: Ensure that only the “phone contact list” is selected for contact download (not Twitter, Facebook, or e-mail contact lists)
QUICK TIPS
Your vehicle will be equipped with one of two display types:
1) Full Color Display - Vehicles equipped with back-up camera
2) Red Illumination Display - Not equipped with back-up camera
