Page 11 of 66

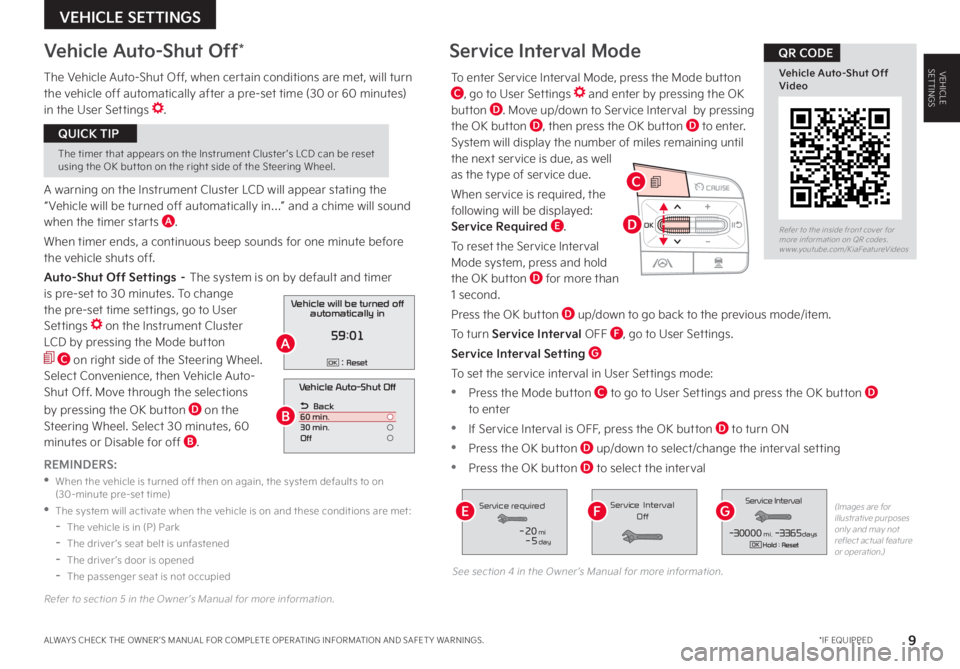

The Vehicle Auto-Shut Off, when certain conditions are met, will turn the vehicle off automatically after a pre-set time (30 or 60 minutes) in the User Settings .
A warning on the Instrument Cluster LCD will appear stating the “ Vehicle will be turned off automatically in…” and a chime will sound when the timer starts A .
When timer ends, a continuous beep sounds for one minute before the vehicle shuts off .
Auto-Shut Off Settings – The system is on by default and timer is pre-set to 30 minutes . To change the pre-set time settings, go to User Settings on the Instrument Cluster LCD by pressing the Mode button
C on right side of the Steering Wheel . Select Convenience, then Vehicle Auto-Shut Off . Move through the selections
by pressing the OK button D on the Steering Wheel . Select 30 minutes, 60 minutes or Disable for off B .
Vehicle Auto-Shut Off*
REMINDERS:
•
When the vehicle is turned off then on again, the system defaults to on (30-minute pre-set time)
•The system will activate when the vehicle is on and these conditions are met:
-The vehicle is in (P) Park
-The driver ’s seat belt is unfastened
-The driver ’s door is opened
-The passenger seat is not occupied
Vehicle Auto-Shut Off
Back
60 min.
30 min.
Off
Vehicle will be turned off automatically in
59:01
: ResetOK
9 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
.
The timer that appears on the Instrument Cluster ’s LCD can be reset using the OK but ton on the right side of the Steering Wheel .
QUICK TIP
To enter Service Interval Mode, press the Mode button C, go to User Settings and enter by pressing the OK button D . Move up/down to Service Interval by pressing the OK button D, then press the OK button D to enter . System will display the number of miles remaining until the next service is due, as well as the type of service due .
When service is required, the following will be displayed: Service Required E .
To reset the Service Interval Mode system, press and hold the OK button D for more than 1 second .
Press the OK button D up/down to go back to the previous mode/item .
To turn Service Interval OFF F, go to User Settings .
Service Interval Setting G
To set the service interval in User Settings mode:
•Press the Mode button C to go to User Settings and press the OK button D to enter
•If Service Interval is OFF, press the OK button D to turn ON
•Press the OK button D up/down to select/change the interval setting
•Press the OK button D to select the interval
Service Interval Mode
(Images are for illustrative purposes only and may not reflect actual feature or operation .)
S ervic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of fServic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of fServic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of f
4 F F T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
3 F G F S U P U I F J O T J E F G S P O U D P W F S G P S N P S F J O G P S N B U J P O P O 2 3 D P E F T X X X Z P V U V C F D P N , J B ' F B U V S F 7 J E F P T
Vehicle Auto-Shut Off Video
QR CODE
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
Refer to section 5 in the Owner ’s Manual for more information
.
VEHICLESETTINGS
VEHICLE SETTINGS
B
C
D
EGF
A
Page 12 of 66
10†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
COLLISION WARNING
EMERGENCY BRAKING
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian in the roadway through
front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if
necessary, temporarily apply emergency braking
. Initially, FCA provides Forward Collision Warning (FCW)
when it detects a potential collision with a vehicle, pedestrian, or cyclist, emitting an audible warning and
visual alert on the instrument cluster A . If the system detects that the collision risk has increased, Forward
Collision-Avoidance Assist (FCA) automatically applies the brakes to reduce your speed, potentially helping to
reduce the effects of a possible collision .
FCA User Settings:
•FCA is ON by default in most Kia models . FCA can be turned ON/ OFF
by going to the User Settings in the Instrument Cluster
•To go to User Settings , press the Mode button B on the Steering
Wheel when the vehicle is at a standstill, gear shift in Park and with
the ignition on or the Engine Start/Stop button* in the ON position
•Press the OK button C up/down and select User Settings then Driver Assistance
– In some models, go to Driving Assist, then Forward Collision-Avoidance Assist or Forward Collision
Warning and press the OK button C
– In other models, go to Forward Safety and select Active Assist, Warning Only or Off
•Then select one of the following modes:
- Active Assist: Vehicle will provide a warning (audible & visual) and apply the brakes if needed
- Warning Only: Vehicle will provide a warning only (audible & visual)
- Off: System is off, no warnings or braking provided
To adjust the FCA initial warning activation time, go to User Settings , Driver Assistance, Warning
Timing then select Normal, Early or Late, depending on your Kia model:
•Early: Maximizes the amount of distance between the vehicles before the initial warning occurs
•Normal/Standard: This setting allows for a nominal amount of distance between the vehicles before
the initial warning occurs
• Late: Reduces the amount of distance between the vehicles before the initial warning occurs
The default settings for Warning Timing is set to Normal . If the Warning Timing is changed, the warning
time of other Driver Assistance systems may also change .
FCA will become active when the:
•Ignition is on or the Engine Start/Stop button* is ON
•Vehicle is traveling faster than 5 mph
•Electronic Stability Control (ESC) is ON
B
C
A
FCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume
QUICK TIP
Forward Collision-Avoidance Assist (FCA)†4
For ward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle or aler t the driver when the vehicle is approaching another vehicle . Always drive safely and use caution . Actual User Set tings steps may var y by model . Your actual display, but tons and/or features may var y .
Refer to section 4 in the Owner ’s Manual for more information . For illustrative purposes only .
REMINDERS:
•
FCA will be activated by default when the ignition is cycled ON, even when previous set ting was OFF
•
If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA system is automatically turned off
•
When the FCA system is off, the FCA warning indicator is on in the Instrument Cluster
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Forward Collision- Avoidance Assist (FCA)Video
QR CODE
Page 13 of 66
11†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Blind-Spot Collision-Avoidance Assist (BCA)†4
REMINDERS:
•
BCA will not issue a warning if the vehicle speed is 6 mph or more above the surrounding vehicles
•
When BCA is ON and the ignition is cycled, BCA returns to its previous state
•
BCA is a supplemental system . Do not rely solely on this system . Always pay at tention to the road and drive safely
The BCA system is not a substitute for safe and proper driving . Always drive safely and use caution .
Refer to section 5 in the Owner ’s Manual for more information .
The images on this page are for illustrative purposes only and may not reflect actual feature or operation .
BCA uses rear corner radar sensors in the rear bumper to monitor and warn the driver in certain situations if it detects an
approaching vehicle in the driver ’s blind spot area and before changing lanes . Initially, BCA provides Blind-Spot Collision Warning
(BCW) when it detects a potential collision with a vehicle, emitting an audible warning and visual alert on the outside rearview
mirrors . If the system detects that the collision risk has increased, Blind-Spot Collision-Avoidance Assist (BCA) automatically applies
the opposite side front brake to try and mitigate a potential collision .
1st-stage warning: When another vehicle is detected within BCW warning boundary A, an indicator
will illuminate on the outside rearview mirrors B .
2nd-stage warning: When 1st stage warning is on and the driver activates a turn signal, a flashing
yellow indicator will illuminate on the outside rearview mirrors and the system will sound a warning .
3rd-stage: When 1st stage warning is on and the 2nd stage warning has already occurred, and the
collision risk has increased, braking is applied to the opposite side front wheel and a visual warning occurs .
BCW User Settings:
•To turn BCA on, go to the User Settings menu in the Instrument Cluster, press the Mode
button C on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and
with the ignition switch or the Engine Start/Stop button* in the ON position, and select User
Settings . Press the Move (OK) button D up/down and select Driver Assistance, Blind-Spot
Safety and then press the OK button D
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup
hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•
To set BCW when in Blind-Spot Safety, select:
– Active Assist: BCA will provide a warning (audible & visual) and may activate
Electronic Stability Control (ESC) and temporarily apply braking power
– Warning Only: Vehicle will provide a warning only (audible & visual)
– Off: System is off, no warnings provided
•
To set the initial warning activation time, go to User Settings , then Driver
Assistance, Warning Time and press the OK button D . Adjust the warning timing:
– Early: Maximizes the amount of distance between the vehicles before the initial
warning occurs
- Normal: This setting allows for a nominal amount of distance between the
vehicles before the initial warning occurs
– Late: Reduces the amount of distance between the vehicles before the
initial warning occurs
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Blind-Spot Collision-Avoidance Assist Video
QR CODE
•BCW Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume
•BCW will activate when:
– The system is turned on
– Other vehicles are detected on the rear sides of the vehicle
– Vehicle speed is above approximately 20 mph
QUICK TIPS
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
B
C
D
A
Page 14 of 66
12†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Lane Keeping Assist and Lane Depar ture Warning are not substitutes for safe driving and may not always aler t the driver if the vehicle is driven outside of its lane . Always drive safely and use caution .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Actual User Set tings steps may var y by model . Refer to section 4 in the Owner ’s Manual for more information .
Lane Keeping Assist (LKA)†4
Lane Keeping Assist (LK A) is designed to detect the lane markers on the road with a front view camera on the windshield, and may assist the driver ’s steering to potentially help keep the vehicle in the lane . When turned on, the instrument cluster indicator will initially illuminate white when turned on . It will remain white when the vehicle is traveling slower than 40 mph or when the system does not detect the lane markers . When the system detects the lane markers and can assist the steering, the LK A icon will illuminate green .
If the LK A detects that you are moving outside of your lane, the system may give an audible warning and display Lane Departure Warning on the instrument cluster . If the vehicle continues to move outside of the lane, LK A may provide steering inputs, trying to prevent the vehicle from moving outside its lane .
LK A is the operating mode by default when the Lane Safety/LK A button* A is depressed to ON .
There are three available modes:
•Active LKA – Provides more frequent steering inputs than standard LK A
• Lane Keeping Assist – Guides driver to keep vehicle within lanes and provides steering inputs when vehicle is about to deviate from the lane
•
Lane Departure Warning – Alerts driver when the system detects the vehicle leaving the lane . In this mode the system will not provide steering inputs
All systems will operate under the following conditions:
•The vehicle speed exceeds approximately 40 mph
•
LK A recognizes both sides of the lane markers the vehicle is traveling in
•
The vehicle is between the lane markers
When the front-view camera does not detect the lane traveling in, the lanes are not illuminated
When the front-view camera detects the lane traveling in, both lanes are illuminated
L ANE KEEPING ASSISTL ANE KEEPING ASSISTL ANE KEEPING ASSISTL ANE KEEPING ASSIST
When the front-view camera detects the vehicle moving outside of the lane traveling in, a vehicle crossing lane indicator will blink, either on the left or right lane (as shown in both images above)
HOLD
(Located on Driver ’s Panel to the left of the steering wheel)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Lane Keeping Assist (LK A) Video
QR CODE
A
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 15 of 66
13†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
LKA User Settings:
•
To turn LK A ON, with the ignition on or the Engine Start/Stop button* in the ON position, press the Lane Safety/LK A button* A . The instrument cluster indicator will initially illuminate white indicating the system is on
•To turn LK A on in the user settings, go to the User Settings menu in the Instrument Cluster, press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•To switch between LK A modes (Lane Keep Assist, Lane Departure Warning), go to User Settings in the Instrument Cluster . Press the Move (OK) button C up/down and select desired setting and press the OK button C
REMINDERS:
•
LK A will not issue a warning if the turn signals or hazard lights are activated
•
When the ignition is cycled, LK A will return to the previously set state
•
Some models access set tings through the Vehicle Set tings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Set tings
Lane Keeping Assist (LKA)†4 (continued)
HOLD
(Located on Panel to the left of the steering wheel)
Lane Keeping Assist and Lane Depar ture Warning are not substitutes for safe driving and may not always aler t the driver if the vehicle is driven outside of its lane . Always drive safely and use caution .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Actual User Set tings steps may var y by model . Refer to section 4 in the Owner ’s Manual for more information .
Blind-Spot View Monitor
(BVM)*†4
Blind-Spot View Monitor (BVM) is designed to display the rear and side of the vehicle blind spot areas in the Instrument Cluster LCD when the system is activated .
To turn BVM on, go to User Settings in the Instrument Cluster by pressing the Mode button D on the Steering Wheel (Instrument Cluster Type A) . Select Driver Assistance > Blind-Spot Safety > Blind-Spot View and press the OK button E .
BVM will operate when the Engine Start/Stop button is on and the turn signal is activated .
BVM will not operate when the Engine Start/Stop button is off, a turn signal is deactivated or another warning screen comes up on the Instrument Cluster LCD .
See section 4 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
(But tons located on right side of the steering wheel)
(But tons located on right side of the steering wheel)
The LK A Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit .
QUICK TIP
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Blind-Spot View Monitor (BVM) Video
QR CODE
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISEB
C
A
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
E
D
Page 16 of 66
14†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
Driver At tention Warning is not a substitute for safe driving and may not detect all instances of inat tentive driving practices
. Failure to pay at tention to travel conditions and vehicle operation could result in loss of vehicle control . Always drive safely and use caution .
See section 5 in the Owner ’s Manual for more information .
Driver Attention Warning is designed to alert the driver if it detects inattentive driving practices and, in certain situations, can give a warning signal to take a break from driving .
Inattentive Driving Warning: DAW will inform the driver of the driver ’s attention level and will recommend taking a break when it falls below a certain level
Leading Vehicle Departure Alert: DAW will inform the driver when the front vehicle departs from a stop .
If DAW is activated, the DAW information A will appear on the Instrument Cluster LCD when you select the Driving Assist menu in User Settings . A message, “Consider taking a break,” B appears on the LCD and a warning sounds to suggest the driver to take a break when the driver ’s attention level becomes low .
DAW User Settings:
To turn DAW on/off, with the ignition on, press the Mode button C on the Steering Wheel and go to User Settings in the
Instrument Cluster . Then go to Driver Assistance and select Driver Attention Warning . Set DAW to Normal Sensitivity, High Sensitivity of Off .
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then press Vehicle on the screen to enter Vehicle Settings
REMINDERS:
•
The setup of DAW will be maintained, as selected, when the ignition is cycled
•
When activated, DAW does not display “Consider taking a break ” message when the total trip driving time is less than 10 minutes
•
DAW will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Driver Attention Warning (DAW)*†5
Consider taking a break
Attention Level
HighBCA
(But ton located on right side of the steering wheel)
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Driver Attention Warning (DAW) Video
QR CODE
Page 17 of 66
15†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
Leading Vehicle Departure Alert is designed to inform the driver when the vehicle in front starts moving or departs from a stop
. When LVDA is on, your vehicle is stopped and detects that the leading vehicle is driving away, LVDA sounds an alert to let you know you can start driving . If no action is taken after the vehicle in front drives away, then a message A will appear on the Instrument Cluster LCD .
LVDA User Settings:
•
To turn LVDA on, press the Mode button B on the Steering Wheel, and go to User Settings in the Instrument Cluster . Press the Move (OK) button C up/down and select Drive Assistance, then press the OK button C to select . Go to Driver Attention Warning and then Leading Vehicle Departure Alert .
•Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then press Vehicle on the screen to enter Vehicle Settings
The Leading Vehicle Depar ture Aler t system is not a substitute for safe and proper driving . Always drive safely and use caution .
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 5 in the Owner ’s Manual for more information .
Leading vehicle
is driving away
Leading Vehicle Departure Alert (LVDA)†4
REMINDERS:
•
When the ignition is cycled, the system returns to its previous state, on or off
•
Always check the front of the vehicle and road conditions before depar ture
B
C
A
REMINDER: SEA may not detect all objects and the occupants should always be mindful of their surroundings .
(But tons located on right side of the steering wheel)
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Safe Exit Assist (SEA)*†4
Safe Exit Assist (SEA) can help prevent passengers from opening their door by displaying a warning message on the Instrument Cluster and sounding an audible warning when a vehicle is detected, approaching from behind, and after your vehicle has stopped .
To turn on SEA , go to User Settings in the Instrument cluster or the Vehicle Settings* in the audio head unit, select Driver Assistance, then Blind-Spot Safety, and select Safe Exit Assist .SEA is not a substitute for one’s at tention and may not detect all objects surrounding the vehicle . Always pay at tention to traf fic and to the area around your vehicle when exiting the vehicle .
See section 4 in the Owner ’s Manual for more information .
Watch for traffic
3 F G F S U P U I F J O T J E F G S P O U D P W F S G P S N P S F J O G P S N B U J P O P O 2 3 D P E F T X X X Z P V U V C F D P N , J B ' F B U V S F 7 J E F P T
Leading Vehicle Departure Alert (LVDA) Video
QR CODE
Safe Exit Assist (SEA) Video
Image is for illustrative purposes only and may not reflect actual feature or operation .
Page 18 of 66
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE

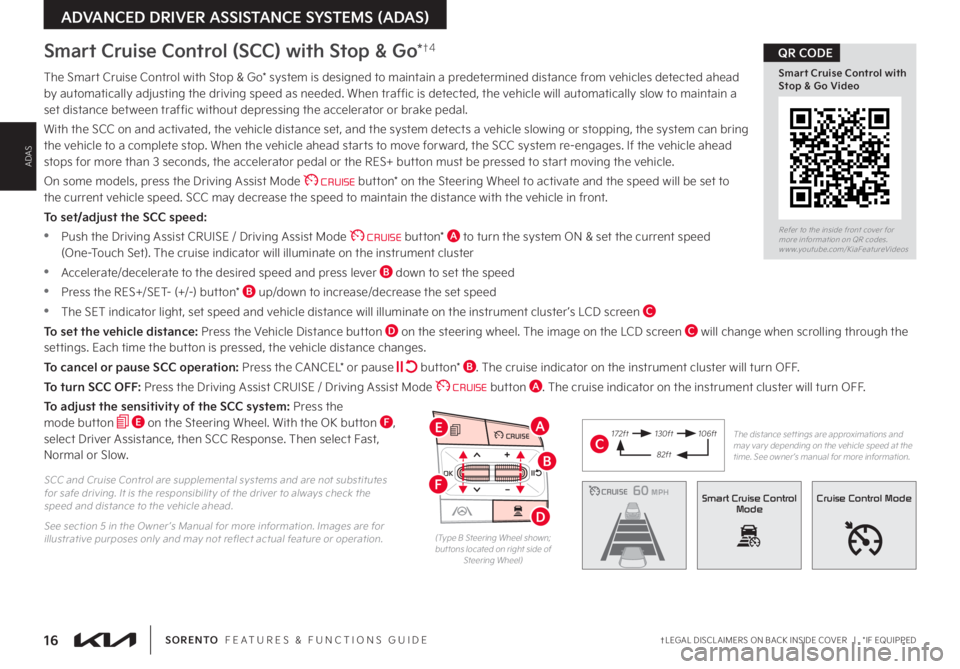

The Smart Cruise Control with Stop & Go* system is designed to maintain a predetermined distance from vehicles detected ahead by automatically adjusting the driving speed as needed. When traffic is detected, the vehicle will automatically slow to maintain a set distance between traffic without depressing the accelerator or brake pedal.
With the SCC on and activated, the vehicle distance set, and the system detects a vehicle slowing or stopping, the system can bring the vehicle to a complete stop. When the vehicle ahead starts to move forward, the SCC system re-engages. If the vehicle ahead stops for more than 3 seconds, the accelerator pedal or the RES+ button must be pressed to start moving the vehicle.
On some models, press the Driving Assist Mode CRUISE C V U U P O P O U I F 4 U F F S J O H 8 I F F M U P B D U J W B U F B O E U I F T Q F F E X J M M C F T F U U P U I F D V S S F O U W F I J D M F T Q F F E 4 $ $ N B Z E F D S F B T F U I F T Q F F E U P N B J O U B J O U I F E J T U B O D F X J U I U I F W F I J D M F J O G S P O U
To set/adjust the SCC speed:
•Push the Driving Assist CRUISE / Driving Assist Mode CRUISE C V U U P O A to turn the system ON & set the current speed (One-Touch Set). The cruise indicator will illuminate on the instrument cluster
•Accelerate/decelerate to the desired speed and press lever B down to set the speed
•Press the RES+/SET- (+/-) button* B up/down to increase/decrease the set speed
•The SET indicator light, set speed and vehicle distance will illuminate on the instrument cluster ’s LCD screen C
To set the vehicle distance: Press the Vehicle Distance button D on the steering wheel. The image on the LCD screen C will change when scrolling through the settings. Each time the button is pressed, the vehicle distance changes.
To cancel or pause SCC operation: Press the CANCEL* or pause button* B. The cruise indicator on the instrument cluster will turn OFF.
To turn SCC OFF: Press the Driving Assist CRUISE / Driving Assist Mode CRUISE C V U U P O A. The cruise indicator on the instrument cluster will turn OFF.
To adjust the sensitivity of the SCC system: Press the mode button E on the Steering Wheel. With the OK button F, select Driver Assistance, then SCC Response. Then select Fast, Normal or Slow.
Smart Cruise Control (SCC) with Stop & Go*†4
SCC and Cruise Control are supplemental systems and are not substitutes for safe driving. It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead.
See section 5 in the Owner ’s Manual for more information. Images are for illustrative purposes only and may not reflect actual feature or operation.
CRUISE100 MPHCRUISE100 MP
H
CRUISE60 MPHCRUISE100 MPHSmart Cruise Control
ModeCruise Control Mode
The distance set tings are approximations and may var y depending on the vehicle speed at the time. See owner ’s manual for more information.
172ft130ft
82ft
106ft
(Type B Steering Wheel shown; but tons located on right side of Steering Wheel)
B
C
D
E
F
A
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Smart Cruise Control with Stop & Go Video
QR CODE
16†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 19 of 66
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
Navigation-based Smart Cruise Control can automatically adjust the vehicle speed when it detects a curved road ahead and when it receives road information from the navigation system
.
To turn on NSCC, go to the User Settings in the instrument cluster or the Vehicle Settings* in the audio head unit, by selecting Driving Assistance, Highway Auto S p e e d C h a n g e . W h e n S C C i s o n a n d o p e r a t i n g , a n d N S C C i s t u r n e d o n , t h e n N S C C is enabled and the AUTO icon F will illuminate white on the Instrument Cluster .
When NSCC detects a curve ahead, activates, and reduces the vehicle speed, the AUTO icon F will turn green . When the vehicle passes the curved road, the vehicle may return to its previously set SCC speed .
Autoset (Automatic change of set speed): NSCC automatically changes the set speed of Smart Cruise Control using the speed limit information of the navigation system* to help you drive at a safe speed .
REMINDERS:
•
NSCC requires an active navigation subscription
•
NSCC is only available on controlled access roads and highways
Smart Cruise Control (SCC) with Stop & Go*†4 (continued)
REMINDERS:
•
The cruise control system will not activate until the brake pedal has been depressed at least once after the ignition is ON or engine star ting
•
When following a vehicle, the system will automatically adjust your cruise speed based on the vehicle detected in front
•
SCC is also canceled when the driver ’s door is opened, gear shift is changed out of D (Drive), EPB is activated and various other conditions . See the Owner ’s Manual for other conditions
•
If SCC is left on, it can be activated inadver tently . Keep the system off when not in use to avoid set ting a speed which the driver is not aware of
•The speed set ting for SCC can be adjusted under the following conditions:
•You must be travelling at a minimum speed of 5 mph (may var y on newer models)
•
When following a vehicle, there is no minimum speed requirement
•
When following a vehicle, the system can automatically adjust your cruise speed based on the vehicle detected ahead . If the vehicle detected ahead remains at a standstill and your vehicle is also stopped for longer than 3 seconds, the system will need to be reactivated by pressing the gas pedal or pressing the RES but ton
QUICK TIPS
CRUISE65mphAUTO
(Display on LCD screen)
F
Navigation-based Smart Cruise Control (NSCC)*†4
NSCC is a supplemental system and is not a substitute for safe driving . It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead .
For more set ting information, refer to the Car Infotainment System Quick Reference Guide .
REMINDER: Cruise Control is a par t of Smar t Cruise Control with Stop & Go* and can be set as the operating mode . To switch from SCC to Cruise Control, press and hold the Driving Assist Mode CRUISE C V U U P O 3 F Q F B U U P T X J U D I C B D L U P 4 $ $ N P E F
Cruise Control (CC)†4
A
Driving Assist Mode CRUISE C V U U P O Press to turn the Cruise Control
ON/OFF . The indicator will illuminate on the instrument cluster and the
set speed will automatically activate at the vehicle’s current speed
B RES+ : Press up to resume or increase cruising speed
SET- : Press down to set or decrease Cruising Speed
Pause/Resume button: Press to pause Cruise Control . Press again to resume Cruise Control
For illustrative purposes only . Your steering wheel controls may var y .
Refer to section 5 in the Owner ’s Manual for more information .SCC and Cruise Control are supplemental systems and are not substitutes for safe driving .
B
A •Cruise Control is designed to function at above 20 mph
•The Cruise Control system will not activate until the brake pedal has been depressed at least once after ignition ON or engine star t
QUICK TIPS
Refer to section 5 in the Owner ’s Manual for more information .
17†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Page 20 of 66
18†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Lane Following Assist (LFA)†4
REMINDERS:
•
If the ignition is cycled, LFA returns to its previous state, on or off, if activated in the User Set tings menu and when combined with SCC . If using the Steering Wheel LK A but ton, then LK A defaults to off
•
LFA is not a substitute for safe and proper driving . Always drive safely and use caution
Lane Following Assist (LFA) is designed to help ensure that the vehicle stays centered in its lane A by monitoring the detected lane markings ahead and adjust the steering . When turned on, the instrument cluster indicator will initially illuminate white when turned ON, and on some vehicles, when SCC is engaged . It will remain white when the system does not detect the lane markers . When the system detects the lane markers and can assist the steering, the LFA icon will illuminate green B .
LFA will operate only when these conditions are met:
•LFA recognizes both sides of the lane markers the vehicle is traveling in
•
The vehicle is traveling slower than 95 mph
LFA User Settings:
•To go to User Settings in the Instrument Cluster, press the Mode button C on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To enable LFA , when in User Settings, press the Move (OK) button D up/down and Select Driver Assistance then Driving Assist, Select Lane Following Assist . Press the OK button D
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the SETUP hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•When LFA is enabled, press the LFA button E briefly to turn on/off
•
Some vehicles have a Lane Driving Assist / Lane Safety button* on the Driver ’s Panel or the Steering Wheel . Press to activate Lane Following Assist
Images are for illustrative purposes only and may not reflect actual feature or operation .
LFA is a supplemental system and is not a substitute for safe driving . Do not solely rely on this system and always pay at tention to the road and its conditions .
Actual User Set tings steps may var y by model . See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions .
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on right side of the steering wheel)
B
C
D
E
A
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Refer to the inside front cover for more information on QR codes
.www .youtube .com/KiaFeatureVideos
Lane Following Assist (LFA) Video
QR CODE
