CENTER PANEL
CENTER PANEL
Multimedia USB Ports, Power Outlets, & USB Charger Ports* Digital Clock
Press SETUP, then select General, scroll down and select Date/Time from the menu to adjust .
Multimedia USB Port*
A Use the Multimedia USB port to connect USB audio devices and smartphones
Power Outlets
B Use the power outlets for mobile phones and other devices designed to operate on a 12V (180W max) power outlet
USB Charger Ports*
C USB charger ports* and power ports are located in the Center Panel, inside and on the back of the Center Console
(Located on Center Console below Climate Controls)
REMINDERS:
•
Using the Power Outlet (accessor y plug) and USB charger for prolonged periods of time with the Engine Star t/Stop but ton in the ACC position (Engine OFF) for prolonged period time could cause the bat ter y to discharge
•
Use only the charging cables that your device manufacturer supplied . Third par t y cables may cause damage to device
•
The USB data por t (Multimedia USB por t) is located next to the Power Outlets . The USB Charger por ts do not suppor t data transfer
Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
(Located on Back of Center Console)
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Refer to the Car Infotainment System Quick Reference Guide for more information .BB
CC
A
•
Press the Return but ton on the audio head unit to ensure changes are saved
•
When needed, Daylight Savings must be enabled in the Clock Set tings screen
•
To access manual date and time set ting, turn GPS time OFF in the Clock Set tings (UVO link with Navigation*)
QUICK TIPS
The power outlets are inactive when the Engine Star t/Stop but ton is OFF .
QUICK TIP
Page 42 of 66
40*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
CENTER PANEL
CENTER PANEL
REMINDERS:
•
If the driver door is opened, charging will be disabled
•
Wireless charging technology allows for a device to be charged using inductive charging . See your Owner ’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through a cable . As a result, higher device operating temperatures may be experienced during use
•
Charging Per formance – Device position on the wireless charging system can affect charging per formance . Other factor that may affect the charging rate includes foreign objects, such as coins or pens, and phone case thickness
Charge a compatible smartphone wirelessly by placing it on the charging pad B at the front of the console, near the Multimedia USB ports and the charging indicator, while the ignition is on .
1 . Enable Wireless Charging in the User Settings
2 . Slide open cover A . Place the smartphone on the center of the charging pad B
3 . Indicator light C may change to amber once wireless charging begins
4 . Once charging is complete, the amber light may change to green
Wireless Smartphone Charging System*
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
$ I B S H J O H T Z T U F N P O M Z X P S L T X J U I T F M F D U E F W J D F T 3 F G F S U P U I F T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S X B S O J O H T B O E J O T U S V D U J P O T
* N B H F T B S F G P S J M M V T U S B U J W F Q V S Q P T F T P O M Z B O E N B Z O P U S F7U F D U B D U V B M G F B U V S F P S P Q F S B U J P O
B
C
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Wireless Charging Video
QR CODE
•
The smar tphone must be a compatible phone with QI function available
•Wireless charging must be enabled in user set tings
•
If wireless charging does not work, move the smar tphone around the pad until the charging indicator turns amber . Avoid placing other metal items in the bin while charging as to not impede the charging area
•
For wireless charging to occur, all doors (excluding the rear hatch) must be closed & the Smar t Key Fob must be detected inside the vehicle
QUICK TIPS
Page 43 of 66
41 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
CENTER PANEL
CENTER PANEL
REARA/C
MAXA/C
１2
0 3
4
Air Flow Modes
To select Air Flow Modes, press the Mode selection buttons:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level

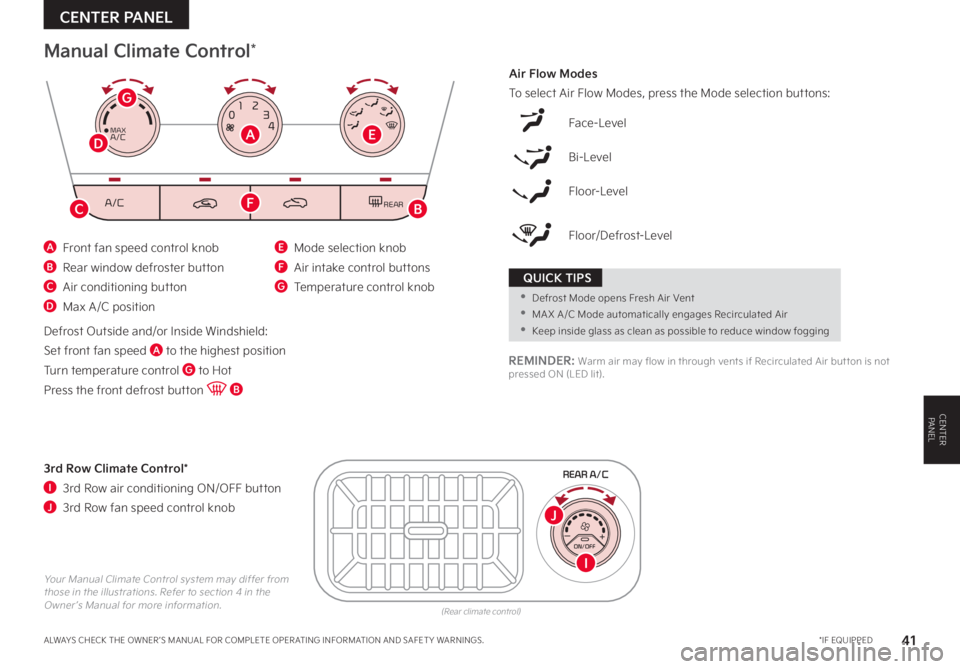

Manual Climate Control*
B
3rd Row Climate Control*
I 3rd Row air conditioning ON/OFF button
J 3rd Row fan speed control knob
REAR A/C
ON/OFF
(Rear climate control)
I
J
C
DE
G
F
A
REMINDER: Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit) .
A Front fan speed control knob
B Rear window defroster button
C Air conditioning button
D Max A/C position
E Mode selection knob
F Air intake control buttons
G Temperature control knob
Defrost Outside and/or Inside Windshield:
Set front fan speed A to the highest position
Turn temperature control G to Hot
Press the front defrost button B
Your Manual Climate Control system may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
•
Defrost Mode opens Fresh Air Vent
•MA X A /C Mode automatically engages Recirculated Air
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
Page 44 of 66
42*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
AUTOOFF
DRIVER
ONLYA/CREAR
SYNC
REAR FRONT
A/C
68.568.5

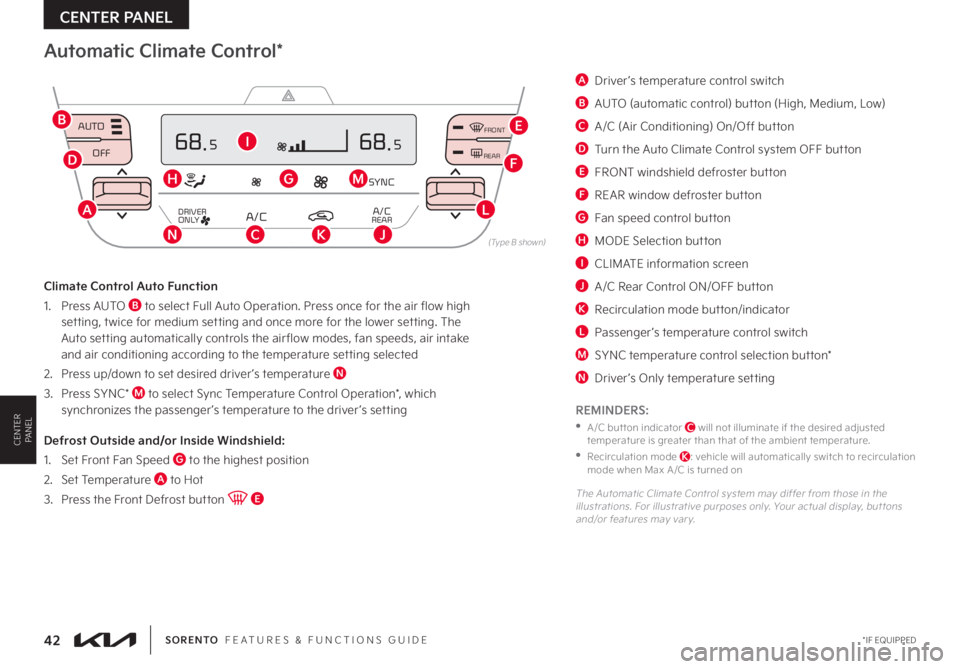

Automatic Climate Control*
A Driver ’s temperature control switch
B AUTO (automatic control) button (High, Medium, Low)
C A/C (Air Conditioning) On/Off button
D Turn the Auto Climate Control system OFF button
E FRONT windshield defroster button
F REAR window defroster button
G Fan speed control button
H MODE Selection button
I CLIMATE information screen
J A/C Rear Control ON/OFF button
K Recirculation mode button/indicator
L Passenger ’s temperature control switch
M SYNC temperature control selection button*
N Driver ’s Only temperature setting
(Type B shown)
Climate Control Auto Function
1
. Press AUTO B to select Full Auto Operation . Press once for the air flow high setting, twice for medium setting and once more for the lower setting . The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected
2 . Press up/down to set desired driver ’s temperature N
3 . Press SYNC* M to select Sync Temperature Control Operation*, which synchronizes the passenger ’s temperature to the driver ’s setting
Defrost Outside and/or Inside Windshield:
1 .
Set Front Fan Speed G to the highest position
2 . Set Temperature A to Hot
3 .
Press the Front Defrost button E
REMINDERS:
•
A /C but ton indicator C will not illuminate if the desired adjusted temperature is greater than that of the ambient temperature .
•
Recirculation mode K: vehicle will automatically switch to recirculation mode when Max A /C is turned on
The Automatic Climate Control system may differ from those in the illustrations . For illustrative purposes only . Your actual display, but tons and/or features may var y .
B
C
D
E
GH
I
JK
L
MF
A
N
CENTER PANEL
CENTER PANEL
Page 45 of 66
43 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Automatic Climate Control* (continued)
REMINDERS:
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
•
When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
•
Warm air may flow in through the vents if the Recirculated Air but ton is not pressed ON (LED lit)
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y and/or cause smell/odor
Your Automatic Climate Control system may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Air Flow Modes
To select Air Flow Modes, press the mode button H to cycle through to the desired mode:
Auto Defogging System (ADS)
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield . The system will automatically change to defrost mode when needed .
Auto Defogging is set ON by default . To cancel Auto Defogging, press the Front Defrost button for three seconds, when the ignition is in on (ADS OFF icon will illuminate) . To turn Auto Defogging on
again, press the Front Defrost button for three seconds .
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System (ADS) Video
QR CODE
•Defrost Mode opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator will NOT illuminate . The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
CENTER PANEL
CENTER PANEL
Page 46 of 66
44†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Automatic Gear Shift with Sportmatic®†3 Shifting
(Center Console)
P: Park – To shift into Park from any gear, press the Release button A on the gear shift while the vehicle is stationary and the brake pedal is depressed, and shift
R: Reverse – To shift into Reverse, depress the brake pedal, press the Release button A, and move the shift lever into Reverse .
N: Neutral
D: Drive
[+]: Manual Mode Upshift
[–] : Manual Mode Downshift
Manual Mode: To enter the Manual mode, move shift lever from D to left gate . To shift while in Manual mode, move shift lever up [+] to upshift or down [–] to downshift .
Dual Clutch Transmission (DCT)*
Some Kia vehicles are equipped with Dual Clutch Transmission (DCT) for automatic transmissions .
The following are unique driving tips for the Dual Clutch Transmission:
•To hold the vehicle stationary on an incline, the service brake or parking brake MUST be used or the gear shift MUST be in the (P) Park position . If the vehicle is held stationary by applying the accelerator pedal on a slope, the clutch/transmission may overheat, resulting in damage
•Avoid aggressive launches on steep grades as this may result in an overheated clutch and transmission
•A slight time lag may be experienced at takeoff from standstill during aggressive acceleration maneuvers
If the clutch is overheating, an amber warning light* will be displayed in the instrument cluster . Should this condition occur, pull over and place the vehicle in Park and idle the engine.
Refer to section 5 in the Owner ’s Manual for additional information on Automatic Gear Shift or DCT operation or call Kia Consumer Affairs for additional information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
SPORT
SMARTLOCK
ECOCOMFORT
P
R
N D
SHIFT
LOCK
RELEASE
SNOW
OFF
•
•
•
•
+
•
–
P
R
N D •
•
•
•
+
•
–
OFF
SPORT
SMARTLOCK
ECOCOMFORT
P
R
N D
SHIFT
LOCK
RELEASE
SNOW
OFF
•
•
•
•
+
•
–
P
R
N D •
•
•
•
+
•
–
OFF
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Sportmatic® Shifting Video
Dual Clutch Transmission (DCT) Driving Experience Video
QR CODE
•Press the brake pedal and depress release but ton to move the gearshift from N to P, N to R or from P to any gear
•Manual mode downshifts are made automatically when the vehicle slows down . When the vehicle stops, 1st gear is automatically selected
QUICK TIPS
CENTER PANEL
CENTER PANEL
Page 47 of 66
45*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
When you select AWD Lock mode by pressing the AWD LOCK button A, the AWD LOCK mode increases the drive power when driving on wet pavement, snow covered roads, and/or off-road .
•This mode is used to improve traction while climbing or descending sharp grades, off-road driving, driving on sandy and muddy roads, etc ., to improve traction
•If AWD LOCK is enabled at low speeds, the vehicle will automatically shift to AWD AUTO at speeds greater than 19 mph .
•If the vehicle decelerates to speeds below 25 mph, the transfer mode is shifted back into AWD LOCK .
When the AWD LOCK mode is deactivated, a shock may be felt as the drive power is delivered entirely to the front wheels . This shock is not a mechanical failure .
AWD (All-Wheel Drive) Lock*Idle, Stop & Go (ISG) System
The ISG system is designed to reduce fuel consumption by automatically shutting down the engine when the vehicle is at a standstill .
When the ISG system is ON and the vehicle is at a standstill, the engine will stop, and the green AUTO STOP indicator B on the instrument cluster will illuminate .
The engine will restart when the brake pedal is released or the shift lever is moved from D (Drive) to the R (Reverse) position or to Manual Shift mode . When engine restarts, the green AUTO STOP indicator on the
instrument cluster will turn off .
To deactivate the ISG System, press the ISG OFF button C . If you press again, the system will be activated .
REMINDERS:
•
ISG is active by default at vehicle star tup . When ignition is cycled, ISG will turn ON again
•
Under cer tain conditions, the engine will restar t automatically even if the brake pedal is still depressed
•
If the AUTO STOP indicator is continuously blinking yellow and the ISG but ton LED is on, please contact an authorized Kia dealer
Images are for illustrative purposes only and may not reflect actual feature or operation .
Refer to section 5 in the Owner ’s Manual for more information .
No system, no mat ter how advanced, can compensate for all driver error and/or driving conditions . Always drive safely .
(But ton on center console below gear shift)
(LCD instrument panel Type B)
(But ton on center console below gear shift)
SPORT
SMART
LOCK
ECOCOMFORT
P
R
N D
SHIFT
LOCK
RELEASE
SNOW
OFF
•
•
•
•
+
•
–
OFF
EPB
AUTO
0 6
CH
１ 5
2
D
4
3x１
000 rpm
E F
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
１ 7
8
26
3 45
E
F CH
１60
20
１40
40
１20
60
１00
80
MPH
526mi miF°25.7MPG
x１ 000 rpm
SPORT
SMARTLOCK
ECOCOMFORT
P
R
N D
SHIFT
LOCK
RELEASE
SNOW
OFF
•
•
•
•
+
•
–
OFF
See section 5 in the Owner ’s Manual for more information .
B
C
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
ISG (Idle, Stop & Go) System Video
QR CODE
•If the AUTO STOP indicator A is solid yellow, the system is functional, but just has not met all its enabling criteria to activate ISG at that time .
•
The ISG system is disabled when:
-A seat belt is unfastened
-The hood or a door is opened
-Bat ter y condition is poor
-
The front or rear defroster is turned on
-
Engine coolant temperature is low
-
The outside ambient temperature is too low/high
-
Emission control devices activate
-
The vehicle is on a steep slope
QUICK TIPS
CENTER PANEL
CENTER PANEL
Page 48 of 66
46*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Image is for illustrative purposes only and may not reflect actual feature or operation .
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake .
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A . Ensure that the indicator light is illuminated on the instrument cluster .
Releasing the Parking Brake
The EPB will automatically release when the brake pedal is engaged and shifter is shifted out of P (Park) to R (Reverse) or shifted out of N (Neutral) to Reverse or D (Drive) .
To release EPB manually, depress the brake pedal, then press the EPB switch A, with the ignition switch in the ON position . Ensure that the indicator light is OFF .
Auto Hold temporarily maintains the vehicle at a standstill even though the brake pedal is not depressed after the driver brings the vehicle to a complete stop by depressing the brake pedal . Auto Hold can be turned On/Off using the AUTO HOLD button B on the center panel below the gear shift . Before Auto Hold will operate, the driver ’s door, engine hood and liftgate must be closed, and the driver ’s seat belt must be fastened .
The Auto Hold indicator on the Instrument Cluster has four states:
White: Standby – When vehicle is in Park and at a standstill, and AUTO HOLD button B is pressed On, the indicator will illuminate white . While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white .
Green: Engaged – When coming to a complete stop by depressing the brake pedal, the Auto Hold indicator changes from white to green .
Off (not illuminated) – The indicator will turn Off when the AUTO HOLD button B is manually pressed Off or when the EPB is manually turned On .
Yellow: Malfunction – When the indicator is illuminated yellow, there may be a system malfunction . Take your vehicle to a local Kia dealer .
Electronic Parking Brake (EPB)*
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
Auto Hold*
REMINDERS:
•
Auto Hold only operates when vehicle is in Drive, Neutral or Reverse
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped . Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
DRIVE
SPORT
SMART
ECO
MUD
SAND
SNOW
COMFORT
TERRAIN
P
R
D
N
AUTO
HOLD
(But ton on center console below gear shift)
Refer to section 5 in the Owner ’s Manual for more information . Refer to page 4 for location of Instrument Cluster indicators .
B
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electric Parking Brake / Auto Hold Video
QR CODE
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
•Pull up and hold EPB switch a second time to increase brake pressure if parked on a decline or incline
QUICK TIPS
CENTER PANEL
CENTER PANEL
Page 49 of 66
47†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Heated Steering Wheel*
Press Heated Steering Wheel button to turn the Steering
Wheel Heater on/off while the Engine Start/Stop button is
in the ON position . The Steering Wheel Heater will turn off
automatically in 30 minutes, or when button A is pressed
again to deactivate .
B Seat Warmers
•Press the button up once for high setting (3 LEDs lit)
•Press the button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
C Ventilated Seats
•Press the button down once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Seat Warmers*†1 4 / Ventilated Seats*
REMINDER: If the steering wheel becomes too warm, turn the system off . The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time .
REMINDER: Use extreme caution when using the seat warmers to avoid burns . Refer to the Owner ’s Manual for more information .
(Located below gear shift knob)
(But tons located on top sides of center console)
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOW
TERRAIN
COMFORT
Seat warmers / ventilation
Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Images are for illustrative purposes only and may not reflect actual feature or operation .
Refer to section 4 in the Owner ’s Manual for more information .
B
C
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Heated and Ventilated Seats Video
QR CODE
•If ignition is turned OFF, then ON again within 30 minutes of the Steering Wheel Heater being turned ON, the system will return to its previous state
•The system returns to on when ignition is cycled . To turn off system, press the Heated Steering Wheel but ton A
•With the heated steering switch in the ON position, the heating system in the steering wheel turns OFF or ON automatically depending on the steering wheel temperature
QUICK TIPS
•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•System is OFF by default
QUICK TIPSCENTER PANEL
CENTER PANEL
Page 50 of 66
48†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
SEATING
SEATING
Front Seat Headrest Adjustment†8
Up/down adjustment:
•To raise the headrest, pull headrest up A to the desired position
•To lower the headrest, press the button B, then press the headrest down C
Forward/backward adjustment*:
•Pull the headrest forward/backward D to one of three positions
•When forward, to move the headrest to the furthest backward position, pull it fully forward then release
Driver Position Memory System*
The integrated system stores into memory the position of the Driver ’s Seat and the Outside Rearview Mirrors .
To store positions into memory, first place the Gear Shift into P (Park) while the Engine Start/Stop button is in the ON position . Then:
•Adjust the Driver ’s Seat and the Outside Mirrors
•Press the SET button B on the control panel . System will beep once
•Press one of the memory buttons C within 5 seconds . The system will beep twice when memory has been stored
SET
12
# V U U P O T M P D B U F E P O % S J W F S s T % P P S 1 B O F M
5 Z Q F "
5 Z Q F "
REMINDER: Do not at tempt to operate the driver position memor y system while the vehicle is moving . This could result in loss of control of the vehicle .
REMINDERS:
•
The headrest only moves up and down as described above . It does not adjust for ward or backward
•
Do not operate the vehicle with the headrests removed . Headrests can provide critical neck and head suppor t in an accident
Refer to section 3 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
Refer to section 3 in the Owner ’s Manual for more information .
B
C
D
E
AD
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath .
QUICK TIP
