Page 21 of 66
19†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on right side of the steering wheel)
REMINDERS:
•
Current highway speeds and controlled or limited access road information may var y
. Future navigation updates may change this information
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
•
When the ignition is cycled, the system returns to its previous state, on or off
60mph
B
C
D
E
A
Highway Driving Assist (HDA)*†4
Highway Driving Assist (HDA) is designed to adjust the speed of the vehicle when driving on limited/controlled access highways/freeways . The system can adjust the vehicle’s speed based on available highway speed information . The automatic speed setting mode is designed to set the speed automatically by adjusting to the current speed limits of the highway the vehicle is traveling on .
To activate HDA , turn Smar t Cruise Control (SCC) on by pressing the Driving Assist CRUISE / Driving Assist Mode CRUISE C V U U P O A on the Steering Wheel . When HDA is activated and the conditions are met, the Instrument Cluster indicator B will illuminate green . If the conditions are not met, HDA will be in standby mode and the indicator light B will illuminate white . When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green B .
If HDA is activated, conditions are met and the SCC speed is set by the driver (at the posted
highway speed limit or slower), HDA will enter the automatic speed setting mode . The set speed and AUTO will be displayed C in green and an audible alert will sound .
HDA will operate only when these conditions are met:
•
The vehicle is traveling slower than 110 mph or the highway speed limit
•
When driving on limited/controlled access highways/freeways
•
When the SCC is on and operating
•
When the SCC speed is set to current posted highway speed or slower
HDA User Settings:
To enable HDA , press the Mode button D on the Steering Wheel and go to User Settings in the Instrument Cluster . Press the Move (OK) button E up/down and press to Driver Assistance, then Driving Assist, Highway Driving Assist . Then press the OK button E to enable .
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup
hard key on the audio head unit, then press VEHICLE on the screen to enter Vehicle Settings .
Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways . Always drive safely and use caution .
See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions .
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODE
Page 22 of 66
20†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Rear View Monitor (RVM)†4
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the audio head unit screen .
RVM activates when the:
•Ignition or the Engine Start/Stop button* (Green Light) is in the ON position
•Gear Shift Lever is in the R (Reverse) position
REMINDERS:
•RVM is ON by default when the ignition is cycled
•
While the Rear View Monitor is active the volume will be lowered on all audio modes
•
Through normal use and after inclement weather or washing, the rear camera may become dir t y . Use a clean, microfiber cloth to remove any dir t, debris or spots that may have accumulated on the lens
Rear View Monitor is not a substitute for proper and safe backing-up procedures . Rear View Monitor may not display ever y object behind the vehicle . Always drive safely and use caution when backing up .
Images are for illustrative purposes only and may not reflect actual feature or operation . See section 4 in the Owner ’s Manual for more information .
(Camera)
(Rear-Camera Display)
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOWTERRAIN
P
R
D
N
- P D B U F E C F M P X H F B S T I J G U L O P C
4 V S S P V O E 7 J F X . P O J U P S 4 7 .
J T B Q B S L J O H T V Q Q P S U T Z T U F N U I B U T I P X T U I F B S F B T B S P V O E U I F G S P O U
S F B S
M F G U B O E S J H I U T J E F T P G U I F W F I J D M F W J B G P V S D B N F S B T E J T Q M B Z F E P O U P U I F B V E J P I F B E V O J U T D S F F O
1 S F T T A to turn SVM ON/OFF .
•
When OFF: The camera view will automatically display on the audio head unit screen when the vehicle is shifted into Reverse . The camera view will turn off when the vehicle is shifted out of Reverse
•
When ON: The camera view will display on the audio head unit screen in both Drive and Reverse . In Drive, the camera view will continue to display until the vehicle is traveling at speeds above approximately 9 mph . If you keep SVM on, the camera view will reappear on the audio head unit screen whenever the vehicle speed drops below approximately 9 mph
The Surround View Monitoring (SVM) is only a supplemental device . Drivers should not rely solely on the SVM information when parking and backing up . Drivers should always pay at tention and directly check the left/right and rear .
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 4 in the Owner ’s Manual for more information .
REMINDERS:
•
The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance . The Surround View Monitor system is only a supplemental device . Drivers should not rely solely on the SVM information when parking and backing up . Drivers should always pay at tention and directly check the left/right and rear
•
While the SVM is active the volume will be lowered on all audio modes
Surround View Monitor (SVM)*†4
To change the SVM settings, press the onscreen settings icon B, while the system is operating .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Surround View Monitor (SVM) Video
QR CODE
The Front SVM camera will turn off when the gear shift is moved into Park or Reverse or the SVM but ton is pressed .
QUICK TIP
B
A
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 23 of 66
21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Rear Cross-Traffic Collision Avoidance Assist (RCCA)*†4
REMINDERS:
•
The RCCA feature can be turned OFF/ON in User Set tings, under Driver Assistance, Parking Safet y
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
•
RCCA is a supplemental system . It is not a substitute for safe driving, and may not detect all objects around or behind the vehicle . Do not solely rely on this system and always pay at tention to the road and its conditions
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) is designed, under certain conditions, to warn the driver and potentially activate the Electronic Stability Control (ESC) and temporarily apply braking, if it detects cross traffic approaching the vehicle, when vehicle is in reverse .
When the RCCA rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A .
RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B . If RCCA detects that the collision risk has increased, the system automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision .
RCCA is designed to operate under the following conditions:
•
When the gear shift is in Reverse
•When the vehicle is moving slower than 6 mph
RCCA User Settings:
•To go to the User Settings menu in the Instrument Cluster, press the Mode button C on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To turn RCCA on when in User Settings , press the Move (OK) button D up/down, select Driver Assistance, Parking Safety, Rear Cross-Traffic Safety and then press OK D
•
To set the warning timing, go to User Settings , press the Move (OK) button D up/down, then go to Driver Assistance, Warning Time and press the OK button D . There are two settings:
– Early: Maximizes the amount of distance between the vehicles before the initial warning occurs
– Normal: This setting allows for a nominal amount of distance between the vehicles before
the initial warning occurs
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•The default Warning Timing is set to Normal . If the Warning Timing is changed, the warning time of other Driver Assistance systems may also change
Refer to section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Cross-Traffic Collision Avoidance Assist (RCCA) Video
QR CODE
RCCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the audio head unit . Go to Driver Assistance, then Warning Volume
QUICK TIP
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on right side of the steering wheel)
B
C
D
A
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Page 24 of 66
22†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
Rear Occupant Alert (ROA) with Ultrasonic Sensors*†4
Rear Occupant Alert (ROA) with Ultrasonic Sensors can help alert the driver when rear passenger(s) are left in the rear seats using the ultrasonic sensors and door monitoring
. The system is designed to provide three separate alerts:
•The 1st alert is a message on the Instrument Cluster, “Check Rear Seats” A, and a chime will sound
•After the 1st alert, when the doors are locked and there is movement detected in the rear seats, the horn will sound for about 25 seconds . This alert may activate up to eight times within 24 hours, if movement is still detected and system has not been disabled
•If you have installed the Kia Access with UVO Link app on your smartphone, logged in and activated the Rear Occupant Alert notification, a third alert (notification) will be sent to your phone
To turn the system on or off, in the Instrument Cluster, go to User Settings, select Convenience, and then Rear Occupant Alert .
Rear Occupant with Ultrasonic Sensors activates under the following conditions:
•A rear passenger door is opened and closed
•The ignition has been turned off
•The driver ’s door has been opened, then closed
•The doors are locked with the Smart Key or the door lock button on the door handle
This system is not a substitute for one’s at tention and may not detect all movement within the vehicle . Always check the vehicle’s interior before exiting .
See section 4 in the Owner ’s Manual for more information .
Check rear seats
: Alarm OffOK
REMINDERS:
•
To avoid false aler ts, make sure the vehicle’s windows are rolled up
•
If objects such as boxes are stacked in front of the ultrasonic sensors, the system may not detect any movement
•
The ultrasonic sensors may occasionally detect movement in the vehicle and cause false aler ts, when there are no rear occupants present
. False aler ts can occur due to:
-The presence of insects near the system sensor
-Rushing air from a window that is rolled down
-Movement around the exterior of the vehicle
-Surrounding noise or vibration
-Vehicle passing through a car wash
-Movement in the driver or front passenger seat is detected
•
The Rear Occupant Aler t with Ultrasonic Sensors system may fail to detect movement and activate an alarm, among other things, if:
-Movement is subtle or does not continue
-A small child sits directly in a seat without a car seat
-
A rear passenger is covered with an object such as a blanket, obstructing the sensor ’s view
Images are for illustrative purposes only and may not reflect actual feature or operation .
B
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Occupant Alert (ROA) with Ultrasonic Sensors Video
QR CODE
•
The 1st aler t message will not display on Instrument Cluster if the rear doors are never opened . Either rear doors must be opened after unlocking the vehicle before the system will activate .
•
To temporarily disable aler ts, press the OK but ton B on the Steering Wheel while the message is displayed
•
To turn the aler t off while sounding, press the unlock but ton on the Smar t Key or press the door lock but ton on the door handle
•
Must be enrolled in UVO ser vices and Kia Access app installed on the phone to receive ROA aler t notifications on your smar tphone
QUICK TIPS
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 25 of 66
23†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Reverse Parking Collision-Avoidance Assist is a supplemental system that is designed to assist the driver when the vehicle is in reverse by sounding a warning and temporarily braking, if a pedestrian or any object is detected within the sensing area of the rear of the vehicle, or to help reduce the possibility of a collision .
PCA User Settings:
To turn PCA on, press the Mode button A on the Steering Wheel and go to User Settings on the Instrument Cluster LCD . Press the Move (OK) button B up/down and select Driver Assistance, then Parking Safety .
There are three modes:
Rear Active Assist – PCA will warn the driver with an audible alert and may apply temporary braking
Rear Warning Only – PCA will warn the driver with an audible alert
Off – PCA is disabled
Reverse Parking Collision-
Avoidance Assist (PCA)†4
Reverse Parking Collision-Avoidance Assist (PCA)* is not a substitute for proper and safe backing-up procedures . Always drive safely and use caution when backing up . Reverse Parking Collision-Avoidance Assist (PCA) may not detect ever y object around the vehicle .
Images are for illustrative purposes only and may not reflect actual feature or operation . See section 5 in the Owner ’s Manual for more information .
REMINDERS:
•If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than t wo objects are sensed at the same time, the closest one will be recognized first
For ward*/Reverse Parking Distance Warning (PDW) is not a substitute for proper and safe backing-up procedures . Always drive safely and use caution when backing up . Parking Distance Warning-For ward* and Reverse may not detect ever y object around the vehicle .
in the Owner ’s Manual for more information may not detect ever y object around the vehicle .
Forward/Reverse Parking Distance Warning (PDW) is a supplemental system that is designed to assist the driver by chiming if any object is detected within the sensing area to the front, rear and side of the vehicle when backing up .
Forward*/Reverse Parking Distance Warning (PDW) is activated when the the ignition is on and the button C is depressed .
To deactivate Forward*/Reverse Parking Distance Warning (PDW), press the button C (LED is lit) .
Forward/Reverse Parking
Distance Warning (PDW)*†4
(Located below gear shift knob)
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOWTERRAIN
P
R
D
N
* N B H F T B S F G P S J M M V T U S B U J W F Q V S Q P T F T P O M Z B O E N B Z O P U S F7U F D U B D U V B M G F B U V S F P S P Q F S B U J P O
4 F F T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
3 F G F S U P U I F J O T J E F G S P O U D P W F S G P S N P S F J O G P S N B U J P O P O 2 3 D P E F T X X X Z P V U V C F D P N , J B ' F B U V S F 7 J E F P T
Forward/Reverse Parking Distance Warning (PDW) Video
QR CODE
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on right side of the steering wheel)
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
B
C
A
Page 26 of 66
You can set a speed limit offset to the posted speed limit by going to User Set tings, Driver Assistance, Speed Limit, then Speed Limit Offset . Set the offset to “0” if you want the vehicle to travel at the detected speed limit, when ISL A is on
QUICK TIP
Intelligent Speed Limit Assist (ISLA)†4
Intelligent Speed Limit Assist is designed to use the information from the posted speed limit and the navigation system to inform the driver of the speed limit .
When ISL A is on and active, the system will display an alert on the Instrument Cluster LCD D of the detected speed limit . If the vehicle’s current speed exceeds the detected speed limit, a warning will sound and the vehicle’s current speed will blink on the LCD .
ISLA User Settings:
To turn ISL A on, press the Mode button E on the Steering Wheel and go to User Settings on the Instrument Cluster LCD . Press the Move (OK) button F up/down and select Driver Assistance by pressing the OK button F, then Intelligent Speed Limit Assist .
Select one of the three modes:
•Speed Limit Assist: Informs the driver of the detected speed limit, display a message change the set speed of the MSL A or SCC to help the driver stay within the posted speed limit
•Speed Limit Warning: Informs the driver of the detected speed limit and warn the driver when the vehicle is traveling faster than the posted speed limit
•Off: MSL A is disabled
REMINDERS:
•
Vehicle must be parked and in a safe location to change the speed set tings
•
Additional information may be displayed if additional road sign information is detected
•
ISL A is a supplemental system . It is not a substitute for safe driving . Obey all speed limits and always pay at tention to the road and its conditions
24†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 27 of 66
See section 5 in the Owner ’s Manual for more information .
HAC helps prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline . The HAC automatically activates whether the ESC is OFF or ON but does NOT activate when the ESC has malfunctioned .
Hill-Start Assist Control (HAC)†8
REMINDERS:
•
HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .
•In the event of HAC system malfunction, see an Authorized Kia Dealer for ser vice
•
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
HOLD
HOLD
# V U U P O Q B O F M M P D B U F E M F G U P G 4 U F F S J O H 8 I F F M
Instrument Cluster Illumination Control
With the parking lights/headlights ON, press the button A (+) or (-) to adjust the brightness of the instrument panel illumination .
REMINDER: The Instrument Cluster illumination Control does not adjust brightness on the audio head unit screens . Use the display set tings in the Setup menu to adjust the brightness on the screen .
BA
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation .
•HAC provides a t wo-second delay before the vehicle may star t rolling backwards
QUICK TIPS
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers . It is a good idea to keep the ESC turned on for daily driving whenever possible .
Press the ESC OFF button B to turn Traction Control OFF/ON .
To turn OFF both the Traction Control and Stability Control, press and hold for more than 3 seconds . Press it again to turn ON .
REMINDERS:
•
ESC is active by default at vehicle star tup . When the ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
Electronic Stability Control (ESC)†6
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electronic Stability Control Video
QR CODE
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 5 in the Owner ’s Manual for more information .
DRIVER'S PANEL
DRIVER’SPANEL
25†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Page 28 of 66
26†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
LRLRLR
Reverse Parking Aid Function*Engine Start/Stop Button*†7
When the gear shift lever is moved into R (Reverse) and while the vehicle is moving backward, the outside rearview mirrors A will rotate downward to aid in reverse parking .
When the left or right mirror buttons B are depressed, the Reverse Parking Aid Function will operate (LED lit) .
To turn OFF the function, press the buttons to the center position .
•The outside rearview mirrors will automatically return to their original positions when:
•The Engine Start/Stop Button is in the OFF position
•The gear shift lever is moved to any position except R (Reverse)
•
Outside rearview mirror buttons are not depressed
REMINDER: When one of the outside rear view mirror switches are not depressed (LED lit), the Reverse Parking Aid Function will not operate and the outside rear view mirrors will not rotate downward .
To start the engine:
•Depress the brake pedal
•
Press the Engine Start/Stop button while gear shift is in P (Park) or N (Neutral)
To turn the engine OFF: Press the Engine Start/Stop button .
To use the Engine Start/Stop button, you must have the Smart Key fob inside the vehicle .
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the Engine Star t/Stop but ton for more than 2 seconds or 3 times successively within 3 seconds
•
If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (Lock but ton side closest) and press to star t engine(But ton/switch panel located on Driver ’s Door)See section 5 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 4 in the Owner ’s Manual for more information .
BA
To use electrical accessories:
ACC position
•When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton once (amber light)
On position
•When already in the ACC position (amber light) and without depressing the brake pedal, press the Engine Star t/Stop but ton again (red light)
When in the OFF position (no light) and without depressing the brake pedal, press the ENGINE START/STOP but ton t wice (reddish-orange light)
Keeping the vehicle in ACC or the ON position for extended periods of time without turning the engine on may discharge the vehicle’s bat ter y
QUICK TIPS
DRIVER'S PANEL
DRIVER’SPANELRefer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Engine Start/Stop Button Video
QR CODE
Page 29 of 66
27 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Power Windows, Window Lock
& Central Door Lock
A Pull/Press to operate Front Windows Auto Up/Down*
B Press to Unlock/Lock All Doors
C Press to disable Rear Passenger Windows
Electronic Child Safety
Lock System
But ton configuration may var y depending on vehicle model .
Refer to section 4 in the Owner ’s Manual for more information .
See section 4 in the Owner ’s Manual for more information .
Automatic Door Lock/Unlock
L RLRLR
(But ton/switch panel located on Driver ’s Door)
B
C
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electronic Child Safety Lock System Video
Rear Door Locks - Double Pull to Open Video
QR CODE
While driving with the rear windows down or with the sunroof* in an open or par tially open position, a wind buffeting or pulsation noise may be heard . This noise is a normal occurrence and can be reduced or eliminated by the following:
•If the noise occurs with one or both of the rear windows down, par tially lower both front windows approximately 1 inch
•If the noise occurs with the sunroof open, slightly reduce the size of the sunroof opening
QUICK TIPS
Press but ton again to stop Auto Up/Down function .
QUICK TIP
To open the Rear Doors, pull the inner door handles t wo times .
QUICK TIP
If the inner door handle is pulled once when the door is locked, the door will unlock . If the inner door handle is pulled once more, the door will open .
Press button C to lock the rear passenger doors . An indicator will illuminate showing the system is active .
This system is on by default, and then activated once the button C is pressed . To deactivate, press the button again .
See section 4 in the Owner ’s Manual for more information .
Rear Door Locks –
Double Pull to Open
Auto Door Lock/Unlock will engage when the gear shift is moved into or out of the P (Park) position . Refer to the User Settings in the LCD Instrument Cluster modes on how to turn Auto Door Lock/Unlock ON/OFF .
REMINDERS:
•
When pressed C, window controls for the Rear Passenger Windows are disabled
•When closing, be mindful of any objects or persons
DRIVER'S PANEL
DRIVER’SPANEL
Page 30 of 66
28*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE

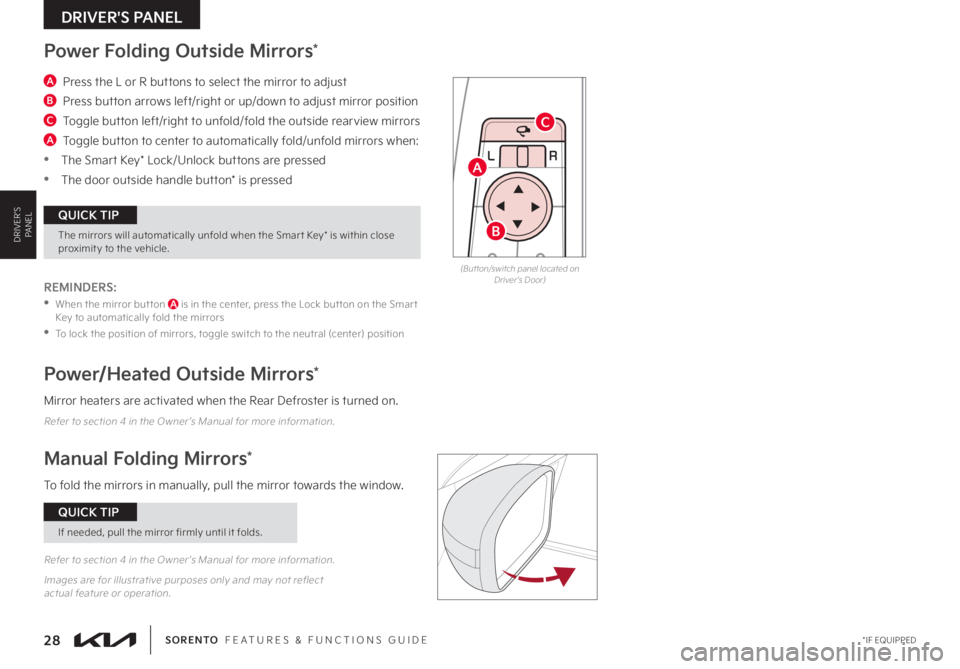

Power/Heated Outside Mirrors*
Power Folding Outside Mirrors*
REMINDERS:
•
When the mirror but ton A is in the center, press the Lock but ton on the Smar t Key to automatically fold the mirrors
•To lock the position of mirrors, toggle switch to the neutral (center) position
A Press the L or R buttons to select the mirror to adjust
B Press button arrows left/right or up/down to adjust mirror position
C Toggle button left/right to unfold/fold the outside rearview mirrors
A Toggle button to center to automatically fold/unfold mirrors when:
•The Smart Key* Lock/Unlock buttons are pressed
•The door outside handle button* is pressed
LRLRLR
(But ton/switch panel located on Driver ’s Door)
Manual Folding Mirrors*
Refer to section 4 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
A
B
C
The mirrors will automatically unfold when the Smar t Key* is within close proximit y to the vehicle .
QUICK TIP
If needed, pull the mirror firmly until it folds .
QUICK TIP
To fold the mirrors in manually, pull the mirror towards the window .
Mirror heaters are activated when the Rear Defroster is turned on .
Refer to section 4 in the Owner ’s Manual for more information .
DRIVER'S PANEL
DRIVER’SPANEL
