KIA SORENTO 2023 Navigation System Quick Reference Guide

4-5

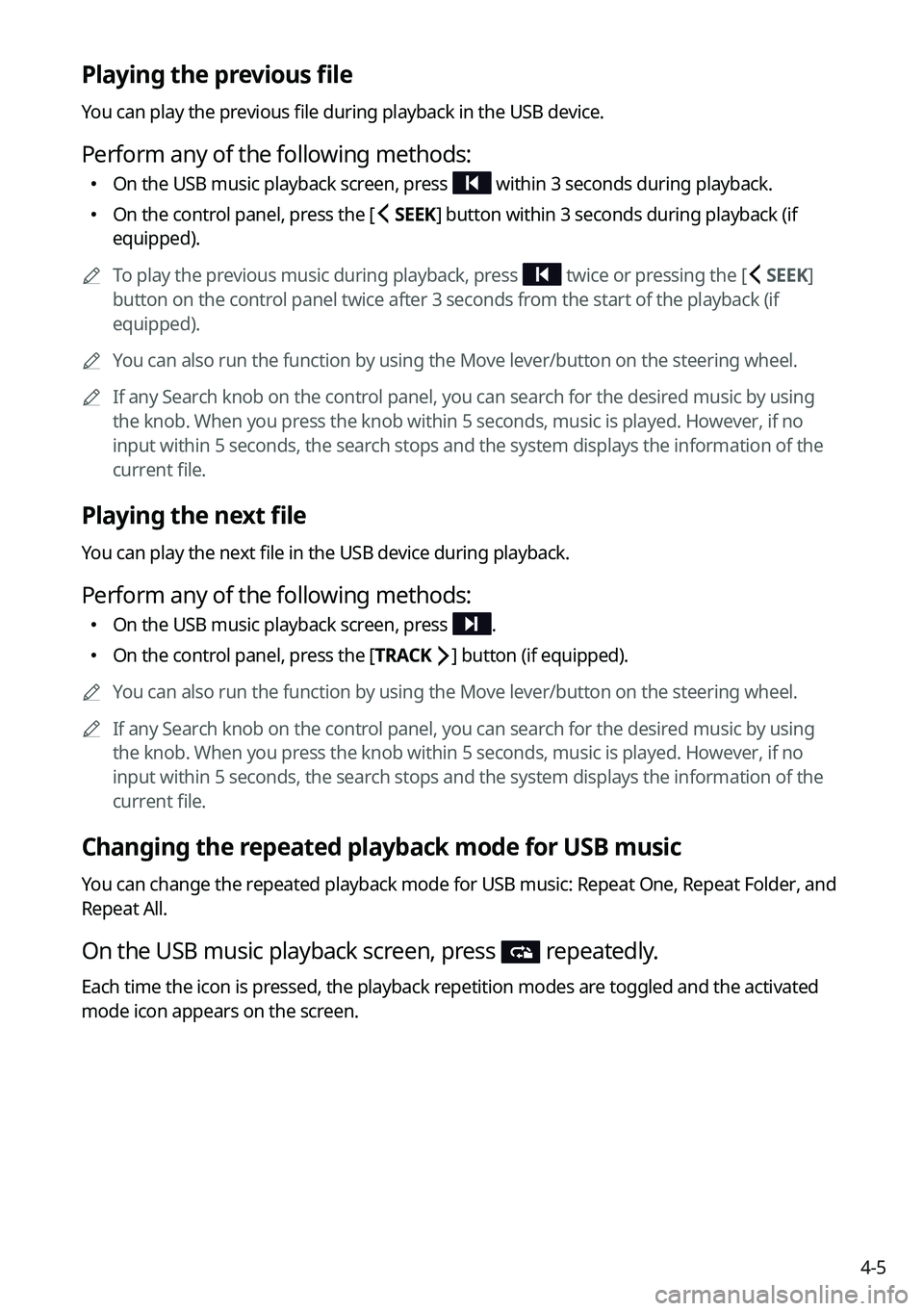

Playing the previous file
You can play the previous file during playback in the USB device.
Perform any of the following methods:
On the USB music playback screen, press within 3 seconds during playback.
On the control panel, press the
[ SEEK] button within 3 seconds during playback (if
equipped).

A
To play the previous music during playback, press
twice or pressing the [ SEEK]
button on the control panel twice after 3 seconds from the start of the playback (if
equipped).

A
You can also run the function by using the Move lever/button on the steering wheel.

A
If any Search knob on the control panel, you can search for the desired music by using
the knob. When you press the knob within 5 seconds, music is played. However, if no
input within 5 seconds, the search stops and the system displays the information of the
current file.
Playing the next file
You can play the next file in the USB device during playback.
Perform any of the following methods:
On the USB music playback screen, press .
On the control panel, press the
[TRACK ] button (if equipped).

A
You can also run the function by using the Move lever/button on the steering wheel.

A
If any Search knob on the control panel, you can search for the desired music by using
the knob. When you press the knob within 5 seconds, music is played. However, if no
input within 5 seconds, the search stops and the system displays the information of the
current file.
Changing the repeated playback mode for USB music
You can change the repeated playback mode for USB music: Repeat One, Repeat Folder, and
Repeat All.
On the USB music playback screen, press repeatedly.
Each time the icon is pressed, the playback repetition modes are toggled and the activated
mode icon appears on the screen.

4-6

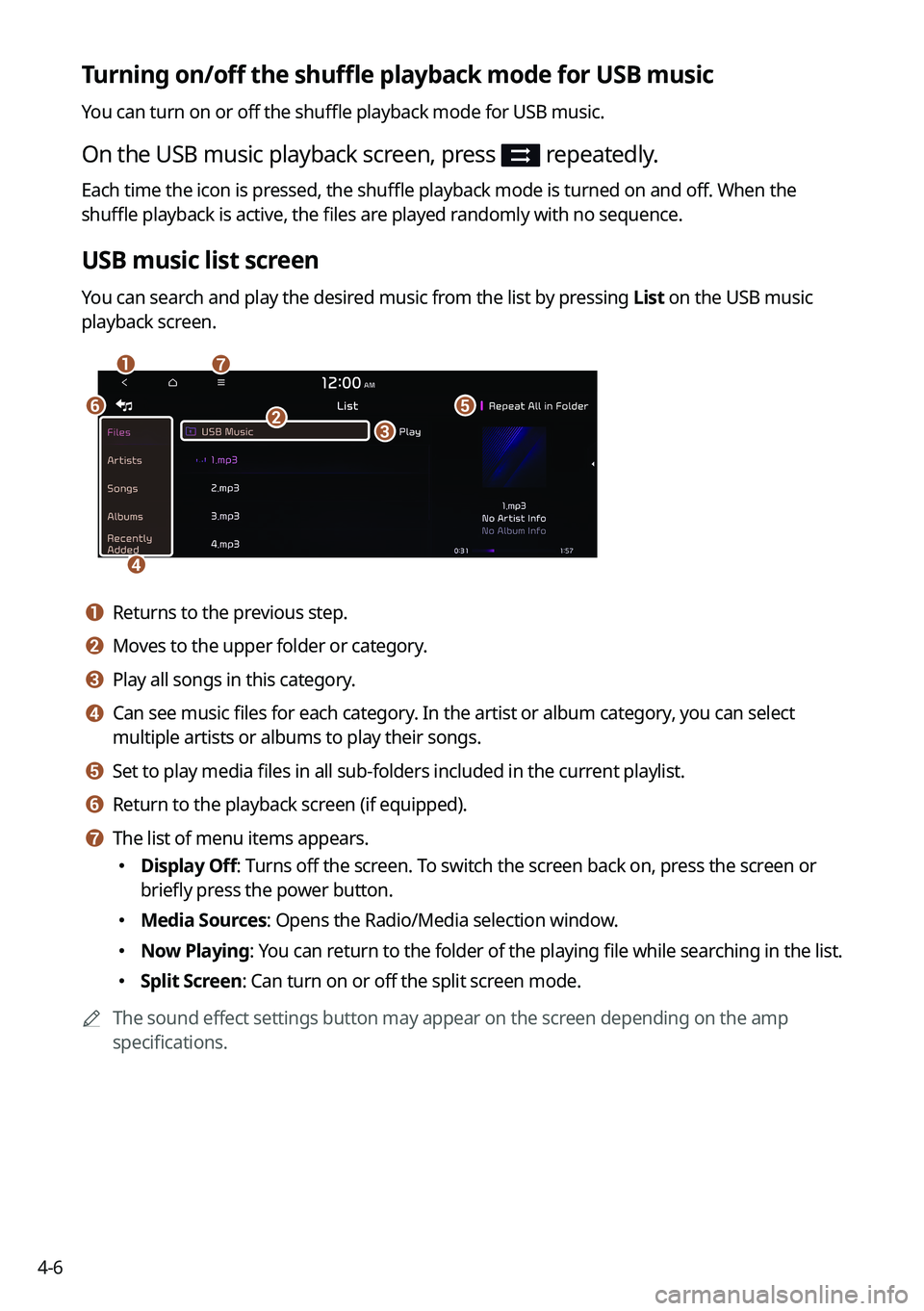

Turning on/off the shuffle playback mode for USB music
You can turn on or off the shuffle playback mode for USB music.
On the USB music playback screen, press repeatedly.
Each time the icon is pressed, the shuffle playback mode is turned on and off. When the
shuffle playback is active, the files are played randomly with no sequence.
USB music list screen
You can search and play the desired music from the list by pressing List on the USB music
playback screen.
ag
e
d
bc
f
a a Returns to the previous step.
b b Moves to the upper folder or category.
c c Play all songs in this category.
d d Can see music files for each category. In the artist or album category, you can select
multiple artists or albums to play their songs.
e e Set to play media files in all sub-folders included in the current playlist.
f f Return to the playback screen (if equipped).
g g The list of menu items appears.
 Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Media Sources: Opens the Radio/Media selection window.
Now Playing
: You can return to the folder of the playing file while searching in the list.
Split Screen: Can turn on or off the split screen mode.

A
The sound effect settings button may appear on the screen depending on the amp
specifications.

4-7

4-8
Playing music via Bluetooth
To use a Bluetooth device for audio playback, connect a device that supports Bluetooth
communication such as mobile phone and MP3 player.
For more information about Bluetooth connection:
> see "Connecting a Bluetooth device."

A
The controls or display screens may differ depending on the connected Bluetooth device,
phone model, and music player App.

A
The streaming may not be supported in some music player Apps.

A
Some functions may not be available depending on the connected Bluetooth\
device or
phone model.

A
When a media device or mobile phone is connected by both the Bluetooth and USB cable
at the same time, the device or system may not work properly. To use the Bluetooth
connection, remove all cables from the device.
Bluetooth audio playback screen
The media player runs when you play a music file from a connected audio device via
Bluetooth.
aj
b
cdef
h
i
g
a a Returns to the previous step.
b b Displays the information of the current music.
c c Restart playing the current file or play the previous file.
d d Can pause or resume playback.
e e Can play the next file.

4-9
f f Can see the duration of the playing song and the current playback position.
g g Find and connect other Bluetooth devices.
h h Moves to the music list screen.
A
The list of Bluetooth audio files may not appear depending on the connected device
or app.
i i Displays the sequence number of the current file and the total number of files for
playback.
j j The list of menu items appears.
Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Media Sources: Opens the Radio/Media selection window.
Change Device: Find and connect other Bluetooth devices.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

A
The sound effect settings button may appear on the screen depending on the amp
specifications.
Pause/Resume
You can pause or resume playback of a Bluetooth audio file.
On the Bluetooth audio playback screen, press or .
Resuming playback of the current Bluetooth audio file
You can play the current Bluetooth audio file from the beginning.
Perform any of the following methods:
On the Bluetooth audio playback screen, press .
On the control panel, press the
[ SEEK] button (if equipped).

A
The actions required may differ depending on the connected device.

A
You can also run the function by using the Move lever/button on the steering wheel.

4-10
Resuming playback of the previous Bluetooth audio file
You can play the previous Bluetooth audio file during playback.
Perform any of the following methods:
On the Bluetooth audio playback screen, press twice.
On the control panel, press the
[ SEEK] button twice (if equipped).

A
The actions required may differ depending on the connected device.

A
You can also run the function by using the Move lever/button on the steering wheel.

A
If any Search knob on the control panel, you can search for the desired music by using
the knob. When you press the knob within 5 seconds, music is played. However, if no
input within 5 seconds, the search stops and the system displays the information of the
current file.
Resuming playback of the next Bluetooth audio file
You can play the next Bluetooth audio file during playback.
Perform any of the following methods:
On the Bluetooth audio playback screen, press .
On the control panel, press the
[TRACK ] button (if equipped).

A
The actions required may differ depending on the connected device.

A
You can also run the function by using the Move lever/button on the steering wheel.

A
If any Search knob on the control panel, you can search for the desired music by using
the knob. When you press the knob within 5 seconds, music is played. However, if no
input within 5 seconds, the search stops and the system displays the information of the
current file.

Navigation
Navigation functions
Various ways to find routes
Using saved favorite places Viewing traffic Information Searching for gas stations
Searching for EV (Electric Vehicle) charging stations END USER LICENSE AGREEMENT
05

5-2
Navigation functions
Navigation Menu overview
You can use the navigation system conveniently through various functions on the Navigation
Menu screen.
Perform any of the following methods:
On the All Menus screen, press
Navigation Menu.
On the control panel, press the
[NAV ] button.
an
c
m
defgh
ijkl
b
a a Returns to the previous step.
b b Customize the navigation settings.
c c Search for a location by entering various types of keywords such as place name and
address.
> See " Searching by keyword."
d d Search for a location by using the point of interest (POI) categories. > See "Searching for
nearby points of interest(POI)."
e e Select one of the destinations you entered previously. > See " Searching from previous
destinations."
f f Select one of the locations stored in your saved places. > See " Using saved favorite places."
g g Search for Kia Dealerships easily. > See "Searching for Kia Dealerships."
h h Cancel guidance to the destination. > See "Canceling the route guidance."
i i View information on the entire route to the destination.
j j Edit the waypoints on the way to the destination. > See "Editing the route."
k k Reroute by changing the route search option. > See "Changing the route search option."
l l You can check accident and construction zone alerts on the map. > See " Viewing traffic
Information."

5-3
m m Register your home, office or other frequently visited places as a favorite location to
make searching easier.
> See "Saving a frequently visited place as a favorite place."
n n The list of menu items appears.
 Reorder Icons: Can change the location of an icon on the Navigation Menu screen.
Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.

A
Available icons and their arrangement may differ depending on the vehicle model and
specifications.
Finding a route easily
ÝWarning
Driving while distracted may cause a loss of vehicle control that may lead to an accident,
severe bodily injury, or death. The driver's primary responsibility is the safe and legal
operation of the vehicle, and the use of any devices or systems that take the driver's attention
away from driving.
1 Perform any of the following methods:
On the All Menus screen, press
Navigation Menu >
Search.
 On the map screen, press .

A
Press and hold the [ NAV] button on the control panel to enter into Places.
2 Enter the location data such as place name, address, or coordinates and
then press OK.

5-4

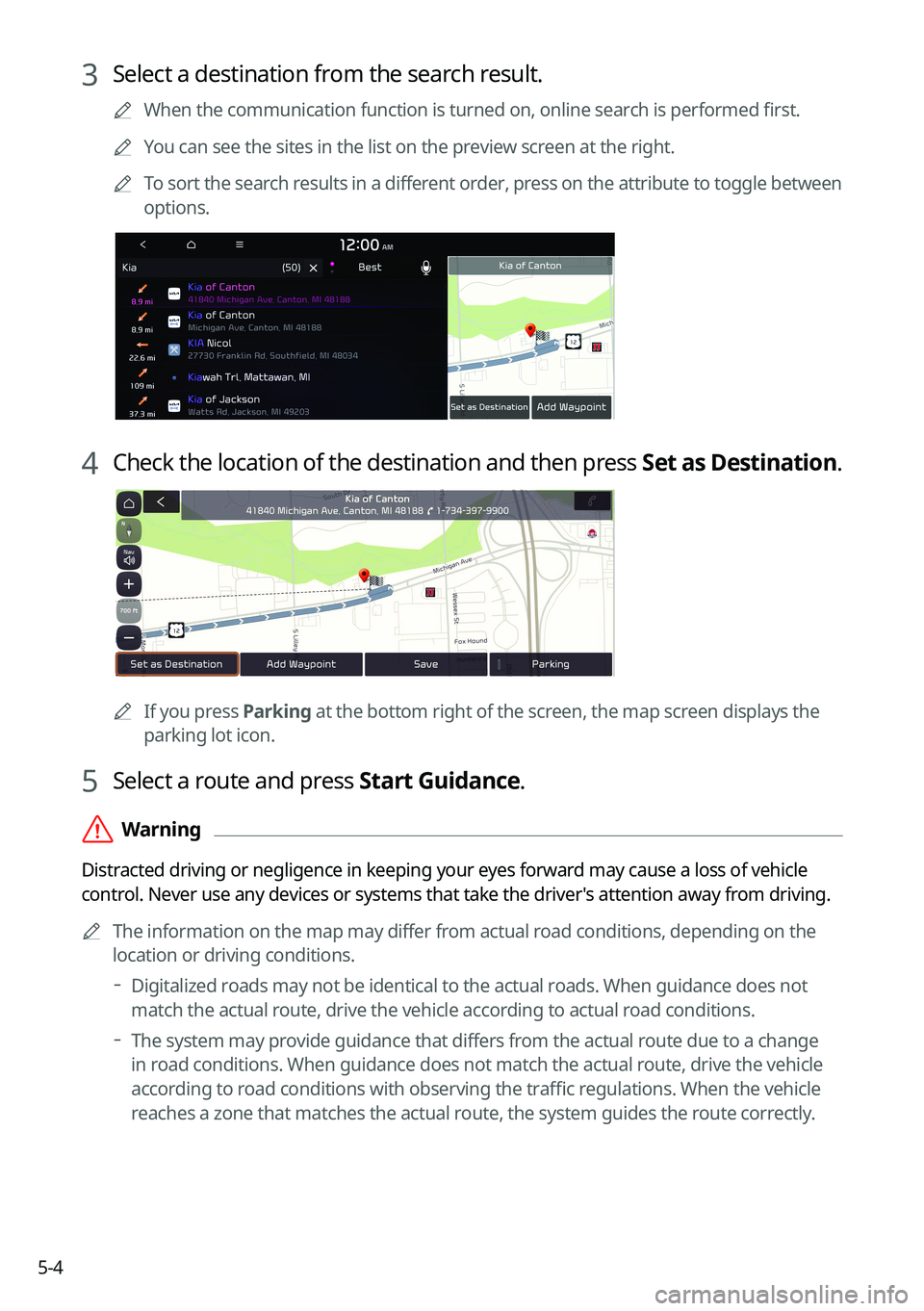

3 Select a destination from the search result.

A
When the communication function is turned on, online search is performed first.

A
You can see the sites in the list on the preview screen at the right.

A
To sort the search results in a different order, press on the attribute to toggle between
options.
4 Check the location of the destination and then press Set as Destination.
A
If you press Parking at the bottom right of the screen, the map screen displays the
parking lot icon.
5 Select a route and press Start Guidance.
ÝWarning
Distracted driving or negligence in keeping your eyes forward may cause a loss of vehicle
control. Never use any devices or systems that take the driver's attention away from driving.

A
The information on the map may differ from actual road conditions, depending on the
location or driving conditions.

Digitalized roads may not be identical to the actual roads. When guidance does not
match the actual route, drive the vehicle according to actual road conditions.

The system may provide guidance that differs from the actual route due to a change
in road conditions. When guidance does not match the actual route, drive the vehicle
according to road conditions with observing the traffic regulations. When the vehicle
reaches a zone that matches the actual route, the system guides the route correctly.
