KIA SORENTO 2023 Navigation System Quick Reference Guide

3-13

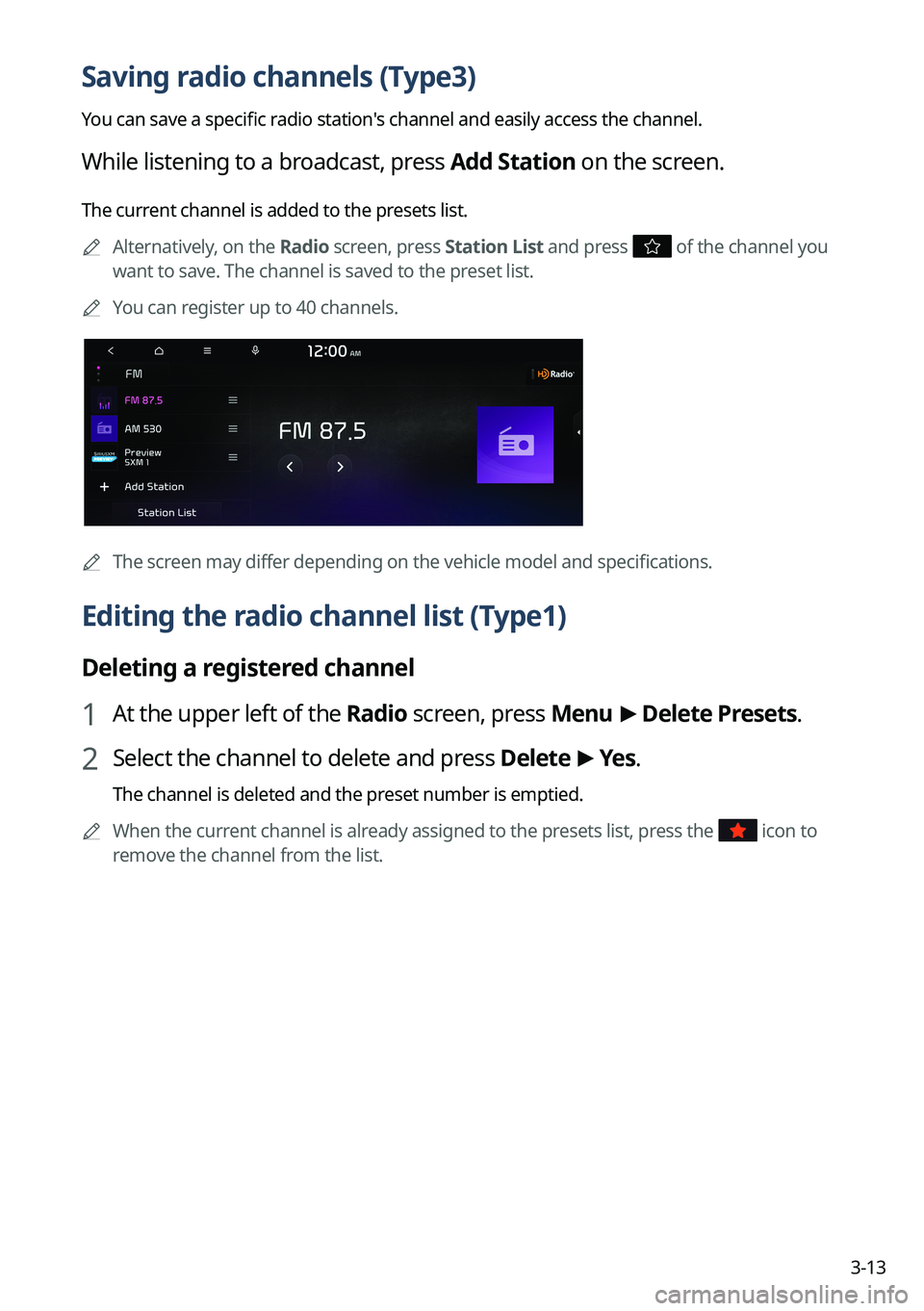

Saving radio channels (Type3)
You can save a specific radio station's channel and easily access the channel.
While listening to a broadcast, press Add Station on the screen.
The current channel is added to the presets list.

A
Alternatively, on the Radio screen, press Station List and press
of the channel you
want to save. The channel is saved to the preset list.

A
You can register up to 40 channels.

A
The screen may differ depending on the vehicle model and specifications.
Editing the radio channel list (Type1)
Deleting a registered channel
1 At the upper left of the Radio screen, press Menu >
Delete Presets.
2 Select the channel to delete and press Delete >
Yes .
The channel is deleted and the preset number is emptied.

A
When the current channel is already assigned to the presets list, press the
icon to
remove the channel from the list.

3-14

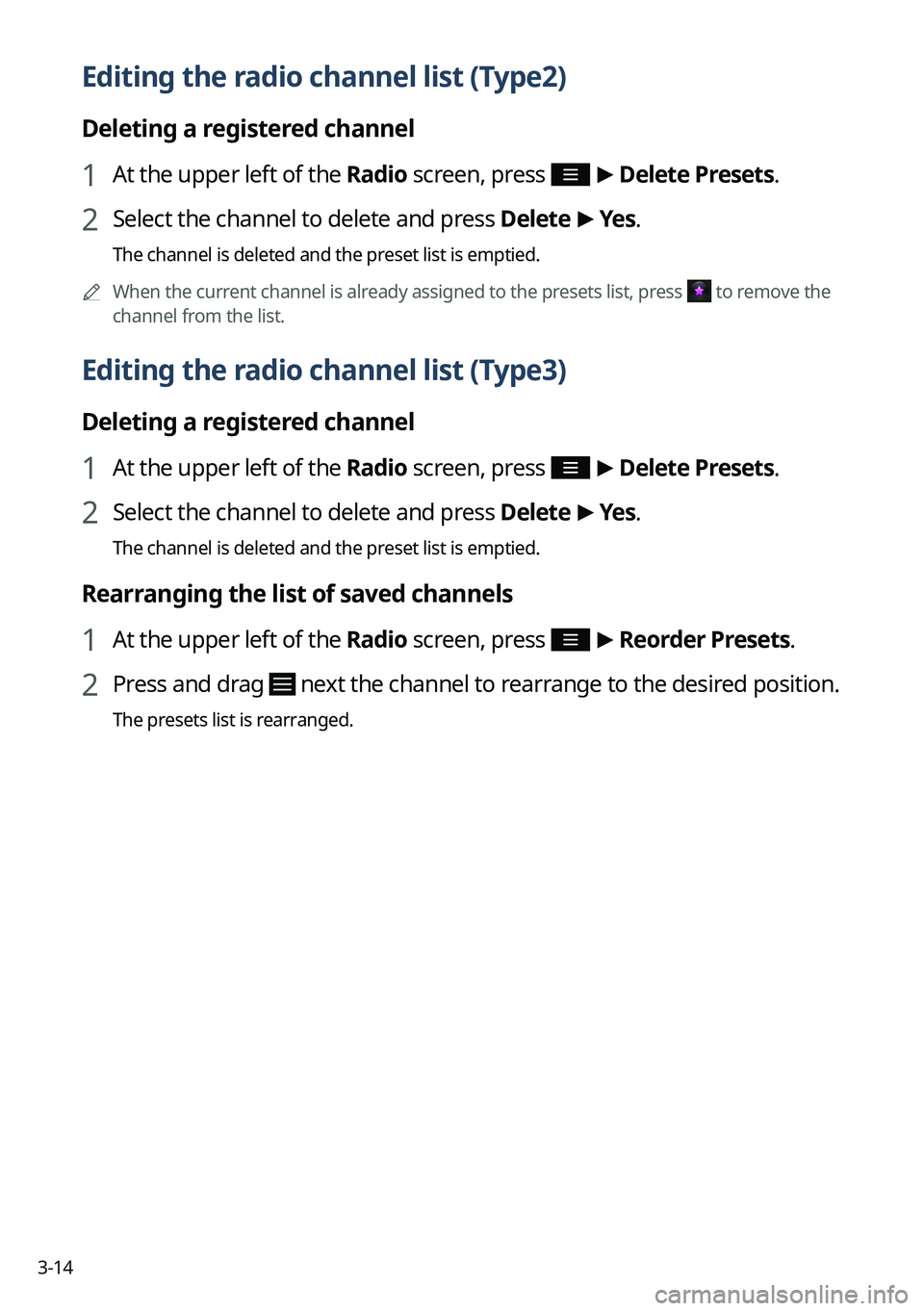

Editing the radio channel list (Type2)
Deleting a registered channel
1 At the upper left of the Radio screen, press >
Delete Presets.
2 Select the channel to delete and press Delete >
Yes .
The channel is deleted and the preset list is emptied.

A
When the current channel is already assigned to the presets list, press
to remove the
channel from the list.
Editing the radio channel list (Type3)
Deleting a registered channel
1 At the upper left of the Radio screen, press >
Delete Presets.
2 Select the channel to delete and press Delete >
Yes .
The channel is deleted and the preset list is emptied.
Rearranging the list of saved channels
1 At the upper left of the Radio screen, press >
Reorder Presets.
2 Press and drag next the channel to rearrange to the desired position.
The presets list is rearranged.

3-15

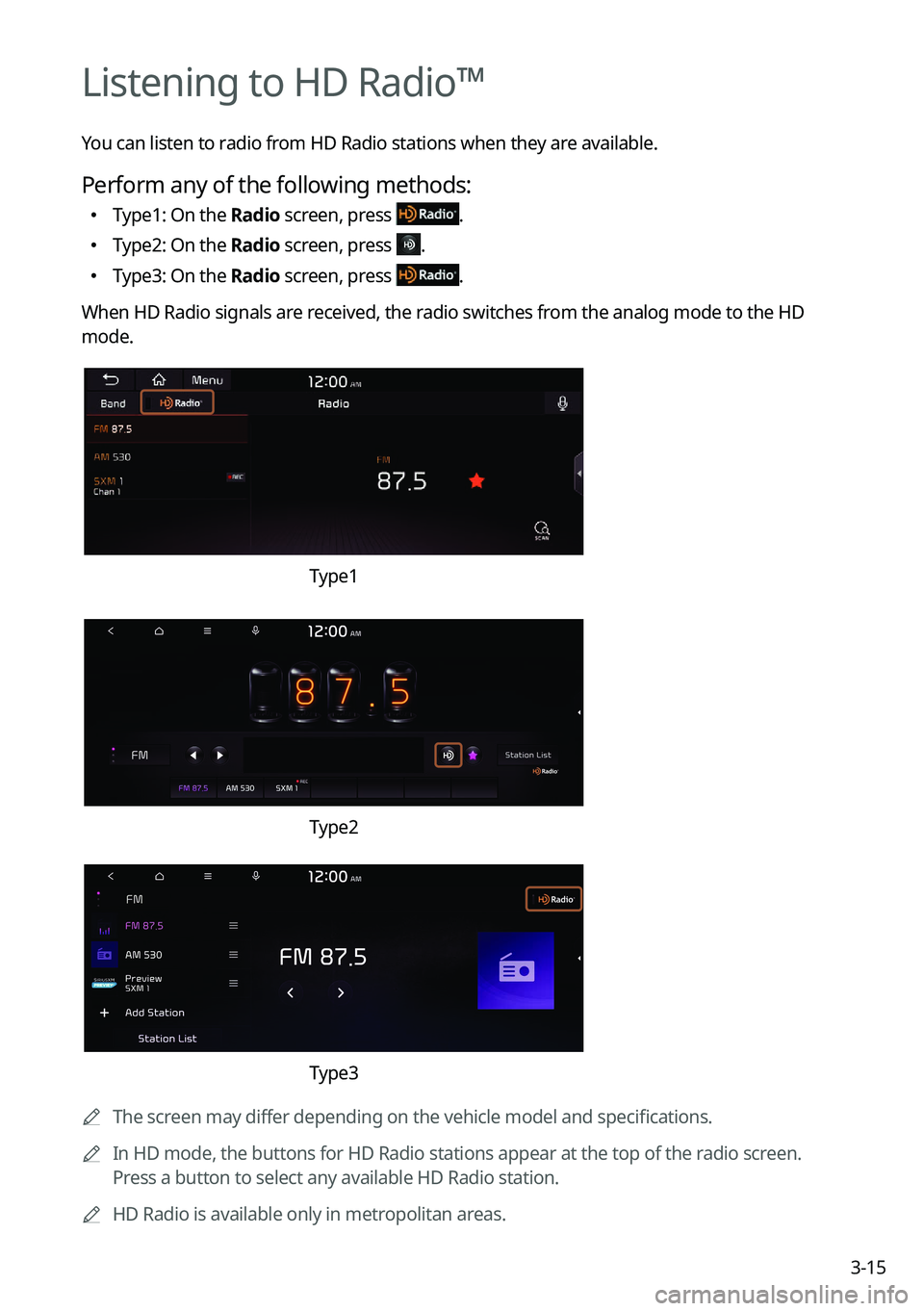

Listening to HD Radio™
You can listen to radio from HD Radio stations when they are available.
Perform any of the following methods:
Type1: On the
Radio screen, press .
Type2: On the
Radio screen, press .
Type3: On the
Radio screen, press .
When HD Radio signals are received, the radio switches from the analog mode to the HD
mode.
Type1
Type2
Type3

A
The screen may differ depending on the vehicle model and specifications.

A
In HD mode, the buttons for HD Radio stations appear at the top of the r\
adio screen.
Press a button to select any available HD Radio station.

A
HD Radio is available only in metropolitan areas.

3-16

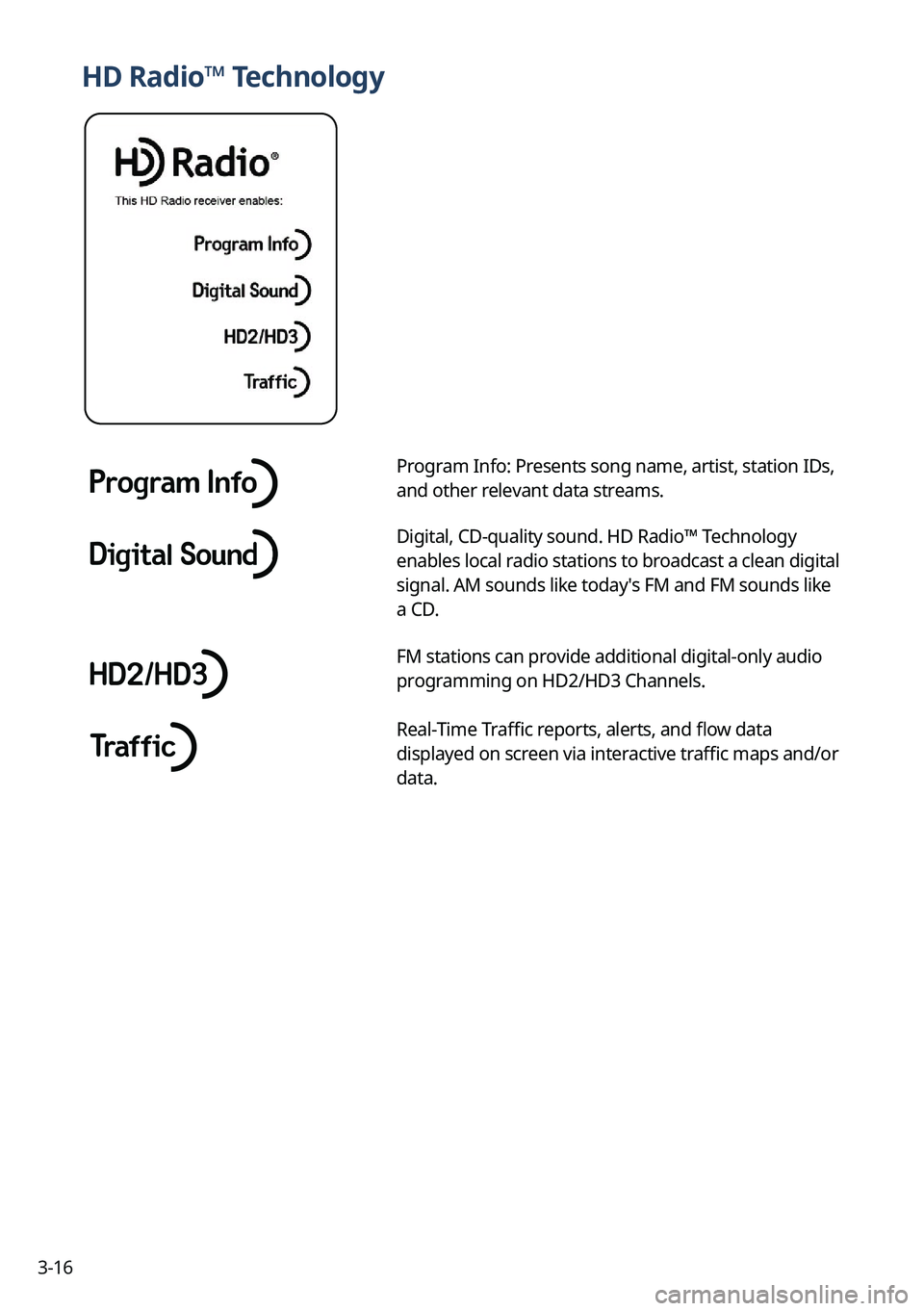

HD Radio™ Technology
Program Info: Presents song name, artist, station IDs,
and other relevant data streams.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean digital
signal. AM sounds like today's FM and FM sounds like
a CD.
FM stations can provide additional digital-only audio
programming on HD2/HD3 Channels.
Real-Time Traffic reports, alerts, and flow data
displayed on screen via interactive traffic maps and/or
data.

3-17

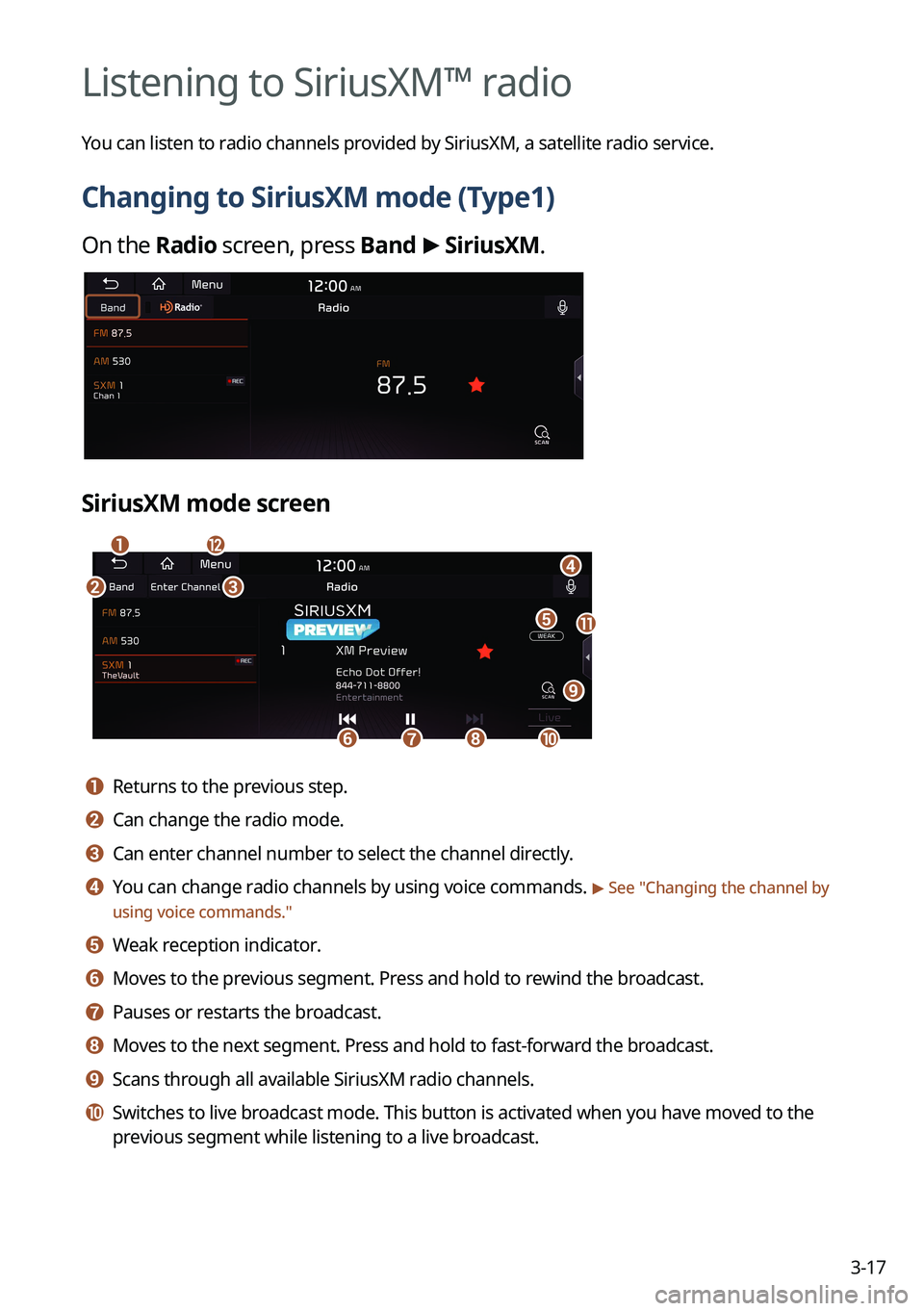

Listening to SiriusXM™ radio
You can listen to radio channels provided by SiriusXM, a satellite radio service.
Changing to SiriusXM mode (Type1)
On the Radio screen, press Band >
SiriusXM.
SiriusXM mode screen
d
h
a
bc
fg
i
j
ke
l
a a Returns to the previous step.
b b Can change the radio mode.
c c Can enter channel number to select the channel directly.
d d You can change radio channels by using voice commands. > See " Changing the channel by
using voice commands."
e e Weak reception indicator.
f f Moves to the previous segment. Press and hold to rewind the broadcast.
g g Pauses or restarts the broadcast.
h h Moves to the next segment. Press and hold to fast-forward the broadcast.
i i Scans through all available SiriusXM radio channels.
j j Switches to live broadcast mode. This button is activated when you have moved to the
previous segment while listening to a live broadcast.

3-18

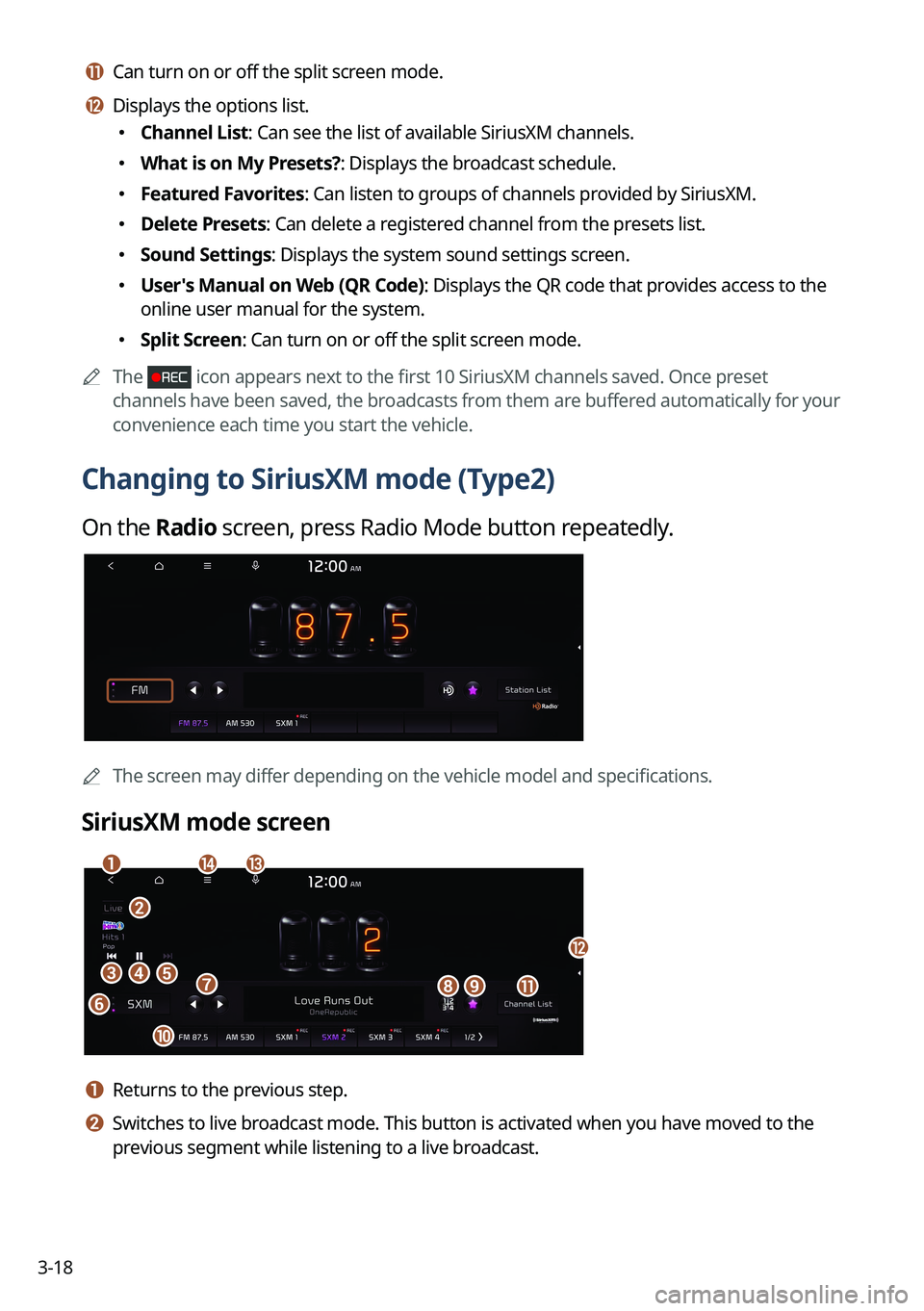

k k Can turn on or off the split screen mode.
l l Displays the options list.
Channel List: Can see the list of available SiriusXM channels.
What is on My Presets?: Displays the broadcast schedule.
Featured Favorites: Can listen to groups of channels provided by SiriusXM.
Delete Presets: Can delete a registered channel from the presets list.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The
icon appears next to the first 10 SiriusXM channels saved. Once preset
channels have been saved, the broadcasts from them are buffered automatically for your
convenience each time you start the vehicle.
Changing to SiriusXM mode (Type2)
On the Radio screen, press Radio Mode button repeatedly.
A
The screen may differ depending on the vehicle model and specifications.
SiriusXM mode screen
eh
a
cd
fgi
j
b
nm
k
l
a a Returns to the previous step.
b b Switches to live broadcast mode. This button is activated when you have moved to the
previous segment while listening to a live broadcast.

3-19

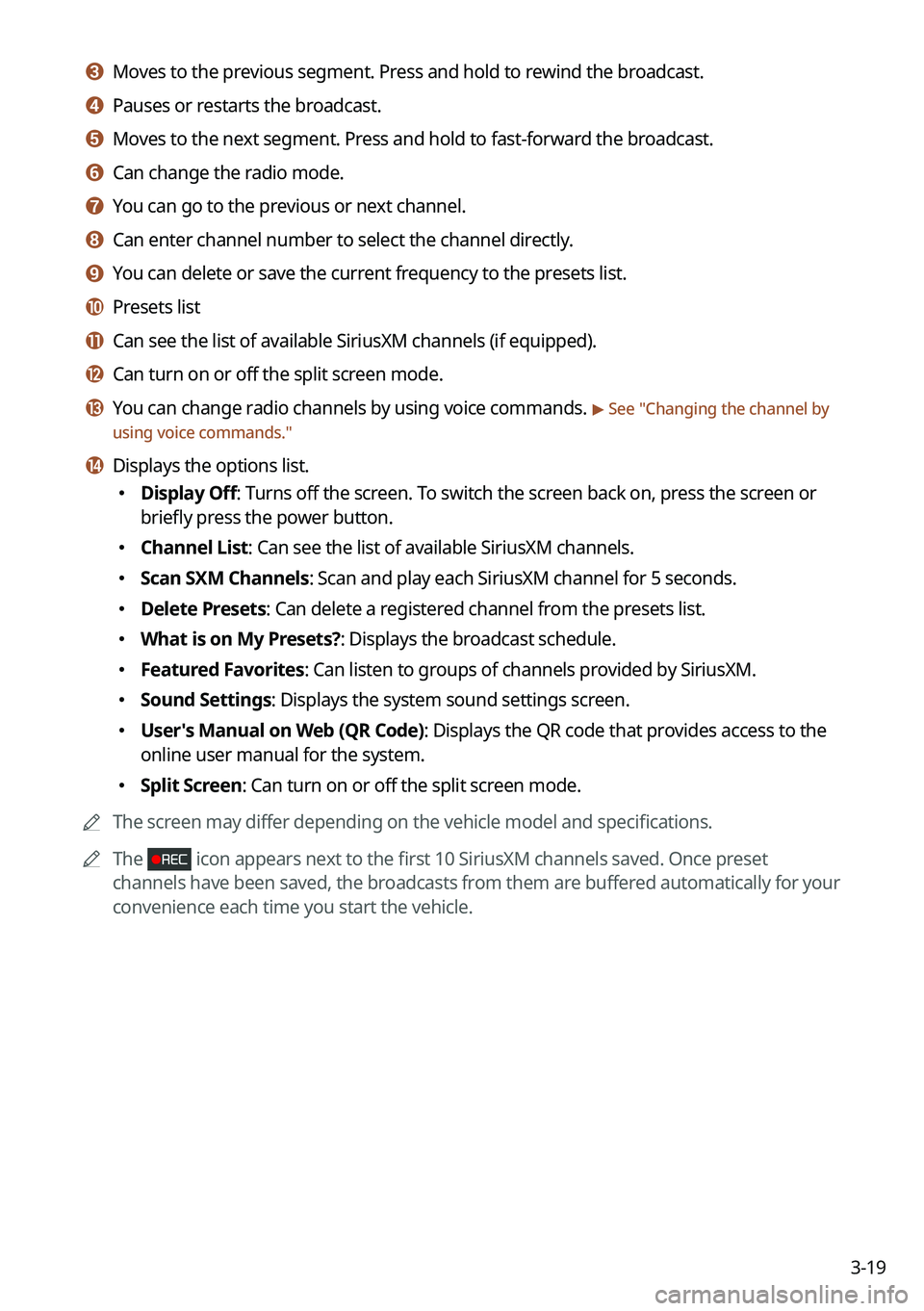

c c Moves to the previous segment. Press and hold to rewind the broadcast.
d d Pauses or restarts the broadcast.
e e Moves to the next segment. Press and hold to fast-forward the broadcast.
f f Can change the radio mode.
g g You can go to the previous or next channel.
h h Can enter channel number to select the channel directly.
i i You can delete or save the current frequency to the presets list.
j j Presets list
k k Can see the list of available SiriusXM channels (if equipped).
l l Can turn on or off the split screen mode.
m m You can change radio channels by using voice commands. > See "Changing the channel by
using voice commands."
n n Displays the options list.
 Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Channel List: Can see the list of available SiriusXM channels.
Scan SXM Channels: Scan and play each SiriusXM channel for 5 seconds.
Delete Presets: Can delete a registered channel from the presets list.
What is on My Presets?: Displays the broadcast schedule.
Featured Favorites: Can listen to groups of channels provided by SiriusXM.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

A
The
icon appears next to the first 10 SiriusXM channels saved. Once preset
channels have been saved, the broadcasts from them are buffered automatically for your
convenience each time you start the vehicle.

3-20

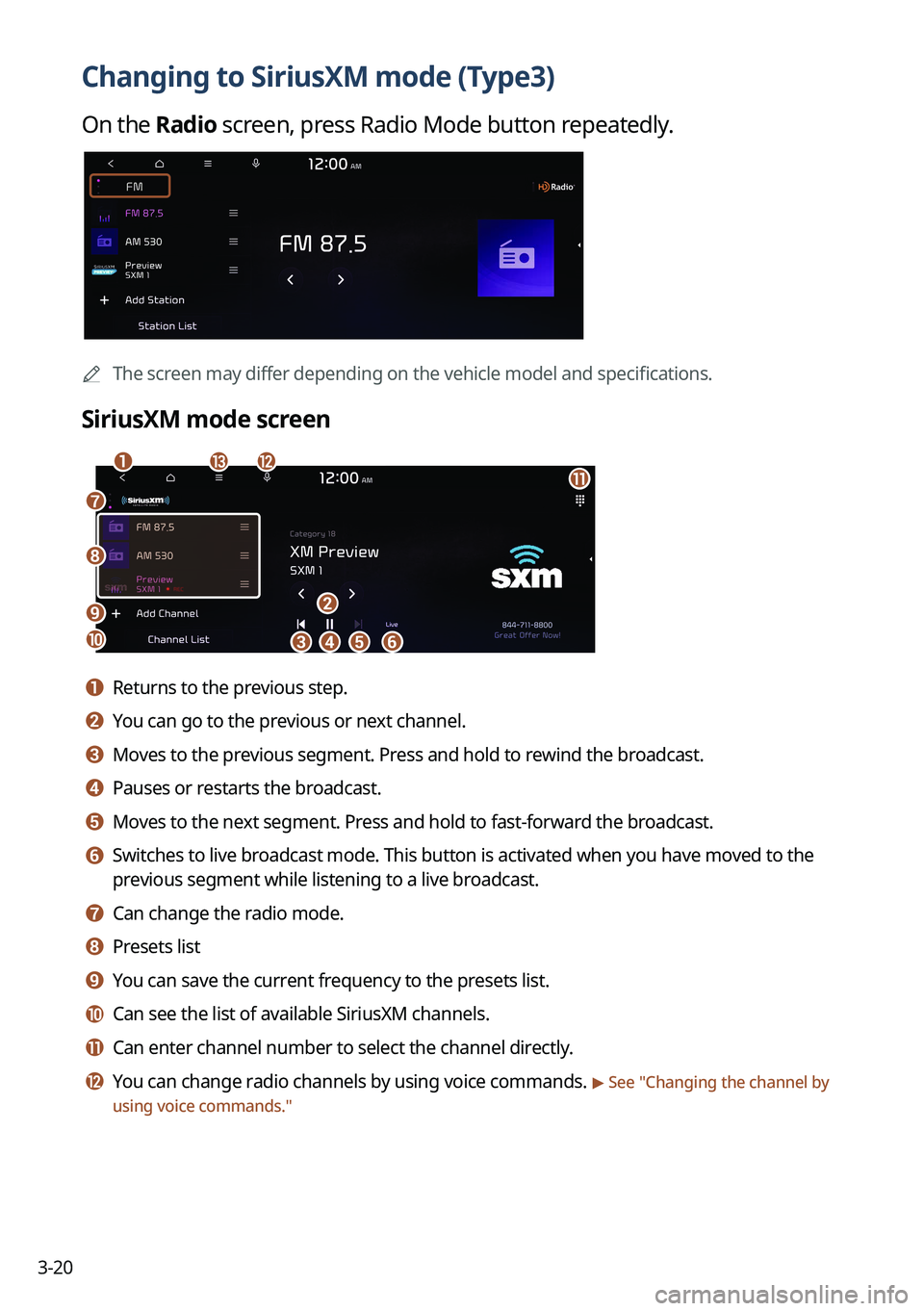

Changing to SiriusXM mode (Type3)
On the Radio screen, press Radio Mode button repeatedly.
A
The screen may differ depending on the vehicle model and specifications.
SiriusXM mode screen
b
a
cdef
g
mlk
h
i
j
a a Returns to the previous step.
b b You can go to the previous or next channel.
c c Moves to the previous segment. Press and hold to rewind the broadcast.
d d Pauses or restarts the broadcast.
e e Moves to the next segment. Press and hold to fast-forward the broadcast.
f f Switches to live broadcast mode. This button is activated when you have moved to the
previous segment while listening to a live broadcast.
g g Can change the radio mode.
h h Presets list
i i You can save the current frequency to the presets list.
j j Can see the list of available SiriusXM channels.
k k Can enter channel number to select the channel directly.
l l You can change radio channels by using voice commands. > See "Changing the channel by
using voice commands."

3-21

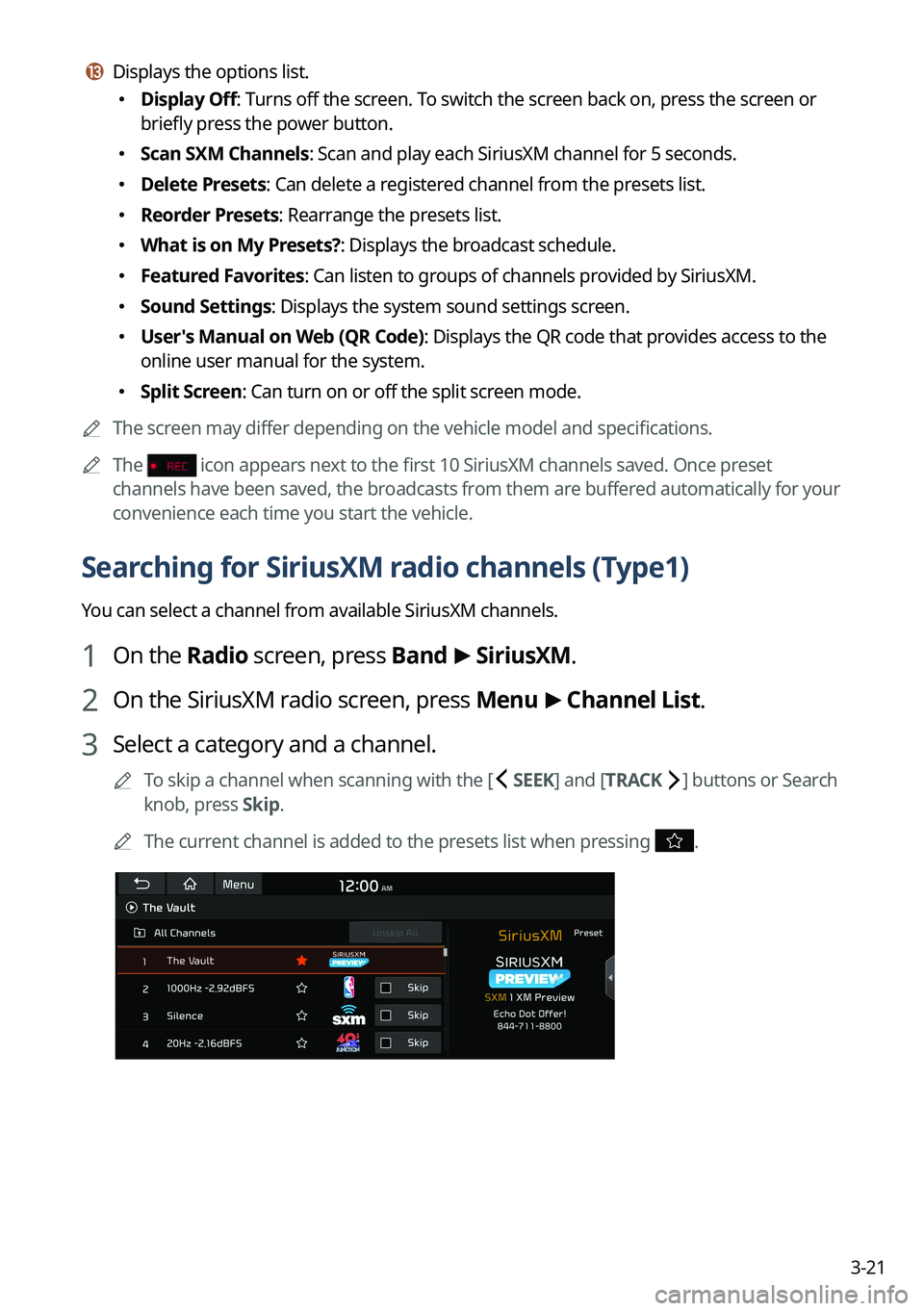

m m Displays the options list.
Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
Scan SXM Channels: Scan and play each SiriusXM channel for 5 seconds.
Delete Presets: Can delete a registered channel from the presets list.
Reorder Presets: Rearrange the presets list.
What is on My Presets?: Displays the broadcast schedule.
Featured Favorites: Can listen to groups of channels provided by SiriusXM.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

A
The
icon appears next to the first 10 SiriusXM channels saved. Once preset
channels have been saved, the broadcasts from them are buffered automatically for your
convenience each time you start the vehicle.
Searching for SiriusXM radio channels (Type1)
You can select a channel from available SiriusXM channels.
1 On the Radio screen, press Band >
SiriusXM.
2 On the SiriusXM radio screen, press Menu >
Channel List.
3 Select a category and a channel.

A
To skip a channel when scanning with the [ SEEK] and [TRACK ] buttons or Search
knob, press Skip.

A
The current channel is added to the presets list when pressing
.

3-22

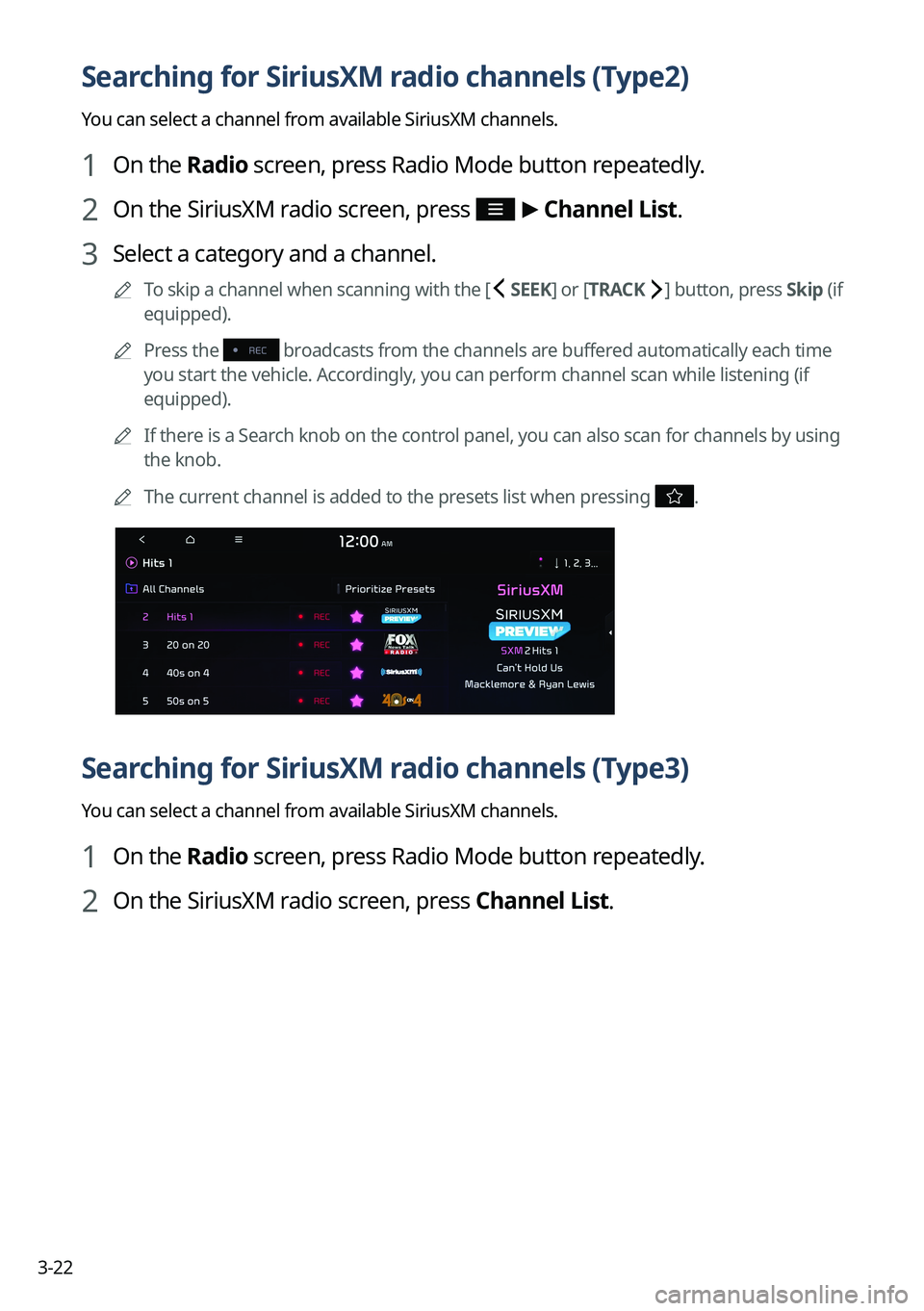

Searching for SiriusXM radio channels (Type2)
You can select a channel from available SiriusXM channels.
1 On the Radio screen, press Radio Mode button repeatedly.
2 On the SiriusXM radio screen, press >
Channel List.
3 Select a category and a channel.

A
To skip a channel when scanning with the [ SEEK ] or [TRACK ] button, press Skip (if
equipped).

A
Press the
broadcasts from the channels are buffered automatically each time
you start the vehicle. Accordingly, you can perform channel scan while listening (if
equipped).

A
If there is a Search knob on the control panel, you can also scan for channels by using
the knob.

A
The current channel is added to the presets list when pressing
.
Searching for SiriusXM radio channels (Type3)
You can select a channel from available SiriusXM channels.
1 On the Radio screen, press Radio Mode button repeatedly.
2 On the SiriusXM radio screen, press Channel List.
