2 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . . . . 03Hybrid / Plug-In Hybrid Indicators at Star tup . . . . . 04Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . . . . 05Tire Pressure Monitoring System (TPMS) . . . . . . . . . 06Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06Drive Mode Integrated Control System* . . . . . . . . . . 07
VEHICLE SETTINGSTrip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . . . .08LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . . .08User Set tings – Instrument Cluster . . . . . . . . . . . . . . .09Vehicle Set tings* – Audio Head Unit . . . . . . . . . . . . . .09Vehicle Auto-Shut Off System* . . . . . . . . . . . . . . . . . . . 10Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
H Y B R I D / P LU G - I N H Y B R I D S YS T E MPlug-In Hybrid Display* . . . . . . . . . . . . . . . . . . . . . . . . . . 11Charging the Plug-In Hybrid Vehicle . . . . . . . . . . . . . 12Energy Flow - Instrument Cluster LCD . . . . . . . . . . . . 14Charging Connector Auto/Lock Mode . . . . . . . . . . . . 16Scheduled Charging* (Plug-In Hybrid only) . . . . . . . 16Plug-In Hybrid Modes (Plug-In Hybrid only) . . . . . . 17
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) . . . . . . . . 18Blind-Spot Collision-Avoidance Assist (BCA)* . . . . . 19Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . . .20Intelligent Speed Limit Assist (ISL A) . . . . . . . . . . . . . . 21Driver At tention Warning (DAW)* . . . . . . . . . . . . . . . . . 22Leading Vehicle Depar ture Aler t (LVDA) . . . . . . . . . . 23Safe Exit Assist (SEA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Smar t Cruise Control (SCC) with Stop and Go* . . . . 24Cruise Control (CC)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . . . 26Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . . . 27Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . . . 28Blind-Spot View Monitor (BVM)* . . . . . . . . . . . . . . . . . . 28Surround View Monitor (SVM)* . . . . . . . . . . . . . . . . . . . 29
Rear Cross-Traffic Collision-Avoidance Assist* . . .30Rear Occupant Aler t with Ultrasonic Sensors . . . . . 31Reverse Parking Collision-Avoidance Assist* . . . . . . 32Forward/Reverse Parking Distance Warning* . . . . . 32
DRIVER’S PANELInstrument Cluster Illumination Control . . . . . . . . . . . 33Electronic Stability Control (ESC) . . . . . . . . . . . . . . . . . 33Hill-Star t Assist Control (HAC) . . . . . . . . . . . . . . . . . . . . 33Reverse Parking Aid Function* . . . . . . . . . . . . . . . . . . . 34Engine Star t/Stop But ton* . . . . . . . . . . . . . . . . . . . . . . . 34Power Windows, Window Lock & Central Door Lock / Auto Door Lock/Unlock . . . . . . . . . . . . 35Electronic Child Safety Lock System . . . . . . . . . . . . . . 35Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . . . . 36Manual Folding Mirrors* . . . . . . . . . . . . . . . . . . . . . . . . . 36Power Folding Outside Mirrors* . . . . . . . . . . . . . . . . . .36
STEERING WHEEL CONTROLSTilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . . . 37Headlights & High Beams . . . . . . . . . . . . . . . . . . . . . . . . 38High Beam Assist / Daytime Running Lights* . . . . . 38Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . . . 39Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . 39Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
AUDIO SYSTEMSBluetooth® Wireless Technology . . . . . . . . . . . . . . . . . 40 Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . 42UVO link Activation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43Kia Access with UVO link App Download . . . . . . . . .44Kia Access with UVO link App Features Guide . . . .44Standard Audio System - Value with UVO link* . . . .45UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . 46
CENTER PANELDigital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47Multimedia USB Por t, Power Outlets & USB Charger Por t . . . . . . . . . . . . . . . . . . . . . . . . . . .47Automatic Climate Control . . . . . . . . . . . . . . . . . . . . . . . 48
Wireless Smar tphone Charging System* . . . . . . . . . .50Rotary Dial Shifter Knob – Shift-by-Wire . . . . . . . . . . 51Paddle Shifters* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . . . . . . 52Idle, Stop & Go (ISG) System* . . . . . . . . . . . . . . . . . . . . . 52Electronic Parking Brake (EPB)* / Auto Hold . . . . . .53Heated Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . .54Seat Warmers/ Ventilated Seats* . . . . . . . . . . . . . . . . .54
SEATINGFront Seat Headrest Adjustment . . . . . . . . . . . . . . . . .55Driver Position Memory System* . . . . . . . . . . . . . . . . .55Power Adjustable Driver ’s Seat / Power Lumbar . .562nd-Row Folding Seat . . . . . . . . . . . . . . . . . . . . . . . . . . .562nd-Row Auto-Folding Seat . . . . . . . . . . . . . . . . . . . . . . 57Unfastening Center Seatbelt . . . . . . . . . . . . . . . . . . . . . 57One-Touch Slide & Fold 2nd-Row Seats . . . . . . . . . . .583rd-Row Folding Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . . 59Smar t Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61Smar t Liftgate with Auto Open* . . . . . . . . . . . . . . . . . . 62Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63Panoramic Sunroof with Power Sunshade* . . . . . . .63HomeLink® with Auto-Dimming Rearview Mirror . . 64Hood Release Lever and Latch . . . . . . . . . . . . . . . . . . .65Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . . .65Fuel Filler Lid Release . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . . .66Child-Protector Rear Door Locks* . . . . . . . . . . . . . . . .66Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
MAINTENANCE CHART . . . . . . . . . .Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
Page 6 of 74
4†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Conventional Cluster (Type A)
EPB
EVOFF
AUTO
CH
D
EF
06
１
5
2
MPH
km/h0
１60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
526mi50F°
CHARGE
ECO
POWER
Hybrid / Plug-In Hybrid Indicators at Startup
REMINDER: Avoid star ting or driving the vehicle when the fuel tank is empt y . As the engine will be incapable of charging the high-voltage Hybrid bat ter y, the bat ter y will lose its charge and may be damaged .
Yo u r vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . For more information on the instrument cluster, please refer to section 1 in the Owner ’s Manual .
These illustrations are for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .
A Power Gauge - Indicates how economically the vehicle is being driven .
• CHARGE B – Indicates that the energy made by the vehicle is being converted to electrical energy (regenerated energy)
• ECO C – Indicates that the vehicle is being driven in an ECO-friendly manner
• POWER D – Indicates that the vehicle is exceeding the ECO-friendly range
E EV Mode - Illuminates when only the electric motor is powering the vehicle
F
Ready - Illuminates when the Hybrid system is operational . Even if the engine is off, the vehicle can be driven (Plug-In Hybrid indicator location may vary from image shown)
G Service Indicator – Illuminates when a malfunction occurs in the vehicle’s Hybrid system . Have an authorized Kia dealer address the concern as soon as possible
AB
C
D
EF
G
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER
Page 7 of 74
Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . Refer to Section 4 in the Owner ’s Manual for more information .
READY Indicator
EVEV Mode Indicator
Hybrid System Warning Light*
Engine Oil Pressure Warning Light
Malfunction Indicator Light
EPBElectric Parking Brake (EPB) Warning Light*
Seat Belt Warning Light
Light ON Indicator Light
High Beam Indicator Light
Low Beam Indicator Light
Front Fog Light Indicator Light*
High Beam Assist Indicator Light
Parking Brake & Brake Fluid Warning Light
For ward Safet y Warning Light*
All-Wheel Drive (AWD) Warning Light*
All-Wheel Drive (AWD) Lock Indicator Light*
Electronic Power Steering (EPS) Warning Light
Charging System Warning Light*
Airbag Warning Light
Low Fuel Level Warning Light
Immobilizer Indicator Light*
Engine Coolant Temperature Warning Light*
Icy Road Warning Indicator Light*
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator Light
Anti-Lock Braking System (ABS) Warning Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Electronic Stabilit y Control (ESC) Indicator Light
AUTO HOLD Indicator*
Cruise Control Indicator Light*
/Cruise Control ON/SET Indicator Light*
EPB
EVOFF
AUTO
L H
D
EAUTO
HEVF
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
526mi50F°
CHARGE
ECO
POWER
Washer Fluid Warning Light*
Master Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (t wo separate indicators on Instrument Cluster lit at same time)
Lane Safet y Indicator Light
LED Headlamp Warning Indicator*
Downhill Brake Assist (DBC) Indicator*
SPORT Mode Indicator Light
ECO Mode Indicator Light
SMART Mode Indicator Light
Charging Cable Connection Indicator (Plug-In Hybrid)*
Regenerative Brake Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
Conventional cluster (Type A)
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in the illustration . On the vehicle, they may appear in the LCD .
5†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
Page 11 of 74
9†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
To enter the User Settings mode in the LCD Instrument Cluster Modes, press the Mode button A when the vehicle is at a standstill, shift lever in Park, and with the Engine/Start Stop button in the ON position, select User Settings by pressing the Move (OK) button B up/down .
You can navigate the selections on the display by pressing the Move (OK) button B up/down, and then selecting the item by pressing the OK button B .
Press the OK button B up/down to go back to the previous mode/item .
User Settings mode:
User Settings - Instrument Cluster
Driving while distracted is dangerous and should be avoided . Do not at tempt to change vehicle system set tings while driving .
See section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE
Driver Assistance •Driver at tention warning •Speed limit warning •Warning timing •Warning volume •Haptic Warning •For ward safet y •Lane safet y •Blind-spot safet y •Parking safet y
Door* •Automatically lock •Automatically unlock •Two-press unlock •Power liftgate •Power liftgate speed •Power liftgate opening height •Smart liftgate*
Lights* •Illumination •One-touch turn signal •Ambient light brightness •Ambient light color •Headlamp delay •High-beam assist
Sound* •Welcome sound*
Convenience* •Seat easy access •Rear occupant aler t •Welcome mirror/light •Wireless charging system •Auto rear wiper (in R) •Vehicle auto-shut off •Icy road warning
Service Interval •Enable ser vice inter val •Adjust interval •Reset
Other Features •Speedometer unit •Fuel economy unit •Temperature unit •Tire pressure unit
ECO Vehicle* •Coasting guide •Star t coasting
Reset •Reset the menus in the User Set tings mode
OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODEA
B
Vehicle Settings* -
Audio Head Unit
To enter the Vehicle Settings mode in the audio head unit C, press the SETUP key on the audio head unit . Then press Vehicle , which will take you to Vehicle Settings . Use the touchscreen to navigate through the menus .
Vehicle Settings:
Driver Assistance: Driving Convenience*, Warning Time*, Warning Volume*, Driver Attention
Warning*, Forward Safety*, Lane Safety*, Blind-Spot Safety*, Parking Safety*
Drive Mode: Drive Mode Alert*
Climate*: Recirculate Air*, Automatic Ventilation*, Defog/Defrost Options*, Climate Features*
Lights*: Ambient Light*, One Touch Turn Signal*, Headlight Display*, High Beam Assist*
Door*: Auto Lock*, Auto Unlock*, Walk-Away Lock*, Two-Press Unlock*, Smart Trunk*
Cluster*: Service Interval*, Energy Consumption Reset*, Content Selection*, Cluster
Voice Guidance Volume*, Welcome Sound*, Theme Selection*
Convenience*: Rear Occupant Alert*, Welcome Mirror Light*, Wireless Charging System*, Vehicle Auto-Shut Off*
Seat*: Seat Position Change Alert*, Smart Posture Care*, Heated/ Ventilated Features*, Seat East Access*, Rear Seat Heating Control*
Reset: Reset Vehicle Settings to Factory Defaults
12:00 AM Jan. 1MenuVehicle SettingsDriving Convenience
Drive Mode
Climate
LightsDriver
AssistanceWarning TimingLateWarning VolumeOffDriver Attention Warning
VEHICLE SETTINGS
VEHICLESETTINGS
C
Page 14 of 74
12†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
A
B
C
D
E
F
Charging the Plug-In Hybrid Vehicle (Plug-In Hybrid Only)
Level 1 Charging – “Trickle” Charge
A Level 1 or “trickle” charger is the most common type of charging system for a Plug-In Hybrid . This type of charger uses 120 volts of household electricity and takes up to 10 .5 hours for a full charge .
Trickle Charger Indicators:
A 120VAC plug
B
Power – When the charger and AC plug is plugged in and functioning normally, the indicator will turn green . Indicator is red if plug temperature sensor warning is present
C Charge – Indicates that the vehicle is charging
D Fault – Indicates charge failure
E Charge Level – Indicates the level of charge: L (8A), M (10A), or H (12 A)
F ICCB – In-Cable Control Box
Level 2 Charging – “Normal” Charge
A Level 2 or “normal” 240-volt charger is the recommended charging system for the Plug-In Hybrid . This type of charger uses 240 volts of electricity and takes approximately 3 .5+ hours for a full charge (Based on Kia Motors Corporation testing with SAE J1772 charger per formed at 3 .3kW) . This charger may be able to be installed at your home or found at a public charging station .
POWER
A Level 2 or “normal” 240-volt charger is recommended for regular charging of the vehicle .
QUICK TIP
HYBRID / PLUG-IN HYBRID SYSTEM
CHARGE
FA U LT!
LEVELLMH
HYBRID/PLUG-IN
HYBRID
REMINDERS:
•
Do not use an extension cord . Plug trickle charger directly into wall socket . Do not charge to a receptacle that is old, damaged, corroded or cracked
•
When using outdoors, be careful not to expose it to external environments such as rain, snow, and high temperatures
•When par t A lights up in red, check if it is exposed to the external environment and then charge it again
REMINDER: Shape of charger and how to use the charger may be different for each manufacturer . Please see Owner ’s Manual for more information .
REMINDER: For more detail and/or subsequent steps in charging your vehicle, please see the Owner ’s Manual .
Page 15 of 74
13†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
REMINDERS:
•When indicator is blinking red, there’s an error while tr ying to charge
•
When the charging connector is connected and the reser ved charging is in standby mode, the charging indicator is turned off and the scheduled charge release but ton indicator is turned on . The scheduled charge release but ton indicator will turn off after 3 minutes
•
For more detail and/or subsequent steps in charging your vehicle, please see the Owner ’s Manual
OFF
OFF
OFF
OFF
HYBRID / PLUG-IN HYBRID SYSTEM
(Located on rear passenger side of vehicle)
G
J
H
I
Charging the Plug-In Hybrid Vehicle (Continued)
To charge the Plug-In Hybrid vehicle using a normal/trickle charger:
1 . Connect the ICCB A plug to an electrical outlet
2 . Check if the power light (green) B on the ICCB turns on
3 . Press the brake pedal and engage the parking brake
4 . Turn off all switches, put the shift lever in P (Park), and turn off the vehicle
5 . Open the charging door G by pressing the the rear center edge of charging door (Ensure doors are unlocked)
6 . Remove any dust or water on the charging connector and charging inlet H
7 . Hold the charging connector handle I and connect it to the vehicle’s charging inlet H by pushing the connector until you hear a clicking sound
8 . Charging begins automatically (Ensure the charge indicator light is illuminated on your instrument cluster, indicating the vehicle is charging)
Checking the Charging Status
The charging status can be checked by viewing the charging status indicator Jnear the charging inlet (bottom indicator) . The charging indicator will blink yellow when charging, and the charge is from 0-65% . The charging indicator will blink green when charging and the charge is from 65-100% . The indicator will turn off within 5 seconds when charging is completed .
HYBRID/PLUG-IN
HYBRID
Page 16 of 74
14†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
HYBRID / PLUG-IN HYBRID SYSTEM
HYBRID/PLUG-IN
HYBRID
Hybrid/Plug-In’s instrument cluster LCD screen displays the following Hybrid/Plug-In system modes to inform the driver of its status . To change modes, go to User Settings in the Instrument Cluster modes .
Energy Flow - Instrument Cluster LCD
Your vehicle’s instrument cluster display locations may differ from those in the illustrations . For more information on the instrument cluster, please refer to the Owner ’s Manual .
These illustrations are for demonstration purposes only .
& O F S H Z ' M P X
& O F S H Z ' M P X
& O F S H Z ' M P X
& O F S H Z ' M P X
EV Propulsion - The electric motor is moving the vehicle .Engine-Only Propulsion - The engine is moving the vehicle .
Power Assist - Both the electric motor AND the engine are moving the vehicle .Engine Generation - While the vehicle is stopped, the engine is charging the Hybrid/Plug-In battery .
Page 17 of 74
15†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Optima Hybrid/Plug-In’s instrument cluster LCD screen displays the following Hybrid/Plug-In system modes to inform the driver of its status . To change modes, go to User Settings in the LCD Instrument Cluster modes .
Power Reserve - While the engine powers the vehicle, it is also recharging the Hybrid/Plug-In battery .Engine Brake/Regeneration - The regenerative braking system is recharging the Hybrid/Plug-In battery .
Vehicle Stop - The vehicle’s Hybrid/Plug-In system is standing by .Engine Generation/Regeneration - The engine and the regenerative braking system are both recharging the Hybrid/Plug-In battery .
& O F S H Z ' M P X
& O F S H Z ' M P X
& O F S H Z ' M P X
& O F S H Z ' M P X
Instrument Cluster LCD – Energy Flow (continued)
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . For more information on the instrument cluster, please refer to the Owner ’s Manual .
These illustrations are for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .
HYBRID / PLUG-IN HYBRID SYSTEM
HYBRID/PLUG-IN
HYBRID
Page 18 of 74
16†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Scheduled Charging
(Plug-In Hybrid Only)
Charging Connector Auto/Lock Mode
(Plug-In Hybrid Only)
Charging time can be set in the Plug-In Hybrid audio system home screen, under charge management, or using the Kia Access with UVO link app .
Charging with the UVO link Smartphone App:
The Kia Access with UVO link app can help you find the nearest charging station and displays charging-status and the Scheduled Charging information . On your Smartphone, go to an app store or marketplace to download the Kia Access with UVO link app .
REMINDER: When Scheduled Charging is set and the charger is plugged in, charging will not begin until the set time & date are met to complete the charging . The green charge indicator on top of the dash will temporar y flash ON/OFF to show that scheduled/reser ve charging is set .
Deactivate Scheduled Charging - Press the Deactivate Scheduled Charging button A OFF U P E J T B C M F U I F T D I F E V M F E D I B S H J O H G F B U V S F X I F O J N N F E J B U F D I B S H J O H J T S F R V J S F E
5 I F D I B S H J O H D P O O F D U P S B V U P N B U J D B M M Z M P D L T X I F O U I F D P O O F D U P S J T Q M V H H F E J O U P U I F D I B S H J O H J O M F U
8 I F O J O " V U P - P D L . P E F B O E U I F W F I J D M F J T V O M P D L F E C V U D I B S H J O H D B C M F J T O P U E J T D P O O F D U F E X J U I J O T F D P O E T
U I F D P O O F D U P S X J M M C F B V U P N B U J D B M M Z M P D L F E B H B J O
* G D I B S H J O H D P O O F D U P S J T V O M P D L F E C V U B M M E P P S T B S F M P D L F E B H B J O
J N N F E J B U F M Z
U I F D P O O F D U P S X J M M C F B V U P N B U J D B M M Z M P D L F E B H B J O
* G D I B S H J O H E P F T O P U X P S L
E J T D P O O F D U U I F D P O O F D U P S B O E U S Z D I B S H J O H B H B J O
* G U I F D P O O F D U P S D B O O P U C F M P D L F E V O M P D L F E
Q V M M U I F F N F S H F O D Z S F M F B T F M F W F S J O U I F U S V O L
REMINDERS:
•
For more detail and/or subsequent steps in charging your vehicle, please see the Owner ’s Manual
•Reser vation charging may not be available at public chargers
REMINDERS:
•
If charging does not work, disconnect the connector and tr y charging again .
•
If the connector cannot be locked/unlocked, pull the emergency release lever in the trunk . See the Owner ’s Manual for more information .
When you press the Deactivate Scheduled Charging but ton* A OFF U I F S F T F S W F E D I B S H J O H T F U U J O H X J M M U F N Q P S B S J M Z E J T B C M F
B O E T U B S U J N N F E J B U F D I B S H J O H N P E F * G Z P V O F F E U P D P N Q M F U F M Z E F B D U J W B U F U I F T D I F E V M F E D I B S H F T F U U J O H
D I B O H F U I F T F U U J O H G S P N U I F B V E J P I F B E V O J U
QUICK TIP
OFF
OFF
"
) : # 3 * % 1 - 6 ( * / ) : # 3 * % 4 : 4 5 & .
) : # 3 * % 1 - 6 ( * /
) : # 3 * %
Screens, images and but tons may var y by model .
Page 49 of 74
47†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .

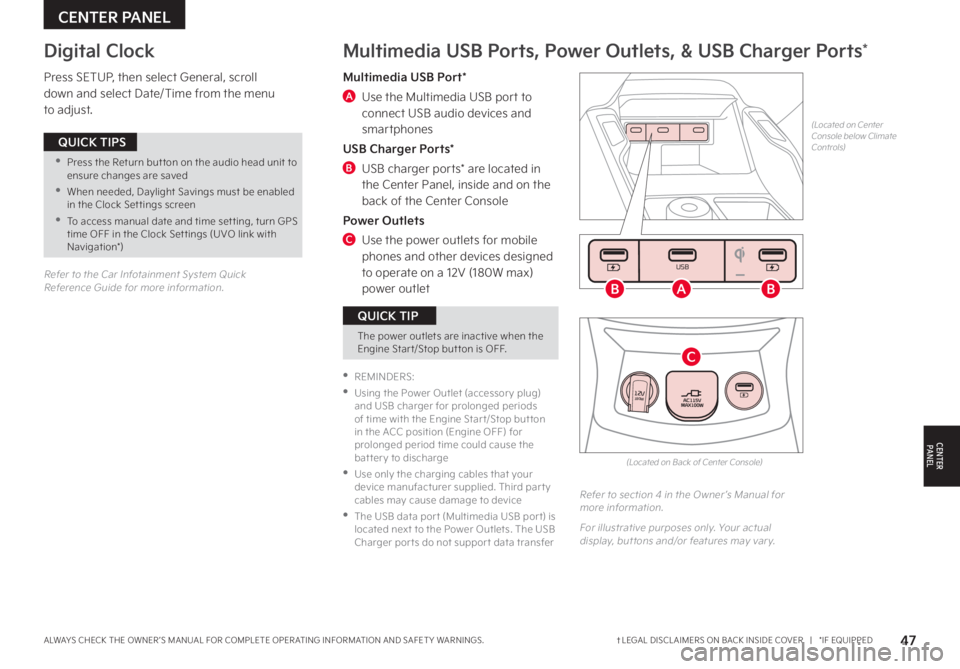

CENTER PANEL
CENTERPA N EL
Multimedia USB Ports, Power Outlets, & USB Charger Ports* Digital Clock
Press SETUP, then select General, scroll down and select Date/Time from the menu to adjust .
Multimedia USB Port*
A Use the Multimedia USB port to connect USB audio devices and smartphones
USB Charger Ports*
B USB charger ports* are located in the Center Panel, inside and on the back of the Center Console
Power Outlets
C Use the power outlets for mobile
phones and other devices designed to operate on a 12V (180W max) power outlet
(Located on Center Console below Climate Controls)
•REMINDERS:
•
Using the Power Outlet (accessor y plug) and USB charger for prolonged periods of time with the Engine Star t/Stop but ton in the ACC position (Engine OFF) for prolonged period time could cause the bat ter y to discharge
•
Use only the charging cables that your device manufacturer supplied . Third par t y cables may cause damage to device
•
The USB data por t (Multimedia USB por t) is located next to the Power Outlets . The USB Charger por ts do not suppor t data transfer
Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
(Located on Back of Center Console)
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Refer to the Car Infotainment System Quick Reference Guide for more information .ABB
C
•
Press the Return but ton on the audio head unit to ensure changes are saved
•
When needed, Daylight Savings must be enabled in the Clock Set tings screen
•
To access manual date and time set ting, turn GPS time OFF in the Clock Set tings (UVO link with Navigation*)
QUICK TIPS
The power outlets are inactive when the Engine Star t/Stop but ton is OFF .
QUICK TIP
