Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood .....................................................4-32
2. Head lamp ...................................4-90, 7-78
3. Fog lamp .....................................4-93, 7-81
4. Tire and wheel ...............................7-47, 8-4
5. Outside rearview mirror ........................4-51
6. Panoramic sunroof................................4-37
7. Front windshield wiper blades .....4-94, 7-41
8.Windows ................................................4-26
OPS013001N
■Front view
❈The actual shape may differ from the illustration.
Page 12 of 500

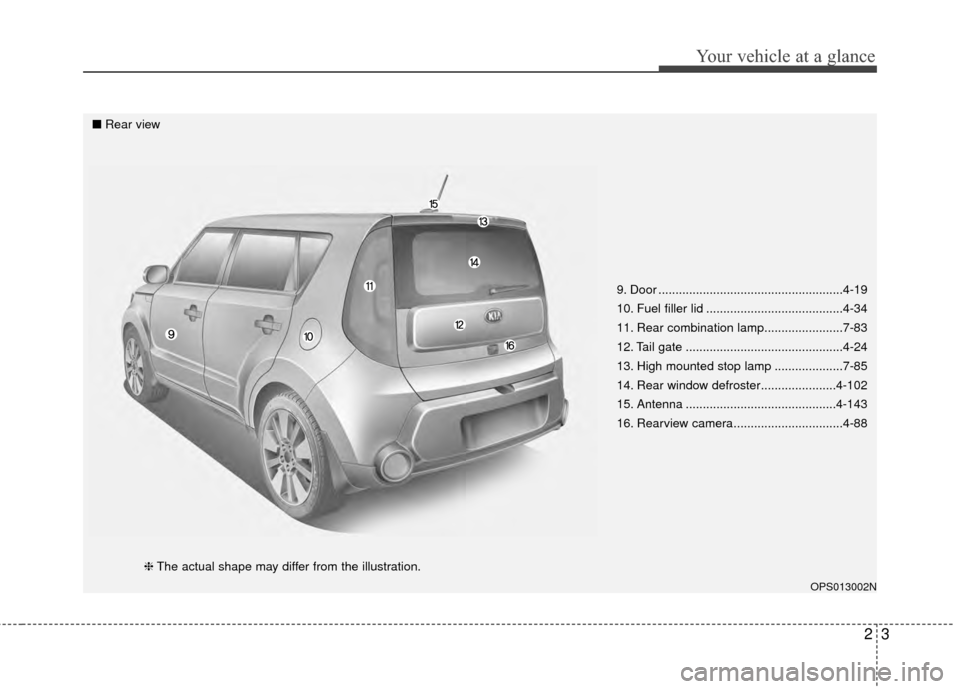

23
Your vehicle at a glance
9. Door ......................................................4-19
10. Fuel filler lid ........................................4-34
11. Rear combination lamp.......................7-83
12. Tail gate ..............................................4-24
13. High mounted stop lamp ....................7-85
14. Rear window defroster......................4-102
15. Antenna ............................................4-143
16. Rearview camera................................4-88
OPS013002N
■Rear view
❈The actual shape may differ from the illustration.
Page 13 of 500
Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ................................4-19
2. Power window switch ............................4-27
3. Power window lock button .....................4-30
4. Central door lock switch ........................4-21
5. Outside rearview mirror control.............4-51
6. Outside rearview mirror folding .............4-52
7. Fuel filler lid open lever .........................4-34
8. Instrument panel illumination controlswitch ...................................................4-55
9. Steering wheel heater On/Off button ....4-45
10. Idle Stop and Go (ISG) OFF button ....5-49
11. ESC Off button ....................................5-34
12. Advanced Lighting Speaker ..............4-146
13. Steering wheel ....................................4-43
14. Tilt and telescopic steering control lever.....................................................4-44
15. Inner fuse panel ..................................7-68
16. Hood release lever ..............................4-32
17. Seat .......................................................3-2
18. Transaxle shift lever ...................5-15, 5-19
OPS013004N❈ The actual shape may differ from the illustration.
Page 14 of 500
25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Audio remote control buttons..............4-144
2. Driver’s front air bag .............................3-53
3. Horn ......................................................4-45
4. Cruise control button ............................5-40
5. Instrument cluster .................................4-54
6. Lighting control lever.............................4-90
7.Wiper and washer control lever .............4-94
8. Ignition switch or Engine start/stopbutton.............................................5-7, 5-10
9. Audio...................................................4-143
10. Hazard warning flasher.........................6-2
11. Climate control system ..........4-104, 4-113
12. Front seat warmer/ Seat air ventilation .................4-134, 4-135
13. Power outlet ......................................4-137
14. Center console storage box..............4-130
15. Glove box ..........................................4-130
16. Passenger’s front air bag ....................3-53
17. Parking brake......................................5-28
OPS013003N
❈The actual shape may differ from the illustration.
Page 15 of 500
Your vehicle at a glance
62
ENGINE COMPARTMENT
OPS073001
1. Windshield washer fluid reservoir .....7-34
2. Engine oil filler cap ...........................7-27
3. Engine oil dipstick .............................7-27
4. Engine coolant reservoir ...................7-29
5. Radiator cap .....................................7-31
6. Brake/clutch fluid reservoir ...............7-32
7. Positive battery terminal ...................7-44
8. Negative battery terminal..................7-44
9. Fuse box ...........................................7-62
10. Air cleaner.......................................7-36
* The actual engine compartment in the vehicle may differ from the illustration.
■ ■1.6L GDI
Page 16 of 500
27
Your vehicle at a glance
OPS073002
* The actual engine room in the vehicle may differ from the illustration.1. Windshield washer fluid reservoir .....7-34
2. Engine oil filler cap ...........................7-27
3. Engine oil dipstick .............................7-27
4. Engine coolant reservoir ...................7-29
5. Radiator cap .....................................7-31
6. Brake/clutch fluid reservoir ...............7-32
7. Positive battery terminal ...................7-44
8. Negative battery terminal..................7-44
9. Fuse box ...........................................7-62
10. Air cleaner.......................................7-36
■
■2.0L GDI
Page 17 of 500
Safety features of your vehicle
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 3-2
• Front seat adjustment - Manual . . . . . . . . . . . . . . . . . 3-5
• Front seat adjustment - Power . . . . . . . . . . . . . . . . . . . 3-6
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-16
• Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-24
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-31
• Using a child restraint system . . . . . . . . . . . . . . . . . . 3-33
• Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
• Lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
Air bag -
advanced supplemental restraint system . . . . . . 3-40
• How does the air bag system operate . . . . . . . . . . . . 3-41
• Do not Installing a child restraint on a front passenger's seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
• SRS components and functions . . . . . . . . . . . . . . . . . 3-44
• Occupant Detection System (ODS) . . . . . . . . . . . . . . 3-47
• Driver's and passenger's front air bag . . . . . . . . . . . 3-53
• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-59
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-60 •
Inflation and non-inflation conditions of the air bag . . 3-63
• SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-67
• Additional safety precautions. . . . . . . . . . . . . . . . . . . 3-68
• Adding equipment to or modifying your air bag-
equipped vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-70
3
Page 18 of 500
Safety features of your vehicle
23
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)
(5) Headrest
Rear seats
(6) Seatback folding
(7) Headrest
SEATS
OPS033001N
Manual seat
Power seat
Page 19 of 500
33
Safety features of your vehicle
WARNING- Driver’s seat
Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
Do not allow anything to inter- fere with the normal position of
the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in serious or fatal
injury in a sudden stop or colli-
sion.
Always drive and ride with your seatback upright and the lap
portion of the seat belt snug
and low across the hips. This
is the best position to protect
you in case of an accident.
(Continued)
WARNING - Uprighting
seat
When you return the seatback
to its upright position, hold the
seatback and return it slowly
and be sure there are no other
passengers around the seat. If
the seatback is returned with-
out being held and controlled,
the back of the seat could
spring forward resulting in acci-
dental injury to a person struck
by the seatback.
WARNING - Loose objects
Loose objects in the driver’s
foot area could interfere with
the operation of the foot pedals,
possibly causing an accident.
Do not place anything under the
front seats.WARNING- Driver
responsibility for front seat
passenger
Riding in a vehicle with a front
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a front seat is reclined
during an accident, the occu-
pant’s hips may slide under the
lap portion of the seat belt, apply-
ing great force to the unprotect-
ed abdomen. Serious or fatal
internal injuries could result. The
driver must advise the front pas-
senger to keep the seatback in
an upright position whenever the
vehicle is in motion.
WARNING
Do not use a cushion that
reduces friction between the seat
and the passenger. The passen-
ger's hips may slide under the
lap portion of the seat belt during
an accident or a sudden stop.
Serious or fatal internal injuries
could result because the seat
belt cannot operate normally.
Page 20 of 500
Safety features of your vehicle
43
(Continued)
When resetting the seatback tothe upright position, make sure
it is securely latched by push-
ing it forward and backwards.
To avoid the possibility of burns, do not remove the car-
pet in the cargo area. Emission
control devices beneath this
floor generate high tempera-
tures.
WARNING
After adjusting the seat, always
check that it is securely locked
into place by attempting to
move the seat forward or back-
ward without using the lock
release lever. Sudden or unex-
pected movement of the dri-
ver's seat could cause you to
lose control of the vehicle
resulting in an accident.
(Continued)
In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back
as possible from the steering
wheel while maintaining com-
fortable control of the vehicle.
We recommend that your chest
be at least 25 cm (10 inches)
away from the steering wheel.WARNING- Rear seat-backs
The rear seatback must be
securely latched. If not, pas-
sengers and objects could be
thrown forward resulting in
serious injury or death in the
event of a sudden stop or col-
lision.
Luggage and other cargo should be laid flat in the cargo
area. If objects are large, heavy,
or must be piled, they must be
secured. Under no circum-
stances should cargo be piled
higher than the seatbacks.
Failure to follow these warnings
could result in serious injury or
death in the event of a sudden
stop, collision or rollover.
No passenger should ride in the cargo area or sit or lie on
folded seatbacks while the
vehicle is moving. All passen-
gers must be properly seated
in seats and restrained proper-
ly while riding.
(Continued)
