KIA SOUL EV 2019 Owner's Manual

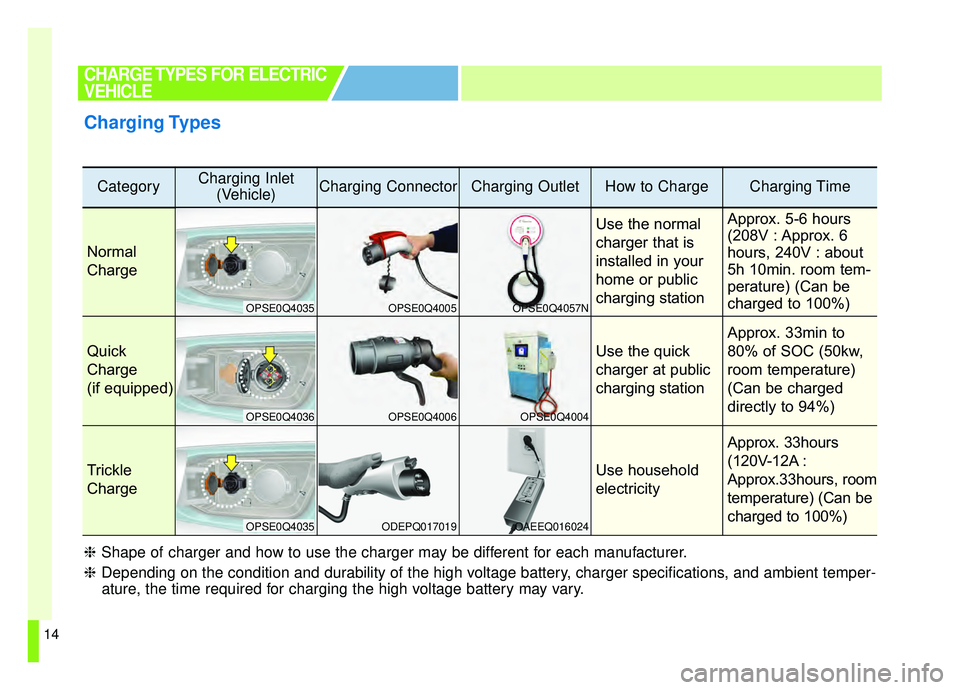

14
CHARGE TYPES FOR ELECTRIC
VEHICLE
Charging Types
CategoryCharging Inlet(Vehicle)Charging ConnectorCharging OutletHow to ChargeCharging Time
Normal
Charge
Use the normal
charger that is
installed in your
home or public
charging stationApprox. 5-6 hours
(208V : Approx. 6
hours, 240V : about
5h 10min. room tem-
perature) (Can be
charged to 100%)
Quick
Charge
(if equipped)Use the quick
charger at public
charging station
Approx. 33min to
80% of SOC (50kw,
room temperature)
(Can be charged
directly to 94%)
Trickle
ChargeUse household
electricity
Approx. 33hours
(120V-12A :
Approx.33hours, room
temperature) (Can be
charged to 100%)
OPSE0Q4035
OPSE0Q4036
OPSE0Q4035
OPSE0Q4005
OPSE0Q4006
ODEPQ017019
OPSE0Q4057N
OPSE0Q4004
OAEEQ016024
❈Shape of charger and how to use the charger may be different for each manufacturer.
❈ Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temper-
ature, the time required for charging the high voltage battery may vary.

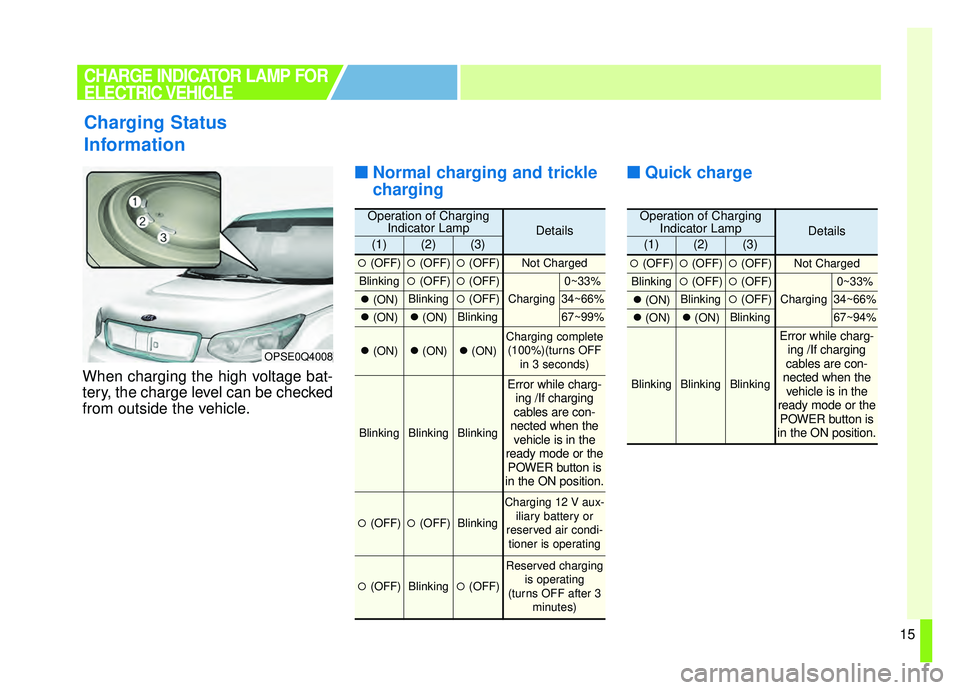

15
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
■ ■Normal charging and trickle
charging ■ ■
Quick charge
Charging Status
Information
OPSE0Q4008
CHARGE INDICATOR LAMP FOR
ELECTRIC VEHICLE
Operation of Charging
Indicator LampDetails(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~99%
(ON)(ON)(ON)Charging complete
(100%)(turns OFF in 3 seconds)
BlinkingBlinkingBlinking
Error while charg-ing /If charging
cables are con-
nected when the vehicle is in the
ready mode or the POWER button is
in the ON position.
(OFF)(OFF)Blinking
Charging 12 V aux-
iliary battery or
reserved air condi- tioner is operating
(OFF)Blinking(OFF)
Reserved charging is operating
(turns OFF after 3 minutes)
Operation of ChargingIndicator LampDetails(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~94%
BlinkingBlinkingBlinking
Error while charg-
ing /If charging
cables are con-
nected when the vehicle is in the
ready mode or the POWER button is
in the ON position.

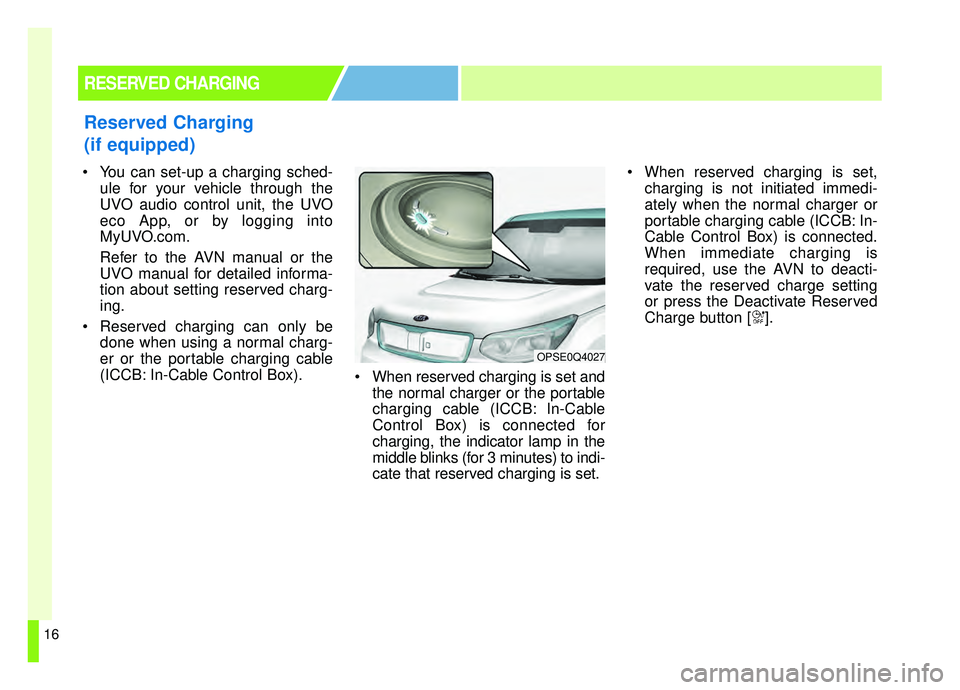

16
You can set-up a charging sched-ule for your vehicle through the
UVO audio control unit, the UVO
eco App, or by logging into
MyUVO.com.
Refer to the AVN manual or the
UVO manual for detailed informa-
tion about setting reserved charg-
ing.
Reserved charging can only be done when using a normal charg-
er or the portable charging cable
(ICCB: In-Cable Control Box). When reserved charging is set and
the normal charger or the portable
charging cable (ICCB: In-Cable
Control Box) is connected for
charging, the indicator lamp in the
middle blinks (for 3 minutes) to indi-
cate that reserved charging is set. When reserved charging is set,
charging is not initiated immedi-
ately when the normal charger or
portable charging cable (ICCB: In-
Cable Control Box) is connected.
When immediate charging is
required, use the AVN to deacti-
vate the reserved charge setting
or press the Deactivate Reserved
Charge button [ ].
RESERVED CHARGING
Reserved Charging
(if equipped)
OPSE0Q4027

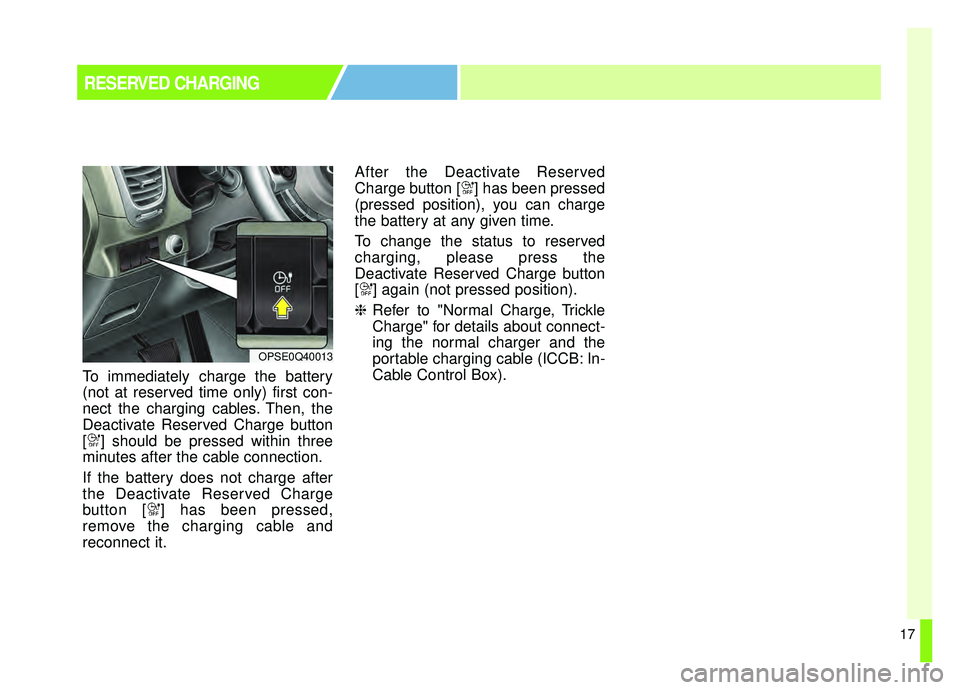

17
RESERVED CHARGING
To immediately charge the battery
(not at reserved time only) first con-
nect the charging cables. Then, the
Deactivate Reserved Charge button
[ ] should be pressed within three
minutes after the cable connection.
If the battery does not charge after
the Deactivate Reserved Charge
button [ ] has been pressed,
remove the charging cable and
reconnect it.After the Deactivate Reserved
Charge button [ ] has been pressed
(pressed position), you can charge
the battery at any given time.
To change the status to reserved
charging, please press the
Deactivate Reserved Charge button
[ ] again (not pressed position).
❈
Refer to "Normal Charge, Trickle
Charge" for details about connect-
ing the normal charger and the
portable charging cable (ICCB: In-
Cable Control Box).
OPSE0Q40013

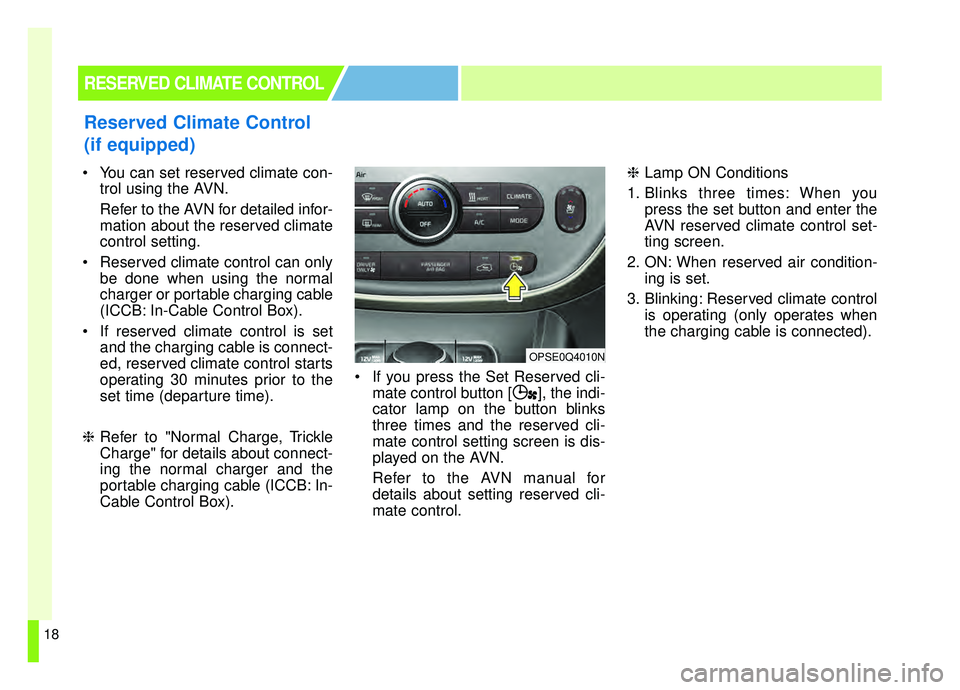

18
You can set reserved climate con-trol using the AVN.
Refer to the AVN for detailed infor-
mation about the reserved climate
control setting.
Reserved climate control can only be done when using the normal
charger or portable charging cable
(ICCB: In-Cable Control Box).
If reserved climate control is set and the charging cable is connect-
ed, reserved climate control starts
operating 30 minutes prior to the
set time (departure time).
❈ Refer to "Normal Charge, Trickle
Charge" for details about connect-
ing the normal charger and the
portable charging cable (ICCB: In-
Cable Control Box). If you press the Set Reserved cli-
mate control button [ ], the indi-
cator lamp on the button blinks
three times and the reserved cli-
mate control setting screen is dis-
played on the AVN.
Refer to the AVN manual for
details about setting reserved cli-
mate control. ❈
Lamp ON Conditions
1. Blinks three times: When you press the set button and enter the
AVN reserved climate control set-
ting screen.
2. ON: When reserved air condition- ing is set.
3. Blinking: Reserved climate control is operating (only operates when
the charging cable is connected).
RESERVED CLIMATE CONTROL
Reserved Climate Control
(if equipped)
OPSE0Q4010N

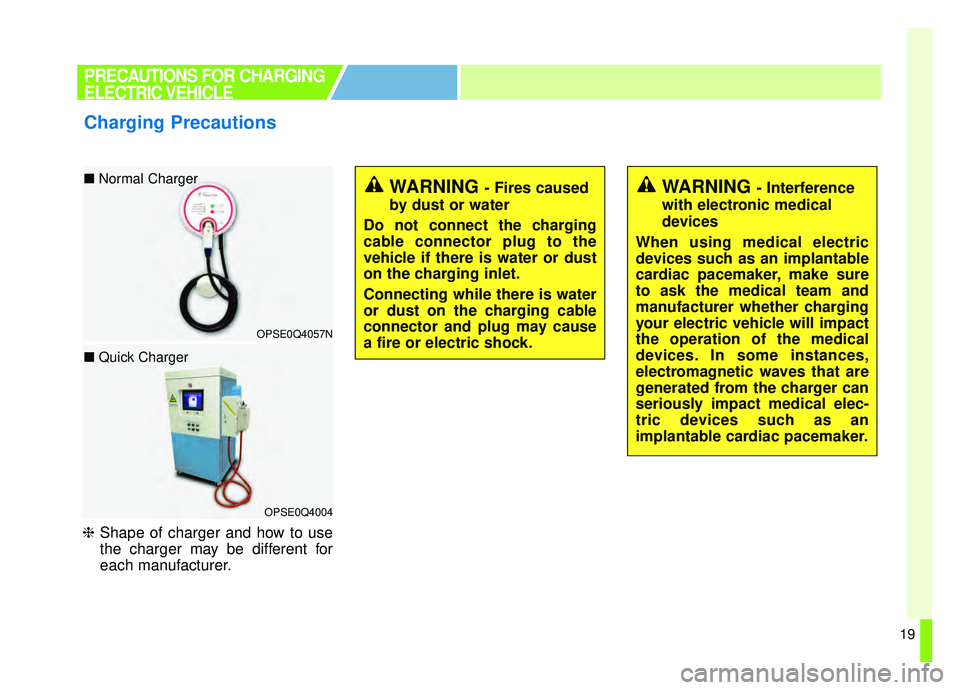

19
❈Shape of charger and how to use
the charger may be different for
each manufacturer.
PRECAUTIONS FOR CHARGING
ELECTRIC VEHICLE
Charging Precautions
OPSE0Q4057N
■ Normal Charger
OPSE0Q4004
■ Quick Charger
WARNING - Fires caused
by dust or water
Do not connect the charging
cable connector plug to the
vehicle if there is water or dust
on the charging inlet.
Connecting while there is water
or dust on the charging cable
connector and plug may cause
a fire or electric shock.WARNING - Interference
with electronic medical
devices
When using medical electric
devices such as an implantable
cardiac pacemaker, make sure
to ask the medical team and
manufacturer whether charging
your electric vehicle will impact
the operation of the medical
devices. In some instances,
electromagnetic waves that are
generated from the charger can
seriously impact medical elec-
tric devices such as an
implantable cardiac pacemaker.

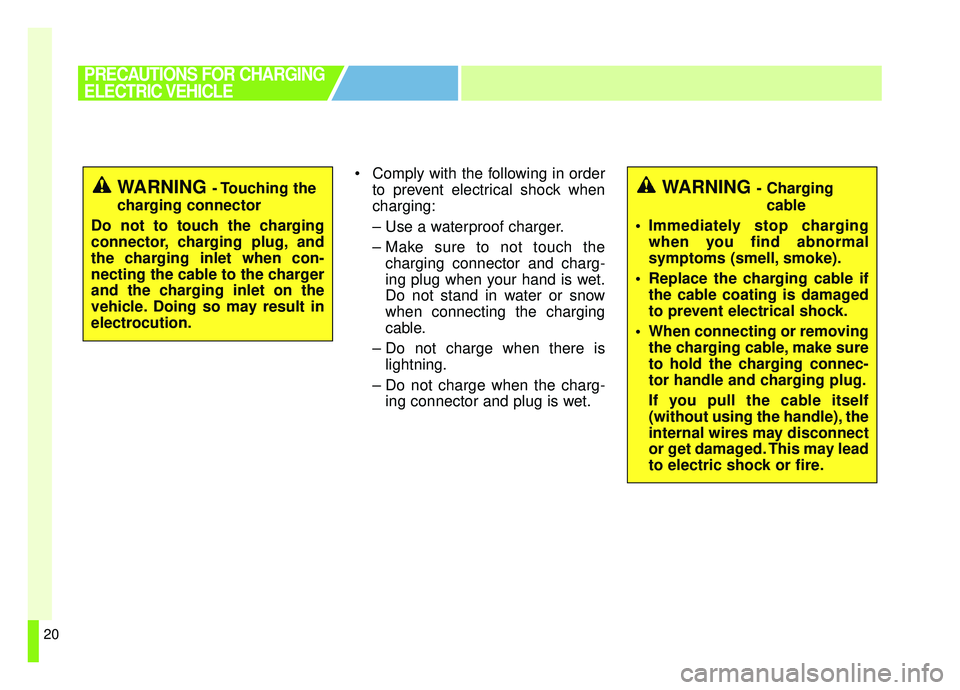

20
Comply with the following in orderto prevent electrical shock when
charging:
– Use a waterproof charger.
– Make sure to not touch thecharging connector and charg-
ing plug when your hand is wet.
Do not stand in water or snow
when connecting the charging
cable.
– Do not charge when there is lightning.
– Do not charge when the charg- ing connector and plug is wet.
PRECAUTIONS FOR CHARGING
ELECTRIC VEHICLE
WARNING - Touching the
charging connector
Do not to touch the charging
connector, charging plug, and
the charging inlet when con-
necting the cable to the charger
and the charging inlet on the
vehicle. Doing so may result in
electrocution.WARNING - Charging cable
Immediately stop charging when you find abnormal
symptoms (smell, smoke).
Replace the charging cable if the cable coating is damaged
to prevent electrical shock.
When connecting or removing the charging cable, make sure
to hold the charging connec-
tor handle and charging plug.
If you pull the cable itself
(without using the handle), the
internal wires may disconnect
or get damaged. This may lead
to electric shock or fire.

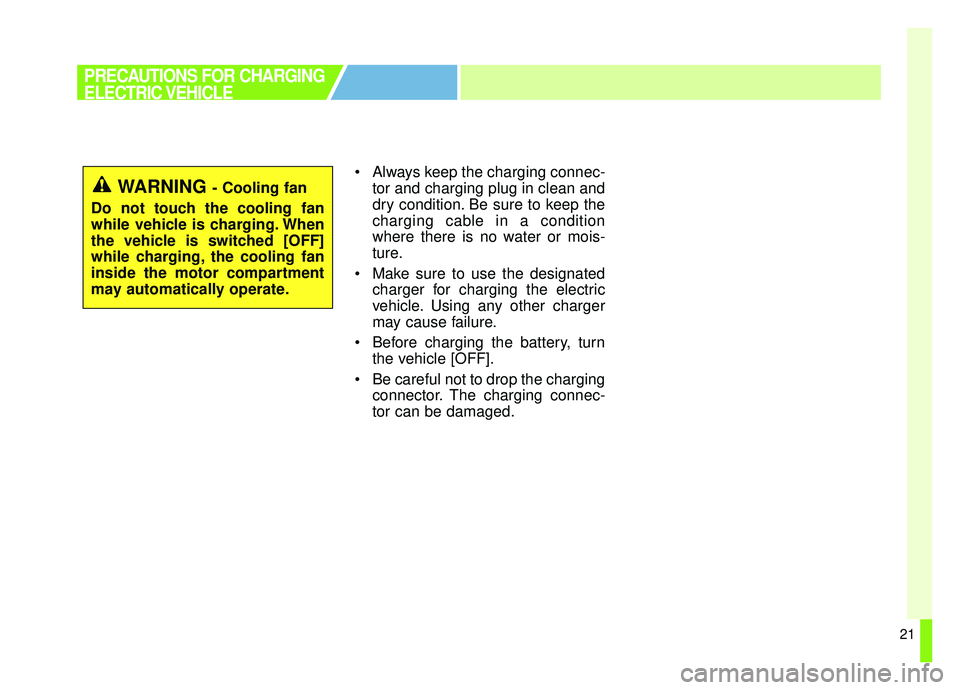

21
Always keep the charging connec-tor and charging plug in clean and
dry condition. Be sure to keep the
charging cable in a condition
where there is no water or mois-
ture.
Make sure to use the designated charger for charging the electric
vehicle. Using any other charger
may cause failure.
Before charging the battery, turn the vehicle [OFF].
Be careful not to drop the charging connector. The charging connec-
tor can be damaged.
PRECAUTIONS FOR CHARGING
ELECTRIC VEHICLE
WARNING - Cooling fan
Do not touch the cooling fan
while vehicle is charging. When
the vehicle is switched [OFF]
while charging, the cooling fan
inside the motor compartment
may automatically operate.

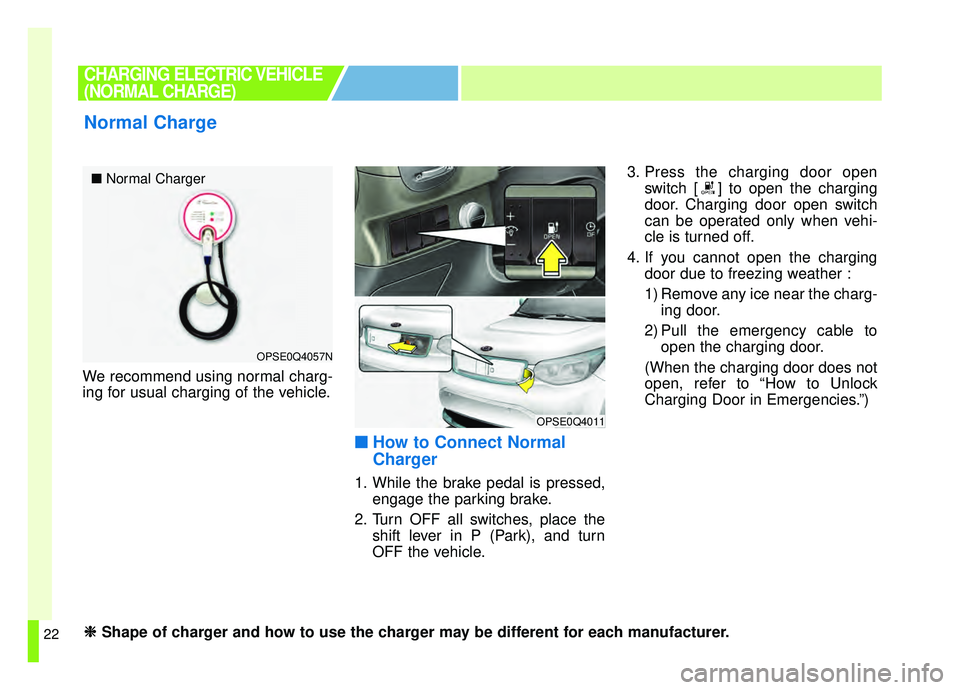

22
We recommend using normal charg-
ing for usual charging of the vehicle.
■ ■How to Connect Normal
Charger
1. While the brake pedal is pressed,
engage the parking brake.
2. Turn OFF all switches, place the shift lever in P (Park), and turn
OFF the vehicle. 3. Press the charging door open
switch [ ] to open the charging
door. Charging door open switch
can be operated only when vehi-
cle is turned off.
4. If you cannot open the charging door due to freezing weather :
1) Remove any ice near the charg-ing door.
2) Pull the emergency cable to open the charging door.
(When the charging door does not
open, refer to “How to Unlock
Charging Door in Emergencies.”)
CHARGING ELECTRIC VEHICLE
(NORMAL CHARGE)
Normal Charge
OPSE0Q4057N
OPSE0Q4011
■ Normal Charger
❈ ❈
Shape of charger and how to use the charger may be different for each manufacturer.

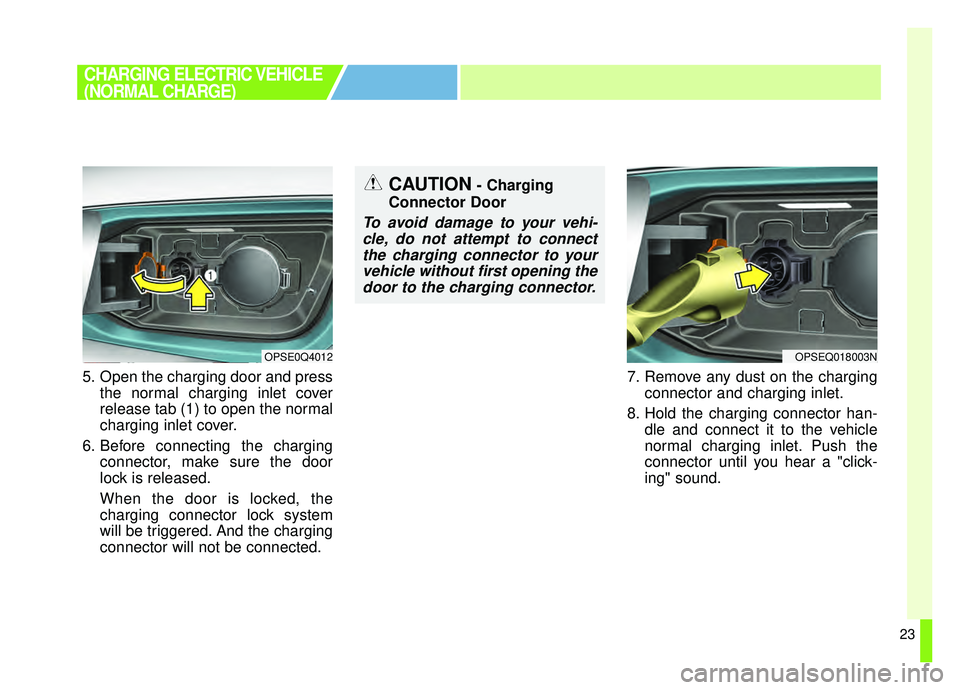

23
5. Open the charging door and pressthe normal charging inlet cover
release tab (1) to open the normal
charging inlet cover.
6. Before connecting the charging connector, make sure the door
lock is released.
When the door is locked, the
charging connector lock system
will be triggered. And the charging
connector will not be connected. 7. Remove any dust on the charging
connector and charging inlet.
8. Hold the charging connector han- dle and connect it to the vehicle
normal charging inlet. Push the
connector until you hear a "click-
ing" sound.
CHARGING ELECTRIC VEHICLE
(NORMAL CHARGE)
OPSEQ018003NOPSE0Q4012
CAUTION- Charging
Connector Door
To avoid damage to your vehi- cle, do not attempt to connectthe charging connector to yourvehicle without first opening thedoor to the charging connector.
