Page 41 of 76
38
N a v i g a t i o n

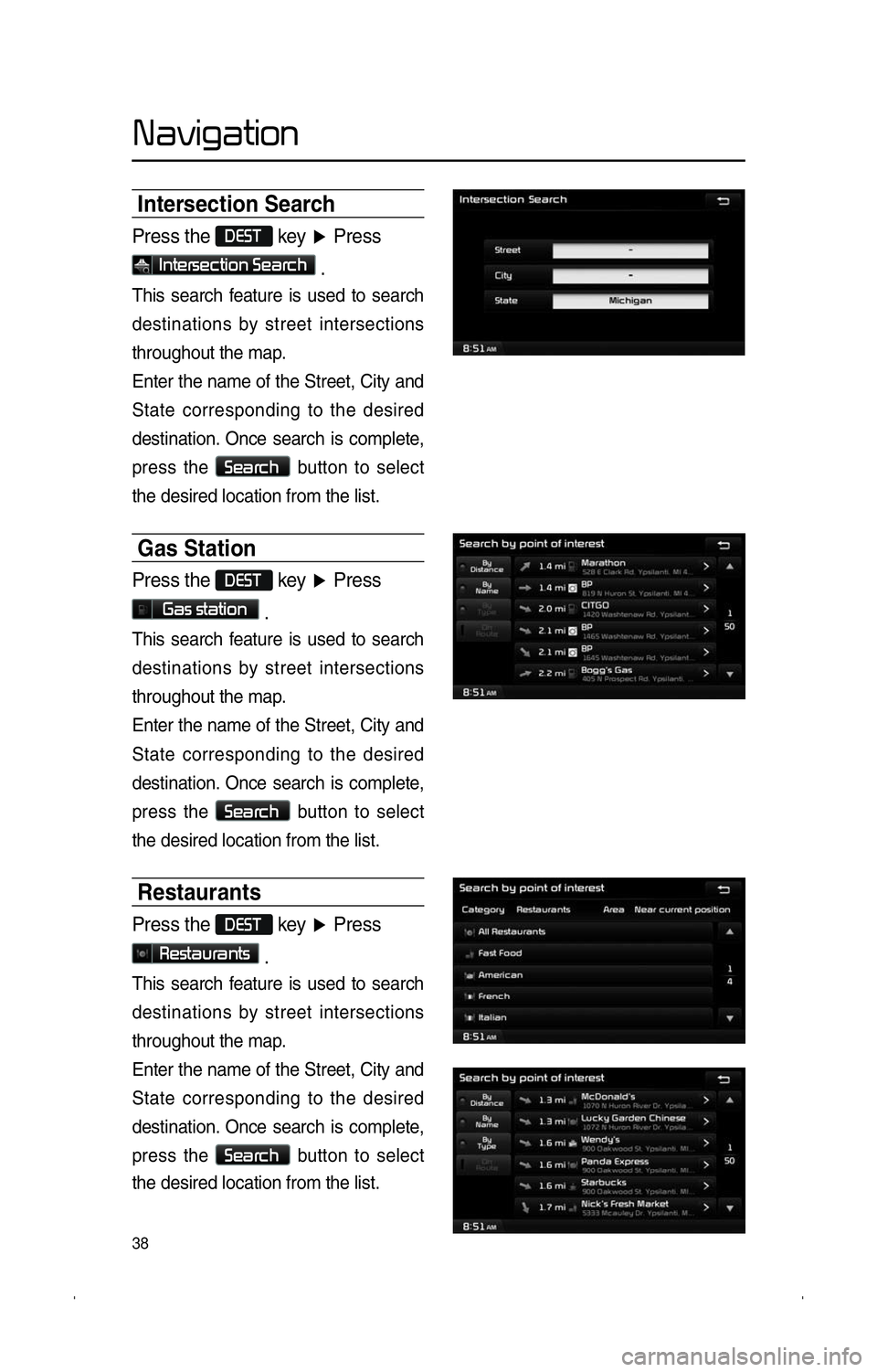

Intersection Search
Press the D E S T key Ü Press
I n t e r s e c t i o n S e a r c h .
This search feature is used to search
destinations by street intersections
throughout the map.
Enter the name of the Street, City and
State corresponding to the desired
destination. Once search is complete,
press the
S e a r c h button to select
the desired location from the list.
Gas Station
Press the D E S T key Ü Press
G a s s t a t i o n .
This search feature is used to search
destinations by street intersections
throughout the map.
Enter the name of the Street, City and
State corresponding to the desired
destination. Once search is complete,
press the
S e a r c h button to select
the desired location from the list.
Restaurants
Press the D E S T key Ü Press
R e s t a u r a n t s .
This search feature is used to search
destinations by street intersections
throughout the map.
Enter the name of the Street, City and
State corresponding to the desired
destination. Once search is complete,
press the
S e a r c h button to select
the desired location from the list. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E

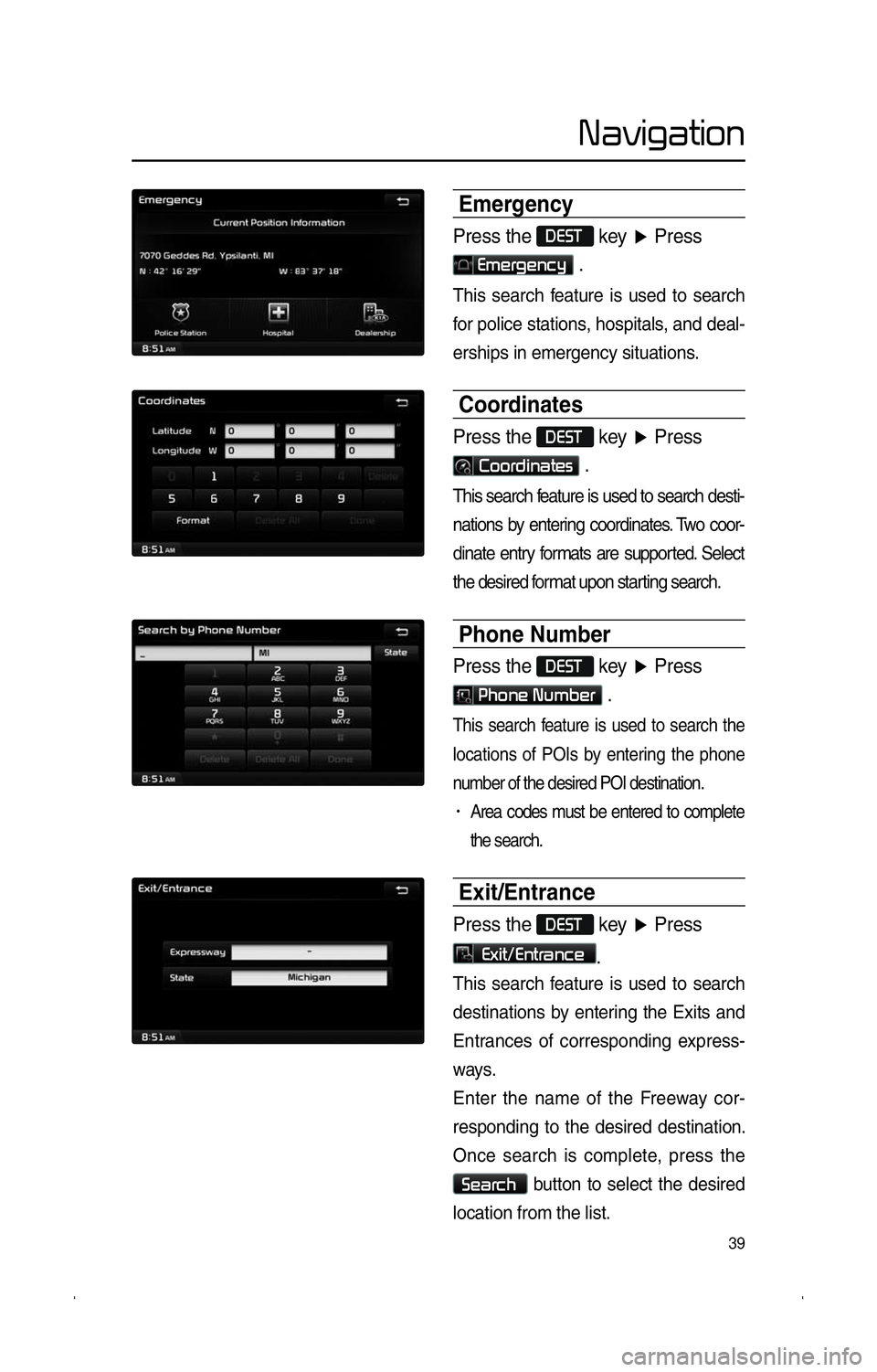

Page 42 of 76
39
N a v i g a t i o n
Emergency
Press the D E S T key Ü Press
E m e r g e n c y .
This search feature is used to search
for police stations, hospitals, and deal-
erships in emergency situations.
Coordinates
Press the D E S T key Ü Press
C o o r d i n a t e s .
This search feature is used to search desti-
nations by entering coordinates. Two coor-
dinate entry formats are supported. Select
the desired format upon starting search.
Phone Number
Press the D E S T key Ü Press
P h o n e N u m b e r .
This search feature is used to search the
locations of POIs by entering the phone
number of the desired POI destination.
!Ÿ
Area codes must be entered to complete
the search.
Exit/Entrance
Press the D E S T key Ü Press
E x i t / E n t r a n c e.
This search feature is used to search
destinations by entering the Exits and
Entrances of corresponding express-
ways.
Enter the name of the Freeway cor-
responding to the desired destination.
Once search is complete, press the
S e a r c h button to select the desired
location from the list. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 43 of 76
40
N a v i g a t i o n

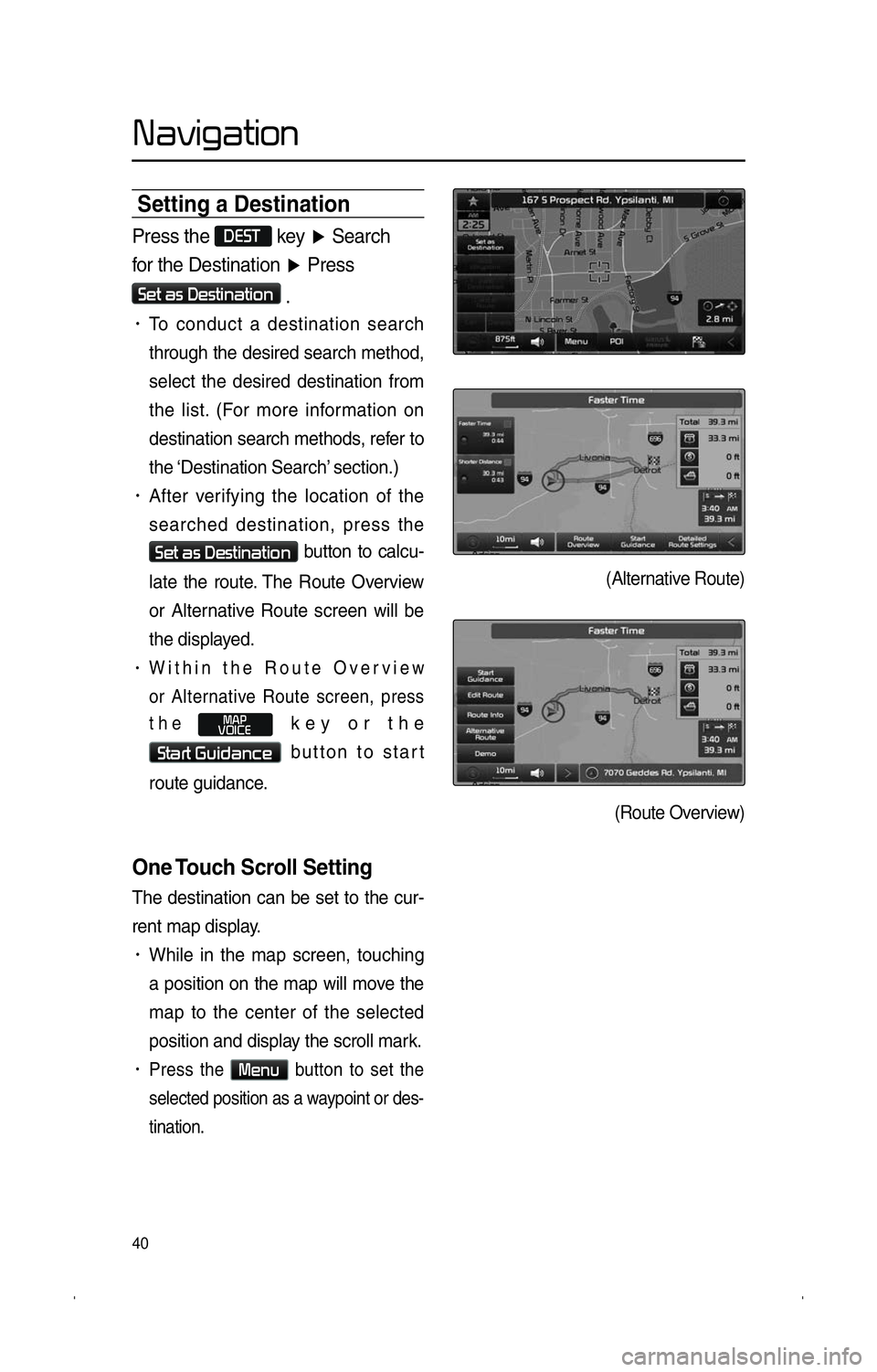

Setting a Destination
Press the D E S T key Ü Search
for the Destination Ü Press
S e t a s D e s t i n a t i o n
.
!Ÿ To conduct a destination search
through the desired search method,
select the desired destination from
the list. (For more information on
destination search methods, refer to
the ‘Destination Search’ section.)
!Ÿ After verifying the location of the
searched destination, press the
S e t a s D e s t i n a t i o n button to calcu-
late the route. The Route Overview
or Alternative Route screen will be
the displayed.
!Ÿ Within the Route Overview
or Alter
native Route screen, press
the
M A P
V O I C E key or the
S t a r t G u i d a n c e button to start
route guidance.
One Touch Scroll Setting
The destination can be set to the cur-
rent map display.
!Ÿ While in the map screen, touching
a position on the map will move the
map to the center of the selected
position and display the scroll mark.
!Ÿ Press the M e n u button to set the
selected position as a waypoint or des-
tination.
(Alternative Route)
(Route Overview) , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 44 of 76
41
N a v i g a t i o n

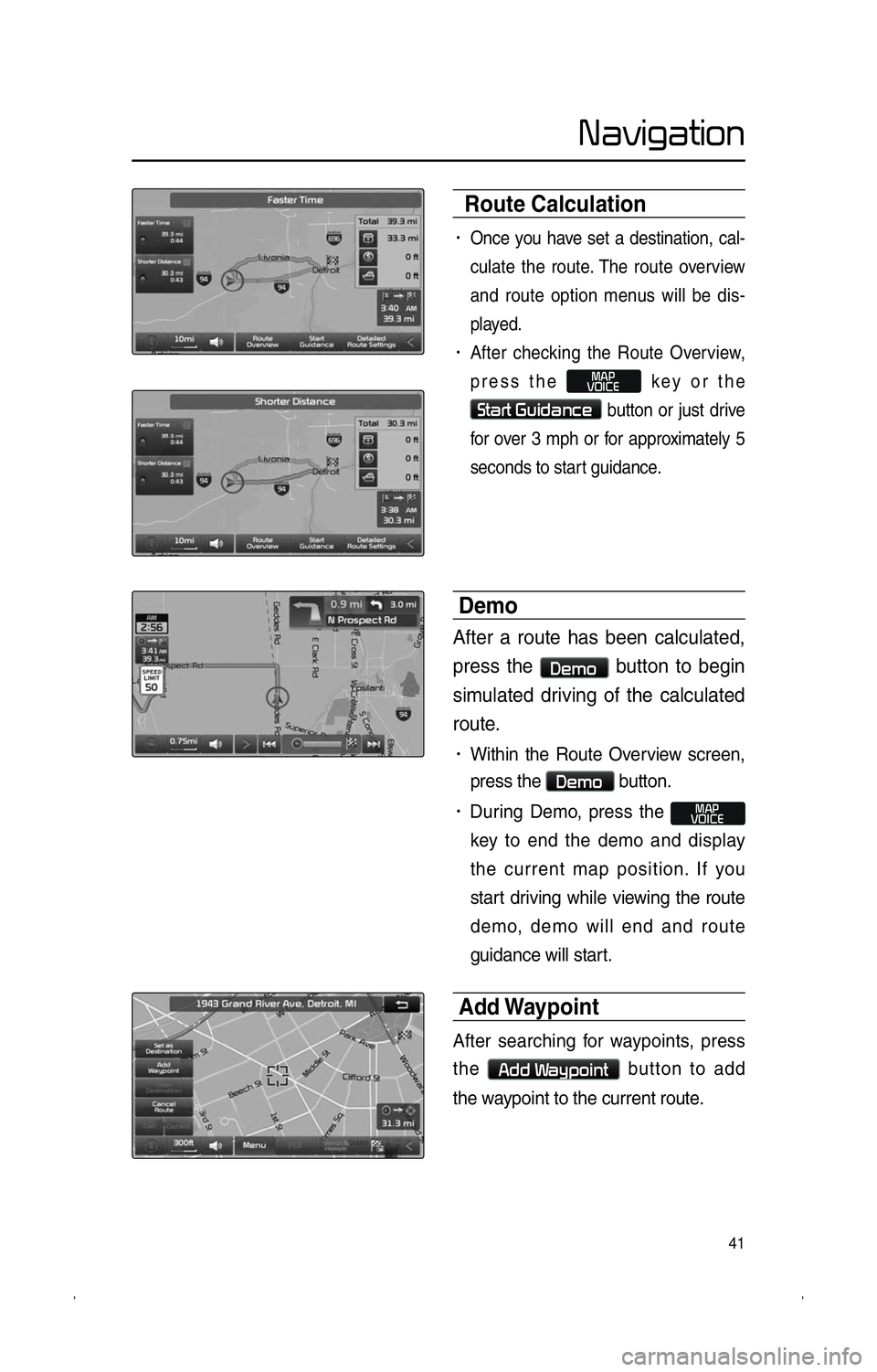

Route Calculation
!Ÿ Once you have set a destination, cal-
culate the route
. The route overview
and route option menus will be dis-
played.
!Ÿ After checking the Route Overview,
press the
M A P
V O I C E key or the
S t a r t G u i d a n c e button or just drive
for over 3 mph or for approximately 5
seconds to start guidance.
Demo
After a route has been calculated,
press the
D e m o button to begin
simulated driving of the calculated
route.
!Ÿ Within the Route Overview screen,
press the
D e m o button.
!Ÿ During Demo, press the
M A P
V O I C E
key to end the demo and display
the current map position. If you
start driving while viewing the route
demo, demo will end and route
guidance will start.
Add Waypoint
After searching for waypoints, press
the
A d d W a y p o i n t button to add
the waypoint to the current route. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 45 of 76
42
N a v i g a t i o n

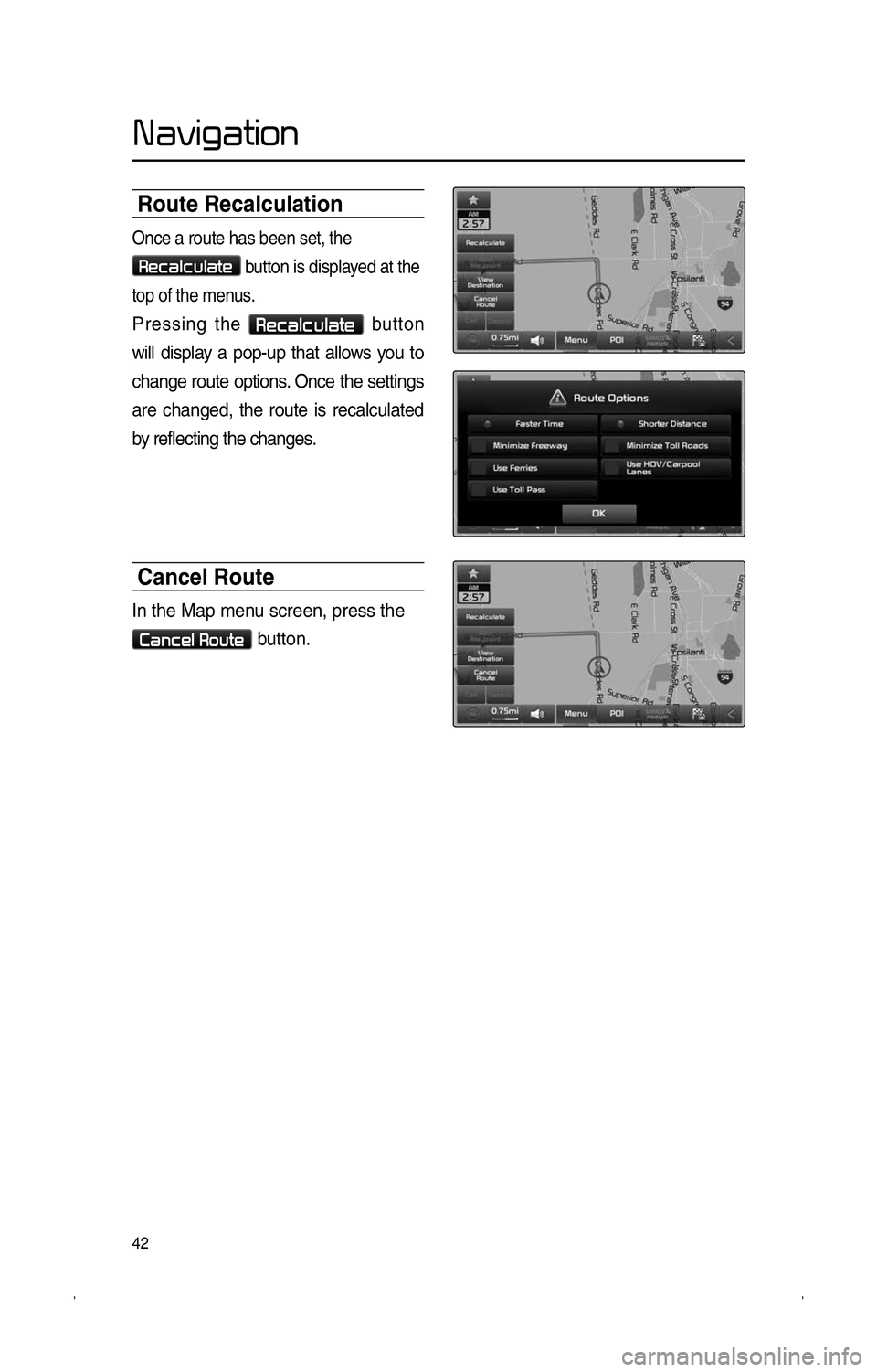

Route Recalculation
Once a route has been set, the
R e c a l c u l a t e button is displayed at the
top of the menus.
Pressing the R e c a l c u l a t e button
will display a pop-up that allows you to
change route options. Once the settings
are changed, the route is recalculated
by reflecting the changes.
Cancel Route
In the Map menu screen, press the
C a n c e l R o u t e button. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 46 of 76
43
N a v i g a t i o n
R o u t e G u i d a n c e
Preliminary guidance, highway mode,
turn list guidance, and other guidance
screens are displayed according to
the current road condition.
Within the guidance map screen, if
the current position is on route, then
intersection guidance will be provided
once you are nearby an intersection.
Also, the intersection zoom screen is
displayed when nearby an intersec-
tion.
Preliminary Guidance Mode
At the top right side of the screen, the
next/ after next turn info, remaining
distance, direction, and other informa-
tion are displayed.
Intersection Zoom Mode
This mode provides detailed guidance
nearby intersections before the next
turn.
This mode is displayed starting from
300m before the intersection. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 47 of 76
44
N a v i g a t i o n

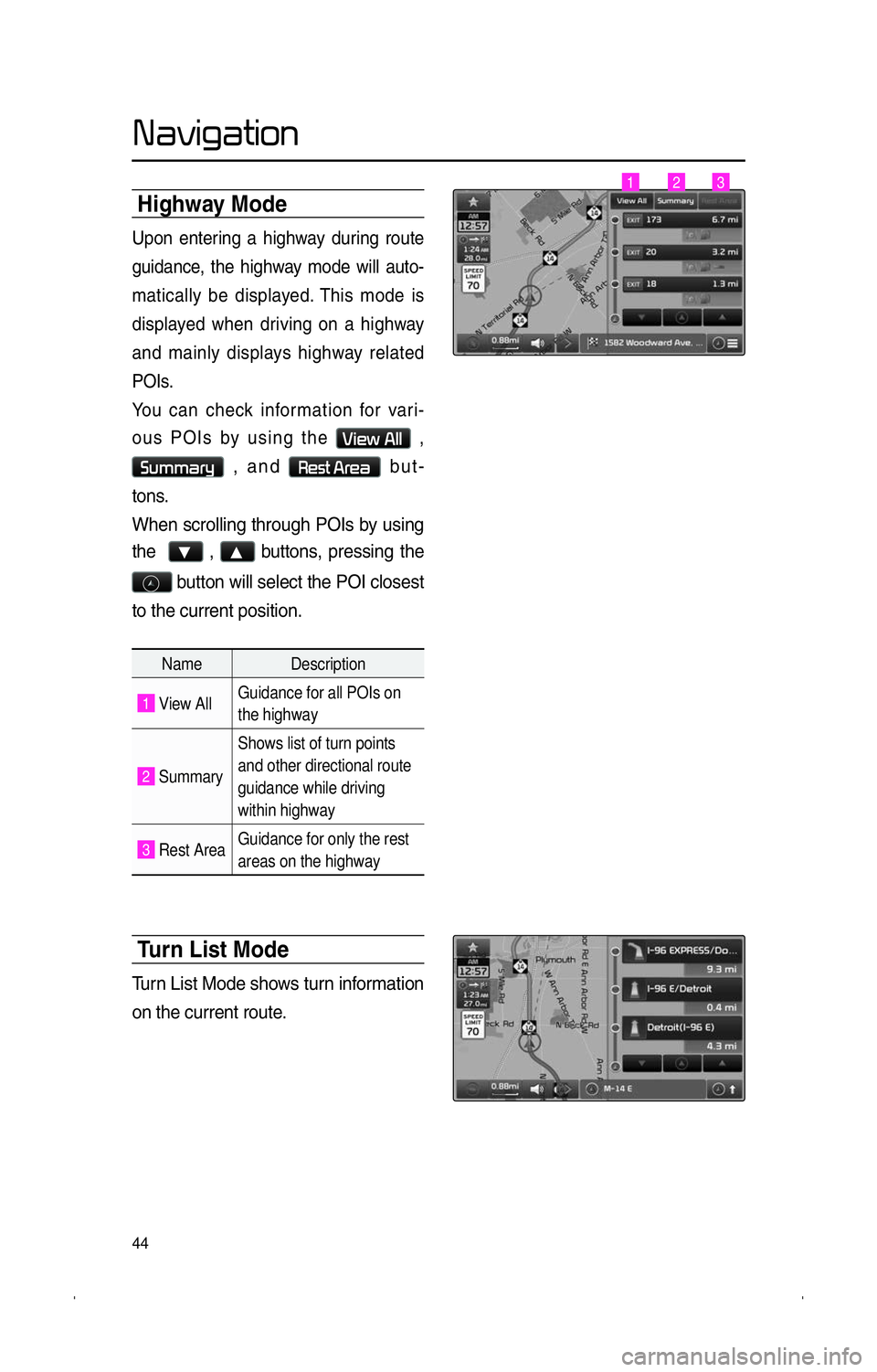

Highway Mode
Upon entering a highway during route
guidance, the highway mode will auto-
matically be displayed. This mode is
displayed when driving on a highway
and mainly displays highway related
POIs.
You can check information for vari-
ous POIs by using the
V i e w A l l ,
S u m m a r y , and R e s t A r e a but-
tons.
When scrolling through POIs by using
the
" , buttons, pressing the
button will select the POI closest
to the current position.
Turn List Mode
Turn List Mode shows turn information
on the current route.
Name Description
1 View AllGuidance for all POIs on
the highway
2 SummaryShows list of turn points
and other directional route
guidance while driving
within highway
3 Rest Area
Guidance for only the rest
areas on the highway
123 , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 48 of 76
45
N a v i g a t i o n

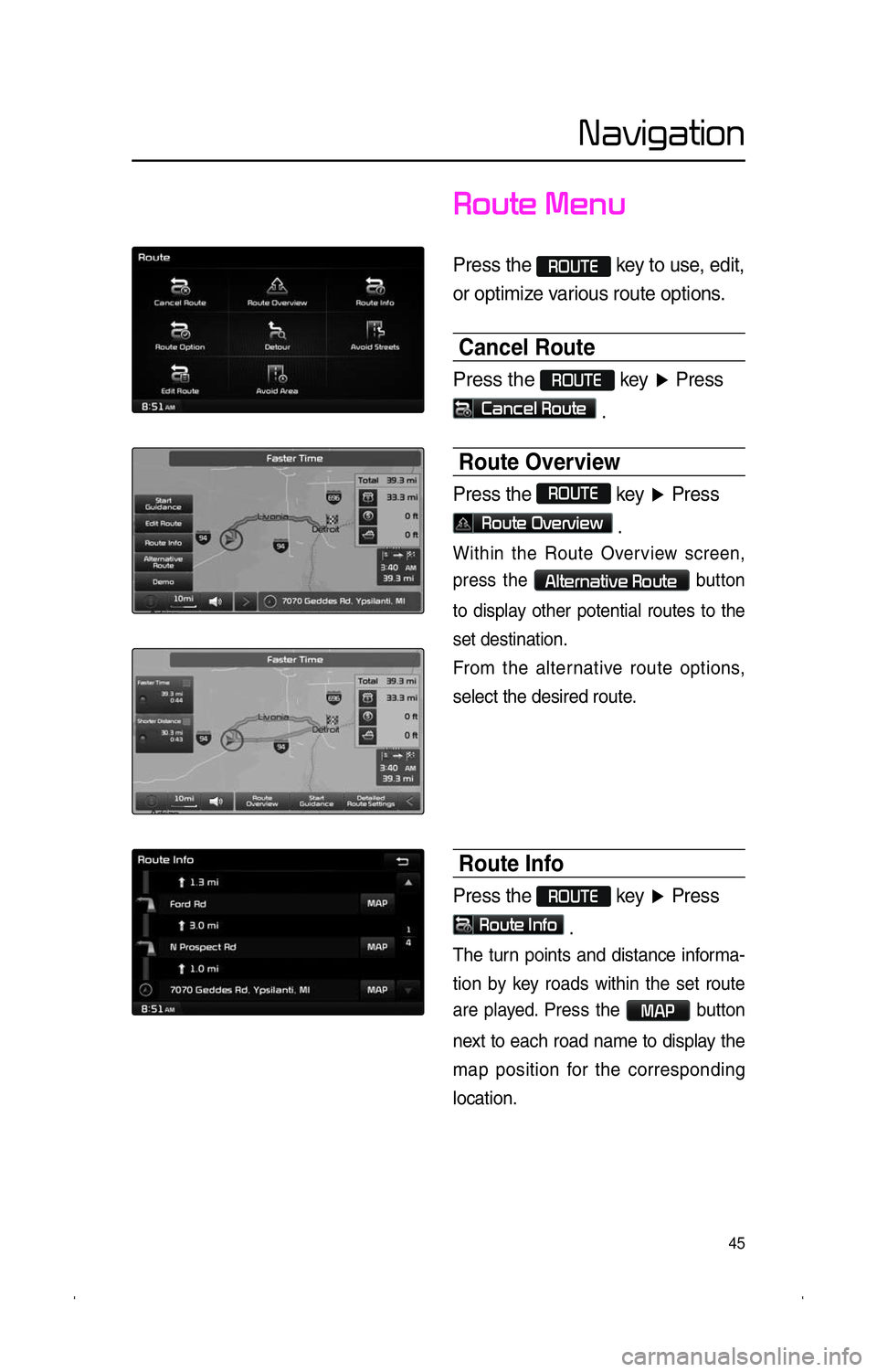

R o u t e M e n u
Press the R O U T E key to use, edit,
or optimize various route options.
Cancel Route
Press the R O U T E key Ü Press
C a n c e l R o u t e .
Route Overview
Press the R O U T E
key Ü Press
R o u t e O v e r v i e w .
Within the Route Overview screen,
press the
A l t e r n a t i v e R o u t e button
to display other potential routes to the
set destination.
From the alternative route options,
select the desired route.
Route Info
Press the R O U T E key Ü Press
R o u t e I n f o
.
The turn points and distance informa-
tion
by key roads within the set route
are played.
Press the M A P button
next to each road name to display the
map position for the corresponding
location. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 49 of 76
46
N a v i g a t i o n

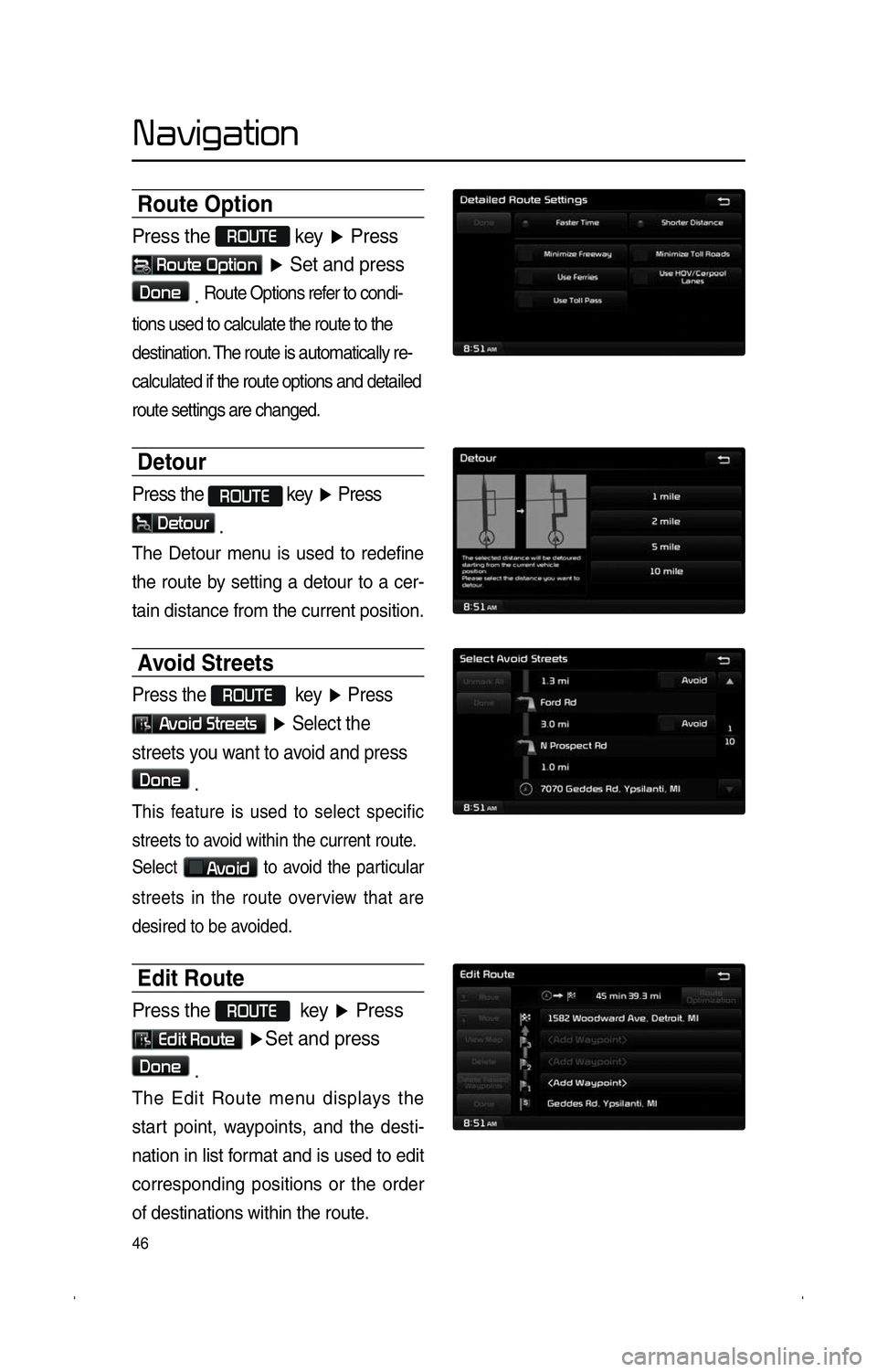

Route Option
Press the R O U T E
key Ü Press
R o u t e O p t i o n
Ü Set and press
D o n e
. Route Options refer to condi-
tions used to calculate the route to the
destination. The route is automatically re-
calculated if the route options and detailed
route settings are changed.
Detour
Press the
R O U T E key Ü Press
D e t o u r
.
The Detour menu is used to redefine
the route by setting a detour to a cer-
tain distance from the current position.
Avoid Streets
Press the R O U T E key Ü Press
A v o i d S t r e e t s Ü Select the
streets you want to avoid and press
D o n e .
This feature is used to select specific
streets to a
void within the current route.
Select
A v o i d to avoid the particular
streets in the route overview that are
desired to be avoided.
Edit Route
Press the R O U T E key Ü Press
E d i t R o u t e Ü Set and press
D o n e
.
The Edit Route menu displays the
start point, waypoints, and the desti-
nation in list format and is used to edit
corresponding positions or the order
of destinations within the route. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 50 of 76
47
N a v i g a t i o n

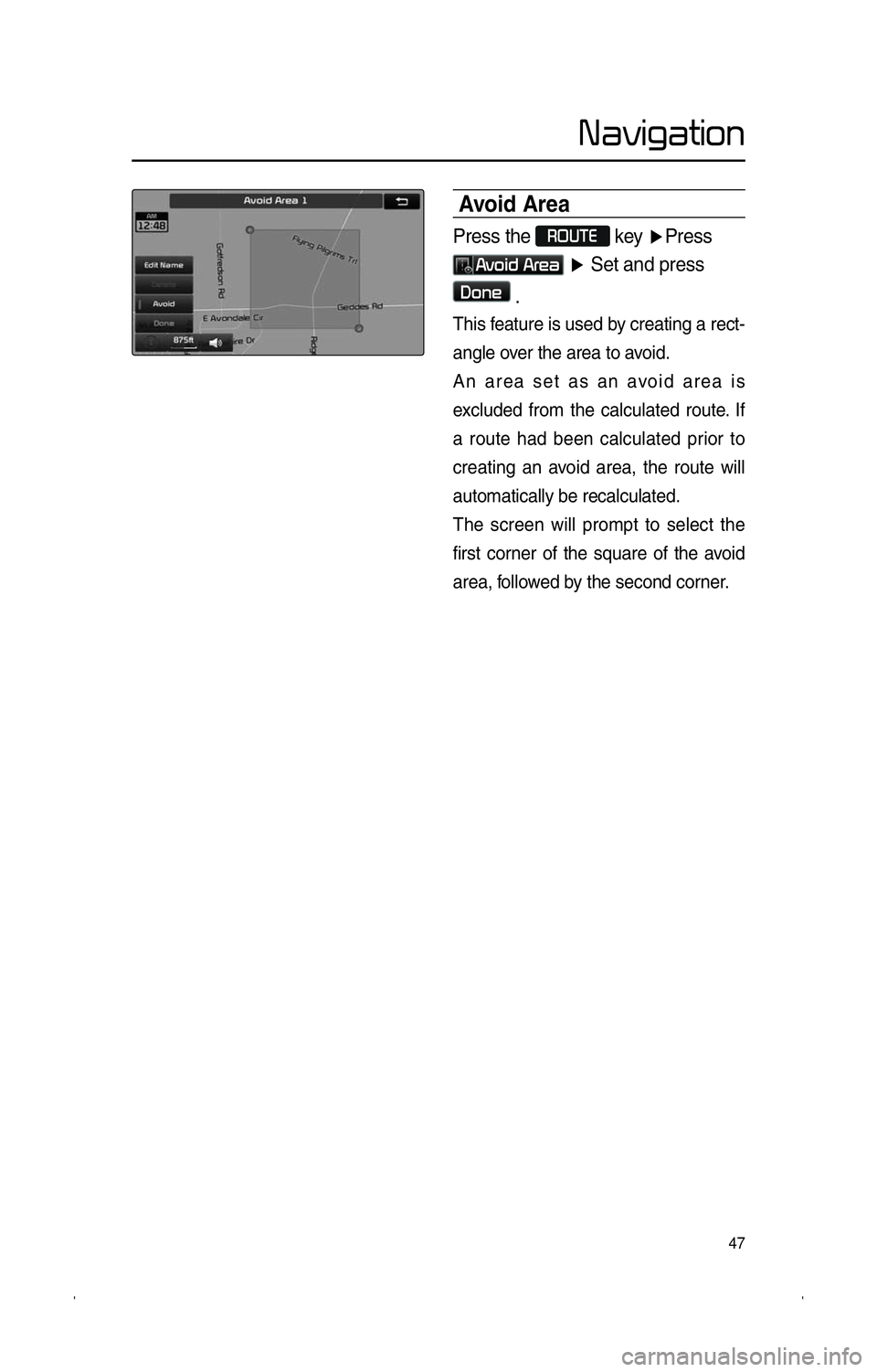

Avoid Area
Press the R O U T E
key ÜPress
A v o i d A r e a Ü Set and press
D o n e
.
This feature is used by creating a rect-
angle over the area to avoid.
An area set as an avoid area is
excluded from the calculated route. If
a route had been calculated prior to
creating an avoid area, the route will
automatically be recalculated.
The screen will prompt to select the
first corner of the square of the avoid
area, followed by the second corner. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
