steering wheel KIA SPORTAGE 2014 Navigation System Quick Reference Guide
[x] Cancel search | Manufacturer: KIA, Model Year: 2014, Model line: SPORTAGE, Model: KIA SPORTAGE 2014Pages: 76, PDF Size: 2.99 MB
Page 7 of 76
4
C o n t r o l s a n d F u n c t i o n s
Steering wheel
!Ÿ Activates voice recognition.
When pressed and held. (over 0.8 sec-
onds)
!Ÿ Ends voice recognition.
6
Pressed shortly. (under 1.2 seconds)
!Ÿ When pressed in the phone screen,
displays call history screen.
!Ÿ When pressed in the dial screen,
makes a call.
!Ÿ When pressed in the incoming call
screen, answers the call.
!Ÿ When pressed during call waiting,
switches to waiting call (Call Waiting)
Pressed and held. (over 1.2 seconds)
!Ÿ When pressed in the Bluetooth®
Handsfree phone mode, redials the
last call.
!Ÿ When pressed during a Bluetooth ®
Handsfree call, switches call back to
mobile phone (Private).
!Ÿ When pressed while calling on the
mobile phone, switches call back to
Bluetooth
® Handsfree (Operates only
when Bluetooth® Handsfree is con-
nected).
7 !Ÿ
When pressed during a call, ends the
phone call.
!Ÿ When pressed in the incoming call
screen, rejects the call.
1 V O L + V O L -
Controls the volume.
2 M U T E
Mutes the sound.
3 ' V
Pressed shortly. (under 0.8 seconds)
!Ÿ In FM/AM mode, searches broad-
cast frequencies saved to Presets.
!Ÿ In SIRIUS modes, searches broad-
cast channels saved to Presets.
!Ÿ In CD/MP3/USB/iPod/My Music modes,
changes the track, file or chapter.
Pressed and held. (over 0.8 seconds)
!Ÿ In FM/AM mode, automatically
searches broadcast frequencies
and channels.
!Ÿ In SIRIUS modes, automatically
searches broadcast channels.
!Ÿ In CD/MP3/USB/iPod/My Music modes:
rewinds or fast forwards the track of file.
4 M O D E !Ÿ
Each time this key is pressed, the mode
is changed in order of FM1
ª
FM2 ª
AM
ª SIRIUS1 ª
SIRIUS2 ª
SIRIUS3 ª
USB or iPod ª
AUX ª
Bluetooth ®
Audio
ª My Music.
!Ÿ If the media is not connected or a disc
is not inserted, corresponding modes
will be disabled.
!Ÿ Press and hold the key (over 0.8 sec-
onds) to turn the Audio system on/off.
!Ÿ When power is off, press the key to turn
power back on.
5
When pressed shortly. (under 0.8 sec-
onds) 1
2
34 56
7 , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 51 of 76
48
B l u e t o o t h ® W i r e l e s s T e c h n o l o g y
U s i n g B l u e t o o t h ®
H a n d s f r e e
Pairing from the Bluetooth ®
Device
Press the key on the steering
wheel or press the
P H O N E Ü
Press
Y e s .
In the Search from Device screen
Ü Search for the car name and pair
the device Ü Enter the Passkey Ü
Bluetooth ®
becomes connected.
!Ÿ When searching from the
Bluetooth ®
device, the car name is
KIA MO
TORS and the default pass-
key is ‘0000’, then press Ok.
!Ÿ To learn more about searching from
Bluetooth ®
devices and pairing,
ref
er to the user's manual for your
Bluetooth ®
device.
!Ÿ The Bluetooth ®
Audio screen is
displa
yed once audio streaming is
available.
NOTICE
!Ÿ This process may take a few minutes.
Radio may play during the wait.
!Ÿ Some phones (i.e., iPhone, Android
and Blackberry phones) may offer an
option to allow acceptance of all future
Bluetooth ®
connection requests by
default.
!Ÿ Phonebook transfer will occur auto-
matically at initial pairing. Wait until
complete before placing a call.
!Ÿ Visit www.Kia.com/us/bluetooth for
additional information on pairing your
Bluetooth ®
enabled mobile phone,
and to view a phone compatibility list. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 52 of 76
49
B l u e t o o t h ® W i r e l e s s T e c h n o l o g y
M a k i n g / A n s w e r i n g
C a l l s
Calling by Dialing a Number
Enter number on the dial pad Ü
Press the
S e n d or the key
on the steering wheel. If you press the
S e n d button
without entering a number, the Call
History screen is displayed. Press and
hold the dial pad
0 +(over 0.8 sec-
onds) to enter a "+".
Name Description
1 SendCalls the entered phone
number
2 End Deletes all entered numbers
Answering a Call
Incoming call notice Ü Press the
A c c e p t button or the key on
the steering wheel.
1
1
2
2 , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 53 of 76
50
B l u e t o o t h ® W i r e l e s s T e c h n o l o g y
O p e r a t i n g M e n u s
d u r i n g a C a l l
Switching Call to Bluetooth®
Phone
During handsfree call Ü Press the
P r i v a t e button or press and hold
the
key (over 0.8 seconds) on
the steering wheel.
The call will be switched from the
handsfree to the Bluetooth ®
mobile
phone
.
Switching Call to the Handsfree
During call on mobile phone Ü
Press the
U s e H a n d s f r e e button
or press and hold the
key
(over 0.8 seconds) on the steering
wheel.
The call will be switched from the
Bluetooth ®
mobile phone to the handsfree.
Ending a Call
While on a call Ü Press the
E n d button or the key on
the steering wheel.
The Bluetooth ®
handsfree call will end. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 60 of 76
57
B l u e t o o t h ® W i r e l e s s T e c h n o l o g y
Device Information
Press the S E T U P
key Ü Press
S e t u p Ü Press P h o n e Ü
D e v i c e I n f o r m a t i o n
!Ÿ
This feature allows you to check
device information.
Adjusting the Ring/Call Volume
While on a call Ü Use the VOL
knob on the head unit or the
V O L + , V O L - keys on the
steering wheel to adjust the ring/
call volume. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
Page 62 of 76
59
V o i c e R e c o g n i t i o n
Starting Voice Recognition
Shortly press the key on the
steering wheel (under 0.8 seconds)
Ü Say a command.
Once voice recognition starts, the voice
command entry window and the six rep-
resentative commands are displayed.
!Ÿ
If voice recognition is in [Normal
Mode], then the system will say
“Please say a command after the
beep,” followed by a beep tone.
!Ÿ If voice recognition is in [Expert
Mode], then you will only hear a
beep a “Beep~”.
Skipping Prompt Messages
While prompt message is being stated
Ü Briefly press the
key on the
steering wheel. (under0.8 second)
The prompt message is immediately
ended and the beep tone will sound.
After the “beep”, say the voice command.
Re-starting Voice Recognition
While system waits Ü Briefly press
the
key on the
(under 0.8 seconds)
The command wait state will end and
the beep tone will sound. After the
“beep”, say the voice command.
Voice Recognition and
Phone Contact Tips
The Kia Voice Recognition System may
have difficulty understanding some accents
or uncommon names When using Voice
Recognition to place a call, speak in a
moderate tone, with clear pronunciation.
To maximize the use of Voice Recognition,
con sider these guidelines when storing
contacts:
!Ÿ Do not store single-name entries (e.g.,
“Bob”,
“Mom”, etc.). Instead, always use
full names (including first and last names)
for these contacts
!Ÿ Do not use special characters (e.g., ‘@’, ‘-’,
‘*’, ‘&’,
etc.)
!Ÿ Do not use abbreviations (i.e., use
“Lieutenant”
instead of “Lt.”) or acronyms
(i.e., use “County Finance Department”
instead of “C. F. D.”; Be sure to say the
name exactly as it is entered in the con-
tacts list. , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E

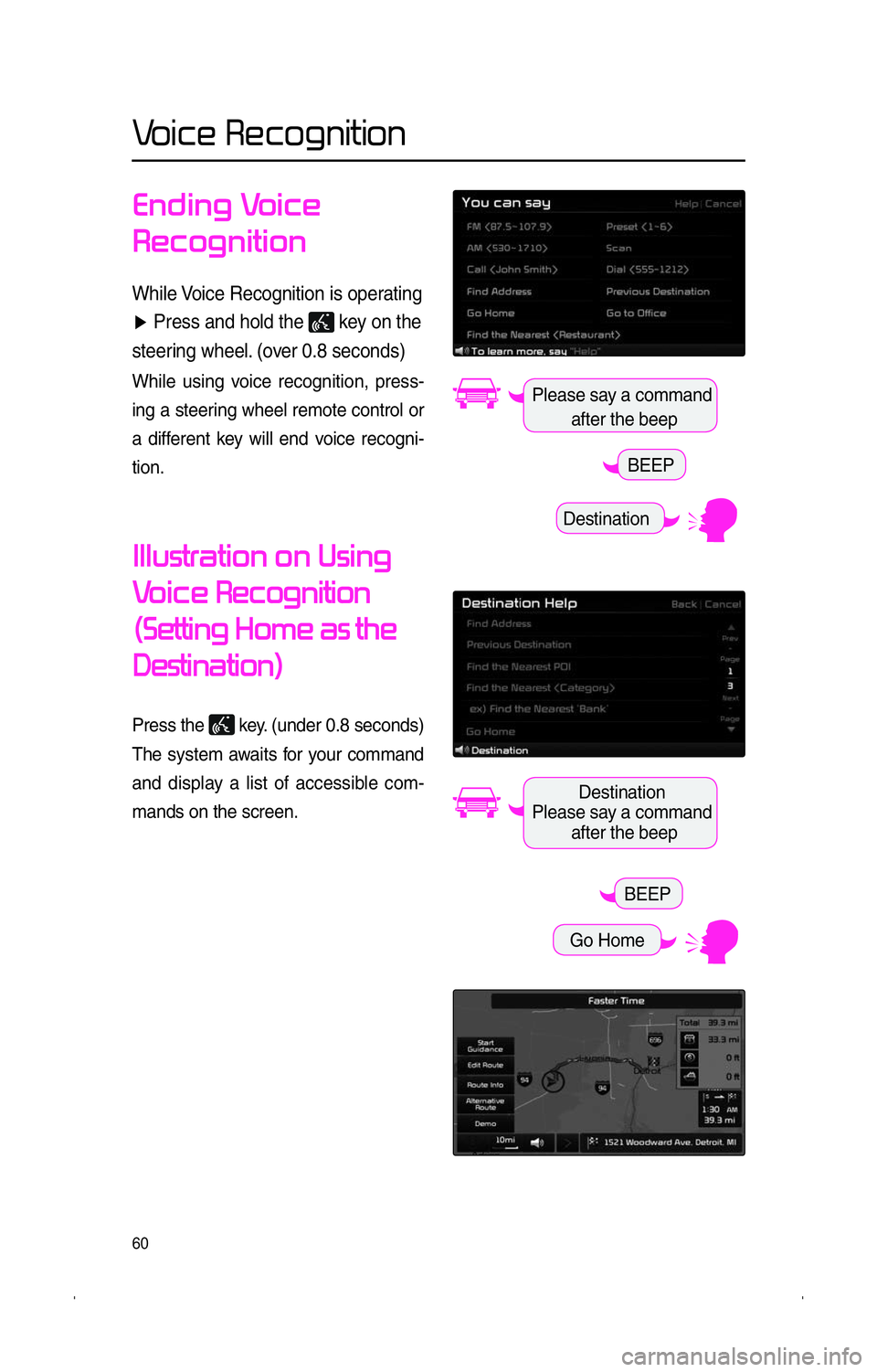

Page 63 of 76
60
V o i c e R e c o g n i t i o n
E n d i n g V o i c e
R e c o g n i t i o n
While Voice Recognition is operating
Ü Press and hold the
key on the
steering wheel. (over 0.8 seconds)
While using voice recognition, press-
ing a steering wheel remote control or
a different key will end voice recogni-
tion.
I l l u s t r a t i o n o n U s i n g
V o i c e
R e c o g n i t i o n
( S e t t i n g H o m e a s t h e
D e s t i n a t i o n )
Press the key. (under 0.8 seconds)
The system awaits for your command
and display a list of accessible com-
mands on the screen.
Destination
Please say a command after the beep
BEEP
Destination
Please say a command
after the beep
Go Home
BEEP , @ 4 - @ ( < & / > " 7 / 2 3 ( @ * 2 4 J O E E
