Page 61 of 523

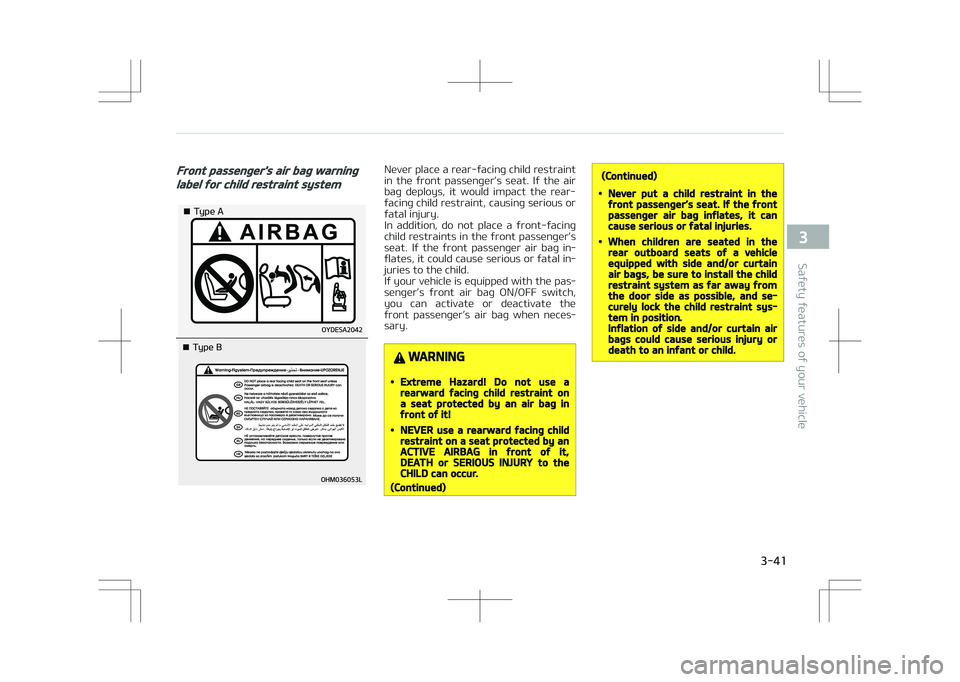

Front passenger's air bag warning
label for child restraint system
¥ 5 Z Q F "
¥ 5 Z Q F #
Never place a rear-facing child restraint
in the front passenger’s seat. If the air bag deploys, it would impact the rear-
facing child restraint, causing serious or
fatal injury.
In addition, do not place a front-facing child restraints in the front passenger’s
seat. If the front passenger air bag in‐
flates, it could cause serious or fatal in‐ juries to the child.
If your vehicle is equipped with the pas‐
senger’s front air bag ON/OFF switch,
you can activate or deactivate the front passenger’s air bag when neces‐
sary.
WARNING
•Extreme Hazard! Do not use arearward facing child restraint ona seat protected by an air bag infront of it!
•NEVER use a rearward facing childrestraint on a seat protected by anACTIVE AIRBAG in front of it,DEATH or SERIOUS INJURY to theCHILD can occur.
(Continued)
(Continued)
•Never put a child restraint in thefront passenger’s seat. If the frontpassenger air bag inflates, it cancause serious or fatal injuries.
•When children are seated in therear outboard seats of a vehicleequipped with side and/or curtainair bags, be sure to install the childrestraint system as far away fromthe door side as possible, and se‐curely lock the child restraint sys‐tem in position.Inflation of side and/or curtain airbags could cause serious injury ordeath to an infant or child.
3-41
3
Safety features of your vehicle
Page 62 of 523

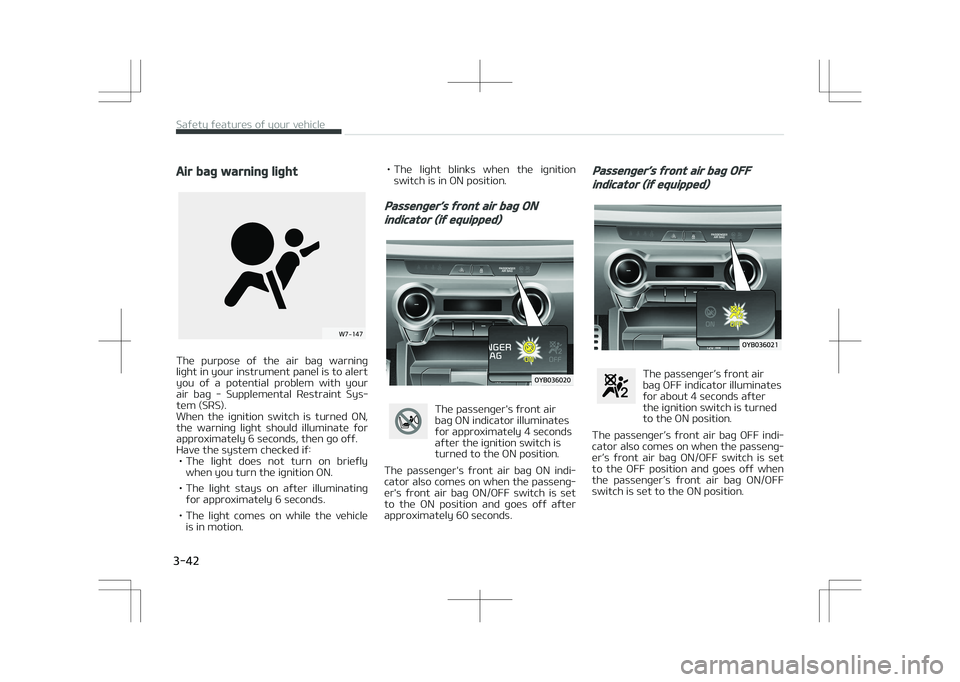

Air bag warning light
8
The purpose of the air bag warning
light in your instrument panel is to alert
you of a potential problem with your air bag - Supplemental Restraint Sys‐
tem (SRS).
When the ignition switch is turned ON,
the warning light should illuminate for approximately 6 seconds, then go off.
Have the system checked if: • The light does not turn on briefly when you turn the ignition ON.
• The light stays on after illuminating for approximately 6 seconds.
• The light comes on while the vehicle is in motion. • The light blinks when the ignition
switch is in ON position.
Passenger’s front air bag ON
indicator (if equipped)
The passenger's front air bag ON indicator illuminates
for approximately 4 secondsafter the ignition switch is
turned to the ON position.
The passenger's front air bag ON indi‐
cator also comes on when the passeng‐ er's front air bag ON/OFF switch is set
to the ON position and goes off after
approximately 60 seconds.
Passenger’s front air bag OFF
indicator (if equipped)
The passenger’s front air bag OFF indicator illuminates
for about 4 seconds afterthe ignition switch is turned
to the ON position.
The passenger’s front air bag OFF indi‐
cator also comes on when the passeng‐ er’s front air bag ON/OFF switch is set
to the OFF position and goes off when
the passenger’s front air bag ON/OFF switch is set to the ON position.
Safety features of your vehicle
3-42
Page 63 of 523
CAUTION
If the passenger’s front air bagON/OFF switch malfunctions, thepassenger’s front air bag OFF indica‐tor will not illuminate (The passeng‐er's front air bag ON indicator comeson and goes off after approximately60 seconds) and the passenger’sfront air bag will inflate in a frontalimpact even if the passenger’s frontair bag ON/OFF switch is set to theOFF position.In this case, have the passenger'sfront air bag ON/OFF switch and theSRS air bag system inspected by aprofessional workshop.Kia recommends to visit an author‐ized Kia dealer/service partner.

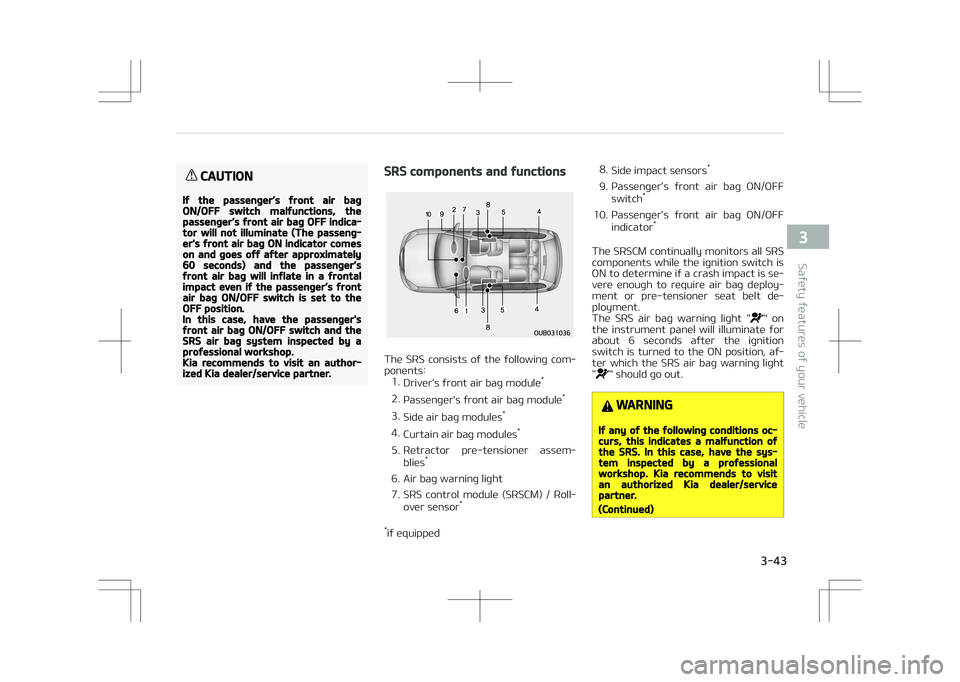

SRS components and functions
The SRS consists of the following com‐
ponents: 1. Driver's front air bag module *
2. Passenger's front air bag module *
3. Side air bag modules *
4. Curtain air bag modules *
5. Retractor pre-tensioner assem‐ blies *
6. Air bag warning light
7. SRS control module (SRSCM) / Roll‐ over sensor *
* if equipped 8.
Side impact sensors *
9. Passenger’s front air bag ON/OFF switch *
10. Passenger’s front air bag ON/OFF indicator *
The SRSCM continually monitors all SRS components while the ignition switch is
ON to determine if a crash impact is se‐
vere enough to require air bag deploy‐ ment or pre-tensioner seat belt de‐
ployment.
The SRS air bag warning light "
" on
the instrument panel will illuminate for
about 6 seconds after the ignition
switch is turned to the ON position, af‐ ter which the SRS air bag warning light
"
" should go out.
WARNING
If any of the following conditions oc‐curs, this indicates a malfunction ofthe SRS. In this case, have the sys‐tem inspected by a professionalworkshop. Kia recommends to visitan authorized Kia dealer/servicepartner.
(Continued)
3-43
3
Safety features of your vehicle
Page 64 of 523
(Continued)
•The light does not turn on brieflywhen you turn the ignition ON.
•The light stays on after illuminat‐ing for approximately 6 seconds.
•The light comes on while the vehi‐cle is in motion.
•The light blinks when the ignitionswitch is in ON position.
*if equipped
% S J W F SLÓ T G S P O U B J S C B H

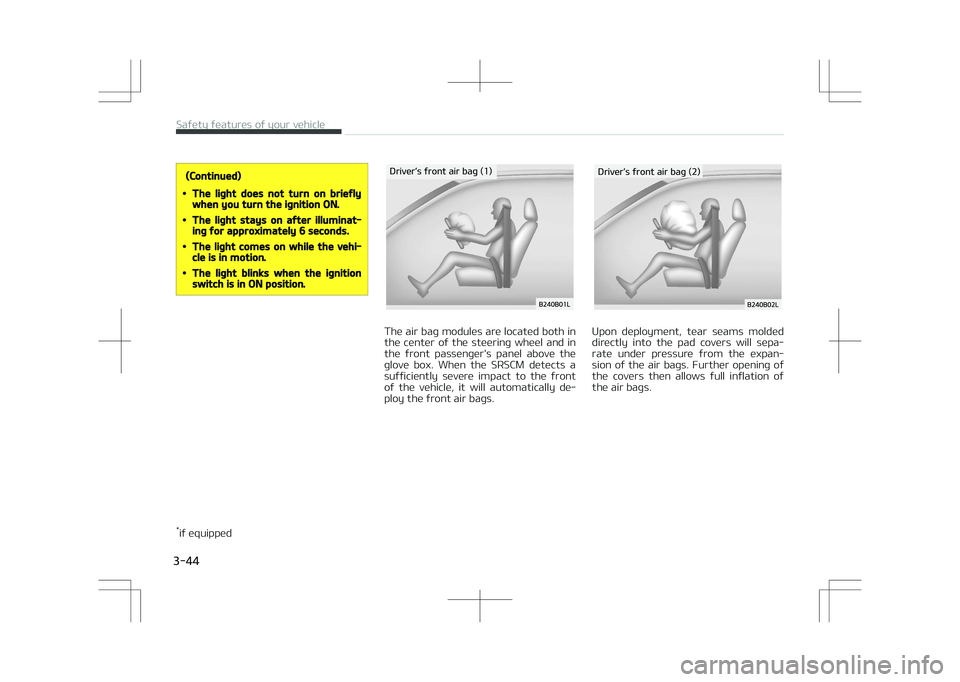

The air bag modules are located both in
the center of the steering wheel and in the front passenger's panel above the
glove box. When the SRSCM detects a
sufficiently severe impact to the front of the vehicle, it will automatically de‐
ploy the front air bags.
% S J W F SLÓ T G S P O U B J S C B H
Upon deployment, tear seams molded
directly into the pad covers will sepa‐ rate under pressure from the expan‐
sion of the air bags. Further opening of
the covers then allows full inflation of the air bags.
Safety features of your vehicle
3-44
Page 65 of 523
% S J W F SLÓ T G S P O U B J S C B H

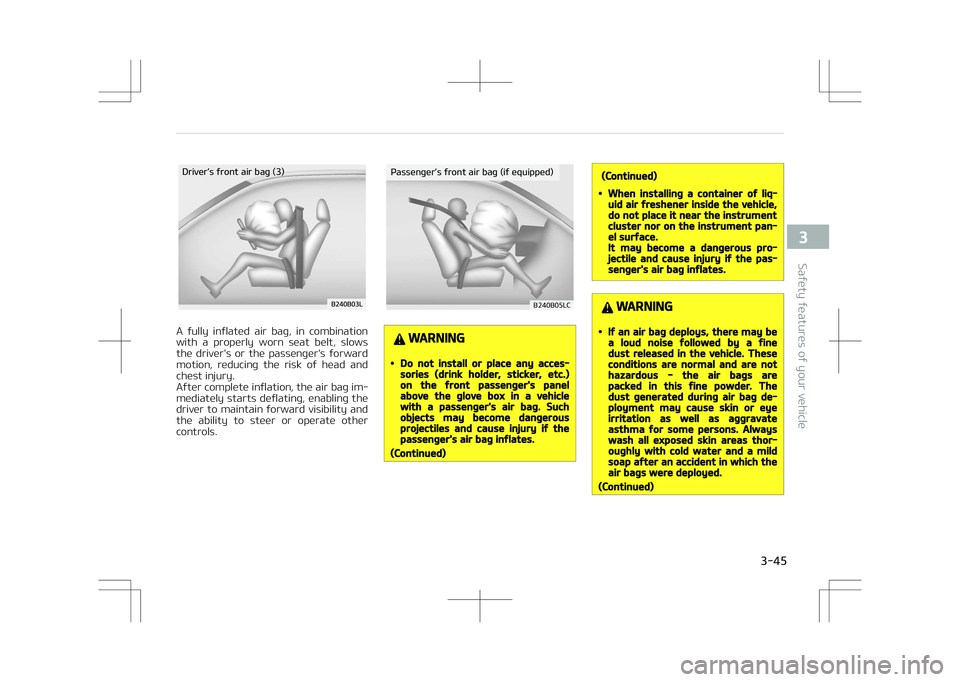

A fully inflated air bag, in combination
with a properly worn seat belt, slows the driver's or the passenger's forward
motion, reducing the risk of head and
chest injury.
After complete inflation, the air bag im‐ mediately starts deflating, enabling the
driver to maintain forward visibility and
the ability to steer or operate other controls.
1 B T T F O H F SLÓ T G S P O U B J S C B H J G F R V J Q Q F E
# # - $
WARNING
•Do not install or place any acces‐sories (drink holder, sticker, etc.)on the front passenger's panelabove the glove box in a vehiclewith a passenger's air bag. Suchobjects may become dangerousprojectiles and cause injury if thepassenger's air bag inflates.
(Continued)
(Continued)
•When installing a container of liq‐uid air freshener inside the vehicle,do not place it near the instrumentcluster nor on the instrument pan‐el surface.It may become a dangerous pro‐jectile and cause injury if the pas‐senger's air bag inflates.
WARNING
•If an air bag deploys, there may bea loud noise followed by a finedust released in the vehicle. Theseconditions are normal and are nothazardous - the air bags arepacked in this fine powder. Thedust generated during air bag de‐ployment may cause skin or eyeirritation as well as aggravateasthma for some persons. Alwayswash all exposed skin areas thor‐oughly with cold water and a mildsoap after an accident in which theair bags were deployed.
(Continued)
3-45
3
Safety features of your vehicle
Page 66 of 523
(Continued)
•The SRS can function only whenthe ignition switch is in the ON po‐sition. If the SRS "" warning lightdoes not illuminate, or continuous‐ly remains on after illuminating forabout 6 seconds when the ignitionswitch is turned to the ON posi‐tion, or after the engine is started,comes on while driving, the SRS isnot working properly. In this case,have the system inspected by aprofessional workshop. Kia recom‐mends to visit an authorized Kiadealer/service partner.
•Before you replace a fuse or dis‐connect a battery terminal, turnthe ignition switch to the LOCK po‐sition and remove the ignition key.Never remove or replace the airbag related fuse (s) when the igni‐tion switch is in the ON position.Failure to heed this warning willcause the SRS L

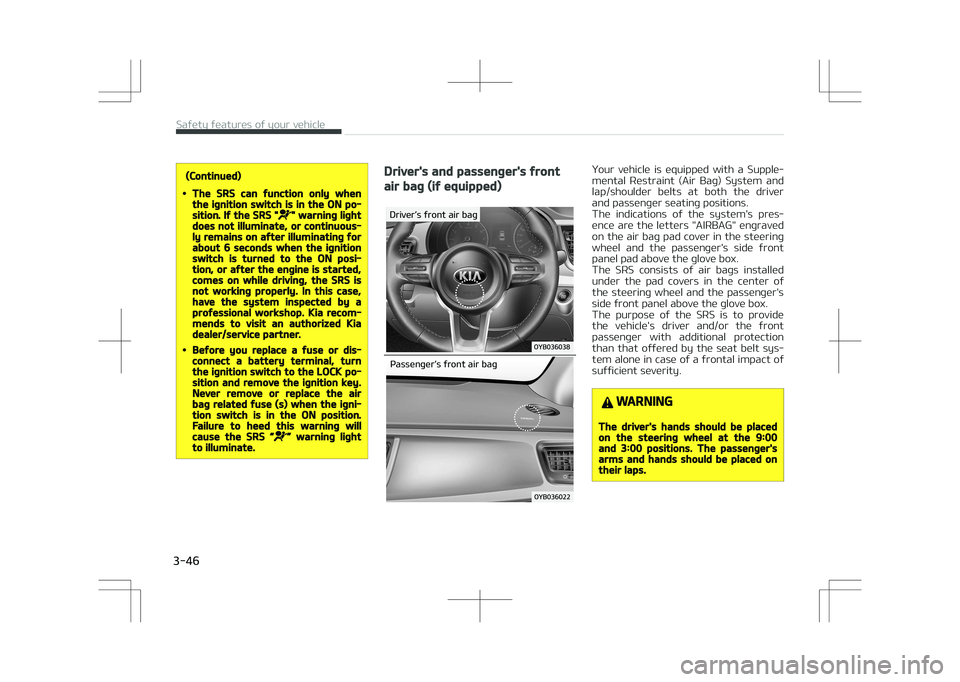

Page 67 of 523

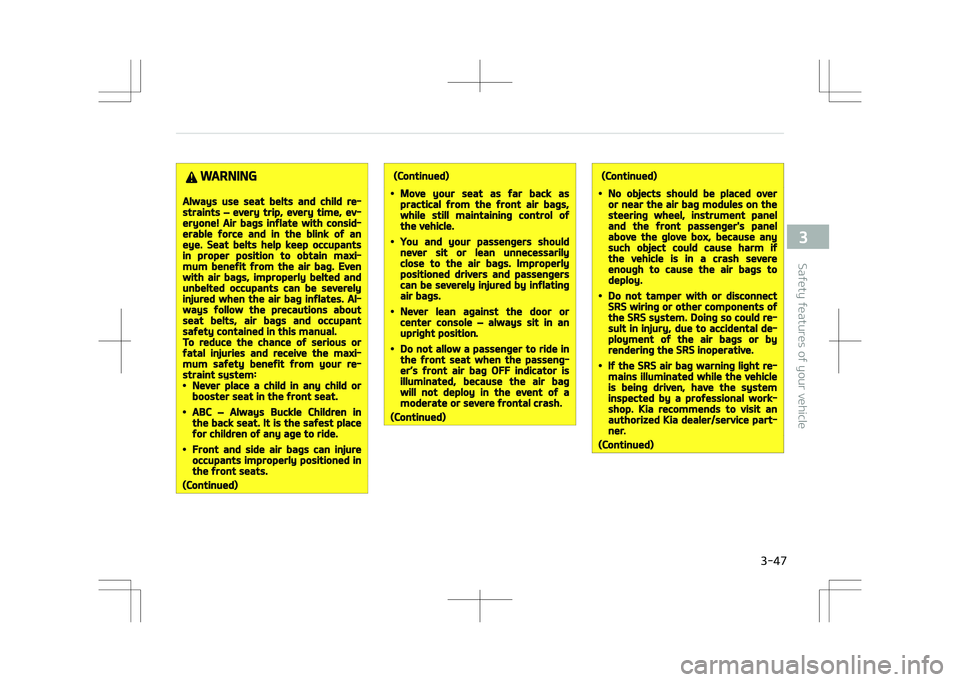

WARNING
Always use seat belts and child re‐straints – every trip, every time, ev‐eryone! Air bags inflate with consid‐erable force and in the blink of aneye. Seat belts help keep occupantsin proper position to obtain maxi‐mum benefit from the air bag. Evenwith air bags, improperly belted andunbelted occupants can be severelyinjured when the air bag inflates. Al‐ways follow the precautions aboutseat belts, air bags and occupantsafety contained in this manual.To reduce the chance of serious orfatal injuries and receive the maxi‐mum safety benefit from your re‐straint system:•Never place a child in any child orbooster seat in the front seat.
•ABC – Always Buckle Children inthe back seat. It is the safest placefor children of any age to ride.
•Front and side air bags can injureoccupants improperly positioned inthe front seats.
(Continued)
(Continued)
•Move your seat as far back aspractical from the front air bags,while still maintaining control ofthe vehicle.
•You and your passengers shouldnever sit or lean unnecessarilyclose to the air bags. Improperlypositioned drivers and passengerscan be severely injured by inflatingair bags.
•Never lean against the door orcenter console – always sit in anupright position.
•Do not allow a passenger to ride inthe front seat when the passeng‐er’s front air bag OFF indicator isilluminated, because the air bagwill not deploy in the event of amoderate or severe frontal crash.
(Continued)
(Continued)
•No objects should be placed overor near the air bag modules on thesteering wheel, instrument paneland the front passenger's panelabove the glove box, because anysuch object could cause harm ifthe vehicle is in a crash severeenough to cause the air bags todeploy.
•Do not tamper with or disconnectSRS wiring or other components ofthe SRS system. Doing so could re‐sult in injury, due to accidental de‐ployment of the air bags or byrendering the SRS inoperative.
•If the SRS air bag warning light re‐mains illuminated while the vehicleis being driven, have the systeminspected by a professional work‐shop. Kia recommends to visit anauthorized Kia dealer/service part‐ner.
(Continued)
3-47
3
Safety features of your vehicle

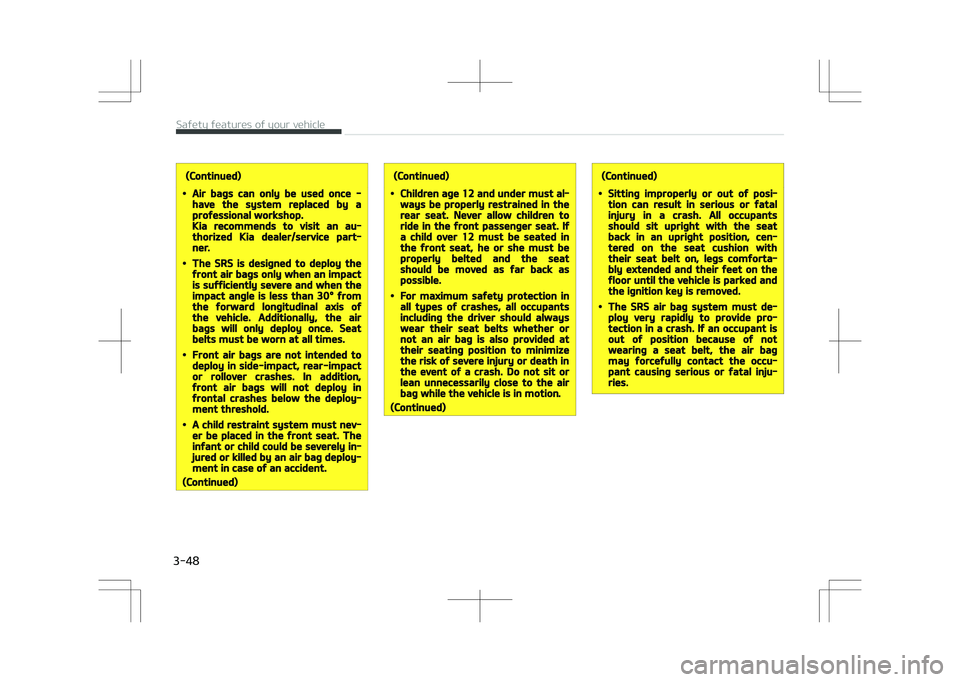

Page 68 of 523
(Continued)
•Air bags can only be used once -have the system replaced by aprofessional workshop.Kia recommends to visit an au‐thorized Kia dealer/service part‐ner.
•The SRS is designed to deploy thefront air bags only when an impactis sufficiently severe and when theimpact angle is less than 30° fromthe forward longitudinal axis ofthe vehicle. Additionally, the airbags will only deploy once. Seatbelts must be worn at all times.
•Front air bags are not intended todeploy in side-impact, rear-impactor rollover crashes. In addition,front air bags will not deploy infrontal crashes below the deploy‐ment threshold.
•A child restraint system must nev‐er be placed in the front seat. Theinfant or child could be severely in‐jured or killed by an air bag deploy‐ment in case of an accident.
(Continued)
(Continued)
•Children age 12 and under must al‐ways be properly restrained in therear seat. Never allow children toride in the front passenger seat. Ifa child over 12 must be seated inthe front seat, he or she must beproperly belted and the seatshould be moved as far back aspossible.
•For maximum safety protection inall types of crashes, all occupantsincluding the driver should alwayswear their seat belts whether ornot an air bag is also provided attheir seating position to minimizethe risk of severe injury or death inthe event of a crash. Do not sit orlean unnecessarily close to the airbag while the vehicle is in motion.
(Continued)
(Continued)
•Sitting improperly or out of posi‐tion can result in serious or fatalinjury in a crash. All occupantsshould sit upright with the seatback in an upright position, cen‐tered on the seat cushion withtheir seat belt on, legs comforta‐bly extended and their feet on thefloor until the vehicle is parked andthe ignition key is removed.
•The SRS air bag system must de‐ploy very rapidly to provide pro‐tection in a crash. If an occupant isout of position because of notwearing a seat belt, the air bagmay forcefully contact the occu‐pant causing serious or fatal inju‐ries.
Safety features of your vehicle
3-48
Page 69 of 523

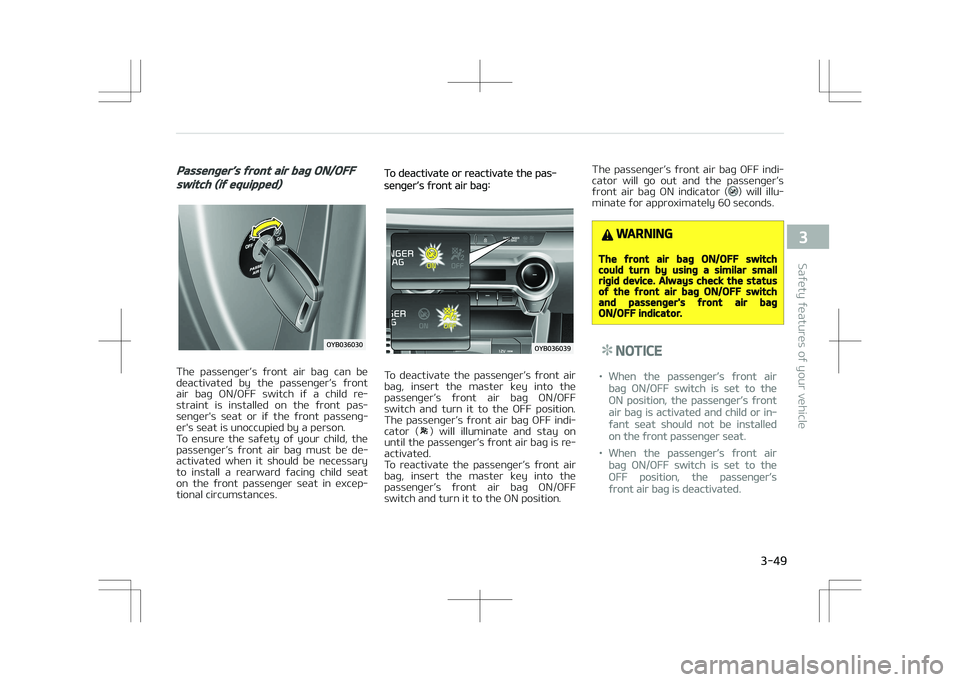

Passenger’s front air bag ON/OFF
switch (if equipped)
The passenger’s front air bag can be
deactivated by the passenger’s front air bag ON/OFF switch if a child re‐
straint is installed on the front pas‐
senger's seat or if the front passeng‐ er's seat is unoccupied by a person.
To ensure the safety of your child, the
passenger’s front air bag must be de‐
activated when it should be necessary to install a rearward facing child seat
on the front passenger seat in excep‐
tional circumstances.
To deactivate or reactivate the pas‐
senger’s front air bag:
To deactivate the passenger’s front air
bag, insert the master key into the passenger’s front air bag ON/OFF
switch and turn it to the OFF position.
The passenger’s front air bag OFF indi‐ cator (
) will illuminate and stay on
until the passenger’s front air bag is re‐
activated.
To reactivate the passenger’s front air
bag, insert the master key into the
passenger’s front air bag ON/OFF
switch and turn it to the ON position. The passenger’s front air bag OFF indi‐
cator will go out and the passenger’s front air bag ON indicator (
) will illu‐
minate for approximately 60 seconds.
WARNING
The front air bag ON/OFF switchcould turn by using a similar smallrigid device. Always check the statusof the front air bag ON/OFF switchand passenger's front air bagON/OFF indicator.
NOTICE
•When the passenger’s front air
bag ON/OFF switch is set to the
ON position, the passenger’s front
air bag is activated and child or in‐
fant seat should not be installed
on the front passenger seat.
•When the passenger’s front air
bag ON/OFF switch is set to the
OFF position, the passenger’s
front air bag is deactivated.
3-49
3
Safety features of your vehicle
Page 70 of 523
CAUTION
•If the passenger’s front air bagON/OFF switch is not workingproperly, the air bag warning light() on the instrument panel willilluminate.And, the passenger's front air bagOFF indicator () will not illumi‐nate (The passenger's front airbag ON indicator comes on andgoes off after approximately 60seconds), the SRS Control Modulereactivate the passenger’s frontair bag and the passenger’s frontair bag will inflate in frontal impactcrashes even if the passenger’sfront air bag ON/OFF switch is setto the OFF position.In this case, have the system in‐spected by a professional work‐shop. Kia recommends to visit anauthorized Kia dealer/service part‐ner.
(Continued)
(Continued)
•If the SRS air bag warning lightblinks or does not illuminate whenthe ignition switch is turned to theON position, or if it illuminateswhile the vehicle is being driven,have the system inspected by aprofessional workshop. Kia recom‐mends to visit an authorized Kiadealer/service partner.
WARNING
•The driver is responsible for theproper position of the passenger’sfront air bag ON/OFF switch.
•Deactivate the passenger's frontair bag only when the ignitionswitch is switched off, or the mal‐function may occur in the SRSControl Module.And there may be a danger thatthe driver's and/or front passeng‐er’s and/or side and curtain air bagmay fail to trigger, or not triggercorrectly during a collision.
(Continued)
(Continued)
•Never install a rearward facingchild seat on the front passenger'sseat unless the passenger's frontair bag has been deactivated. Theinfant or child could be severely in‐jured or killed by an air bag deploy‐ment in case of an accident.
•Even though your vehicle is equip‐ped with the passenger's front airbag ON/OFF switch, do not install achild restraint system in the frontpassenger's seat. A child restraintsystem must never be placed inthe front seat. Children who aretoo large for child restraint sys‐tems should always occupy therear seat and use the available lap/shoulder belts. Children are affor‐ded the most safety in the eventof an accident when they are re‐strained by a proper restraint sys‐tem in the rear seat.
•As soon as the child seat is no lon‐ger needed on the front passeng‐er's seat, reactivate the front pas‐senger's air bag.
(Continued)
Safety features of your vehicle
3-50
