Securing a Child Restraint System
seat with L
Page 52 of 523

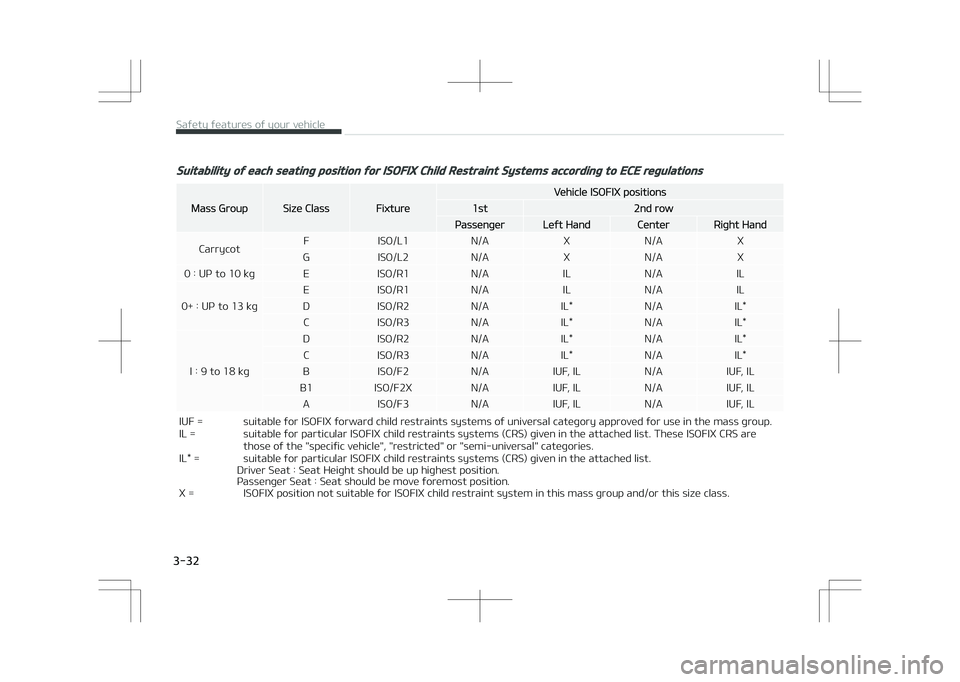

Suitability of each seating position for ISOFIX Child Restraint Systems according to ECE regulations
Mass GroupSize ClassFixture
Vehicle ISOFIX positions
1st2nd row
PassengerLeft HandCenterRight Hand
Carrycot F ISO/L1 N/A X N/A X
G ISO/L2 N/A X N/A X
0 : UP to 10 kg E ISO/R1 N/A IL N/A IL
0+ : UP to 13 kg E ISO/R1 N/A IL N/A IL
D ISO/R2 N/A IL* N/A IL* C ISO/R3 N/A IL* N/A IL*
I : 9 to 18 kg D ISO/R2 N/A IL* N/A IL*
C ISO/R3 N/A IL* N/A IL*
B ISO/F2 N/A IUF, IL N/A IUF, IL
B1 ISO/F2X N/A IUF, IL N/A IUF, IL A ISO/F3 N/A IUF, IL N/A IUF, IL
IUF = suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
IL = suitable for particular ISOFIX child restraints systems (CRS) given in the attached list. These ISOFIX CRS are those of the "specific vehicle", "restricted" or "semi-universal" categories.
IL* = suitable for particular ISOFIX child restraints systems (CRS) given in the attached list. Driver Seat : Seat Height should be up highest position.
Passenger Seat : Seat should be move foremost position.
X = ISOFIX position not suitable for ISOFIX child restraint system in this mass group and/or this size class.
Safety features of your vehicle
3-32
Page 53 of 523

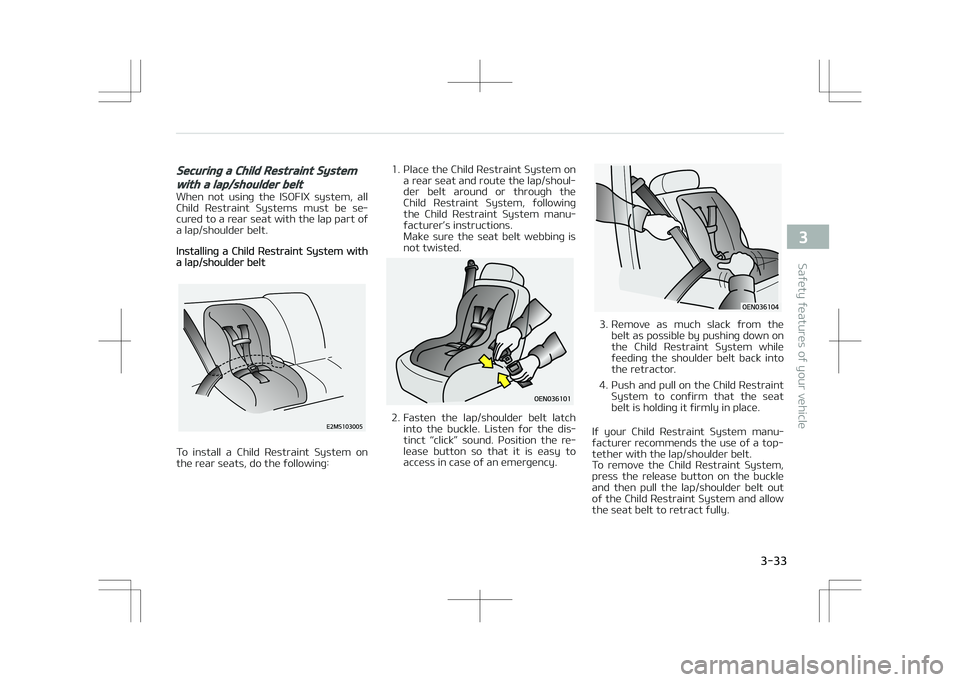

Securing a Child Restraint System
with a lap/shoulder belt
When not using the ISOFIX system, allChild Restraint Systems must be se‐
cured to a rear seat with the lap part of
a lap/shoulder belt.
Installing a Child Restraint System witha lap/shoulder belt
To install a Child Restraint System on
the rear seats, do the following: 1. Place the Child Restraint System on
a rear seat and route the lap/shoul‐
der belt around or through the
Child Restraint System, following
the Child Restraint System manu‐
facturer’s instructions.
Make sure the seat belt webbing is not twisted.
2. Fasten the lap/shoulder belt latch into the buckle. Listen for the dis‐
tinct L
Page 54 of 523

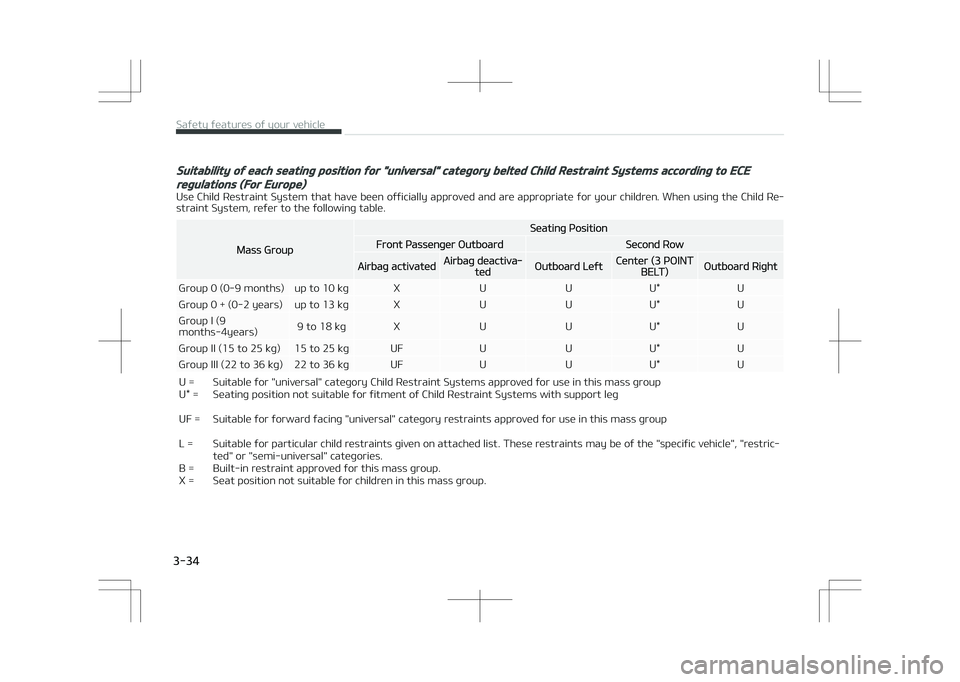

Suitability of each seating position for "universal" category belted Child Restraint Systems according to ECE
regulations (For Europe)
Use Child Restraint System that have been officially approved and are appropriate for your children. When using the Child Re‐straint System, refer to the following table.
Mass Group
Seating Position
Front Passenger OutboardSecond Row
Airbag activatedAirbag deactiva‐tedOutboard LeftCenter (3 POINTBELT)Outboard Right
Group 0 (0-9 months) up to 10 kg X U U U* U
Group 0 + (0-2 years) up to 13 kg X U U U* UGroup I (9 months-4years) 9 to 18 kg X U U U* U
Group II (15 to 25 kg) 15 to 25 kg UF U U U* U
Group III (22 to 36 kg) 22 to 36 kg UF U U U* U
U = Suitable for "universal" category Child Restraint Systems approved for use in this mass group U* = Seating position not suitable for fitment of Child Restraint Systems with support leg
UF = Suitable for forward facing "universal" category restraints approved for use in this mass group
L = Suitable for particular child restraints given on attached list. These restraints may be of the "specific vehicle", "restric‐ ted" or "semi-universal" categories.
B = Built-in restraint approved for this mass group.
X = Seat position not suitable for children in this mass group.
Safety features of your vehicle
3-34
Page 55 of 523

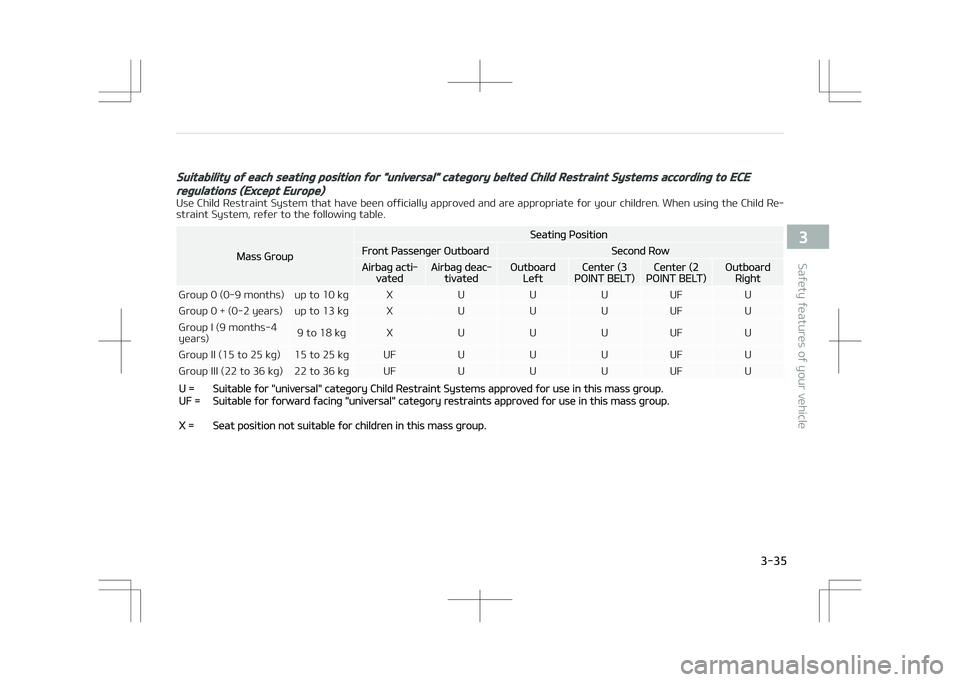

Suitability of each seating position for "universal" category belted Child Restraint Systems according to ECE
regulations (Except Europe)
Use Child Restraint System that have been officially approved and are appropriate for your children. When using the Child Re‐straint System, refer to the following table.
Mass Group
Seating Position
Front Passenger OutboardSecond Row
Airbag acti‐vatedAirbag deac‐tivatedOutboardLeftCenter (3POINT BELT)Center (2POINT BELT)OutboardRight
Group 0 (0-9 months) up to 10 kg X U U U UF U
Group 0 + (0-2 years) up to 13 kg X U U U UF UGroup I (9 months-4 years) 9 to 18 kg X U U U UF U
Group II (15 to 25 kg) 15 to 25 kg UF U U U UF U
Group III (22 to 36 kg) 22 to 36 kg UF U U U UF U
U = Suitable for "universal" category Child Restraint Systems approved for use in this mass group.
UF =
Suitable for forward facing "universal" category restraints approved for use in this mass group.
X = Seat position not suitable for children in this mass group.
3-35
3
Safety features of your vehicle
Page 56 of 523

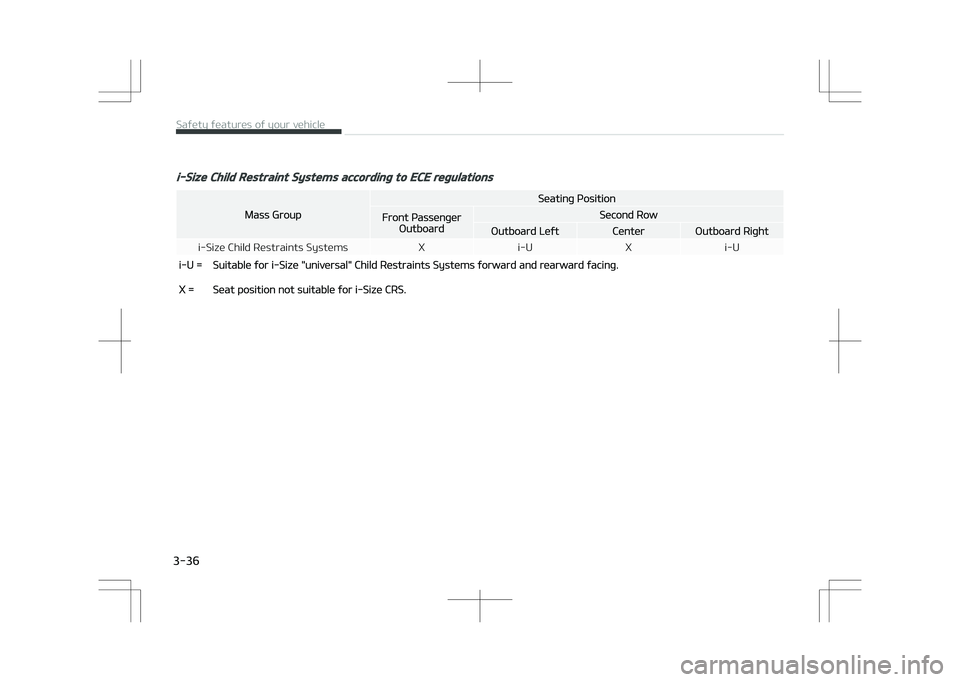

i-Size Child Restraint Systems according to ECE regulations
Mass Group
Seating Position
Front PassengerOutboard
Second Row
Outboard LeftCenterOutboard Right
i-Size Child Restraints Systems X i-U X i-U
i-U =
Suitable for i-Size "universal" Child Restraints Systems forward and rearward facing.
X = Seat position not suitable for i-Size CRS.
Safety features of your vehicle
3-36
Page 57 of 523

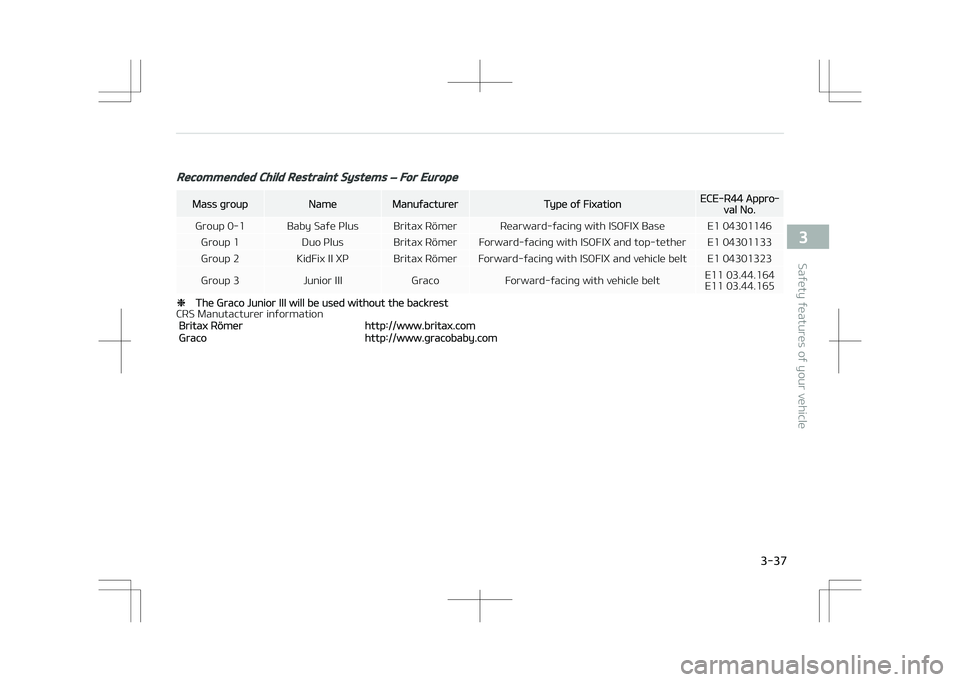

Recommended Child Restraint Systems – For Europe
Mass groupNameManufacturerType of FixationECE-R44 Appro‐val No.
Group 0-1 Baby Safe Plus Britax Römer Rearward-facing with ISOFIX Base E1 04301146 Group 1 Duo Plus Britax Römer Forward-facing with ISOFIX and top-tether E1 04301133
Group 2 KidFix II XP Britax Römer Forward-facing with ISOFIX and vehicle belt E1 04301323
Group 3 Junior III Graco Forward-facing with vehicle belt E11 03.44.164 E11 03.44.165
❈The Graco Junior III will be used without the backrest
CRS Manutacturer information
Britax Römer http://www.britax.com
Graco http://www.gracobaby.com
3-37
3
Safety features of your vehicle
Page 58 of 523

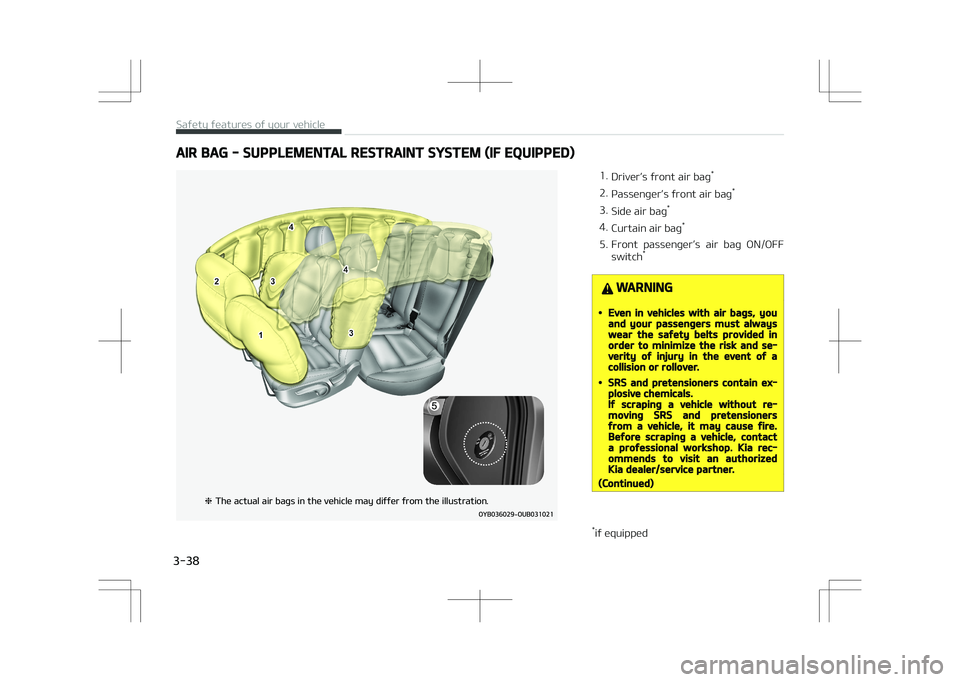

AIR BAG - SUPPLEMENTAL RESTRAINT SYSTEM (IF EQUIPPED)
5 I F B D U V B M B J S C B H T J O U I F W F I J D M F N B Z E J G G F S G S P N U I F J M M V T U S B U J P O
1.Driver’s front air bag *
2. Passenger’s front air bag *
3. Side air bag *
4. Curtain air bag *
5. Front passenger’s air bag ON/OFF switch *
WARNING
•Even in vehicles with air bags, youand your passengers must alwayswear the safety belts provided inorder to minimize the risk and se‐verity of injury in the event of acollision or rollover.
•SRS and pretensioners contain ex‐plosive chemicals.If scraping a vehicle without re‐moving SRS and pretensionersfrom a vehicle, it may cause fire.Before scraping a vehicle, contacta professional workshop. Kia rec‐ommends to visit an authorizedKia dealer/service partner.
(Continued)
*
if equipped
Safety features of your vehicle
3-38
Page 59 of 523
(Continued)
•Keep the SRS parts and wiringsaway from water or any liquid. Ifthe SRS components are inopera‐tive due to exposure to water orliquids, it may cause fire or severeinjury.

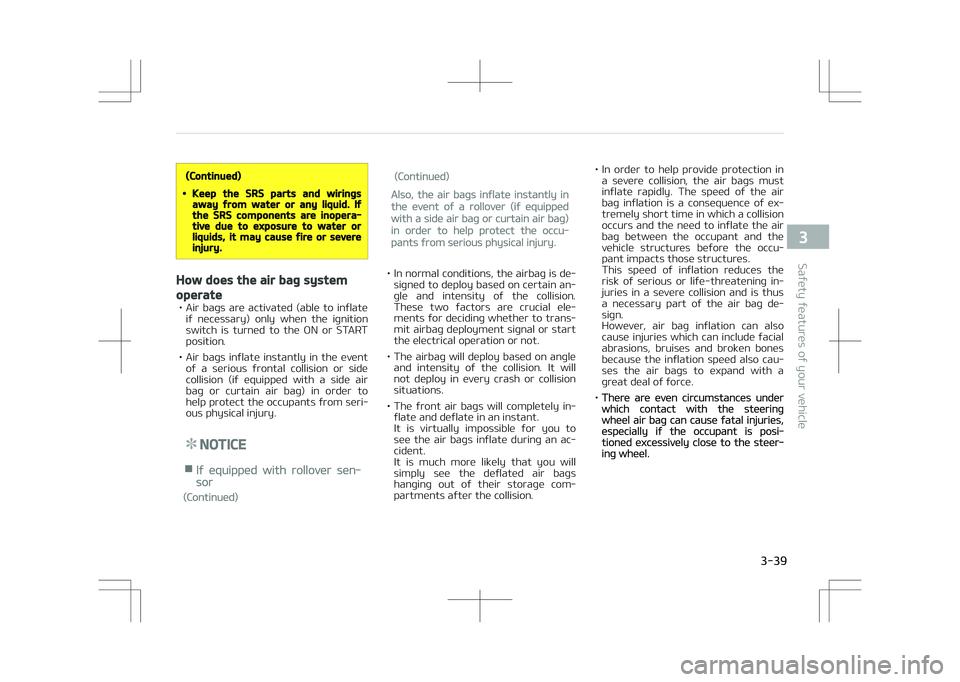

How does the air bag system
operate
• Air bags are activated (able to inflateif necessary) only when the ignition
switch is turned to the ON or START position.
• Air bags inflate instantly in the event of a serious frontal collision or side
collision (if equipped with a side air
bag or curtain air bag) in order to
help protect the occupants from seri‐ ous physical injury.
NOTICE
nIf equipped with rollover sen‐
sor
(Continued)
(Continued)
Also, the air bags inflate instantly in
the event of a rollover (if equipped
with a side air bag or curtain air bag)
in order to help protect the occu‐
pants from serious physical injury.
• In normal conditions, the airbag is de‐ signed to deploy based on certain an‐
gle and intensity of the collision. These two factors are crucial ele‐
ments for deciding whether to trans‐
mit airbag deployment signal or start
the electrical operation or not.
• The airbag will deploy based on angle and intensity of the collision. It willnot deploy in every crash or collision
situations.
• The front air bags will completely in‐ flate and deflate in an instant.
It is virtually impossible for you to
see the air bags inflate during an ac‐
cident.
It is much more likely that you will simply see the deflated air bags
hanging out of their storage com‐
partments after the collision. • In order to help provide protection in
a severe collision, the air bags mustinflate rapidly. The speed of the air
bag inflation is a consequence of ex‐
tremely short time in which a collision
occurs and the need to inflate the air
bag between the occupant and the vehicle structures before the occu‐
pant impacts those structures.
This speed of inflation reduces the
risk of serious or life-threatening in‐
juries in a severe collision and is thus
a necessary part of the air bag de‐ sign.
However, air bag inflation can also
cause injuries which can include facial
abrasions, bruises and broken bones
because the inflation speed also cau‐ ses the air bags to expand with a
great deal of force.
•
There are even circumstances underwhich contact with the steeringwheel air bag can cause fatal injuries,especially if the occupant is posi‐tioned excessively close to the steer‐ing wheel.
3-39
3
Safety features of your vehicle
Page 60 of 523

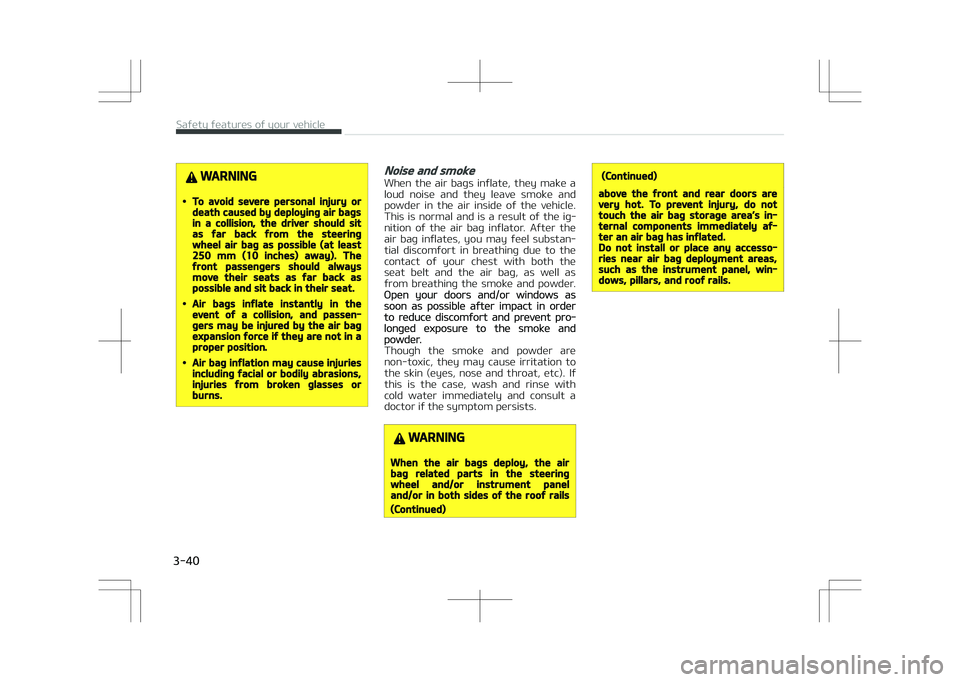

WARNING
•To avoid severe personal injury ordeath caused by deploying air bagsin a collision, the driver should sitas far back from the steeringwheel air bag as possible (at least250 mm (10 inches) away). Thefront passengers should alwaysmove their seats as far back aspossible and sit back in their seat.
•Air bags inflate instantly in theevent of a collision, and passen‐gers may be injured by the air bagexpansion force if they are not in aproper position.
•Air bag inflation may cause injuriesincluding facial or bodily abrasions,injuries from broken glasses orburns.
Noise and smoke
When the air bags inflate, they make a
loud noise and they leave smoke and
powder in the air inside of the vehicle. This is normal and is a result of the ig‐
nition of the air bag inflator. After the
air bag inflates, you may feel substan‐ tial discomfort in breathing due to the
contact of your chest with both the
seat belt and the air bag, as well as from breathing the smoke and powder.
Open your doors and/or windows assoon as possible after impact in orderto reduce discomfort and prevent pro‐longed exposure to the smoke andpowder.
Though the smoke and powder are non-toxic, they may cause irritation to
the skin (eyes, nose and throat, etc). If
this is the case, wash and rinse with cold water immediately and consult a
doctor if the symptom persists.
WARNING
When the air bags deploy, the airbag related parts in the steeringwheel and/or instrument paneland/or in both sides of the roof rails
(Continued)
(Continued)
above the front and rear doors arevery hot. To prevent injury, do nottouch the air bag storage area’s in‐ternal components immediately af‐ter an air bag has inflated.Do not install or place any accesso‐ries near air bag deployment areas,such as the instrument panel, win‐dows, pillars, and roof rails.
