KIA STONIC 2018 Owner's Manual
Manufacturer: KIA, Model Year: 2018, Model line: STONIC, Model: KIA STONIC 2018Pages: 523, PDF Size: 24.99 MB
Page 21 of 523

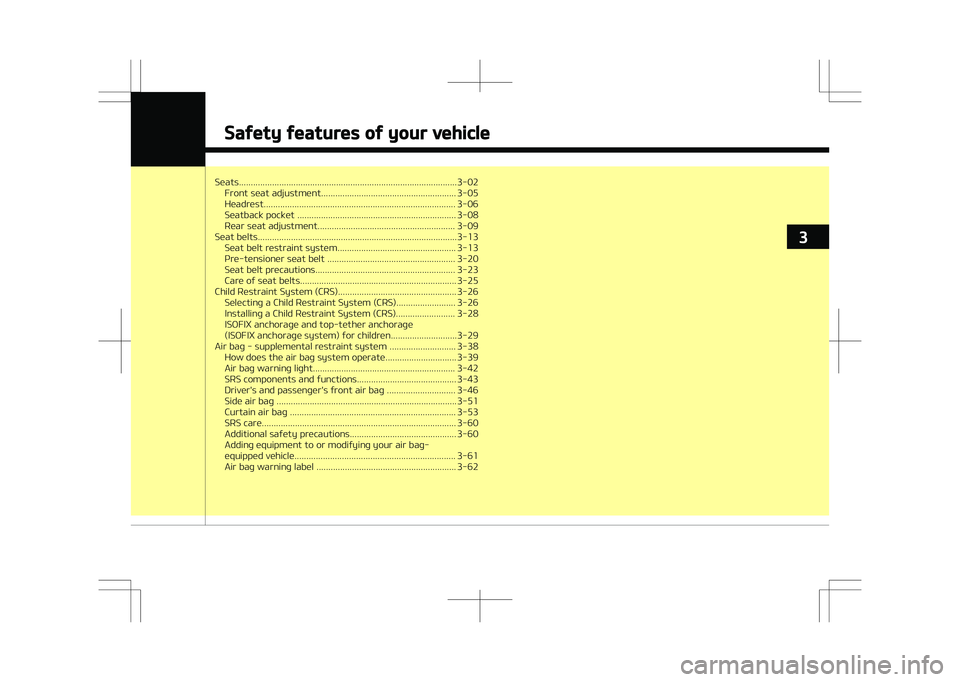

Seats............................................................................................3-02Front seat adjustment......................................................... 3-05
Headrest................................................................................. 3-06
Seatback pocket ................................................................... 3-08
Rear seat adjustment.......................................................... 3-09
Seat belts....................................................................................3-13 Seat belt restraint system.................................................. 3-13
Pre-tensioner seat belt ...................................................... 3-20
Seat belt precautions........................................................... 3-23
Care of seat belts.................................................................. 3-25
Child Restraint System (CRS).................................................. 3-26 Selecting a Child Restraint System (CRS)......................... 3-26
Installing a Child Restraint System (CRS)......................... 3-28ISOFIX anchorage and top-tether anchorage
(ISOFIX anchorage system) for children............................3-29
Air bag - supplemental restraint system ............................ 3-38 How does the air bag system operate.............................. 3-39
Air bag warning light............................................................ 3-42
SRS components and functions.......................................... 3-43
Driver's and passenger's front air bag ............................. 3-46
Side air bag ............................................................................3-51
Curtain air bag ...................................................................... 3-53
SRS care.................................................................................. 3-60
Additional safety precautions............................................. 3-60Adding equipment to or modifying your air bag-
equipped vehicle.................................................................... 3-61
Air bag warning label ........................................................... 3-62
Safety features of your vehicle
3

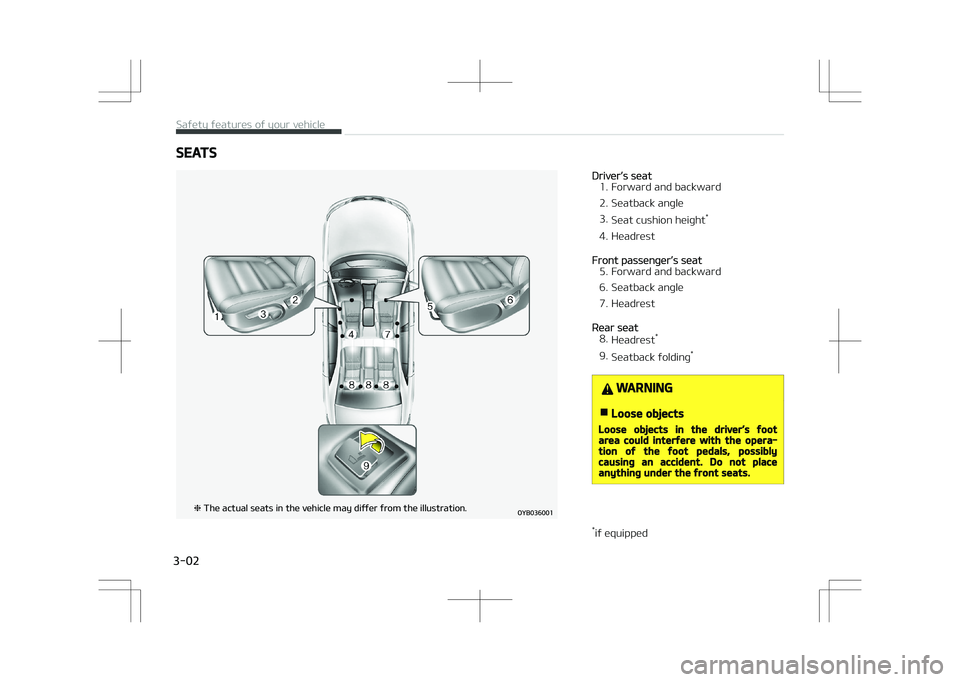

Page 22 of 523
SEATS
5 I F B D U V B M T F B U T J O U I F W F I J D M F N B Z E J G G F S G S P N U I F J M M V T U S B U J P O
Driver’s seat
1. Forward and backward
2. Seatback angle3. Seat cushion height *
4. Headrest
Front passenger’s seat
5. Forward and backward
6. Seatback angle
7. Headrest
Rear seat
8. Headrest *
9. Seatback folding *
WARNING
nLoose objects
Loose objects in the driver’s footarea could interfere with the opera‐tion of the foot pedals, possiblycausing an accident. Do not placeanything under the front seats.
*
if equipped
Safety features of your vehicle
3-02

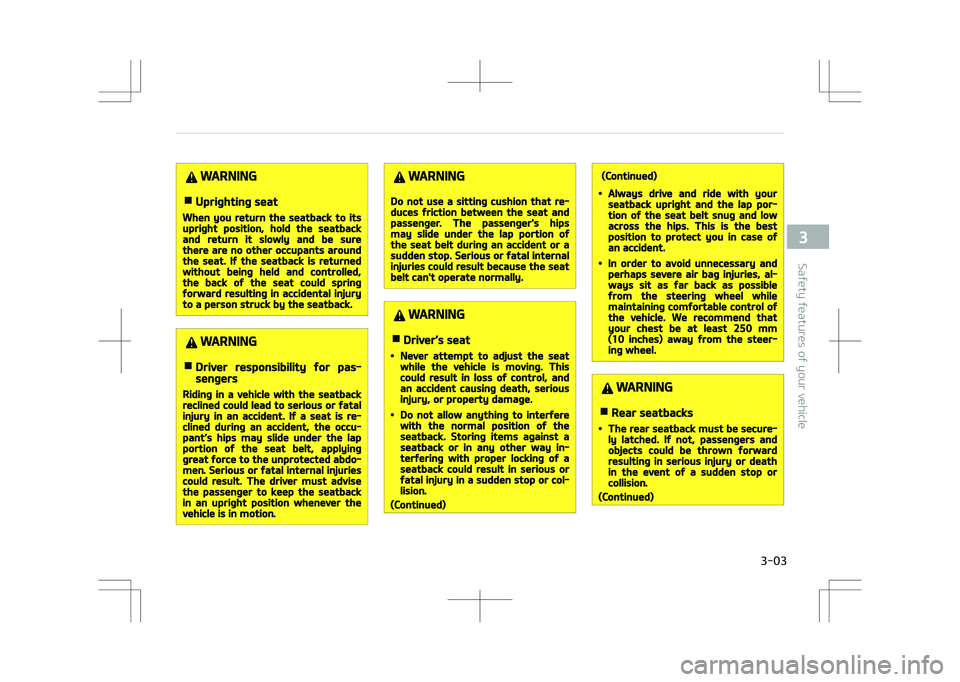

Page 23 of 523
WARNING
nUprighting seat
When you return the seatback to itsupright position, hold the seatbackand return it slowly and be surethere are no other occupants aroundthe seat. If the seatback is returnedwithout being held and controlled,the back of the seat could springforward resulting in accidental injuryto a person struck by the seatback.
WARNING
nDriver responsibility for pas‐sengers
Riding in a vehicle with the seatbackreclined could lead to serious or fatalinjury in an accident. If a seat is re‐clined during an accident, the occu‐pant’s hips may slide under the lapportion of the seat belt, applyinggreat force to the unprotected abdo‐men. Serious or fatal internal injuriescould result. The driver must advisethe passenger to keep the seatbackin an upright position whenever thevehicle is in motion.
WARNING
Do not use a sitting cushion that re‐duces friction between the seat andpassenger. The passenger's hipsmay slide under the lap portion ofthe seat belt during an accident or asudden stop. Serious or fatal internalinjuries could result because the seatbelt can't operate normally.
WARNING
nDriver’s seat
•Never attempt to adjust the seatwhile the vehicle is moving. Thiscould result in loss of control, andan accident causing death, seriousinjury, or property damage.
•Do not allow anything to interferewith the normal position of theseatback. Storing items against aseatback or in any other way in‐terfering with proper locking of aseatback could result in serious orfatal injury in a sudden stop or col‐lision.
(Continued)
(Continued)
•Always drive and ride with yourseatback upright and the lap por‐tion of the seat belt snug and lowacross the hips. This is the bestposition to protect you in case ofan accident.
•In order to avoid unnecessary andperhaps severe air bag injuries, al‐ways sit as far back as possiblefrom the steering wheel whilemaintaining comfortable control ofthe vehicle. We recommend thatyour chest be at least 250 mm(10 inches) away from the steer‐ing wheel.
WARNING
nRear seatbacks
•The rear seatback must be secure‐ly latched. If not, passengers andobjects could be thrown forwardresulting in serious injury or deathin the event of a sudden stop orcollision.
(Continued)
3-03
3
Safety features of your vehicle

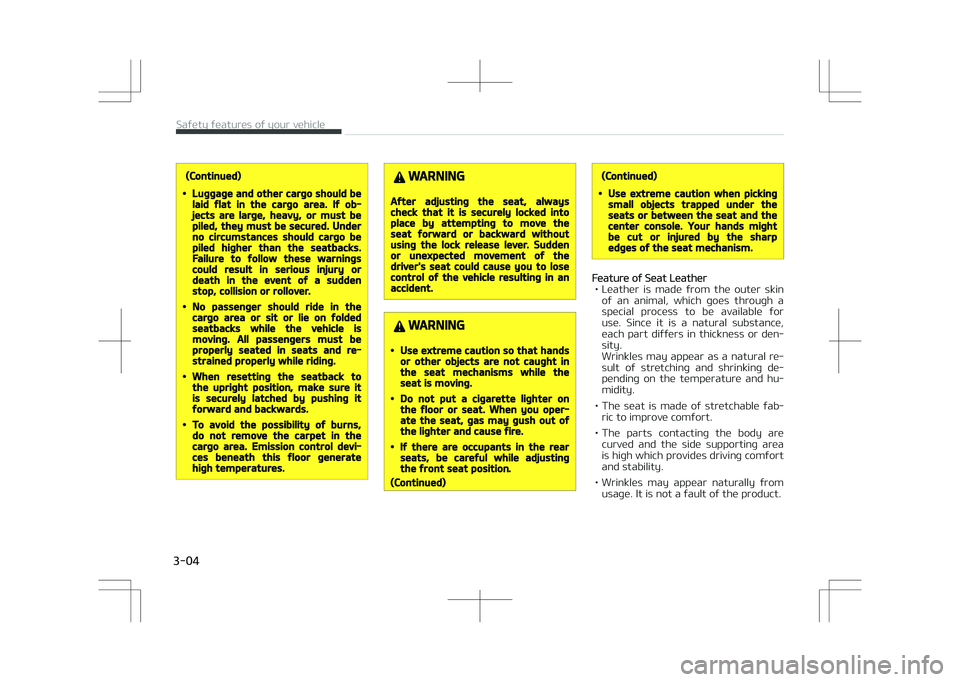

Page 24 of 523
(Continued)
•Luggage and other cargo should belaid flat in the cargo area. If ob‐jects are large, heavy, or must bepiled, they must be secured. Underno circumstances should cargo bepiled higher than the seatbacks.Failure to follow these warningscould result in serious injury ordeath in the event of a suddenstop, collision or rollover.
•No passenger should ride in thecargo area or sit or lie on foldedseatbacks while the vehicle ismoving. All passengers must beproperly seated in seats and re‐strained properly while riding.
•When resetting the seatback tothe upright position, make sure itis securely latched by pushing itforward and backwards.
•To avoid the possibility of burns,do not remove the carpet in thecargo area. Emission control devi‐ces beneath this floor generatehigh temperatures.
WARNING
After adjusting the seat, alwayscheck that it is securely locked intoplace by attempting to move theseat forward or backward withoutusing the lock release lever. Suddenor unexpected movement of thedriver's seat could cause you to losecontrol of the vehicle resulting in anaccident.
WARNING
•Use extreme caution so that handsor other objects are not caught inthe seat mechanisms while theseat is moving.
•Do not put a cigarette lighter onthe floor or seat. When you oper‐ate the seat, gas may gush out ofthe lighter and cause fire.
•If there are occupants in the rearseats, be careful while adjustingthe front seat position.
(Continued)
(Continued)
•Use extreme caution when pickingsmall objects trapped under theseats or between the seat and thecenter console. Your hands mightbe cut or injured by the sharpedges of the seat mechanism.
Feature of Seat Leather
• Leather is made from the outer skin of an animal, which goes through a
special process to be available for use. Since it is a natural substance,
each part differs in thickness or den‐
sity.
Wrinkles may appear as a natural re‐
sult of stretching and shrinking de‐
pending on the temperature and hu‐ midity.
• The seat is made of stretchable fab‐ ric to improve comfort.
• The parts contacting the body are curved and the side supporting area
is high which provides driving comfort
and stability.
• Wrinkles may appear naturally from usage. It is not a fault of the product.
Safety features of your vehicle
3-04

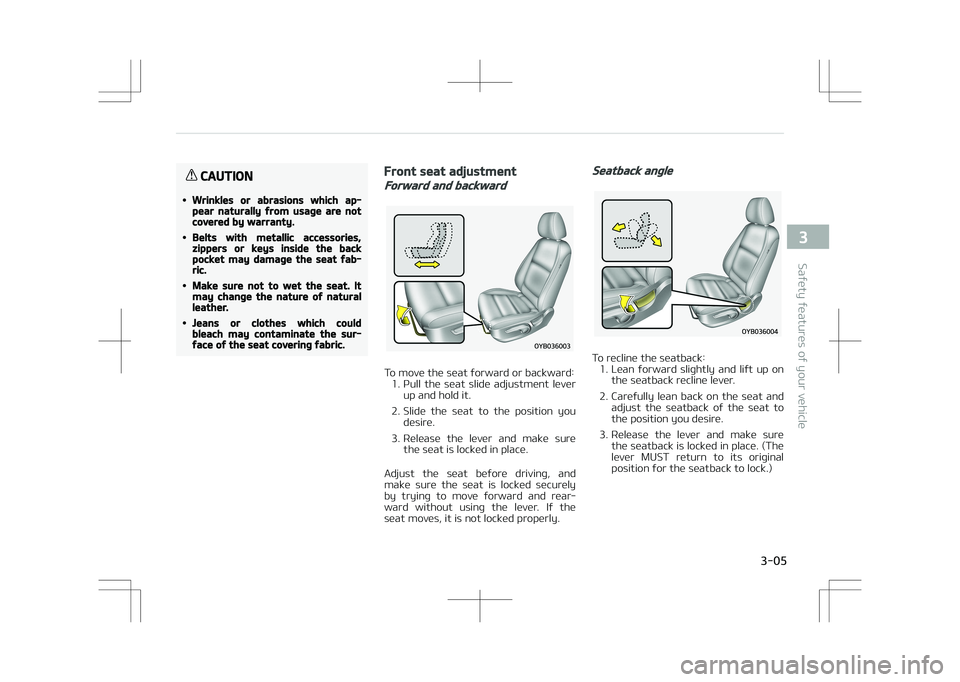

Page 25 of 523
CAUTION
•Wrinkles or abrasions which ap‐pear naturally from usage are notcovered by warranty.
•Belts with metallic accessories,zippers or keys inside the backpocket may damage the seat fab‐ric.
•Make sure not to wet the seat. Itmay change the nature of naturalleather.
•Jeans or clothes which couldbleach may contaminate the sur‐face of the seat covering fabric.
Front seat adjustment
Forward and backward
To move the seat forward or backward:1. Pull the seat slide adjustment lever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make sure the seat is locked securely
by trying to move forward and rear‐
ward without using the lever. If the seat moves, it is not locked properly.
Seatback angle
To recline the seatback: 1. Lean forward slightly and lift up on the seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to
the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The
lever MUST return to its original
position for the seatback to lock.)
3-05
3
Safety features of your vehicle
Page 26 of 523

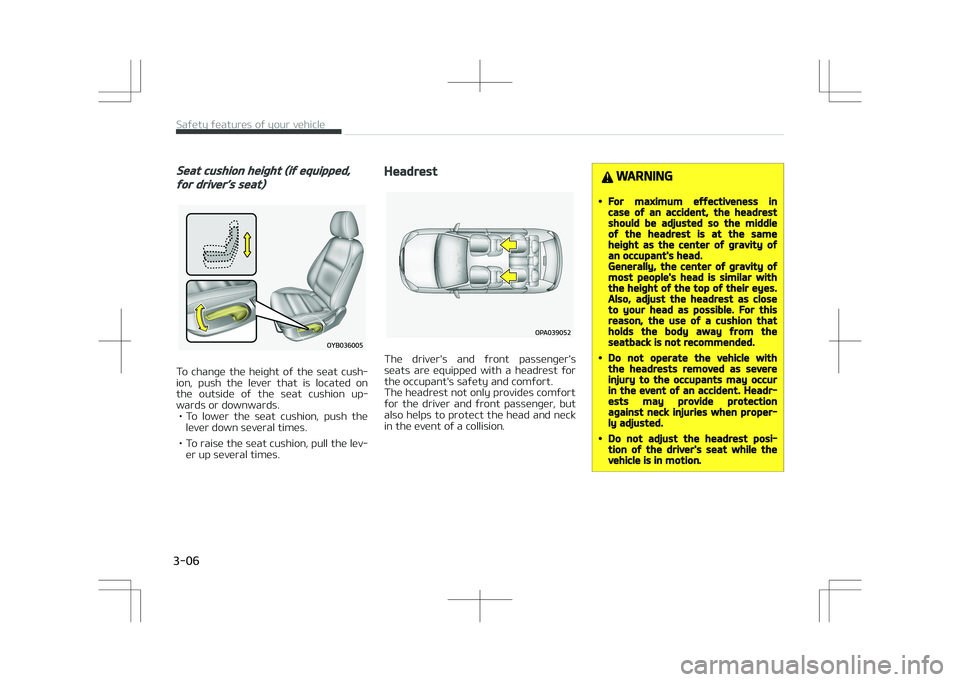

Seat cushion height (if equipped,
for driver’s seat)
To change the height of the seat cush‐
ion, push the lever that is located on the outside of the seat cushion up‐
wards or downwards. • To lower the seat cushion, push the lever down several times.
• To raise the seat cushion, pull the lev‐ er up several times.
Headrest
The driver's and front passenger's
seats are equipped with a headrest for the occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.
WARNING
•For maximum effectiveness incase of an accident, the headrestshould be adjusted so the middleof the headrest is at the sameheight as the center of gravity ofan occupant's head.Generally, the center of gravity ofmost people's head is similar withthe height of the top of their eyes.Also, adjust the headrest as closeto your head as possible. For thisreason, the use of a cushion thatholds the body away from theseatback is not recommended.
•Do not operate the vehicle withthe headrests removed as severeinjury to the occupants may occurin the event of an accident. Headr‐ests may provide protectionagainst neck injuries when proper‐ly adjusted.
•Do not adjust the headrest posi‐tion of the driver's seat while thevehicle is in motion.
Safety features of your vehicle
3-06

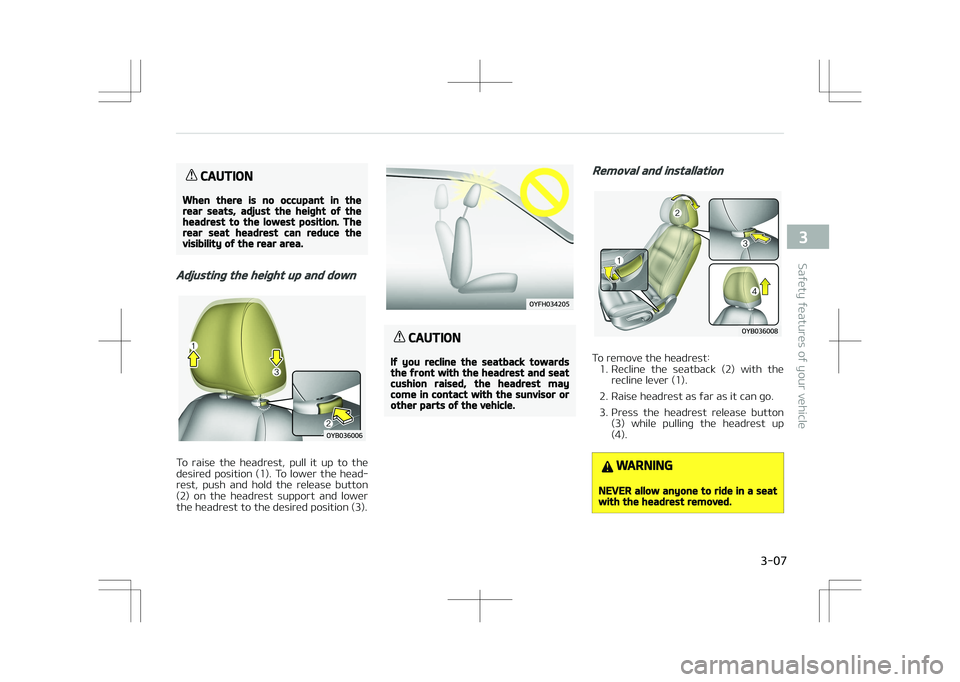

Page 27 of 523
CAUTION
When there is no occupant in therear seats, adjust the height of theheadrest to the lowest position. Therear seat headrest can reduce thevisibility of the rear area.
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head‐ rest, push and hold the release button
(2) on the headrest support and lower
the headrest to the desired position (3).
CAUTION
If you recline the seatback towardsthe front with the headrest and seatcushion raised, the headrest maycome in contact with the sunvisor orother parts of the vehicle.
Removal and installation
To remove the headrest: 1. Recline the seatback (2) with the recline lever (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button (3) while pulling the headrest up
(4).
WARNING
NEVER allow anyone to ride in a seatwith the headrest removed.
3-07
3
Safety features of your vehicle

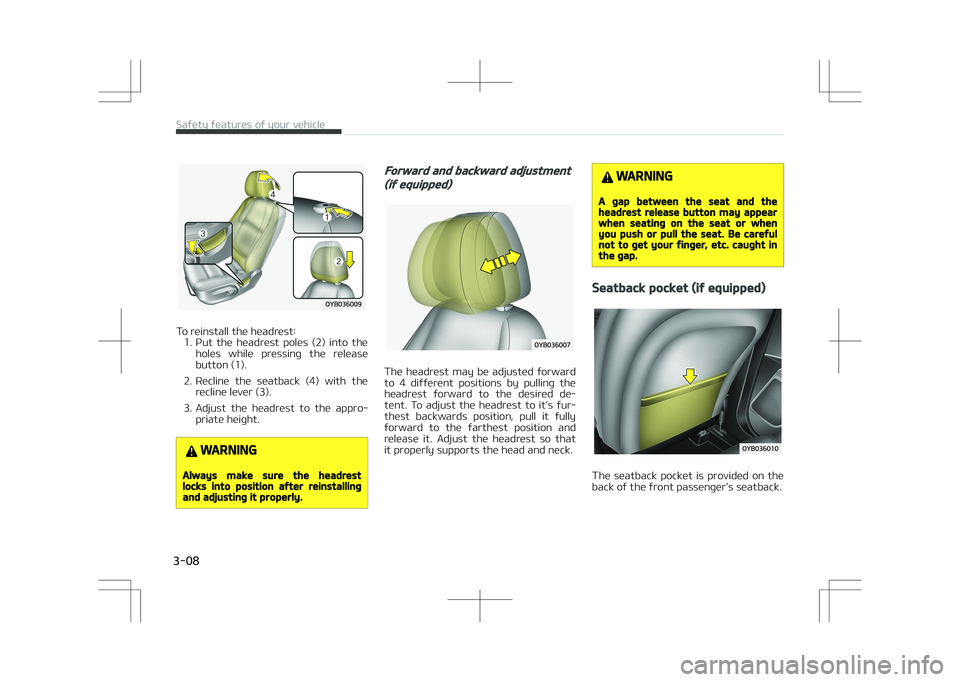

Page 28 of 523
To reinstall the headrest:1. Put the headrest poles (2) into the holes while pressing the release
button (1).
2. Recline the seatback (4) with the recline lever (3).
3. Adjust the headrest to the appro‐ priate height.
WARNING
Always make sure the headrestlocks into position after reinstallingand adjusting it properly.
Forward and backward adjustment
(if equipped)
The headrest may be adjusted forward
to 4 different positions by pulling the headrest forward to the desired de‐
tent. To adjust the headrest to it’s fur‐
thest backwards position, pull it fully forward to the farthest position and
release it. Adjust the headrest so that
it properly supports the head and neck.
WARNING
A gap between the seat and theheadrest release button may appearwhen seating on the seat or whenyou push or pull the seat. Be carefulnot to get your finger, etc. caught inthe gap.
Seatback pocket (if equipped)
The seatback pocket is provided on the
back of the front passenger’s seatback.
Safety features of your vehicle
3-08

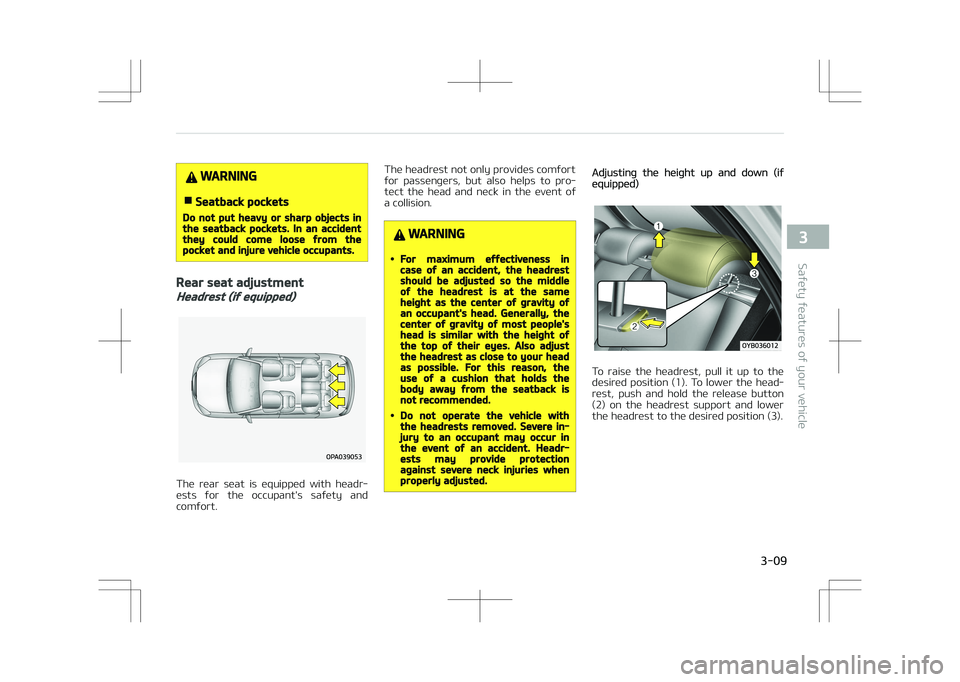

Page 29 of 523
WARNING
nSeatback pockets
Do not put heavy or sharp objects inthe seatback pockets. In an accidentthey could come loose from thepocket and injure vehicle occupants.
Rear seat adjustment
Headrest (if equipped)
The rear seat is equipped with headr‐
ests for the occupant's safety and comfort. The headrest not only provides comfort
for passengers, but also helps to pro‐
tect the head and neck in the event of
a collision.
WARNING
•For maximum effectiveness incase of an accident, the headrestshould be adjusted so the middleof the headrest is at the sameheight as the center of gravity ofan occupant's head. Generally, thecenter of gravity of most people'shead is similar with the height ofthe top of their eyes. Also adjustthe headrest as close to your headas possible. For this reason, theuse of a cushion that holds thebody away from the seatback isnot recommended.
•Do not operate the vehicle withthe headrests removed. Severe in‐jury to an occupant may occur inthe event of an accident. Headr‐ests may provide protectionagainst severe neck injuries whenproperly adjusted.
Adjusting the height up and down (ifequipped)
To raise the headrest, pull it up to the
desired position (1). To lower the head‐ rest, push and hold the release button
(2) on the headrest support and lower
the headrest to the desired position (3).
3-09
3
Safety features of your vehicle

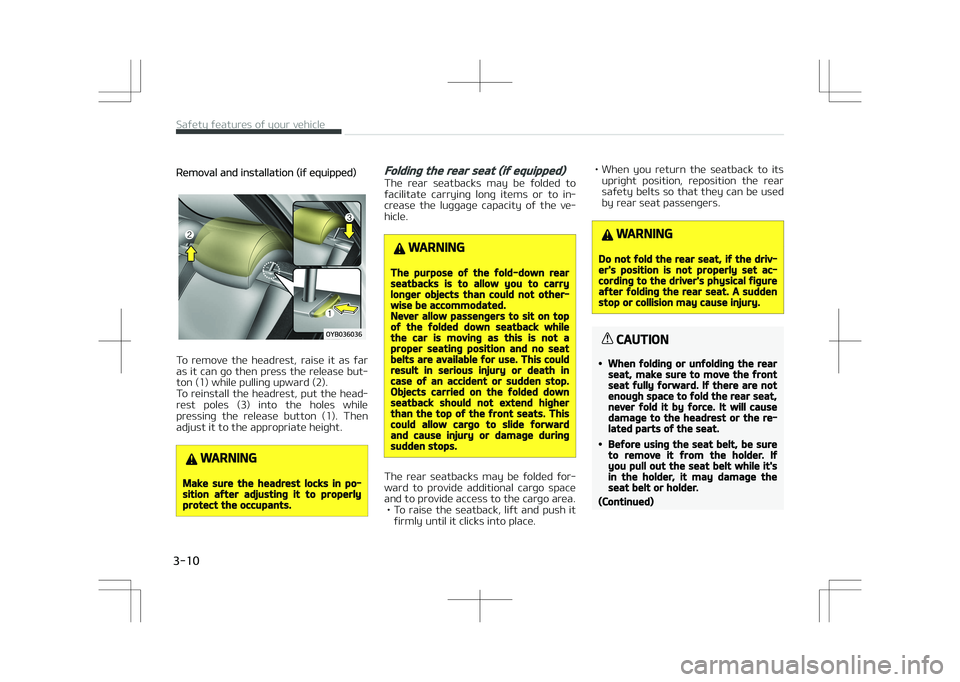

Page 30 of 523
Removal and installation (if equipped)
To remove the headrest, raise it as far
as it can go then press the release but‐ ton (1) while pulling upward (2).
To reinstall the headrest, put the head‐
rest poles (3) into the holes while
pressing the release button (1). Then adjust it to the appropriate height.
WARNING
Make sure the headrest locks in po‐sition after adjusting it to properlyprotect the occupants.
Folding the rear seat (if equipped)
The rear seatbacks may be folded to
facilitate carrying long items or to in‐
crease the luggage capacity of the ve‐ hicle.
WARNING
The purpose of the fold-down rearseatbacks is to allow you to carrylonger objects than could not other‐wise be accommodated.Never allow passengers to sit on topof the folded down seatback whilethe car is moving as this is not aproper seating position and no seatbelts are available for use. This couldresult in serious injury or death incase of an accident or sudden stop.Objects carried on the folded downseatback should not extend higherthan the top of the front seats. Thiscould allow cargo to slide forwardand cause injury or damage duringsudden stops.
The rear seatbacks may be folded for‐
ward to provide additional cargo space and to provide access to the cargo area. • To raise the seatback, lift and push it firmly until it clicks into place. • When you return the seatback to its
upright position, reposition the rear
safety belts so that they can be used
by rear seat passengers.
WARNING
Do not fold the rear seat, if the driv‐er's position is not properly set ac‐cording to the driver's physical figureafter folding the rear seat. A suddenstop or collision may cause injury.
CAUTION
•When folding or unfolding the rearseat, make sure to move the frontseat fully forward. If there are notenough space to fold the rear seat,never fold it by force. It will causedamage to the headrest or the re‐lated parts of the seat.
•Before using the seat belt, be sureto remove it from the holder. Ifyou pull out the seat belt while it'sin the holder, it may damage theseat belt or holder.
(Continued)
Safety features of your vehicle
3-10
