Lancia Musa 2008 Owner handbook (in English)
Manufacturer: LANCIA, Model Year: 2008, Model line: Musa, Model: Lancia Musa 2008Pages: 218, PDF Size: 3.68 MB
Page 211 of 218
PROVISIONS FOR THE PROCESSING OF A VEHICLE
AT THE END OF ITS LIFE-CYCLE
For years now Lancia has been developing its global commitment towards the safeguarding and protection of the
Environment through the continuous improvement of its production processes and the making of increasingly
more “eco friendly” products. With a view to guaranteeing the best possible service to clients in full observance of
environmental standards and in response to the obligations imposed by European Directive 2000/53/EC on end-
of-life vehicles, Lancia offers its clients the possibility to hand in their vehicle* at the end of its life span without
additional costs.
The European Directive, in fact, provides for the take-back of the vehicle without the last holder or owner of the
same incurring expenses due to the fact that the market value of the vehicle is zero or negative. In particular, in
almost all of the countries of the European Union, up until 1st January 2007, take-back of the vehicle free of
charge only applies to vehicles registered from 1 July 2002 on, while, from 2007 on, take-back will be carried out
free of charge, independently of the year of registration, provided that the vehicle still contains all its essential
component parts (especially engine and body) and is free from additional waste materials.
Our contracted network of authorised treatment facilities has been carefully selected in order to provide a quality
service to our customers by de-polluting and recycling “End of Life Vehicles” to approved environmental
standards. To find out the location of your nearest authorised treatment facility, offering free of charge take-back,
simply contact one of our dealers or refer to the Lancia web site or call the toll free number 00800 526242 00.
*
Passenger transportation vehicles to seat a max. of nine persons, having a total admissible weight of 3.5 t
206-216 MUSA 3ed GB 12-11-2007 11:40 Pagina 210
Page 212 of 218

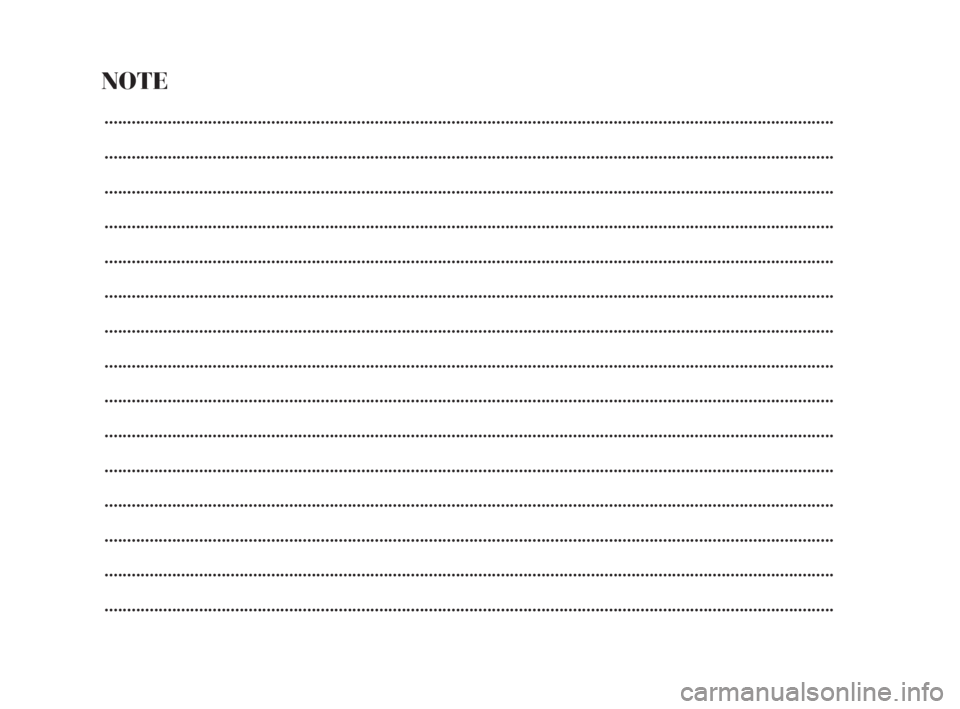

NOTE
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
206-216 MUSA 3ed GB 12-11-2007 11:40 Pagina 211
Page 213 of 218
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
206-216 MUSA 3ed GB 12-11-2007 11:40 Pagina 212
Page 214 of 218
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
..................................................................................................................................................................
206-216 MUSA 3ed GB 12-11-2007 11:40 Pagina 213
Page 215 of 218
206-216 MUSA 3ed GB 12-11-2007 11:40 Pagina 214
Page 216 of 218
206-216 MUSA 3ed GB 12-11-2007 11:40 Pagina 215
Page 217 of 218
Fiat Group Automobiles S.p.A.
Servizi al Cliente - Assistenza Tecnica - Ingegneria Assistenziale
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 603.81.236 - 11/2007 - 3
rdedition
ENGINE OIL CHANGE COLD TYRE INFLATION PRESSURE (bar)
STANDARD TYRES
Size Medium load Full load
Front Rear Front Rear
FUEL CAPACITIES (litres)
1.48V - 1.416V1.3 Multijet 1.9 Multijet
Tank capacity 47 47 47
Reserve 5 - 7 5 - 7 5 - 7
Refuel petrol engines with unleaded petrol with an octane rating (RON) no lower than 95 only.
Refuel diesel engines with diesel fuel for motor vehicles (EN590 specifications) only.
1.418V1.416V1.3 Multijet 1.9 Multijet
litres kg litres kg litres kg litres kg
Engine sump 2.4 2.1 2.5 2.2 2.85 2.5 4.2 3.75
Engine sump and filter 2.62.25 2.7 2.35 3.0 2.6 4.4 3.9
185/65 R14 86T 2,2 2,1 2,3 2,3
195/60 R15 88T 2,2 2,1 2,3 2,3
205/50 R16 87V 2,2 2,1 2,3 2,3
135/80 B14 84M 2,8SPARE WHEEL
125/80 R15 95M 4,2
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
206-216 MUSA 3ed GB 12-11-2007 11:40 Pagina 216
Page 218 of 218
