Fuse box in engine compartment
ELECTRICAL DEVICESFUSE AMPERE
AvailableF9 –
BuzzerF10 15
Electronic injection secondary functionsF11 15
Right main beam F14 7.5
Left main beam F15 7.5
Electronic injection primary functionsF17 10
+30 Engine control unit / radiator electric fan remote diverter (1.9 Multijet) (*) F18 10
CompressorF19 7.5
AvailableF20 –
Fuel pump F21 15
Electronic injection primary functions (1.4 16V)F22 15
Electronic injection primary functions (Multijet)F22 20
+30 Dual FuNction System gearbox control unit (*)F23 30
+15 Electric power steering (*)F24 7.5
Fog lightsF30 15
(*) +30 = battery direct positive terminal (not key-operated)
+15 = positive terminal key-operated
135-164 MUSA 3ed GB 12-11-2007 11:39 Pagina 160

203
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS

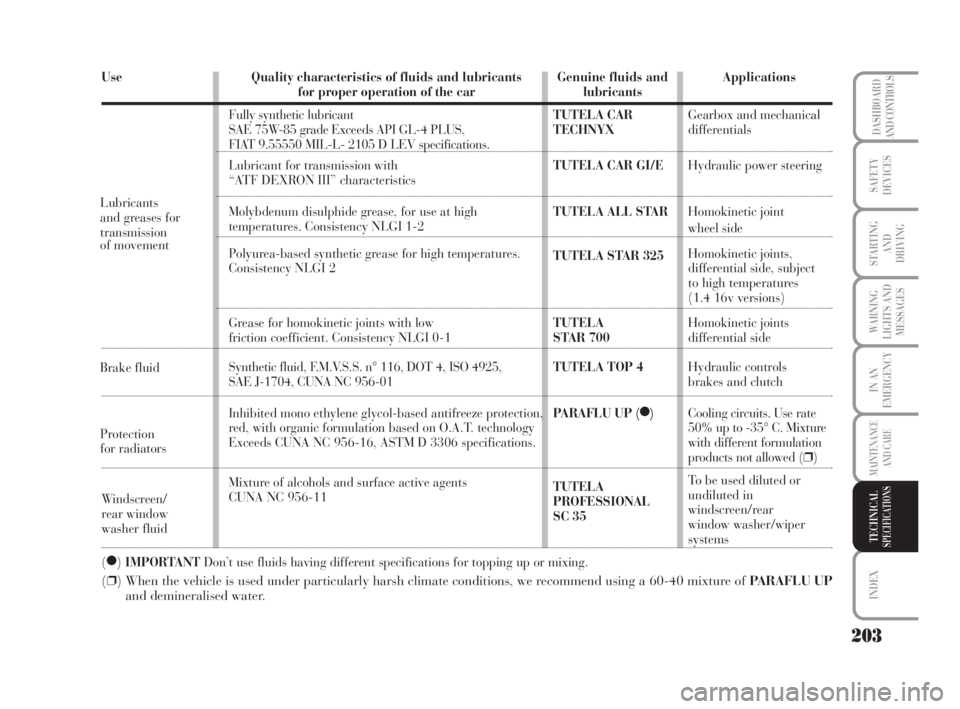

Use
(●)IMPORTANT Don’t use fluids having different specifications for topping up or mixing.
(❐) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU UP
and demineralised water.
Quality characteristics of fluids and lubricants
for proper operation of the car
Fully synthetic lubricant
SAE 75W-85 grade Exceeds API GL-4 PLUS,
FIAT 9.55550 MIL-L- 2105 D LEV specifications.
Lubricant for transmission with
“ATF DEXRON III” characteristics
Molybdenum disulphide grease, for use at high
temperatures. Consistency NLGI 1-2
Polyurea-based synthetic grease for high temperatures.
Consistency NLGI 2
Grease for homokinetic joints with low
friction coefficient. Consistency NLGI 0-1
Synthetic fluid, F.M.V.S.S. n° 116, DOT 4, ISO 4925,
SAE J-1704, CUNA NC 956-01
Inhibited mono ethylene glycol-based antifreeze protection,
red, with organic formulation based on O.A.T. technology
Exceeds CUNA NC 956-16, ASTM D 3306 specifications.
Mixture of alcohols and surface active agents
CUNA NC 956-11Genuine fluids and
lubricants
TUTELA CAR
TECHNYX
TUTELA CAR GI/E
TUTELA ALL STAR
TUTELA STAR 325
TUTELA
STAR 700
TUTELA TOP 4
PARAFLU UP (
●)
TUTELA
PROFESSIONAL
SC 35Applications
Gearbox and mechanical
differentials
Hydraulic power steering
Homokinetic joint
wheel side
Homokinetic joints,
differential side, subject
to high temperatures
(1.4 16v versions)
Homokinetic joints
differential side
Hydraulic controls
brakes and clutch
Cooling circuits. Use rate
50% up to -35° C. Mixture
with different formulation
products not allowed
(❐)
To be used diluted or
undiluted in
windscreen/rear
window washer/wiper
systems Lubricants
and greases for
transmission
of movement
Brake fluid
Protection
for radiators
Windscreen/
rear window
washer fluid
