tow Lancia Thema 2013 Owner handbook (in English)

NOTE: Press the "ESC Off"
switch, to place the Electronic Sta-
bility Control (ESC) system in
"Partial Off" mode, before rocking
the vehicle. Refer to “Electronic
Brake Control” in “Starting And
Operating” for further informa-
tion.Once the vehicle has been
freed, press the "ESC Off" switch
again to restore "ESC On" mode.CAUTION!
 When “rocking” a stuck vehicleby shifting between DRIVE and
REVERSE, do not spin the
wheels faster than 24 km/h, or
drivetrain damage may result.
 Revving the engine or spinning
the wheels too fast may lead to
transmission overheating and
failure. It can also damage the
tires. Do not spin the wheels
above 48 km/h while in gear (no
transmission shifting occurring).
WARNING!
Fast spinning tires can be danger-
ous. Forces generated by excessive
wheel speeds may cause damage, or
even failure, of the axle and tires.
A tire could explode and injure
someone. Do not spin your vehicle's
wheels faster than 48 km/h or for
longer than 30 seconds continu-
ously without stopping when you
are stuck and do not let anyone
near a spinning wheel, no matter
what the speed.
TOW EYES
Your vehicle is equipped with tow
eyes, which are mounted in the front
and the rear.CAUTION!
Tow eyes are for emergency use
only, to rescue a vehicle stranded
off road. Do not use tow eyes for
tow truck hookup or highway tow-
ing. You could damage your ve-
hicle. Tow straps are recommended
when towing the vehicle; chains
may cause vehicle damage.
WARNING!
Stand clear of vehicles when pull-
ing with tow eyes. Tow straps and
chains may break, causing serious
injury.
SHIFT LEVER
OVERRIDE — 5 SPEED
TRANSMISSION
If a malfunction occurs and the shift
lever cannot be moved out of the
PARK position, you can use the fol-
lowing procedure to temporarily
move the shift lever:
1. Turn the engine OFF.
2. Firmly apply the parking brake.
3. Remove the rubber liner from the
storage tray (located next to the
shifter on the center console).
4. Press and maintain firm pressure
on the brake pedal.
263

5. Insert a screwdriver or similar tool
into the access port (in the left side of
the storage bin), and push and hold
the override release lever in.
6. Move the shift lever to the NEU-
TRAL position.
7. The vehicle may then be started in
NEUTRAL.
8. Reinstall the rubber storage bin
liner.MANUAL PARK
RELEASE — 8 SPEED
TRANSMISSION
(3.6L Engine)
WARNING!
Always secure your vehicle by fully
applying the parking brake, before
activating the Manual Park Re-
lease. Activating the Manual Park
Release will allow your vehicle to
roll away if it is not secured by the
parking brake or by proper connec-
tion to a tow vehicle. Activating the
Manual Park Release on an unse-
cured vehicle could lead to serious
injury or death for those in or
around the vehicle.
In order to push or tow the vehicle in
cases where the transmission will not
shift out of PARK (such as a dead
battery), a Manual Park Release is
available. Follow these steps to use the Manual
Park Release:
NOTE:
To prevent the vehicle
from rolling unintentionally, firmly
apply the parking brake.
1. Remove the console storage bin to
access the Manual Park Release lever.
2.
Using a small screwdriver or similar
tool, fish the tether strap up through
the opening in the console base.
Shift Lever Override
Console Storage Bin
264

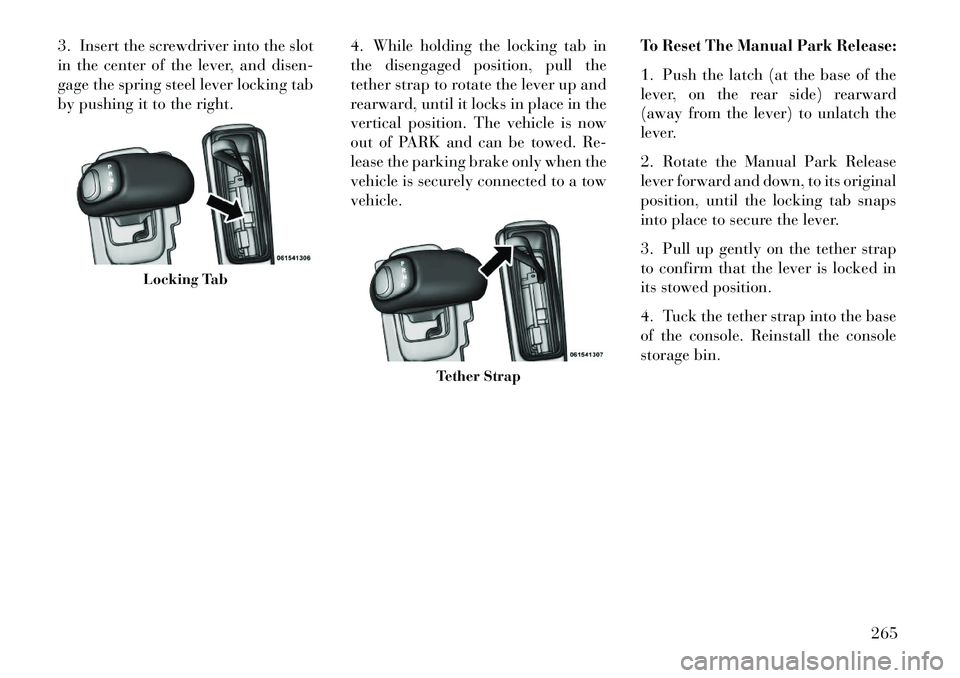

3. Insert the screwdriver into the slot
in the center of the lever, and disen-
gage the spring steel lever locking tab
by pushing it to the right.4. While holding the locking tab in
the disengaged position, pull the
tether strap to rotate the lever up and
rearward, until it locks in place in the
vertical position. The vehicle is now
out of PARK and can be towed. Re-
lease the parking brake only when the
vehicle is securely connected to a tow
vehicle.
To Reset The Manual Park Release:1. Push the latch (at the base of the
lever, on the rear side) rearward
(away from the lever) to unlatch the
lever.
2. Rotate the Manual Park Release
lever forward and down, to its original
position, until the locking tab snaps
into place to secure the lever.
3. Pull up gently on the tether strap
to confirm that the lever is locked in
its stowed position.
4. Tuck the tether strap into the base
of the console. Reinstall the console
storage bin.
Locking Tab
Tether Strap
265

TOWING A DISABLED VEHICLETowing ConditionWheels OFF the Ground ALL MODELS
Flat Tow NONEIf transmission is operable:
 Transmission inNEUTRAL
 48 km/h maxspeed
 24 km maxdistance (5-speed trans)
 48 km maxdistance (8-speed trans)
Wheel Lift
Front
Rear OK
Flatbed ALLBEST METHOD
Proper towing or lifting equipment is
required to prevent damage to your
vehicle. Use only tow bars and other
equipment designed for the purpose,
following equipment manufacturer’s
instructions. Use of safety chains is
mandatory. Attach a tow bar or other
towing device to main structural
members of the vehicle, not to bum-
pers or associated brackets. State and
local laws applying to vehicles under
tow must be observed.If you must use the accessories (wipers,
defrosters, etc.) while being towed, the
ignition must be in the ON/RUN posi-
tion, not the ACC position.
If the vehicle's battery is discharged,
see “Shift Lever Override” in “What
To Do In Emergencies” for instruc-
tions on shifting the automatic trans-
mission out of the PARK position for
towing.CAUTION!
 Do not use sling type equipment when towing. Damage to the fas-
cia will occur.
 When securing the vehicle to a flatbed truck, do not attach to the
front or rear suspension compo-
nents. Damage to your vehicle
may result from improper towing.
(Continued)
CAUTION!(Continued)
 Do not push or tow this vehicle with another vehicle as damage to
the bumper fascia and transmis-
sion may result.
 The manufacturer does not rec- ommend towing this vehicle using
a tow dolly. Vehicle damage may
occur.
The manufacturer does not recom-
mend that you tow this vehicle on a
tow dolly. Vehicle damage may occur.
The manufacturer recommends tow-
ing your vehicle with all four wheels
OFF the ground using a flatbed.
266

If flatbed equipment is not available,
and the transmission is operable, the
vehicle may be flat towed (with all
four wheels on the ground) under the
following conditions:
 The shift lever must be in NEU-TRAL.
 The distance to be traveled must not exceed 24 km for 5-speed
transmission, or 48 km for 8-speed
transmission.
 The towing speed must not exceed 48 km/h.
If the transmission is not operable, or
the vehicle must be towed faster than
48 km/h or farther than 24 km for
5-speed transmission, or 48 km for
8-speed transmission, tow with the
rear wheels OFF the ground (on a
flatbed, or with the rear wheels raised
using a wheel lift and the transmission
in NEUTRAL).
CAUTION!
Failure to follow these towing
methods can cause severe engine or
transmission damage. Such dam-
age is not covered by the New Ve-
hicle Limited Warranty.
Vehicles equipped with AWD can be
towed with the transmission in NEU-
TRAL and the rear wheels OFF the
ground with no limitation on speed or
distance.
Without The Ignition Key
Special care must be taken when the
vehicle is towed with the ignition in
the OFF position. The only approved
method of towing without the ignition
key is with a flatbed truck. Proper
towing equipment is necessary to pre-
vent damage to the vehicle.
267

ONBOARD DIAGNOSTIC
SYSTEM — OBD II
Your vehicle is equipped with a so-
phisticated onboard diagnostic sys-
tem called OBD II. This system moni-
tors the performance of the emissions,
engine, and automatic transmission
control systems. When these systems
are operating properly, your vehicle
will provide excellent performance
and fuel economy, as well as engine
emissions well within current govern-
ment regulations.
If any of these systems require service,
the OBD II system will turn on the
“Malfunction Indicator Light (MIL).”
It will also store diagnostic codes and
other information to assist your ser-
vice technician in making repairs. Al-
though your vehicle will usually be
drivable and not need towing, see
your authorized dealer for service as
soon as possible.
CAUTION!
 Prolonged driving with the MILon could cause further damage
to the emissions control system. It
could also affect fuel economy
and driveability. The vehicle
must be serviced before any emis-
sions tests can be performed.
 If the MIL is flashing while the engine is running, severe catalytic
converter damage and power loss
will soon occur. Immediate ser-
vice is required.
REPLACEMENT PARTS
Use of genuine parts for normal/
scheduled maintenance and repairs is
highly recommended to ensure the
designed performance. Damage or
failures caused by the use of parts
which are not quality-equivalent to
genuine parts for maintenance and
repairs will not be covered by the
manufacturer’s warranty. MAINTENANCE
PROCEDURES
The pages that follow contain the
re-
quired maintenance services deter-
mined by the engineers who designed
your vehicle.
Besides those maintenance items
specified in the fixed maintenance
schedule, there are other components
which may require servicing or re-
placement in the future.
CAUTION!
Failure to properly maintain your
vehicle or perform repairs and ser-
vice when necessary could result
in more costly repairs, damage to
other components or negatively
impact vehicle performance. Im-
mediately have potential malfunc-
tions examined by an authorized
dealership or qualified repair cen-
ter.
(Continued)
273

The filter is located in the fresh air inlet
under the hood, behind a removable
panel in the cowl on the passenger side
of the vehicle, next to the windshield
wipers. When installing a new filter,
ensure its proper orientation.1.
Remove the access door in the cowl
screen by pressing the retaining clips.
2. Unsnap both ends and lift the filter
access cover. 3. Remove the used filter.
4. Install the new filter with arrows
pointing in the direction of airflow,
which is toward the rear of the vehicle
(text and arrows on the filter will in-
dicate this).
5. Close the filter access cover.
Refer to the “Maintenance Schedule”
for the proper maintenance intervals.
BODY LUBRICATION
Locks and all body pivot points, in-
cluding such items as seat tracks, door
hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood
hinges, should be lubricated periodi-
cally with a lithium based grease to
assure quiet, easy operation and to
protect against rust and wear. Prior tothe application of any lubricant, the
parts concerned should be wiped
clean to remove dust and grit; after
lubricating excess oil and grease
should be removed. Particular atten-
tion should also be given to hood
latching components to ensure proper
function. When performing other un-
derhood services, the hood latch, re-
lease mechanism and safety catch
should be cleaned and lubricated.
The external lock cylinders should be
lubricated twice a year, preferably in
the Fall and Spring. Apply a small
amount of a high quality lubricant
directly into the lock cylinder.
CAUTION!
Car maintenance should be done at
a LANCIA Dealership. For routine
and minor maintenance operations
you wish to carry out yourself, we
do recommend you have the proper
equipment, genuine LANCIA spare
parts and the necessary fluids; do
not however carry out these opera-
tions if you have no experience.
Access Door
Filter Access Cover
A/C Air Filter
278

WINDSHIELD WIPER
BLADES
Clean the rubber edges of the wiper
blades and the windshield periodi-
cally with a sponge or soft cloth and a
mild nonabrasive cleaner. This will
remove accumulations of salt or road
film.
Operation of the wipers on dry glass
for long periods may cause deteriora-
tion of the wiper blades. Always use
washer fluid when using the wipers to
remove salt or dirt from a dry wind-
shield.
Avoid using the wiper blades to re-
move frost or ice from the windshield.
Keep the blade rubber out of contact
with petroleum products such as en-
gine oil, gasoline, etc.
NOTE: Life expectancy of wiper
blades varies depending on geo-
graphical area and frequency of
use. Poor performance of blades
may be present with chattering,
marks, water lines or wet spots. If
any of these conditions are pres-
ent, clean the wiper blades or re-
place as necessary.ADDING WASHER FLUID
The windshield washer and the head-
light washer share the same fluid res-
ervoir. The fluid reservoir is located in
the front of the engine compartment.
Be sure to check the fluid level in the
reservoir at regular intervals. Fill the
reservoir with windshield washer
solvent (not radiator antifreeze) and
operate the system for a few seconds
to flush out the residual water.
When refilling the washer fluid reser-
voir, apply some washer fluid to a
cloth or towel and wipe the wiper
blades clean. This will help blade per-
formance.
To prevent freeze-up of your wind-
shield washer system in cold weather,
select a solution or mixture that meets
or exceeds the temperature range of
your climate. This rating information
can be found on most washer fluid
containers.
The fluid reservoir will hold nearly
4 Liters of washer fluid when the mes-
sage “Low Washer Fluid” appears in
the Electronic Vehicle Information
Center (EVIC).
WARNING!Commercially available windshield
washer solvents are flammable. They
could ignite and burn you. Care must
be exercised when filling or working
around the washer solution.CAUTION!
Car maintenance should be done at
a LANCIA Dealership. For routine
and minor maintenance operations
you wish to carry out yourself, we
do recommend you have the proper
equipment, genuine LANCIA spare
parts and the necessary fluids; do
not however carry out these opera-
tions if you have no experience.
INTERVENTION
REGENERATION
STRATEGY –
3.0L DIESEL ENGINE
This vehicle is equipped with a state-
of-the-art engine and exhaust system
containing a diesel particulate filter.
The engine and exhaust after-
treatment system work together to
279

WARNING!
A hot exhaust system can start a fire
if you park over materials that can
burn. Such materials might be
grass or leaves coming into contact
with your exhaust system. Do not
park or operate your vehicle in ar-
eas where your exhaust system can
contact anything that can burn.
In unusual situations involving
grossly malfunctioning engine opera-
tion, a scorching odor may indicate
severe and abnormal catalyst over-
heating. If this should occur, safely
bring the vehicle to a complete stop,
shut the engine OFF, and allow the
vehicle to cool. Thereafter, obtain ser-
vice, including a tune-up to manufac-
turer's specifications immediately.
To minimize the possibility of catalyst
damage:
 Do not shut off the engine or inter- rupt the ignition when the trans-
mission is in gear and the vehicle is
in motion.
 Do not try to start the engine by pushing or towing the vehicle.  Do not idle the engine with any
spark plug wires disconnected or
removed, such as when diagnostic
testing, or for prolonged periods
during very rough idling or mal-
functioning operating conditions.
COOLING SYSTEM
WARNING!
 When working near the radiator cooling fan, disconnect the fan
motor lead or turn the ignition
switch to the LOCK position. The
fan is temperature controlled and
can start at anytime the ignition
switch is in the ON position.
 You or others can be badly
burned by hot engine coolant
(antifreeze) or steam from your
radiator. If you see or hear steam
coming from under the hood, do
not open the hood until the radia-
tor has had time to cool. Never try
to open a cooling system pressure
cap when the radiator is hot.
CAUTION!
Car maintenance should be done at
a LANCIA Dealership. For routine
and minor maintenance operations
you wish to carry out yourself, we
do recommend you have the proper
equipment, genuine LANCIA spare
parts and the necessary fluids; do
not however carry out these opera-
tions if you have no experience.
Coolant ChecksCheck engine coolant (antifreeze) pro-
tection every 12 months (before the
onset of freezing weather, where appli-
cable). If the engine coolant (anti-
freeze) is dirty or rusty in appearance,
the system should be drained, flushed,
and refilled with fresh coolant. Check
the front of the A/C condenser for any
accumulation of bugs, leaves, etc. If
dirty, clean by gently spraying water
from a garden hose vertically down the
face of the condenser.Check the coolant recovery bottle
tubing for brittle rubber, cracking,
tears, cuts, and tightness of the con-
nection at the bottle and radiator.
Inspect the entire system for leaks.
281

 If your vehicle is damaged due to anaccident or similar cause, which de-
stroys the paint and protective
coating, have your vehicle repaired
as soon as possible. The cost of such
repairs is considered the responsi-
bility of the owner.
 If you carry special cargo such as chemicals, fertilizers, de-icer salt,
etc., be sure that such materials are
well packaged and sealed.
 If a lot of driving is done on gravel roads, consider mud or stone
shields behind each wheel.
 Use Touch Up Paint or equivalent on scratches as soon as possible.
Your authorized dealer has touch
up paint to match the color of your
vehicle.
Wheel And Wheel Trim Care
All wheels and wheel trim, especially
aluminum and chrome-plated wheels
should be cleaned regularly with a
mild soap and water to prevent corro-
sion. To remove heavy soil and/or ex-
cessive brake dust, use a nonabrasive, non-acidic cleaner. Do not use scour-
ing pads, steel wool, a bristle brush, or
metal polishes. Do not use oven
cleaner. Avoid automatic car washes
that use acidic solutions or harsh
brushes that may damage the wheels’
protective finish.
Stain Repel Fabric Cleaning
Procedure (for versions/markets,
where provided)
Stain Repel seats may be cleaned in
the following manner:
 Remove as much of the stain as
possible by blotting with a clean,
dry towel.
 Blot any remaining stain with a clean, damp towel.
 For tough stains, apply a mild soap solution to a clean, damp cloth and
remove the stain. Use a fresh, damp
towel to remove soap residue.
 Do not use any harsh solvents or any other form of protectants on
Stain Repel products. Interior Care
Interior trim should be cleaned start-
ing with a damp cloth. Do not use
harsh cleaners.
Your leather upholstery can be best
preserved by regular cleaning with a
damp soft cloth. Small particles of
dirt can act as an abrasive and dam-
age the leather upholstery and should
be removed promptly with a damp
cloth. Stubborn soils can be removed
easily with a soft cloth and appropri-
ate products. Care should be taken to
avoid soaking your leather upholstery
with any liquid. Please do not use
polishes, oils, cleaning fluids, sol-
vents, detergents, or ammonia-based
cleaners to clean your leather uphol-
stery. Application of a leather condi-
tioner is not required to maintain the
original condition.
WARNING!
Do not use volatile solvents for
cleaning purposes. Many are poten-
tially flammable, and if used in
closed areas they may cause respi-
ratory harm.
289
