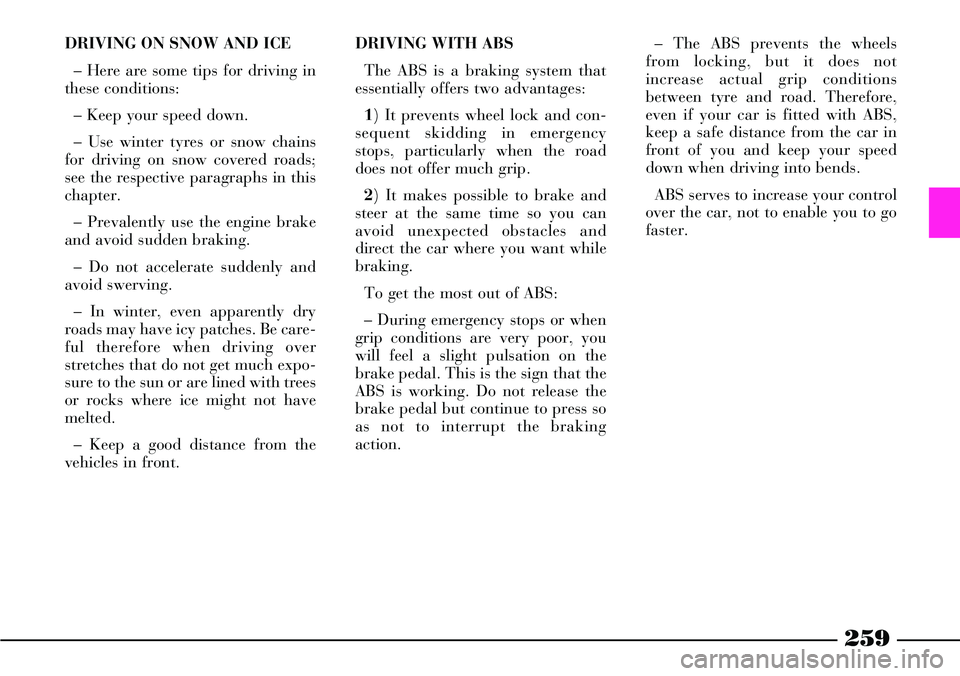

DRIVING ON SNOW AND ICE
– Here are some tips for driving in
these conditions:
– Keep your speed down.
– Use winter tyres or snow chains
for driving on snow covered roads;
see the respective paragraphs in this
chapter.
– Prevalently use the engine brake
and avoid sudden braking.
– Do not accelerate suddenly and
avoid swerving.
– In winter, even apparently dry
roads may have icy patches. Be care-
ful therefore when driving over
stretches that do not get much expo-
sure to the sun or are lined with trees
or rocks where ice might not have
melted.
– Keep a good distance from the
vehicles in front.DRIVING WITH ABS
The ABS is a braking system that
essentially offers two advantages:
1) It prevents wheel lock and con-
sequent skidding in emergency
stops, particularly when the road
does not offer much grip.
2) It makes possible to brake and
steer at the same time so you can
avoid unexpected obstacles and
direct the car where you want while
braking.
To get the most out of ABS:
– During emergency stops or when
grip conditions are very poor, you
will feel a slight pulsation on the
brake pedal. This is the sign that the
ABS is working. Do not release the
brake pedal but continue to press so
as not to interrupt the braking
action.– The ABS prevents the wheels
from locking, but it does not
increase actual grip conditions
between tyre and road. Therefore,
even if your car is fitted with ABS,
keep a safe distance from the car in
front of you and keep your speed
down when driving into bends.
ABS serves to increase your control
over the car, not to enable you to go
faster.

262
Traffic and road conditions
Heavy traffic and higher consump-
tion are synonymous, for example
when driving slowly with frequent
use of lower gears or in towns where
there are numerous traffic lights.
Winding roads, mountain roads
and bumpy roads also have a nega-
tive effect on consumption.
Enforced halts
During prolonged stops (level
crossings, etc.) the engine should be
switched off.Environmental protection has been
one of the guiding principles in the
production of the THESIS.
It is not accident that its pollution
control equipment is much more
effective than that required by cur-
rent legislation.
Nonetheless, the environment can-
not get by without a concerted effort
from everyone.
By following a few simple rules you
can avoid harming the environment
and often cut down fuel consump-
tion at the same time. On this sub-
ject, a few useful tips have been
given below to supplement those
marked by symbol #, at various
points of the handbook.
You are asked to read both the for-
mer and the latter carefully.CHEAP RUNNING THAT RESPECTS THE
ENVIRONMENT
LOOKING AFTER EMISSION
CONTROL DEVICES
The correct use of pollution control
devices not only ensures respect for
the environment but also has an
effect on the car’s performance.
Keeping these devices in good condi-
tion is therefore a fundamental rule
for driving that is easy on your
pocket and on the environment too.
The first step is to follow the
“Service Schedule” to the letter.
Only use unleaded petrol for petrol
engines (95 RON), for JTD versions
only diesel fuel (EN590 specifica-
tion).

263
Ignoring the above rules
may lead to fire. When functioning nor-
mally, the catalytic con-
verter reaches high tem-
peratures. For this reason, do not
park the car over inflammable
material (grass, dry leaves, pine
needles, etc.): fire hazard.
Do not allow anything to
be sprayed onto the cat-
alytic converter, lambda
sensor and exhaust pipe. Do not install other heat
shields and do not remove
those already fitted to the
catalytic converter and exhaust
pipe. Never run the engine with the
spark plugs disconnected even for
testing purposes. Do not warm up
the engine by letting it idle for a
while before moving off unless the
outside temperature is very low and,
even in this case, only do so for less
than 30 seconds.
If you have trouble starting, do not
keep turning the ignition key for
long periods. Be especially careful to
avoid bump starting the car by
pushing, towing or rolling downhill:
these are all manoeuvres that can
damage the catalytic exhaust sys-
tem. Use an auxiliary battery for
start-ups only.
If the engine begins to “lose its
smoothness” when travelling, con-
tinue your journey but reduce the
demands you are making on the
engine and have the car seen at a
Lancia Dealershipas soon as you
can.
When the instrument panel fuel
reserve warning light comes on, fill
up as soon as possible. A low level of
fuel can cause an uneven supply of
fuel to the engine with the inevitable
increase in the temperature of the
exhaust gas and serious damages to
the catalytic converter.

265
TOW HITCH INSTALLATION
The tow hitch must be fixed to the
body by an expert in accordance
with the following instructions and
respecting the additional and/or
integrative information provided by
the tow hitch manufacturer.
The tow hitch to be fitted must
comply with the current regulations
in force, with reference to Directive
94/20/EEC and subsequent modifi-
cations.
Use a tow hitch suited for the max-
imum towable load of the car ver-
sion on which the tow hitch is to be
fitted.
Use a unified coupling for the elec-
trical connections. The coupling is
generally fitted on a specific mount
fastened to the tow hitch. A specific
trailer lights control unit shall be
installed on the car.For the electric connections, a 7
pole 12VDC coupling must be used
(CUNA/UNI and ISO/DIN stan-
dards). Follow the instructions pro-
vided by the manufacturer of the car
and/or the tow hitch.
The electrical brake (where rele-
vant) or other device (electrical
winch, etc.) must be powered direct-
ly from the battery by means of a
lead with a cross-section area no
smaller than 2.5 mm
2.
IMPORTANTUse the electrical
brake or winch only when the engine
is running.
In addition to the electrical connec-
tions, only the power wire for an
additional electrical brake and for
internal trailer lighting with a power
not exceeding 15W can be connect-
ed to the car’s electrical system.
For connections use the specific
control unit with battery cable not
less than 2.5 mm
2.INSTALLATION DIAGRAM (fig. 1)
Fasten the tow hitch in the points
marked with (1) using 18 M10
screws and, in the points marked
with (2) use four M8 screws.
Fasten the tow hitch to the body
avoiding any type of drilling and
trimming of the rear bumpers that
remains visible when the tow hitch is
removed.
IMPORTANTFasten a tag in a
clearly visible position at the same
height as the tow hitch. The tag is
compulsory. It must be adequately
sized, made of suitable material and
carry the following information:
MAX LOAD ON BALL COUPLING
75 kg.
After assembly, seal the fastening
screws holes to prevent exhaust fumes
from entering the passenger compart-
ment.

267
WINTER TYRES
These tyres have been specifically
designed for use on snow and ice
and should be fitted in place of the
existing tyres.
Use only the homologated tyres
listed in log book.
Lancia Dealershipswill be glad
to provide advice on the most suit-
able type of tyres according to your
needs.
For information on the tyres to be
fitted, inflation pressure and winter
tyre specifications, follow the pre-
scriptions given in “Technical speci-
fications”.
The performance of winter tyres is
greatly reduced when the tread
depth is less than 4mm. In this situ-
ation it would be safer to have them
replaced.Due to winter tyre features, under
normal conditions of use or on long
motorway journeys, the perfor-
mance of these tyres is lower than
that of standard tyres.
The use of these tyres should there-
fore be limited to the conditions for
which they were designed and certi-
fied.
IMPORTANT When using winter
tyres with a maximum speed index
below the one that can be reached
by the car (increased by 5%), place
a suitable notice in the passenger
compartment to inform the driver of
the top speed at which the winter
tyre can run (as per EC Directive).All four tyres should be the same
(brand and track), to ensure greater
safety when driving, braking and
cornering.
Remember that it is inappropriate
to change the direction of rotation of
tyres.
The maximum speed for winter
tyres with “Q” marking is 160
km/h, with “T” marking is 190
km/h, whereas with “H” marking is
210 km/h. Always respect the high-
way code speed limit.

271
EMERGENCY
START-UP
If the Lancia CODE system cannot
deactivate the engine immobilising
system, symbols Yand Uwill
remain lit on the multifunction dis-
play together with messages
“ELECTRONIC KEY NOT
RECOGNISED” and “ENGINE
CONTROL SYSTEM FAULT”, and
the engine will not start. Follow the
emergency start-up procedure to
start the engine.
Read the whole procedure care-
fully before trying to carry it out.
If you make a mistake in the emer-
gency procedure you must turn the
ignition key back to STOP and
repeat the whole operation from the
beginning (step 1).
1) Read the five-digit electronic
code on the CODE card.
2) Turn the ignition key to MAR.3) Press and hold down the accel-
erator pedal. The warning light U
on the instrument panel will light up
for about 8 seconds, and then go
out. At this point release the acceler-
ator pedal and get ready to count the
flashes of the warning light U.
4) Count the number of flashes
that corresponds to the first figure of
the code on the CODE card, then
press the accelerator pedal and keep
it down until the Uwarning light
comes on for four seconds and then
goes out. Release the accelerator
pedal.
5) The Uwarning light will start
flashing again: after it has flashed
the number of times that corre-
sponds to the second figure on the
CODE card, press the accelerator
pedal to the floor and keep it there.
6) Do the same for the remaining
digits on the CODE card.7) Once the final figure has been
entered, keep the accelerator pedal
pressed. The Uwarning light will
light up for 4 seconds and then go
out. Release the accelerator pedal.
8) The Uwarning light will flash
rapidly for about 4 seconds to indi-
cate that the operation has been
completed correctly.
9) Start the engine by turning the
ignition key from MARto AVV
(without turning it to STOP).
If, however, warning light Ustays
on, turn the ignition key to STOP
and repeat the procedure from step
1).
IMPORTANTAfter an emergency
start, you should contact a Lancia
Dealershipimmediately as you will
have to repeat the procedure
described each time you want to
start the engine.
IN AN EMERGENCY

292
IF A FUSE BLOWS
GENERAL (fig. 67)
The fuse is a protective device for
the electric system. It comes into
action (i.e. it cuts off) in the event of
a failure or improper actions on the
electric system.
If an electrical device is not work-
ing, check whether the respective
fuse is blown. The conductor should
not be broken. If it is, replace it with
another with the same amperage
(same colour).A- Undamaged fuse
B- Fuse with broken filament.
Use the tongs Cto extract a fuse to
be replaced. The tongs are to be
found in the main fuse box.
Before changing a fuse,
check the ignition key has
been removed and that all
the other electrical devices have
been switched off.
fig. 67
L0A0127b
Never replace a fuse
with metal wires or any-
thing else. Always use an
intact fuse of the same colour
(same value).
Never change a fuse with
another of higher amper-
age: FIRE RISK!If a general fuse (MIDI-
FUSE or MEGA-FUSE)
blows, do not repair it,
but go to a Lancia Dealership.
If the fuse blows again,
have the car inspected at a
Lancia Dealership.

302
IF BATTERY IS TO BE DISCONNECTED
Battery is housed on the left side of
the luggage compartment, protected
by cover B(fig. 79). To remove cover
unscrew knob A.
DISCONNECTING THE
LOADED BATTERY
Should the charged battery be dis-
connected (e.g. during a car inactivity
time) perform these operations in the
given order:
1) Depress the push button on the
central console or on the remote con-
trol to open the boot. 2) Depress manually the inside hook
A (fig. 80) of the boot lock, and push
it back completely until the recall
electric travel is activated.
3) Remove the cover and disconnect
battery terminals.
4) Fully turn anti-clockwise the key
into the outside bonnet lock to pull
out the locking hook (fig. 81).
5) If necessary, it is now possible to
fully close the boot, leaving the bat-
tery disconnected.
6) When the battery it to be con-
nected again, to open the bonnet, fully
fig. 79
L0A0030b
fig. 80
L0A0332b
fig. 81
L0A0181b
turn the key anticlockwise in the lock,
and at the same time slightly press the
lower edge of the number plate holder
to reduce operation effort (fig. 81).
7) Connect battery terminals and as-
semble the cover again.
8) Depress push button A(fig. 81)
to restore normal lock operation.
9) Normally close the boot without
slamming it down; the lock electric
servo control will fully lock it.
10) Perform the initialisation of the
door lock, air conditioner and ESP
system control units, described below.

303
DISCONNECTING THE
UNLOADED BATTERY
Should the discharged battery be
disconnected (to have it charged
again or to replace it) perform the fol-
lowing operations in the given order:
1) To open the boot from the out-
side, fully turn the key anticlockwise
in the lock (fig. 81), and at the same
time slightly press the lower edge of
the number plate holder to reduce op-
eration effort.
2) Remove the cover and disconnect
the battery terminals.
3) Fully charge the battery again or
replace it.4) Connect battery terminals and re-
assemble cover.
5) Depress push button A(fig. 81)
to restore normal lock operation.
6) Close boot normally without
slamming it down: lock electric servo
control will fully lock it.
7) Perform the initialisation proce-
dure of the door lock, air conditioner
and ESP system control units, here-
after described.INITIALISING THE CONTROL
UNITS OF THE DOOR LOCKS,
AIR CONDITIONER AND ESP
SYSTEM
Whenever the battery is connected
electrically or protection fuses are re-
placed, to restore correct door locking,
air conditioning and ESP system, per-
form the following operations (after
connection is performed or after re-
placing one of the fuses):
1) Enter key into the lock of one of
the front doors and perform a door
centralised opening/closing cycle.
2) Start the engine and turn on the
compressor of the conditioner, setting
a lower temperature value than that
of the environment and check
whether the led on the disconnection
push button of the conditioner com-
pressor òis lit.
3) Start running the car and drive it
for a few meters in a straight line (ac-
celerating), until the ESP warning
light is off
á. It is not possible to close
the boot when battery is
discharged or discon-
nected for the purpose of being re-
placed/ charged again: do not try
to close the boot by slamming it
down. The boot remains anyhow
hooked on and it must be re-
opened by turning the key in the
lock.

316
IMPORTANT - Diesel filter
The different grades of purity in
diesel fuel normally available might
make it necessary to replace the fil-
ter more frequently than indicated
in the Service Schedule. If the engine
misfires it shows the filter needs
changing.IMPORTANT - Dust/pollen filter
If the car is often used in dusty or
extremely polluted environments,
you should change the filter element
more frequently. It should be
changed especially if the amount of
air introduced into the passenger
compartment is reduced.IMPORTANT - Battery
The charge in your battery should
be checked, where possible at the
start of the winter, to limit the risk
of the battery electrolyte freezing.
This check should be carried out
more frequently if the car is mainly
used for short trips or if it is fitted
with accessories that permanently
take in electricity even when the
ignition key is removed, especially in
the case of after market accessories.
If the car is used in very hot cli-
mates or particularly demanding
conditions check the battery elec-
trolyte more frequently than shown
in the “Service Schedule” in the
“Car maintenance” chapter.
