If the ABS light is on, the brake sys-
tem should be serviced as soon as
possible to restore the benefits of
Anti-Lock brakes. If the ABS light
does not turn on when the ignition
switch is turned to the ON/RUN posi-
tion, have the light inspected by an
authorized dealer.
8. Tire Pressure Monitoring
Telltale Light (for versions/
markets, where provided)Each tire, including the
spare (if provided), should
be checked monthly when
cold and inflated to the in-
flation pressure recommended by the
vehicle manufacturer on the vehicle
placard or tire inflation pressure la-
bel. (If your vehicle has tires of a
different size than the size indicated
on the vehicle placard or tire inflation
pressure label, you should determine
the proper tire inflation pressure for
those tires.) As an added safety feature, your ve-
hicle has been equipped with a Tire
Pressure Monitoring System (TPMS)
that illuminates a low tire pressure
telltale when one or more of your tires
is significantly under-inflated. Ac-
cordingly, when the low tire pressure
telltale illuminates, you should stop
and check your tires as soon as pos-
sible, and inflate them to the proper
pressure. Driving on a significantly
under-inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel effi-
ciency and tire tread life, and may
affect the vehicle’s handling and stop-
ping ability.
Please note that the TPMS is not a
substitute for proper tire mainte-
nance, and it is the driver’s responsi-
bility to maintain correct tire pres-
sure, even if under-inflation has not
reached the level to trigger illumina-
tion of the TPMS low tire pressure
telltale.Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not oper-
ating properly. The TPMS malfunc-
tion indicator is combined with the
low tire pressure telltale. When the
system detects a malfunction, the tell-
tale will flash for approximately one
minute and then remain continuously
illuminated. This sequence will con-
tinue upon subsequent vehicle start-
ups as long as the malfunction exists.
When the malfunction indicator is il-
luminated, the system may not be
able to detect or signal low tire pres-
sure as intended. TPMS malfunctions
may occur for a variety of reasons,
including the installation of replace-
ment or alternate tires or wheels on
the vehicle that prevent the TPMS
from functioning properly. Always
check the TPMS malfunction telltale
after replacing one or more tires or
wheels on your vehicle, to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
165

CAUTION!
The TPMS has been optimized for
the original equipment tires and
wheels. TPMS pressures and warn-
ing have been established for the tire
size equipped on your vehicle. Un-
desirable system operation or sensor
damage may result when using re-
placement equipment that is not of
the same size, type, and/or style.
Aftermarket wheels can cause sensor
damage. Do not use tire sealant from
a can or balance beads if your ve-
hicle is equipped with a TPMS, as
damage to the sensors may result.
9. Malfunction Indicator Light
(MIL) The Malfunction Indicator
Light (MIL) is part of an on-
board diagnostic system,
called OBD, that monitors en-
gine and automatic transmission con-
trol systems. The light will illuminate
when the key is in the ON/RUN posi-
tion, before engine start. If the bulb
does not come on when turning the
key from OFF to ON/RUN, have the
condition checked promptly. Certain conditions, such as a loose or
missing gas cap, poor fuel quality,
etc., may illuminate the MIL after en-
gine start. The vehicle should be ser-
viced if the light stays on through
several of your typical driving cycles.
In most situations, the vehicle will
drive normally and will not require
towing.
CAUTION!
Prolonged driving with the MIL on
could cause damage to the engine
control system. It also could affect
fuel economy and drivability. If the
MIL is flashing, severe catalytic con-
verter damage and power loss will
soon occur. Immediate service is re-
quired.
WARNING!
A malfunctioning catalytic con-
verter, as referenced above, can
reach higher temperatures than in
normal operating conditions. This
can cause a fire if you drive slowly or
park over flammable substances
such as dry plants, wood, cardboard,
etc. This could result in death or
serious injury to the driver, occu-
pants or others.
10. Electronic Stability Control
(ESC) Activation/Malfunction
Indicator Light (for versions/
markets, where provided) The “ESC Activation/
Malfunction Indicator
Light” in the instrument
cluster will come on when
the ignition switch is turned to the
ON/RUN position. It should go out
with the engine running. If the “ESC
Activation/Malfunction Indicator
Light” comes on continuously with
the engine running, a malfunction has
been detected in the ESC system. If
this light remains on after several ig-
nition cycles, and the vehicle has been
driven several kilometers at speeds
166

 TREAD WEAR INDICATORS . . . . . . . . . . . . . 248
 LIFE OF TIRE . . . . . . . . . . . . . . . . . . . . . . . . 248
 REPLACEMENT TIRES . . . . . . . . . . . . . . . . . 249
 TIRE CHAINS . . . . . . . . . . . . . . . . . . . . . . . . . . 249
 TIRE ROTATION RECOMMENDATIONS . . . . . . 250
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . . 250  BASE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . 252
 PREMIUM SYSTEM (for versions/markets,where provided) . . . . . . . . . . . . . . . . . . . . . . . 254
 TPMS DEACTIVATION AND REACTIVATION . . . . . . . . . . . . . . . . . . . . . . . 256
 FUEL REQUIREMENTS — GASOLINE ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
 METHANOL . . . . . . . . . . . . . . . . . . . . . . . . . . 257
 ETHANOL . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
 CLEAN AIR GASOLINE . . . . . . . . . . . . . . . . . 257
 MMT IN GASOLINE . . . . . . . . . . . . . . . . . . . . 257
 MATERIALS ADDED TO FUEL . . . . . . . . . . . 258
 FUEL REQUIREMENTS — DIESEL ENGINE . . . 258
 ADDING FUEL . . . . . . . . . . . . . . . . . . . . . . . . . . 258  LOCKING FUEL FILLER CAP (GAS CAP)(for versions/markets, where provided) . . . . . 258
 TRAILER TOWING . . . . . . . . . . . . . . . . . . . . . . 259  COMMON TOWING DEFINITIONS . . . . . . . . . 259
223

CAUTION!
To avoid damage to your vehicle or
tires, observe the following precau-
tions:
 Use chains on P225/65R17 tiresonly.
 Because of restricted chain clear-
ance between tires and other sus-
pension components, it is impor-
tant that only chains in good
condition are used. Broken chains
can cause serious damage. Stop
the vehicle immediately if noise
occurs that could indicate chain
breakage. Remove the damaged
parts of the chain before further
use.
 Do not exceed 70 km/h.
 Drive cautiously and avoid severe
turns and large bumps, especially
with a loaded vehicle.
 Install chains on the front wheels
as tightly as possible and then re-
tighten after driving about
0.8 km.
 Do not drive for prolonged periods
of time on dry pavement.
(Continued)
CAUTION!(Continued)
 Observe the tire chain manufac-
tur er's instructions on the method
of installation, operating speed,
and conditions for use. Always use
the lower suggested operating
speed of the chain manufacturer,
if different from the speed r ecom-
mended by the vehicle manufac-
turer.
Always use the lower suggested oper-
ating speed if the chain manufacturer
and vehicle manufacturer suggest dif-
ferent maximum speeds. This notice
applies to all chain traction devices,
including link and cable (radial)
chains.
TIRE ROTATION
RECOMMENDATIONS
Tires on the front and rear axles of
vehicles operate at different loads and
perform different steering, driving,
and braking functions. For these rea-
sons, they wear at unequal rates.
These effects can be reduced by
timely rotation of tires. The benefits
of rotation are especially worthwhile with aggressive tread designs such as
those on all season type tires. Rotation
will increase tread life, help to main-
tain mud, snow and wet traction lev-
els, and contribute to a smooth, quiet
ride.
Refer to the “Maintenance Schedule”
for the proper maintenance intervals.
The reasons for any rapid or unusual
wear should be corrected prior to ro-
tation being performed.
TIRE PRESSURE
MONITOR SYSTEM
(TPMS)
The TPMS will warn the driver of a
low tire pressure based on the cold
inflation tire pressure requirements
found on the tire placard located on
the
driver's-side B-pillar.
The tire pressure will vary with tem-
perature by about 0.069 BAR for ev-
ery 6.5°C. This means that when the
outside temperature decreases, the
tire pressure will decrease. Tire pres-
sure should always be set based on
cold inflation tire pressure. This is
defined as the tire pressure after a
vehicle has not been driven for more
250

than three hours - and in outside am-
bient temperature.Refer to “Tires –
General Information” in “Starting
and Operating” for information on
how to properly inflate the vehi-
cle’s tires. The tire pressure will also
increase as the vehicle is driven - this
is normal and there should be no ad-
justment for this increased pressure.
The TPMS will warn the driver of a
low tire pressure if the tire pressure
falls below the low pressure warning
threshold for any reason, including
low temperature effects, or natural air
pressure loss through the tire.
The TPMS will continue to warn the
driver of low tire pressure as long as
the condition exists, and will not turn
off until the tire pressure is at or above
recommended cold tire placard pres-
sure. Once the low tire pressure warn-
ing has been illuminated, the tire
pressure must be increased to the rec-
ommended cold tire placard pressure
in order for the “Tire Pressure Moni-
toring Telltale Light” to be turned off.
The system will automatically update
and the “Tire Pressure Monitoring
Telltale Light” will extinguish once the updated tire pressures have been
received. The vehicle may need to be
driven for up to 20 minutes above
24 km/h to receive this information.
For example, your vehicle may have a
recommended cold (parked for more
than three hours) tire pressure of 2.41
BAR. If the ambient temperature is
20°C and the measured tire pressure
is 2.07 BAR, a temperature drop to
­7°C will decrease the tire pressure to
approximately 1.79 BAR. This tire
pressure is sufficiently low enough to
turn on the “Tire Pressure Monitoring
Telltale Light.” Driving the vehicle
may cause the tire pressure to rise to
approximately 2.07 BAR, but the
“Tire Pressure Monitoring Telltale
Light” will still be on. In this situa-
tion, the “Tire Pressure Monitoring
Telltale Light” will turn off only after
the tires have been inflated to the
vehicle’s recommended cold tire pres-
sure value.
CAUTION!
 The TPMS has been optimized for
the original equipment tires and
wheels. TPMS pressures have
been established for the tire size
equipped on your vehicle. Unde-
sirable system operation or sensor
damage may result when using
replacement equipment that is not
of the same size, type, and/or
style. Aftermarket wheels can
cause sensor damage. Do not use
aftermarket sealants or balance
beads if your vehicle is equipped
with a TPMS, as damage to the
sensors may result.
 After inspecting or adjusting the
tire pressure always reinstall the
valve stem cap. This will prevent
moisture and dirt from entering
the valve stem, which could dam-
age the TPMS sensor.
NOTE:
 The TPMS is not intended to re- place normal tire care and
maintenance, or to provide
warning of a tire failure or con-
dition.
251

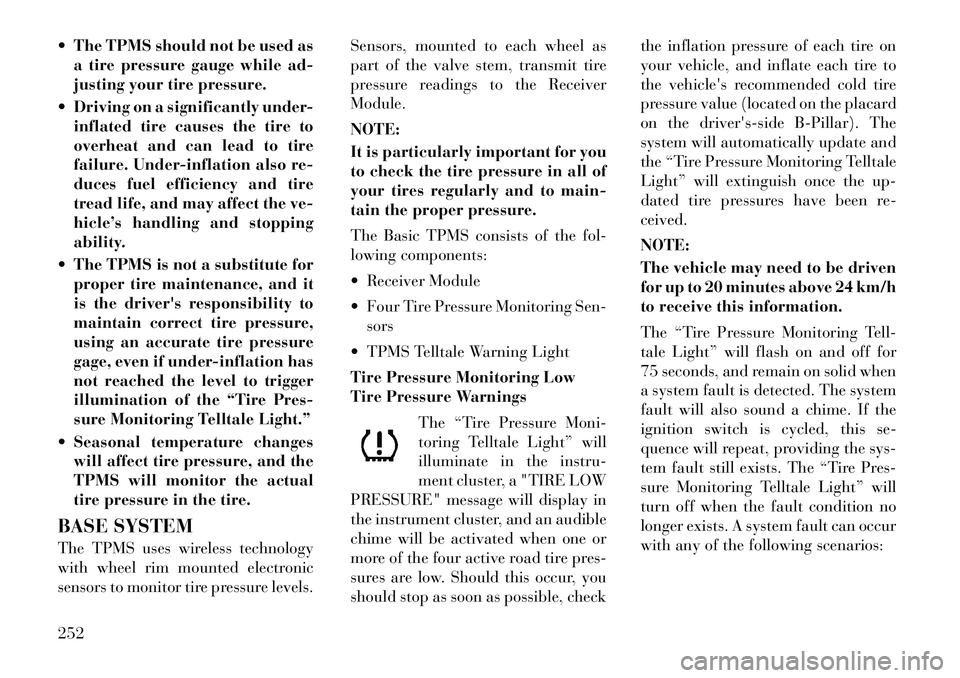

 The TPMS should not be used asa tire pressure gauge while ad-
justing your tire pressure.
 Driving on a significantly under- inflated tire causes the tire to
overheat and can lead to tire
failure. Under-inflation also re-
duces fuel efficiency and tire
tread life, and may affect the ve-
hicle’s handling and stopping
ability.
 The TPMS is not a substitute for proper tire maintenance, and it
is the driver's responsibility to
maintain correct tire pressure,
using an accurate tire pressure
gage, even if under-inflation has
not reached the level to trigger
illumination of the “Tire Pres-
sure Monitoring Telltale Light.”
 Seasonal temperature changes will affect tire pressure, and the
TPMS will monitor the actual
tire pressure in the tire.
BASE SYSTEM
The TPMS uses wireless technology
with wheel rim mounted electronic
sensors to monitor tire pressure levels. Sensors, mounted to each wheel as
part of the valve stem, transmit tire
pressure readings to the Receiver
Module.
NOTE:
It is particularly important for you
to check the tire pressure in all of
your tires regularly and to main-
tain the proper pressure.
The Basic TPMS consists of the fol-
lowing components:
 Receiver Module
 Four Tire Pressure Monitoring Sen-
sors
 TPMS Telltale Warning Light
Tire Pressure Monitoring Low
Tire Pressure Warnings The “Tire Pressure Moni-
toring Telltale Light” will
illuminate in the instru-
ment cluster, a "TIRE LOW
PRESSURE" message will display in
the instrument cluster, and an audible
chime will be activated when one or
more of the four active road tire pres-
sures are low. Should this occur, you
should stop as soon as possible, check the inflation pressure of each tire on
your vehicle, and inflate each tire to
the vehicle's recommended cold tire
pressure value (located on the placard
on the driver's-side B-Pillar). The
system will automatically update and
the “Tire Pressure Monitoring Telltale
Light” will extinguish once the up-
dated tire pressures have been re-
ceived.
NOTE:
The vehicle may need to be driven
for up to 20 minutes above 24 km/h
to receive this information.
The “Tire Pressure Monitoring Tell-
tale Light” will flash on and off for
75 seconds, and remain on solid when
a system fault is detected. The system
fault will also sound a chime. If the
ignition switch is cycled, this se-
quence will repeat, providing the sys-
tem fault still exists. The “Tire Pres-
sure Monitoring Telltale Light” will
turn off when the fault condition no
longer exists. A system fault can occur
with any of the following scenarios:252

1. Jamming due to electronic devices
or driving next to facilities emitting
the same radio frequencies as the
TPMS sensors.
2. Installing some form of aftermar-
ket window tinting that affects radio
wave signals.
3. Accumulation of excessive snow
and/or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped
with TPMS sensors.
Vehicles With Compact Spare
1. The compact spare tire (for
versions/markets, where provided)
does not have a TPMS sensor. There-
fore the TPMS will not monitor the
pressure in the compact spare tire.
2. If you install the compact spare
tire in place of a road tire that has a
pressure below the low-pressure
warning limit, upon the next ignition
switch cycle, a chime will sound, a
"TIRE LOW PRESSURE" messagewill be displayed and the “Tire Pres-
sure Monitoring Telltale Light” will
turn on.
3. After driving for up to 20 minutes
above 24 km/h, the “Tire Pressure
Monitoring Telltale Light” will flash
on and off for 75 seconds and then
remain on solid.
4. For each subsequent ignition
switch cycle, a chime will sound, the
“Tire Pressure Monitoring Telltale
Light” will flash on and off for 75 sec-
onds and then remain on solid.
5. Once you repair or replace the
original road tire and reinstall it on
the vehicle in place of the compact
spare tire, the TPMS will automati-
cally update, and the “Tire Pressure
Monitoring Telltale Light” will turn
off as long as no tire pressure is below
the low-pressure warning limit in any
of the four active road tires. The ve-
hicle may need to be driven for up to
20 minutes above 24 km/h for the
TPMS to receive this information.
TPMS Deactivation And
Reactivation
The TPMS can be deactivated if re-
placing all four wheel and tire assem-
blies (road tires) with wheel and tire
assemblies that do not have TPMS
Sensors, such as when installing win-
ter wheel and tire assemblies on your
vehicle. To deactivate the TPMS, first,
replace all four wheel and tire assem-
blies (road tires) with those not
equipped with TPM Sensors. Then,
drive the vehicle for at least 20 min-
utes above 24 km/h. The TPMS will
chime and the “TPM Telltale Light”
will flash on and off for 75 seconds
and then remain on solid. Upon the
next ignition switch cycle, the TPMS
will no longer chime or turn on the
“Tire Pressure Monitoring Telltale
Light.” To reactivate the TPMS, first,
replace all four wheel and tire assem-
blies (road tires) with those equipped
with TPM Sensors. Then, drive the
vehicle for up to 20 minutes above
24 km/h. The TPMS will chime and
the “Tire Pressure Monitoring Telltale
Light” will flash on and off for 75 sec-
onds.
253

PREMIUM SYSTEM (for
versions/markets, where
provided)
The TPMS uses wireless technology
with wheel rim-mounted electronic
sensors to monitor tire pressure levels.
Sensors mounted to each wheel as
part of the valve stem transmit tire
pressure readings to the Receiver
Module.
NOTE:
It is particularly important to
regularly check and maintain
proper tire pressure in all the tires.
The Premium TPMS consists of the
following components:
 Receiver Module
 Four TPMS Sensors
 Various TPMS messages, whichdisplay in the Electronic Vehicle In-
formation Center (EVIC), and
graphics displaying tire pressures
 TPMS Telltale Warning Light
TPMS Low Pressure Warnings
The “Tire Pressure Monitoring Tell-
tale Light” will illuminate in the in- strument cluster, and an audible
chime will be activated when one or
more of the four active road tire pres-
sures are low. In addition, the EVIC
will display a “LOW TIRE PRES-
SURE” message for a minimum of
five seconds and a graphic display of
the pressure value(s) with the low
tire(s) flashing.
Should a low tire condition occur on
any of the four active road tire(s), you
should stop as soon as possible, and
inflate the low tire(s) that is flashing
on the graphic display to the vehicle’s
recommended cold tire pressure
value. The system will automatically
update, the graphic display of the
pressure value(s) will stop flashing,
and the “Tire Pressure Monitoring
Telltale Light” will extinguish oncethe updated tire pressure(s) have been
received. The vehicle may need to be
driven for up to 20 minutes above
24 km/h to receive this information.
SERVICE TPM SYSTEM Message
The “Tire Pressure Monitoring Tell-
tale Light” will flash on and off for
75 seconds, and remain on solid when
a system fault is detected. The system
fault will also sound a chime. The
EVIC will display a “SERVICE TPM
SYSTEM” message for a minimum of
five seconds. This text message is then
followed by a graphic display, with
- -
in place of the pressure value(s) indi-
cating which TPMS Sensor(s) is not
being received.
If the ignition switch is cycled, this
sequence will repeat, providing the
system fault still exists. If the system
Low Tire Pressure Display
SERVICE TPM SYSTEM Display
254

fault no longer exists, the “Tire Pres-
sure Monitoring Telltale Light” will
no longer flash, the “SERVICE TPM
SYSTEM” message will not be pres-
ent, and a pressure value will be dis-
played instead of dashes. A system
fault can occur by any of the following
scenarios:
1. Jamming due to electronic devices
or driving next to facilities emitting
the same radio frequencies as the
TPMS sensors.
2. Installing some form of aftermar-
ket window tinting that affects radio
wave signals.
3. Accumulation of excessive snow
and/or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped
with TPMS sensors.
The EVIC will also display a “SER-
VICE TPM SYSTEM” message for a
minimum of five seconds when a sys-
tem fault possibly related to an incor-
rect sensor location fault is present. In
this case, the “SERVICE TPM SYS-TEM” message is then followed by a
graphic display with pressure values
still shown. This indicates that the
pressure values are still being received
from the TPM sensors but they may
not be in the correct vehicle position.
The system still needs to be serviced
as long as the “SERVICE TPM SYS-
TEM” message exists.
Vehicles With Compact Spare
1. The compact spare tire (for
versions/markets, where provided)
does not have a TPMS. Therefore, the
TPMS will not monitor the pressure in
the compact spare tire.
2. If you install the compact spare
tire in place of a road tire that has a
pressure below the low-pressure
warning limit, upon the next ignition
switch cycle, the “Tire Pressure Moni-
toring Telltale Light” will remain on,
the "TIRE LOW PRESSURE" mes-
sage will be displayed, a chime will
sound, and the EVIC will still display
a flashing pressure value in the
graphic display.
3. After driving the vehicle for up to
20 minutes above 24 km/h, the “TirePressure Monitoring Telltale Light”
will flash on and off for 75 seconds
and then remain on solid. In addition,
the EVIC will display a “SERVICE
TPM SYSTEM” message for a mini-
mum of five seconds and then display
dashes (- -) in place of the pressure
value.
4. For each subsequent ignition
switch cycle, a chime will sound, the
“Tire Pressure Monitoring Telltale
Light” will flash on and off for 75 sec-
onds and then remain on solid, and
the EVIC will display a “SERVICE
TPM SYSTEM” message for a mini-
mum of five seconds and then display
dashes (- -) in place of the pressure
value.
5. Once you repair or replace the
original road tire, and reinstall it on
the vehicle in place of the compact
spare, the TPMS will update auto-
matically. In addition, the “Tire Pres-
sure Monitoring Telltale Light” will
turn off and the graphic in the EVIC
will display a new pressure value in-
stead of dashes (- -), as long no tire
pressure is below the low pressure
warning limit in any of the four active
road tires.
255

NOTE:
The vehicle may need to be driven
for up to 20 minutes above 24 km/h
in order for the TPMS to receive
this information.
TPMS DEACTIVATION AND
REACTIVATION
The TPMS can be deactivated if re-
placing all four wheel and tire assem-
blies (road tires) with wheel and tire
assemblies that do not have TPMS
Sensors, such as when installing win-
ter wheel and tire assemblies on your
vehicle.
To deactivate the TPMS, first, replace
all four wheel and tire assemblies
(road tires) with those not equipped
with TPM Sensors. Then, drive the
vehicle for at least 20 minutes above
24 km/h. The TPMS will chime and
the “Tire Pressure Monitoring Telltale
Light” will flash on and off for 75 sec-
onds and then remain on solid. In
addition, the Electronic Vehicle Infor-
mation Center (EVIC) will display a
“SERVICE TPM SYSTEM” message,
and the graphic will display “- -“ in
place of four tire pressure values.Upon the next ignition switch cycle,
the TPMS will no longer chime or turn
on the “Tire Pressure Monitoring Tell-
tale Light” or display the text message
in the EVIC. However, the graphic
will still display “- -.“
To reactivate the TPMS, first, replace
all four wheel and tire assemblies
(road tires) with those equipped with
TPM Sensors. Then, drive the vehicle
for up to 20 minutes above 24 km/h.
The TPMS will chime and the “Tire
Pressure Monitoring Telltale Light”
will flash on and off for 75 seconds,
the EVIC will display a “SERVICE
TPM SYSTEM” message, and the
graphic will display tire pressure val-
ues to show that the TPMS is receiving
sensor data.
FUEL REQUIREMENTS
— GASOLINE ENGINE
All engines are designed to meet all
emissions regulations and provide ex-
cellent fuel economy and performance
when using high quality unleaded
gasoline with a minimum research oc-
tane rating of 91. The use of premium
gasoline is not recommended, as itwill not provide any benefit over regu-
lar gasoline in these engines.
Light spark knock at low engine
speeds is not harmful to your engine.
However, continued heavy spark
knock at high speeds can cause dam-
age and immediate service is required.
Poor quality gasoline can cause prob-
lems such as hard starting, stalling,
and hesitations. If you experience
these symptoms, try another brand of
gasoline before considering service for
the vehicle.
Over 40 automobile manufacturer's
world wide have issued and endorsed
consistent gasoline specifications (the
World Wide Fuel Charter, WWFC)
which define fuel properties necessary
to deliver enhanced emissions, perfor-
mance, and durability for your ve-
hicle. The manufacturer recommends
the use of gasoline that meets the
WWFC specifications if they are
available.
256
