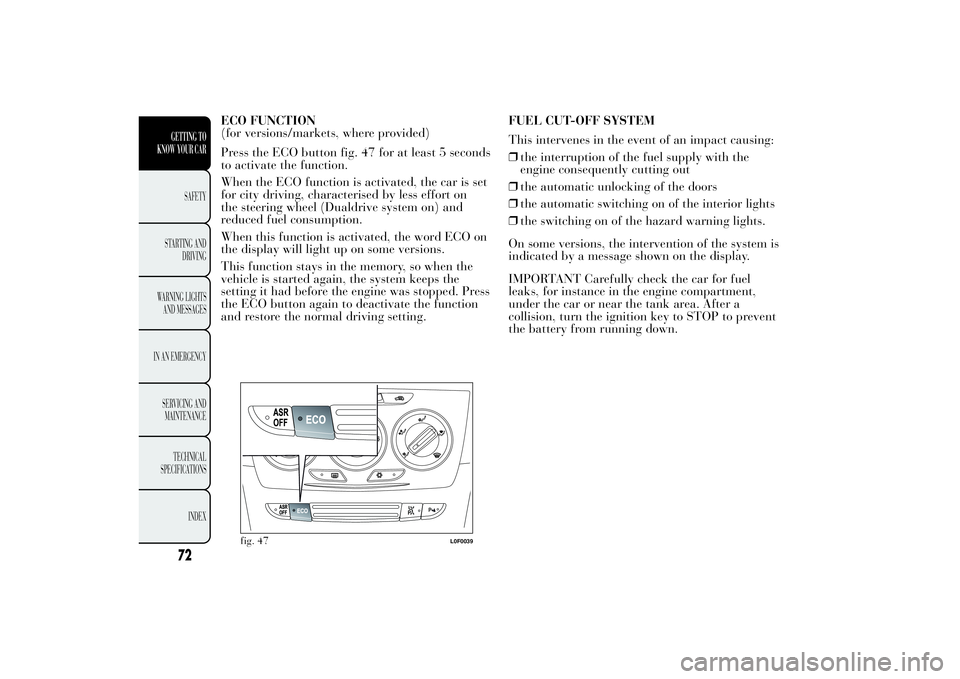

ECO FUNCTION
(for versions/markets, where provided)
Press the ECO button fig. 47 for at least 5 seconds
to activate the function.
When the ECO function is activated, the car is set
for city driving, characterised by less effort on
the steering wheel (Dualdrive system on) and
reduced fuel consumption.
When this function is activated, the word ECO on
the display will light up on some versions.
This function stays in the memory, so when the
vehicle is started again, the system keeps the
setting it had before the engine was stopped. Press
the ECO button again to deactivate the function
and restore the normal driving setting.FUEL CUT-OFF SYSTEM
This intervenes in the event of an impact causing:
❒the interruption of the fuel supply with the
engine consequently cutting out
❒the automatic unlocking of the doors
❒the automatic switching on of the interior lights
❒the switching on of the hazard warning lights.
On some versions, the intervention of the system is
indicated by a message shown on the display.
IMPORTANT Carefully check the car for fuel
leaks, for instance in the engine compartment,
under the car or near the tank area. After a
collision, turn the ignition key to STOP to prevent
the battery from running down.
fig. 47
L0F0039
72GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
If, after an impact, you smell fuel or
notice leaks from the fuel system,
do not reactivate the system to avoid the risk
of fire.
INTERIOR FITTINGSPASSENGER SIDE GLOVE COMPARTMENT
Operate handle A fig. 48 to open the
compartment. When the compartment is opened a
courtesy light switches on.
WARNING
Never travel with the glove
compartment open: it could injure
the passenger in the event of a crash.
fig. 48
L0F0057
73GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
To restore the correct operation of the car, proceed
as follows:
❒turn the ignition key to the MAR position;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒turn the ignition key to the STOP position.

POWER SOCKET
It is located on the centralfig. 49 near the
handbrake lever. It only operates with the ignition
key at MAR.
IMPORTANT Do not connect devices with power
higher than 180 W to the socket. Do not damage
the socket by using unsuitable adaptors.CIGAR LIGHTER
(for versions/markets, where provided)
It is located on the central console next to the
handbrake. Press button A fig. 50 to activate the
cigar lighter.
After a few seconds the button automatically
returns to its initial position, and the cigarette
lighter is ready for use.
IMPORTANT Always check that the cigar lighter
is switched off.
fig. 49
L0F0076
fig. 50
L0F0258
74GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT Do not connect devices with power
higher than 180 W to the socket. Do not damage
the socket by using unsuitable adaptors.
WARNING
The cigar lighter gets very hot.
Handle it carefully and make sure
that children don’t use it: risk of fire and/or
burns.
ASHTRAY
(for versions/markets, where provided)
The ashtray is a removable spring-loaded plastic
container that must be fitted into the right
cup/can holder on the central tunnel fig. 51.IMPORTANT Do not use the ashtray as a waste
paper basket: it may catch fire in contact with
cigarette stubs.
SUN VISORS
These are located at the sides of the rear-view
mirror. They can be adjusted forwards and
sideways.
The back of the driver's and passenger side visors
houses two courtesy mirrors. To use the driver's
side mirror, open the sliding cover A fig. 52.
fig. 51
L0F0056
fig. 52
L0F0055
75GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

EXTINGUISHER
(for versions/markets, where provided)
It is located under the passenger side front seat or,
in some versions, at the right side of the luggage
compartment, inside a dedicated container.
SUN ROOF(for versions/markets, where provided)
The large electric sun roof comprises two glass
panels; the front one is mobile and the rear one
fixed. These are equipped with two sun blinds
(front and rear) that can be moved manually.
With the sun roof closed, the blinds can be placed
in any position.
To open the blinds, grip handle A fig. 53,
following the direction indicated by the arrow
until the desired position is reached. To close
them, carry out the procedure in reverse.
The sun roof can be operated only with the
ignition key turned to MAR.
Controls B and C fig. 53 on the front roof light
trim control sun roof opening/closing.
76GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Opening
Press and hold down button C. The front glass
panel will move to the spoiler position.
Press the button again, holding it down for more
than half a second to automatically move the
sun roof to an intermediate position (“Comfort”
position).
After opening in spoiler position, press button B
once again for more than half a second to bring
the roof automatically to fully open position.
Closing
Press button B from the fully open position. If the
button is pressed for more than half a second,
the roof will automatically move to spoiler
position.
After opening in spoiler position, press button B
again for more than half a second to bring the roof
automatically to fully closed position.
Use the sunroof only at “spoiler”
position if a transverse roof rack is
fitted. Do not open the sunroof if there
is snow or ice on it: you may damage it.
fig. 53
L0F0152
77GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
When leaving the vehicle, always
remove the key from the ignition to
avoid the risk of injury to those still inside
the car due to accidental operation of the
sunroof. Improper use of the roof can be
dangerous. Before and during operation,
always check that no-one is exposed to the
risk of being injured by the moving sunroof
or by objects getting caught or hit by it.
ANTI-PINCH SAFETY DEVICE
The sun roof has an anti-pinch safety system
capable of detecting the presence of an obstacle
whilst the roof is closing: if this happens, the
system intervenes and the movement of the glass
is immediately reversed.EMERGENCY OPERATION
If the control buttons fail to operate, the sun roof
can be moved manually proceeding as described
below:
❒remove the protective cap located on the
internal lining, between the two sun blinds
fig. 54;
❒take the Allen key provided and located in the
tool box in the luggage compartment or,
depending on the version, inside the glove
compartment;
❒introduce the key provided into housing A
fig. 54 and turn it clockwise to open the roof or
anticlockwise to close the roof.
fig. 54
L0F0299
78GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

INITIALISATION PROCEDURE
Following an automatic motion malfunction while
opening/closing or an emergency manoeuvre
(see description in the previous paragraph), the
automatic operation of the sun roof must be
initialised again.
Proceed as follows:
❒Press button B in closed position;
❒hold down button B: after approximately 10
seconds the roof moves jerkily to closing
position. Once the operation has ended (roof
closed) release button B;
❒turn the ignition key to STOP and keep it there
for 10 seconds;
❒turn the ignition key to MAR position;
❒Press button B in closed position;
❒hold down button B until the roof is completely
closed: the initialisation procedure has ended;
❒press button B again within 3 seconds from the
conclusion of the initialisation procedure;
❒hold down button B: the roof will perform an
automatic opening and closing cycle: should
this not occur, repeat the operation from the
beginning;
❒keeping button B held down, wait until the roof
is completely closed.
DOORSDOOR CENTRAL LOCKING/UNLOCKING
Locking the doors from outside
With the doors closed press button
on the
remote control or turn the metal insert (located
inside the key) in the driver's side door lock. The
LED above the
button switches on to indicate
that the doors have been locked.
The door locking function is operated:
❒with all the doors closed;
❒with all the doors closed and the luggage
compartment open.
Unlocking the doors from outside
Press button
on the remote control or turn the
metal insert (located inside the key) in the driver's
side door lock.
79GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Locking/unlocking the doors from inside
Press button
. The button has an LED that
indicates whether the doors are locked or
unlocked.
LED on: doors locked. Press button
once again
to centrally unlock all doors. The LED will switch
off.
LED off: doors unlocked. Press the button
again to centrally lock all doors. The doors will
be locked only if all the doors are properly shut.
Once the doors have been locked via the remote
control or the key pawl, it will no longer be
possible to unlock them by pressing button
.
In the absence of electrical power supply (blown
fuse, battery disconnected, etc.) it is still possible
to lock the doors manually.
IMPORTANT With central locking active, pulling
the internal opening lever of the passenger side
door unlocks the door (the LED stays on). Pulling
the internal opening lever of the driver side door
activates central unlocking.IMPORTANT The rear doors cannot be opened
from the inside when the child-lock system is
engaged (see the description in the following
paragraph).
80GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CHILD-LOCKS
This system prevents the rear doors from being
opened from the inside.
This device A fig. 55 can only be engaged with the
doors open:
❒position 1 - device engaged (door locked);
❒position 2 - device not engaged (door may be
opened from the inside).
The device remains on even if the doors are
unlocked electrically.
IMPORTANT The rear doors cannot be opened
from the inside when the child-lock system is
engaged.
WARNING
Always use this device when carrying
children. After engaging the child
lock on both rear doors, check for effective
engagement by trying to open a door with
the internal handle.
fig. 55
L0F0080
81GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
