technical specifications Lancia Ypsilon 2015 Owner handbook (in English)

Versions Rims Tyres Snow tyresSpace-saver wheel(*)
Rim
Tyre
1.3 16V MultiJet5½Jx14 H2-ET35 175/65 R14 82H175/65 R14 84Q
(M+S)
135/80 B14 84M 6Jx15 H2-ET30 185/55 R15 82H185/55 R15 82Q
(M+S)
6Jx15 H2-ET30195/50 R15 82H
(***)
195/50 R15 82Q
(M+S)
6½Jx16 H2-ET30195/45 R16 84H
(***)
195/45 R16 84Q
(M+S)
(*) For versions/markets, where provided
(***) Chains cannot be fitted
252
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

COLD TYRE INFLATION PRESSURE (bar)
Add +0.3 bar to the prescribed pressure when the tyres are warm.
Recheck pressure value with cold tyres.
TyresNo load/medium load Full load
Space-saver
wheel(*)Front Rear Front Rear
175/65 R14 82H 2.2 2.1 2.5 2.2
2.8 185/55 R15 82H 2.2 2.1 2.5 2.2
195/50 R15 82H 2.2 2.1 2.5 2.2
195/45 R16 84H 2.4 2.1 2.7 2.4
(*) For versions/markets, where provided
253
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RIM PROTECTOR TYRES
WARNING
DO NOT fit wheel hub caps when
using integral hub caps fixed (with
springs) to the steel rim and after sale tyres
provided with Rim Protector (fig. 173). Use
of unsuitable tyres and wheel caps may
cause sudden loss of tyre pressure.
fig. 173L0F0020
254
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DIMENSIONS
The dimensions are expressed in mm fig. 174 and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
LUGGAGE COMPARTMENT CAPACITYCapacity (VDA standards) = 245 litres.
Versions A B C D E F G H
0.9 TwinAir 85 HP3842 816 2390 636 1520 1414 1676 1408
1.2 8V 69 HP3842 816 2390 636 1520 1414 1676 1408
1.3 MultiJet3842 816 2390 636 1520 1414 1676 1408
fig. 174L0F0003
255
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

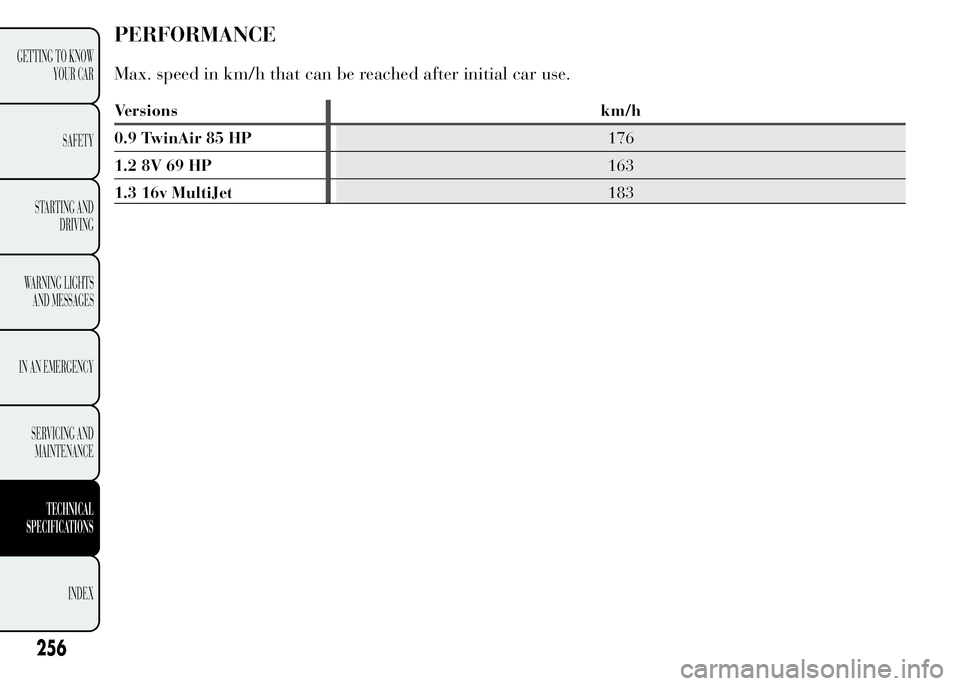

PERFORMANCE
Max. speed in km/h that can be reached after initial car use.
Versions km/h
0.9 TwinAir 85 HP176
1.2 8V 69 HP163
1.3 16v MultiJet183
256
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WEIGHTS AND LOADS
Versions 0.9 TwinAir 85 HP 1.2 8V 69 HP 1.3 16V MultiJet
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment) (kg):975 965 1050
Payload including the driver (kg):
(*)
480 (4-seater) / 535
(5-seater)480 (4-seater) / 535
(5-seater)480 (4-seater) / 535
(5-seater)
Maximum permitted loads (kg)
(**)
800 780 870 – front axle:
– rear axle: 810 810 810
– total:1455 (4-seater) / 1510
(5-seater)1445 (4-seater) / 1500
(5-seater)1530 (4-seater) / 1585
(5-seater)
Towable loads (kg)
750 750 1000 – braked trailer:
– non-braked trailer: 400 400 400
Maximum load on roof: 55 55 55
Maximum load on the tow hook
(braked trailer) (kg):60 60 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload
with respect to the maximum permitted load.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying
platform within the maximum permitted loads.
257
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REFUELLING
Petrol versions 0.9 TwinAir 85 HP 1.2 8V 69 HPRecommended fuels and
original lubricants
Fuel tank capacity (litres): 40 40
Unleaded petrol not less
than 95 R.O.N. (EN 228
specification) including a reserve of
(litres):5÷7 5÷7
Engine cooling system
(litres):5,3 4,950-50 mixture of water
and PARAFLU
UP(*)
Engine sump (litres): 2,8 2,5
SELENIA K P.E.
Engine sump and filter
(litres):3,2 2,8
Gearbox casing/
differential (litres):1,65 1,65TUTELA TRANSMIS
GEARFORCE
Hydraulic brake circuit
(litres):0,55 0,55 TUTELA TOP 4
Windscreen and rear win-
dow washer fluid reservoir
(litres):2,55 2,5Mixture of water and
TUTELA PROFES-
SIONAL SC35
(*) For particularly harsh climate conditions, a mixture of 60% PARAFLU and 40%demineralised water is recommended.UP
258
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SION

Diesel versions 1.3 16V MultiJetRecommended fuels and original
lubricants
Fuel tank capacity (litres): 40
Diesel for motor vehicles (EN 590
specification)
including a reserve of (litres): 5 ÷ 7
Engine cooling system (litres): 6,3550-50 mixture of water and
UP(*)
Engine sump (litres): 2,8
SELENIA WR P.E.
Engine sump and filter (litres): 3,0
Gearbox casing/differential (litres): 1,65TUTELA TRANSMISSION
Hydraulic brake circuit (litres): 0,55 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2,5Mixture of water and TUTELA
PROFESSIONAL SC35
(*) For particularly harsh climate conditions, a mixture of 60%PARAFLU and 40%demineralised water is recommended.UP
259
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
GEARFORCE PARAFLU

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
UseFluid and lubricant features
for a correct use of the carGenuine fluids and
lubricantsReplacement interval
Lubricants for petrol
enginesSAE 5W-40 ACEA C3 grade
totally synthetic lubricant.
FIAT Classification
9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No. F603.C07According to Scheduled
Servicing Plan
Diesel engine
lubricantsSAE 5W-30 grade totally
synthetic lubricant. FIAT
Classification 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to Scheduled
Servicing Plan
For diesel engines, in the event of an emergency in which the original products are not available,
lubricants with at least ACEA C2 performance are acceptable. In this case optimum engine performance
is not guaranteed and the lubricants should be replaced with recommended products as soon as
possible at a Lancia Dealership.
The use of products with specifications lower than ACEA C3 for petrol engines and ACEA C2 for diesel
engines, could cause engine damage not covered by warranty.
For 0.9 TwinAir 85 HP versions, the use of lubricants with specifications below ACEA C3 and SAE
grade other than 5W-40 could cause engine damage not covered by warranty.
