technical specifications Lancia Ypsilon 2015 Owner handbook (in English)

BODYWORK PAINT IDENTIFICATION PLATE
This is applied on the external (left side) luggage
compartment post and bears the following data
fig. 171:
APaint manufacturer.
BColour name.
CLancia colour code.
DRespray and touch up colour code.
CHASSIS MARKING
This is located on the right side of the luggage
compartment floor and gives the following
identification data:
❒type of vehicle
❒chassis serial number.ENGINE MARKING
fig. 171L0F0030
242
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
This is stamped on the cylinder block and gives
the model and the engine serial number.

ENGINE CODE - BODYWORK VERSIONS
(*)Versions with long gear ratios
(**)Versions with short gear ratios and Start&Stop
243
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
(* *)Versions with short gear ratios Start&Stop* without
Versions Engine code Body versions
0.9 TwinAir 85 HP312A2000312YXG1A Y1 (4-seater)
312YXG1A Y1B (5-seater)
1.2 8V 69 HP
(*)169A4000312YXA1A Y0 (4-seater)
312YXA1A Y0B (5-seater)
1.2 8V 69 HP
(**)169A4000312YXA1A Y0D (4-seater)
312YXA1A Y0E (5-seater)
1.2 8V 6
(***)169A4000312YXA1A Y0F ( )
312YXA1A Y0G (5-seater)
1.3 16v MultiJet199B1000312YXE1A Y2 (4-seater)
312YXE1A Y2B (5-seater) 4-seater
9HP

ENGINE
Versions 0.9 TwinAir 85 HP 1.2 8V 69 HP 1.3 16v MultiJet
Engine code 312A2000 169A4000 199B1000
Cycle Otto Otto Diesel
Number and arrangement of
2 in line 4 in line 4 in line
Piston diameter and travel (mm) 80.5 x 86.0 70.8 x 78.86 69.6 x 82
Total displacement (cm³) 875 1242 1248
Compression ratio 10 11,1 16,8
Maximum power (EEC) (kW)
62,5/57
(*)51 70
Maximum power (EEC) (HP)
85/77,5
(*)69 95
corresponding engine speed (rpm) 5500 5500 4000
Max torque (EEC) (Nm)
145/100
(*)102 200
Maximum torque (EEC) (kgm)
14,8/10,2
(*)10,4 20,4
corresponding engine speed (rpm)
1900/2000
(*)3000 1500
Spark plugs NGK PLKR9C8NGK ZKR7A-10 or
CHAMPION
RA8MCX4-
FuelUnleaded petrol 95
RON (EN 228 specifi-
cation)Unleaded petrol 95
RON (EN 228 specifi-
cation)Diesel for automotive
engines (EN 590 speci-
fication)
(*)With ECO button pressed
244
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
cylinders

FUEL SUPPLY
Versions Power supply
0.9 TwinAir 85 HPTimed sequential Multipoint electronic injection, with knock control and intake
valve variable actuation
1.2 8V 69 HPMultipoint sequential timed electronic injection, returnless system
1.3 16V MultiJetElectronically controlled Common Rail MultiJet direct injection with turbocharger
and intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out correctly or
do not take the system's technical specifications into account can cause malfunctions
leading to the risk of fire.
TRANSMISSION
Versions Gearbox Clutch Drive
0.9 TwinAir 85 HP
Five forward gears and
reverse with synchromesh for
forward gear engagementSelf-adjusting pedal without
idle strokeFront 1.2 8V 69 HP
1.3 16v MultiJet
245
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

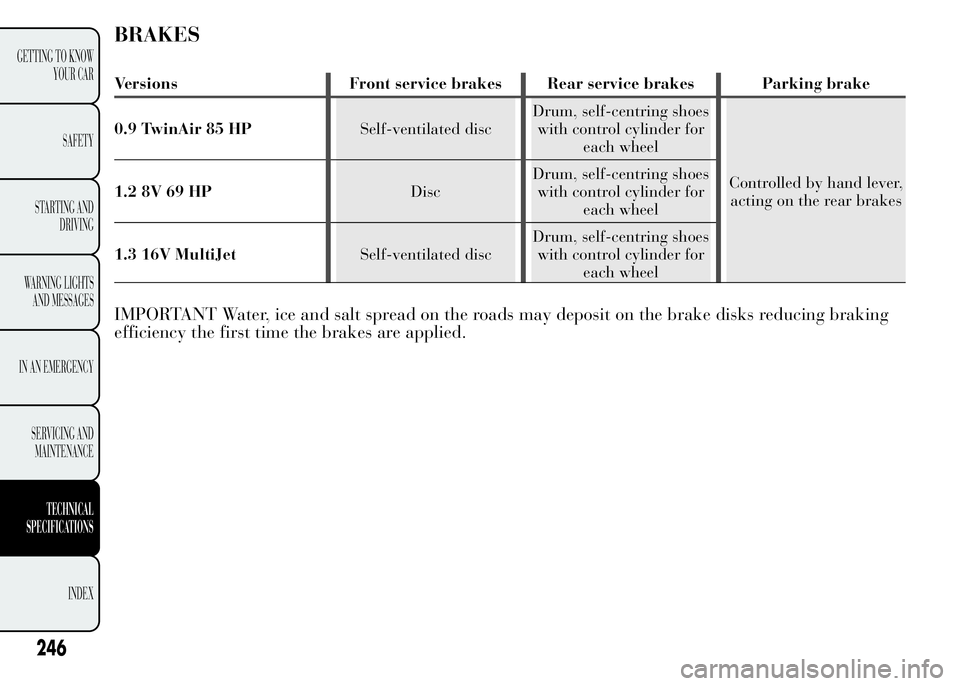

BRAKES
Versions Front service brakes Rear service brakes Parking brake
0.9 TwinAir 85 HPSelf-ventilated discDrum, self-centring shoes
with control cylinder for
each wheel
Controlled by hand lever,
acting on the rear brakes 1.2 8V 69 HPDiscDrum, self-centring shoes
with control cylinder for
each wheel
1.3 16V MultiJetSelf-ventilated discDrum, self-centring shoes
with control cylinder for
each wheel
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake disks reducing braking
efficiency the first time the brakes are applied.
246
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SUSPENSION
Versions Front Rear
0.9 TwinAir 85 HP
Independent, MacPherson type with
lower transversal wishbones secured to
an auxiliary crossmemberInterconnected wheels by means of tor-
sion beam 1.2 8V 69 HP
1.3 16V MultiJet
STEERING
Versions Turning circle (m) Type
0.9 TwinAir 85 HP9.4
Rack and pinion with electric power
steering 1.2 8V 69 HP9.4
1.3 16V MultiJet9.4
247
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres. The vehicle registration document also
lists all type-approved tyres.
IMPORTANT If there are any discrepancies
between the Owner handbook and the registration
document, take the information from the latter.
For safe driving, the car must be fitted with tyres
of the same make and type on all wheels.
IMPORTANT Do not use air chambers with
tubeless tires.
SPACE-SAVER WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to rim:
1mm
The values refer to the car in running order.CORRECT TYRE READING
Example fig. 172: 185/55 R 15 82T
185Nominal width (S, distance in mm between
sidewalls)
55Height/width ratio (H/S) as a percentage
RRadial tyre
15Rim diameter in inches (Ø)
82Load rating (capacity)
TMaximum speed rating
fig. 172L0F0019
248
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
0±

Maximum speed rating
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/hMaximum speed index for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load rating (capacity)
70= 335 kg81= 462 kg
71= 345 kg82= 475 kg
72= 355 kg83= 487 kg
73= 365 kg84= 500 kg
74= 375 kg85= 515 kg
75= 387 kg86= 530 kg
76= 400 kg87= 545 kg
77= 412 kg88= 560 kg
78= 425 kg89= 580 kg
79= 437 kg90= 600 kg
80= 450 kg91= 615 kg
249
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CORRECT READING OF THE WHEEL RIM
Example fig. 172:6Jx15H2
6rim diameter in inches (1).
Jrim drop centre outline (side projection where
the tyre bead rests) (2).
15rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2shape and number of humps (circumference
measurement which keeps the bead of tubeless
tyres in position on the rim).
250
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RIMS AND TYRES PROVIDED AS STANDARD
Versions Rims Tyres Snow tyresSpace-saver wheel(*)
Rim
Tyre
0.9 TwinAir 85 HP5½Jx14 H2-ET35 175/65 R14 82H175/65 R14 84Q
(M+S)
135/80 B14 84M 6Jx15 H2-ET30 185/55 R15 82H185/55 R15 82Q
(M+S)
6Jx15 H2-ET30195/50 R15 82H
(***)
195/50 R15 82Q
(M+S)
6½Jx16 H2-ET30195/45 R16 84H
(***)
195/45 R16 84Q
(M+S)
1.2 8V 69 HP5½Jx14 H2-ET35 175/65 R14 82H175/65 R14 84Q
(M+S)
135/80 B14 84M 6Jx15 H2-ET30 185/55 R15 82H185/55 R15 82Q
(M+S)
6Jx15 H2-ET30195/50 R15 82H
(***)
195/50 R15 82Q
(M+S)
6½Jx16 H2-ET30195/45 R16 84H
(***)
195/45 R16 84Q
(M+S)
(*) For versions/markets, where provided
(***) Chains cannot be fitted
251
