LUGGAGE COMPARTMENT JUNCTION UNIT
fig. 157
DEVICES FUSE AMPS
BOSE HI-FI system F60 20
Free F61 -
Heated seats F62 15
Rear right electric window F63 20
Rear left electric window F64 20
Alarm setup supply F65 7,5
212
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BATTERY RECHARGING
IMPORTANT The battery recharging procedure is
given as information only. You are advised to go
to a Lancia Dealership to have this operation
performed.
Low amperage slow recharging for approximately
24 hours is advised. Charging for a longer time
may damage the battery.
VERSIONS WITHOUT Start&Stop SYSTEM
(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the negative battery terminal;
❒connect the charger cables to the battery
terminals, observing the polarity;
❒turn on the charger;
❒when finished, turn the charger off before
disconnecting the battery;
❒reconnect the negative battery terminal.
VERSIONS WITH Start&Stop SYSTEM
(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the connector A fig. 158 (pressing
the button B) from the sensor C monitoring
the battery conditions, on the negative pole D of
the battery;❒connect the positive cable of the battery charger
to the positive battery terminal E and the
negative cable to sensor terminal D as shown;
❒turn on the battery charger. At the end of the
charging process, switch the battery charger off;
❒after having disconnected the battery charger,
reconnect connector A fig. 158 to the sensor C
as shown.
WARNING
Battery fluid is poisonous and
corrosive: avoid contact with your
skin and eyes. The battery should be
charged in a well ventilated place, away
from naked flames or possible sources of
sparks: danger of explosion and fire.
WARNING
Do not attempt to charge a frozen
battery: it must be thawed first,
otherwise it may explode. If freezing has
occurred, the battery should be checked by
skilled personnel to make sure that the
internal elements are not damaged and that
the body is not cracked, with the risk of
leaking poisonous and corrosive acid.
213
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
IMPORTANT After turning the ignition key to
STOP and having closed the driver's side door,
wait at least one minute before disconnecting and
then reconnecting the battery electrical supply.

RAISING THE CAR
If the car needs to be raised, go to a Lancia
Dealership, which will be equipped with arm
hoists or workshop lifts.
fig. 158L0F0229
214
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

TOWING THE CAR
The tow hook, which is supplied with the car, is
housed in the tool box, under the carpet in the
luggage compartment.
ATTACHING THE TOW HOOK
Manually remove cap A fig. 159 (front bumper) or
A fig. 160 (rear bumper) pressing the lower part,
take the tow hook B fig. 159 (front bumper) or
B fig. 160 (rear bumper) from its housing in
the tool box and tighten it completely on the front
or rear threaded pin.
WARNING
Before towing, turn the ignition key to
MAR and then to STOP without
removing it. The steering column will
automatically lock when the key is removed
and the wheels cannot be steered.
WARNING
Before tightening the hook clean the
threaded housing thoroughly. Make
sure that the hook is fully fastened in the
housing before towing the car.
fig. 159L0F0021fig. 160L0F0022
215
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
Whilst towing, remember that as the
assistance of the brake servo and
the electric power assisted steering is not
available, greater force needs to be exerted
on the brake pedal and more effort is
required on the steering wheel. Do not use
flexible cables when towing and avoid jerky
movements. During towing, make sure that
the trailer hitch does not damage any
components it is touching. When towing the
car, it is compulsory to respect specific
highway code regulations relating to the tow
hook and procedures for towing on the
road. Do not start the engine while towing
the car.
WARNING
The front and rear tow hooks should
be used only for emergencies on
the road. You are allowed to tow the vehicle
for short distances using an appropriate
device in accordance with the highway code
(a rigid bar), to move the vehicle on the
road in readiness for towing or transport via
a breakdown vehicle. Tow hooks MUST
NOT be used to tow vehicles off the road or
where there are obstacles and/or for towing
operations using cables or other non-rigid
devices. In compliance with the above
conditions, towing must take place with the
two vehicles (one towing, the other towed)
aligned as much as possible along the same
centre line.
216
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SERVICING AND MAINTENANCE
217
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SCHEDULED SERVICING
Correct servicing is essential in guaranteeing a long
life for the car under the best conditions.
For this reason, Lancia has planned a series of
checks and services at fixed distance intervals and,
for versions/markets, where provided, at fixed
time intervals, as described in the Scheduled
Servicing Plan.
Regardless of the above, it is always necessary to
carefully follow the instructions in the Scheduled
Servicing Plan (e.g. periodically check level of
liquids, tyre pressure, etc.).
Scheduled Servicing is offered by all Lancia
Dealerships according to fixed time or kilometres/
miles intervals. If, during each operation, in
addition to the ones scheduled, the need arises for
further replacements or repairs, these may be
carried out only with your explicit agreement. If
your car is used frequently for towing, the interval
between one service operation and the next should
be reduced.WARNING
The Scheduled Servicing intervals are set out by the
Manufacturer. Failure to comply with the schedule
may invalidate the warranty.
It is advisable to inform a Lancia Dealership of any
small operating irregularities without waiting for
the next service.
For versions equipped with specific fuel supply
and/or trim level (e.g. LPG, Natural Power,
automatic transmission), in addition to what is
described in the following Scheduled Servicing Plan,
refer to the relevant additional items in the
dedicated supplements.

SCHEDULED SERVICING PLAN
218
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
PETROL VERSIONS
The checks listed in the Scheduled Servicing Plan, after reaching 120,000 km/8 years, must be cyclically
repeated starting from the first interval, thus following the same intervals as before.
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90
105 120 135 150
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary; check “Fix&Go Automatic” kit recharge
expiry date (for versions/markets, where provided)●●●●●●●●●●
Check operation of lighting system (headlights,
direction indicators, hazard warning lights, luggage
compartment, passenger compartment, glove
compartment, instrument panel warning lights, etc.)●●●●●●●●●●
Check and, if necessary, top up fluid levels (engine
coolant, hydraulic clutch/brakes, screen washer,
battery, etc.)●●●●●●●●●●
Check exhaust emissions/smokiness●●●●●●●●●●
Use the diagnosis socket to check supply/engine
management system operation, emissions and, for
versions/markets, where provided, engine oil
degradation●●●●●●●●●●
Visually inspect condition of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (boots, sleeves,
bushes, etc.)●●●●●

219
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

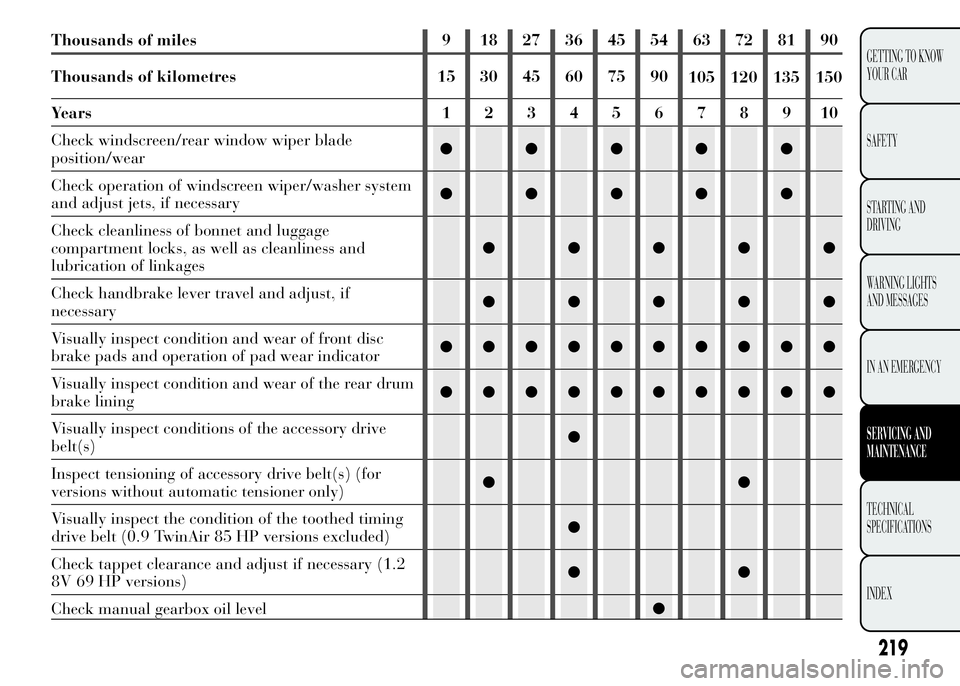

Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90
105 120 135 150
Years12345678910
Check windscreen/rear window wiper blade
position/wear●●●●●
Check operation of windscreen wiper/washer system
and adjust jets, if necessary●●●●●
Check cleanliness of bonnet and luggage
compartment locks, as well as cleanliness and
lubrication of linkages●●●●●
Check handbrake lever travel and adjust, if
necessary●●●●●
Visually inspect condition and wear of front disc
brake pads and operation of pad wear indicator●●●●●●●●●●
Visually inspect condition and wear of the rear drum
brake lining●●●●●●●●●●
Visually inspect conditions of the accessory drive
belt(s)●
Inspect tensioning of accessory drive belt(s) (for
versions without automatic tensioner only)●●
Visually inspect the condition of the toothed timing
drive belt (0.9 TwinAir 85 HP versions excluded)●
Check tappet clearance and adjust if necessary (1.2
8V 69 HP versions)●●
Check manual gearbox oil level●

220
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90
105 120 135 150
Years12345678910
Change engine oil and oil filter (or every two years)
(1)●●●●●
Change spark plugs●●●●●
Replace the auxiliary drivebelt(s)
(2)●
Replace the toothed timing drive belt (0.9 TwinAir
85 HP versions excluded)
(2)●
Replace air cleaner cartridge
(3)●●●●●
Replace brake fluid●●●●●
Replace passenger compartment cleaner
(3) (O) (●)O●O●O●O●O●
(1) If the vehicle is used mainly on urban routes or the annual distance travelled is less than 10,000 km, the engine oil and
engine oil filter must be changed every year.
(2) Areas that are not dusty: advised maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced
every 6 years.
Dusty areas and/or demanding use of the car (cold climates, town use, long periods of idling): advised maximum mileage
60,000 km. Regardless of the mileage, the belt must be replaced every 4 years.
(3) If the car is used in dusty areas, this cleaner must be replaced every 15,000 km
(O) Recommended operations
(●) Mandatory operations

221
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DIESEL VERSIONS
The checks listed in the Scheduled Servicing Plan, after reaching 120,000 km/6 years, must be cyclically
repeated starting from the first interval, thus following the same intervals as before.
Thousands of miles 12 24 36 48 60 72 84 96
108 120
Thousands of kilometres 20 40 60 80
100 120 140 160 180 200
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary; check “Fix&Go Automatic” kit recharge
expiry date (for versions/markets, where provided)●●●●●●●●●●
Check operation of lighting system (headlights,
direction indicators, hazard warning lights, luggage
compartment, passenger compartment, glove
compartment, instrument panel warning lights, etc.)●●●●●●●●●●
Check and, if necessary, top up fluid levels (engine
coolant, hydraulic clutch/brakes, screen washer,
battery, etc.)●●●●●●●●●●
Check exhaust emissions/smokiness●●●●●●●●●●
Use the diagnosis socket to check supply/engine
management system operation, emissions and, for
versions/markets, where provided, engine oil
degradation●●●●●●●●●●
Visually inspect condition of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (boots, sleeves,
bushes, etc.)●●●●●
Check windscreen/rear window wiper blade
position/wear●●●●●
Check operation of windscreen wiper/washer system
and adjust jets, if necessary●●●●●
