Lexus CT200h 2011 Owner's Manual (in English)

321
3-1. Using the air conditioning system and defogger
3
Interior features
CT200h_EE (OM76041E)
Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of
time immediately after the air conditioning system is started in AUTO
mode.
Customization
Settings (e.g. enable/disable automatic operation of the air conditioning
compressor when the “AUTO” switch ON) can be changed.
(Customizable features P. 655)
CAUTION
To prevent the windshield from fogging up
Do not use
during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking
your vision.

322
3-1. Using the air conditioning system and defogger
CT200h_EE (OM76041E)
NOTICE
To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the
hybrid system is off.
Humidity sensor (if equipped)
Follow these points to avoid damaging the sensor.
Do not disassemble the sensor
Do not spray the glass cleaner on the sensor or subject it to strong impacts
Do not stick anything on the sensor

323
3-1. Using the air conditioning system and defogger
3
Interior features
CT200h_EE (OM76041E)
Rear window and outside rear view mirror defogger switch
Operating conditions
The “POWER” switch is in ON mode.
The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Turns the rear window and
outside rear view mirror
defoggers on/off
The defoggers will automati-
cally turn off after 15 min-
utes.

324
3-1. Using the air conditioning system and defogger
CT200h_EE (OM76041E)

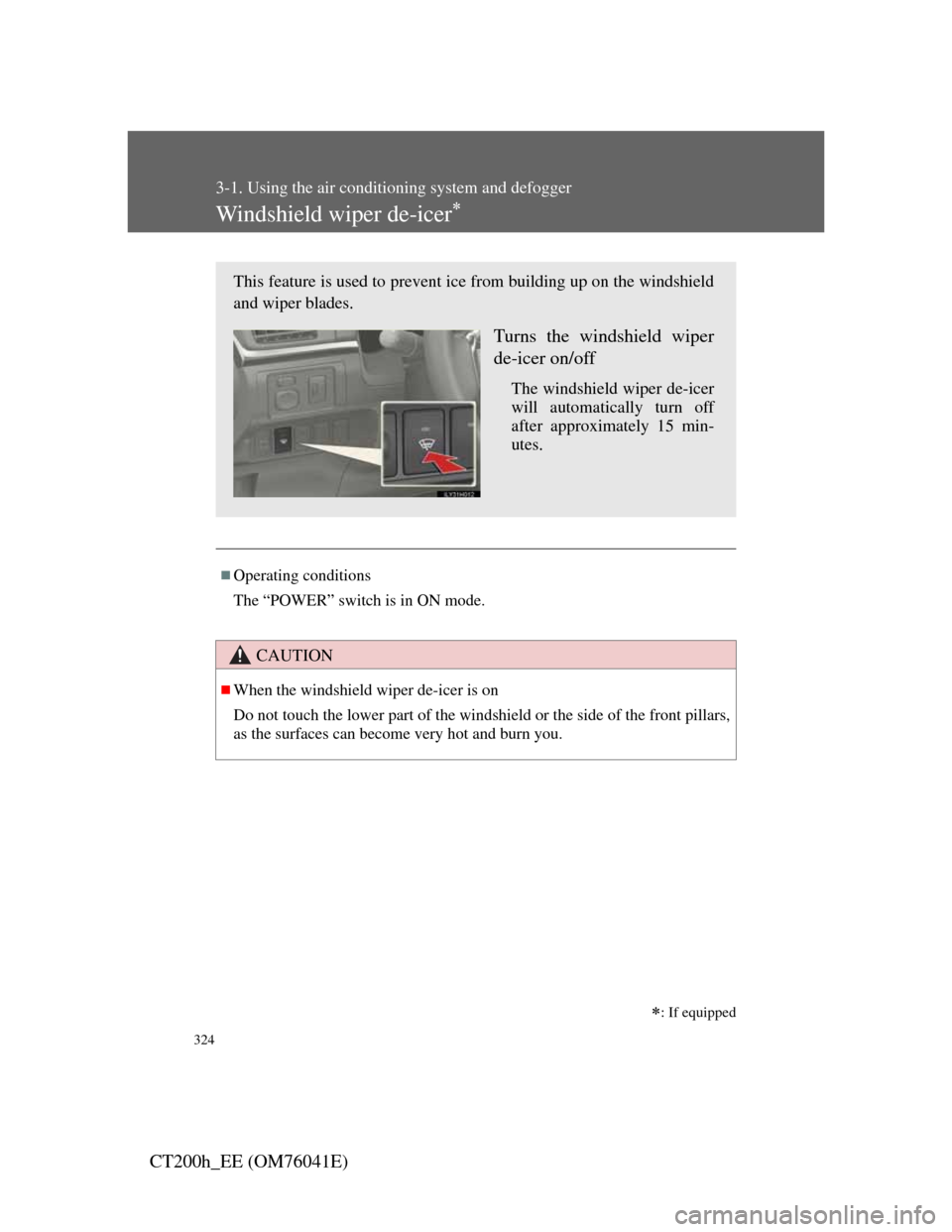

Windshield wiper de-icer
: If equipped
Operating conditions
The “POWER” switch is in ON mode.
CAUTION
When the windshield wiper de-icer is on
Do not touch the lower part of the windshield or the side of the front pillars,
as the surfaces can become very hot and burn you.
This feature is used to prevent ice from building up on the windshield
and wiper blades.
Turns the windshield wiper
de-icer on/off
The windshield wiper de-icer
will automatically turn off
after approximately 15 min-
utes.

325
3
Interior features
CT200h_EE (OM76041E)
3-2. Using the audio system
Audio system types
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
Type A: CD player and AM/FM radio
Type B: CD player with changer and AM/FM radio
The illustration below is for left-hand drive vehicles.
The button positions and shapes may differ slightly for right-
hand drive vehicles.
Type A

326
3-2. Using the audio system
CT200h_EE (OM76041E)
Type B
TitlePage
Using the radioP. 3 2 9
Using the CD playerP. 3 3 5
Playing MP3 and WMA discsP. 3 4 4
Operating an iPodP. 3 5 3
Operating a USB memoryP. 3 6 4
Optimal use of the audio systemP. 3 7 3
Using the AUX portP. 3 7 6
Using the steering wheel audio switchesP. 3 7 7

327
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)
Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
CAUTION
Certification for the radio (for Italy)
IL PRODUTTORE Panasonic Corporation Automotive Systems Company
4261, Ikonobe-cho, Tsuzuki-ku, Yokohama, Japan DI QUESTO
APPARECCHIO MODELLO 86120-76140 (Radio-CD) DICHIARA CHE
ESSO E’CONFORME AL D.M.28.08.1995 Nr.548, OTTEMPERANDO
ALLE PRESCRIZIONI DI CUI AL D.M.25.6.1985 (PARAGRAFO
3,ALL.A) ED AL D.M.27.8.1987 (PARAGRAFO 3,ALL.I).
IL PRODUTTORE PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-
ku, Kawasaki-shi, Kanagawa, 212-0031, Japan DI QUESTO
APPARECCHIO MODELLO 86120-76250 (radio-CD changer)
DICHIARA CHE ESSO E’ CONFORME AL D.M.28.08.1995 No.548,
OTTEMPERANDO ALLE PRESCRIZIONI DI CUI AL D.M.25.6.1985
(PARAGRAFO 3,ALL.A) ED AL D.M.27.8.1987 (PARAGRAFO
3,ALL.I).
Certification for the disc player with a changer
This product is a class 1 laser product.
A laser beam leak may result in hazardous radiation exposure.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
Laser power: No hazardous

328
3-2. Using the audio system
CT200h_EE (OM76041E)
NOTICE
To prevent 12-volt battery discharge
Do not leave the audio system on longer than necessary with the hybrid sys-
tem is not operating.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

329
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)
Using the radio
Type A
Displaying text mes-Automatic presetting radio stations
Station selec-
Adjusting the fre-TA mode
button
Seeking the frequency AM•DAB/FM
mode buttons
Powe Volume
AF mode button

330
3-2. Using the audio system
CT200h_EE (OM76041E)
Type B
Station selector
Displaying
text message
Adjusting the
frequency
Automatic presetting radio sta- Seeking the frequency AM•DAB/FM
mode buttonsPowe Volume
Program type button
AF mode
button
TA mode button
