Page 7 of 696
1
2
3
4
5
6
7
CT200h_EE (OM76041E)
6-1. Specifications
Maintenance data (fuel, oil
level, etc.) ......................... 638
Fuel information................. 653
6-2. Customization
Customizable features ........ 655
Abbreviation list................. 678
Alphabetical index ............. 680
What to do if... .................. 692
6Vehicle specifications
Index
Page 478 of 696
478
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
ItemsParts and tools
Engine oil level (P. 487)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (P. 520)• Fuse with same amperage rating
as original
Light bulbs (P. 534)
• Bulb with same number and
wattage rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator and condenser (P. 4 9 4)
Tire inflation pressure (P. 507)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 495)
• Water or washer fluid contain-
ing antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)
Page 485 of 696
485
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Engine compartment
12-volt battery
P. 4 9 6
Engine coolant reservoir
(P. 491)
Engine oil level dipstick
(P. 487)
Engine oil filler cap (P.
487)
Power control unit coolantFuse box (P. 520)
Radiator (P. 494)
Condenser (P. 494)
Electric cooling fans
Washer fluid tank (P.
495)
Page 487 of 696
487
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Engine oil
With the engine at operating temperature and turned off, check the
oil level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5
minutes for the oil to drain back into the bottom of the
engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
Page 488 of 696
488
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 6 4 2
Oil quantity
(Low Full)1.5 L (1.6 qt., 1.3 lmp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
Page 489 of 696
489
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Engine oil consumption
The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
A new engine consumes more oil.
When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level
accurately.
Oil consumption: Max. 1.0 L/1000 km (1.1 qt./600 miles, 0.9 lmp.qt./
600 miles)
If your vehicle consumes more than 1.0 L (1.1 qt., 0.9 lmp.qt.) every
1000 km (600 miles), contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
Do not leave used engine oil within the reach of children.
Page 490 of 696
490
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
NOTICE
To prevent serious engine damage
Check the oil level on a regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.

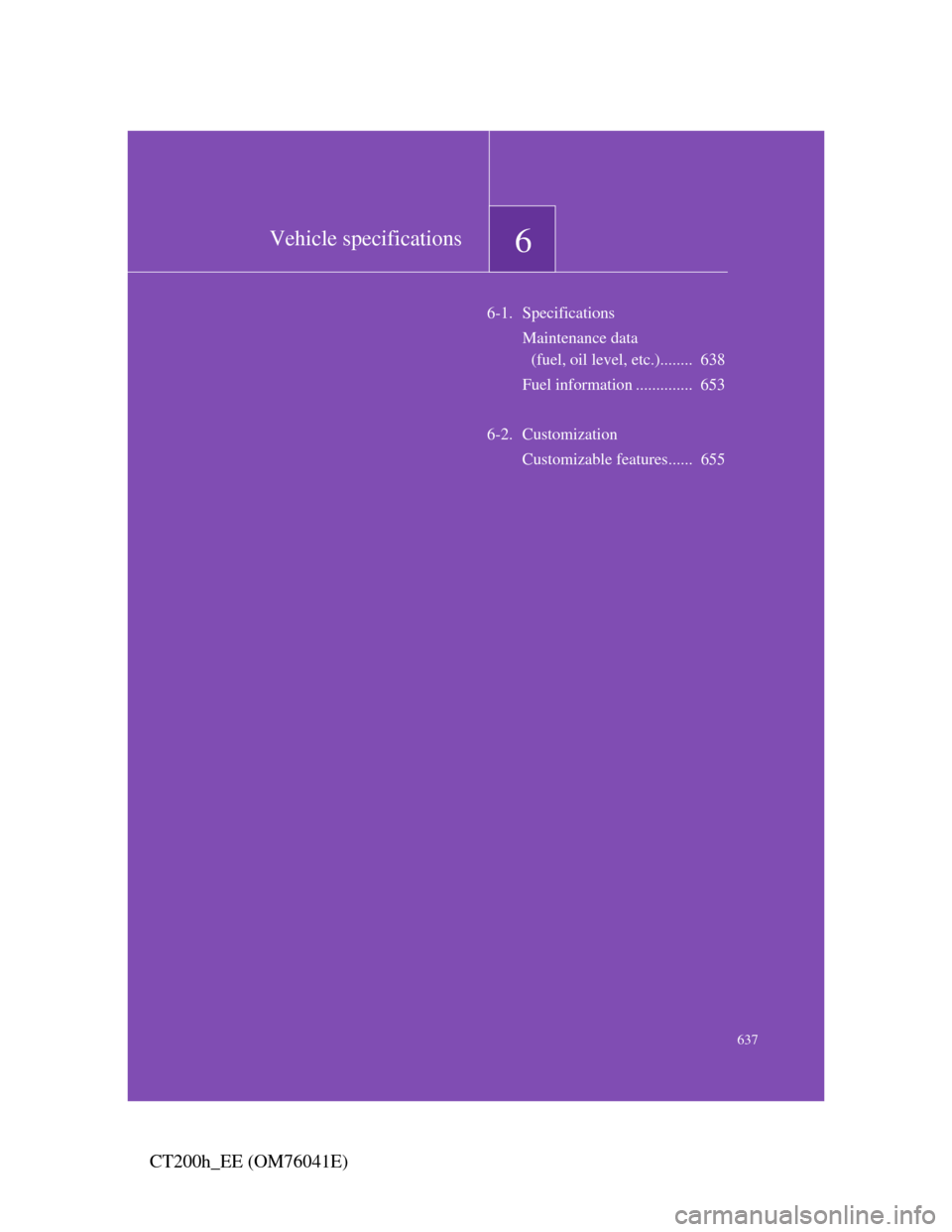

Page 637 of 696
6Vehicle specifications
637
CT200h_EE (OM76041E)
6-1. Specifications
Maintenance data
(fuel, oil level, etc.)........ 638
Fuel information .............. 653
6-2. Customization
Customizable features...... 655
Page 638 of 696
638
CT200h_EE (OM76041E)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicles with 16-inch and 17-inch tires
*3: Vehicles with 15-inch tires
Overall length4320 mm (170.1 in.)
Overall width1765 mm (69.5 in.)
Overall height*11440 mm (56.7 in.)*2
1430 mm (56.3 in)*3
Wheelbase2600 mm (102.4 in.)
Tread
Front1525 mm (60.0 in.)*2
1535 mm (60.4 in.)*3
Rear1520 mm (59.8 in.)*2
1530 mm (60.2 in.)*3
Gross vehicle mass1845 kg (4068 lb.)*2
1790 kg (3946 lb.)*3
Maximum
permissible
axle capacityFront1060 kg (2337 lb.)
Rear1010 kg (2227 lb.)*2
980 kg (2161 lb.)*3
Page 642 of 696
642
6-1. Specifications
CT200h_EE (OM76041E)
Hybrid battery (traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchang-
ing. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Oil capacity
(Drain and refill
reference
*)
With filter
Without filter
4.2 L (4.4 qt., 3.7 lmp.qt.)
3.9 L (4.1 qt., 3.4 lmp.qt.)
