5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door is not fully
closed
Check that all the
doors are closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 6.8 L (1.8 gal.,
1.5 Imp.gal.) or less
Refuel the vehicle.
Seat belt reminder light
(warning buzzer)
*2
Warns the driver and/or front
passenger to fasten their seat
belts.
Fasten the seat belt.
If the front passen-
ger’s seat is occu-
pied, the front
passenger’s seat
belt also needs to be
fastened to make
the warning light
(warning buzzer)
off.
Master warning light
The warning light comes on
and flashes to indicate that the
master warning system has
detected a malfunction.
P. 5 7 8

576
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
*1:Open door warning buzzer:
P. 582
*2:Driver’s and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the
driver and front passenger that his or her seat belt is not fastened. The
buzzer sounds for 30 seconds after the vehicle reaches a speed of 20 km/
h (12 mph). Then, if the seat belt is still unfastened, the buzzer will
sound in a different tone for 90 more seconds.
Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash and the warning
buzzer to sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient of the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.

5
583
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Warning messageDetailsCorrection procedure
Indicates that the hood
is not fully closedClose the hood.
Indicates that the back
door is not fully closed
If the vehicle reaches a
speed of 5 km/h
(3 mph), a buzzer
sounds to indicate that
the back door is not
yet fully closed.
Close the back door.
(Flashes)
Indicates that the moon
roof is not fully closed
(with the “POWER”
switch off, and the
driver’s door open)
Close the moon roof.
Warns the rear passen-
ger to fasten his/her seat
belt
If a rear passenger
once fastens their seat
belt and then unfastens
it, the warning mes-
sage will appear on the
display and a buzzer
*1
will sound.
Fasten the seat belt.

584
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Warning messageDetailsCorrection procedure
(Flashes)
Indicates, if the vehicle
reaches a speed of 5 km/
h (3 mph), that the park-
ing brake is still engaged
Release the parking
brake.
(Flashes)
Indicates that the
“POWER” switch is
turned off or turned to
ACCESSORY mode
and the driver’s door is
opened while the lights
are turned on.
Turn the lights off.
(If equipped)
Indicates that Lexus
parking assist-sensor is
dirty or covered with
ice
Clean the sensor.

586
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Warning messageDetailsCorrection procedure
Indicates that the hybrid
system has overheated
This message may be
displayed when driv-
ing under severe oper-
ating conditions.
(For example, when
driving up a long steep
hill.)
Stop and check.
(P. 639)
(Flashes)
Indicates that the trac-
tion battery is low
When stopping the
vehicle for a long
period of time, shift the
shift position to P. The
battery cannot be
charged with the shift
position in N.
(Flashes)
Indicates that the trac-
tion battery power has
dropped because a long
period of time has
elapsed after shifting
the shift position to N
Restart the hybrid sys-
tem when starting the
vehicle.
(Flashes)
Indicates that the
driver’s door was
opened with the shift
position in any position
other than P
Shift the shift position
to P.

5

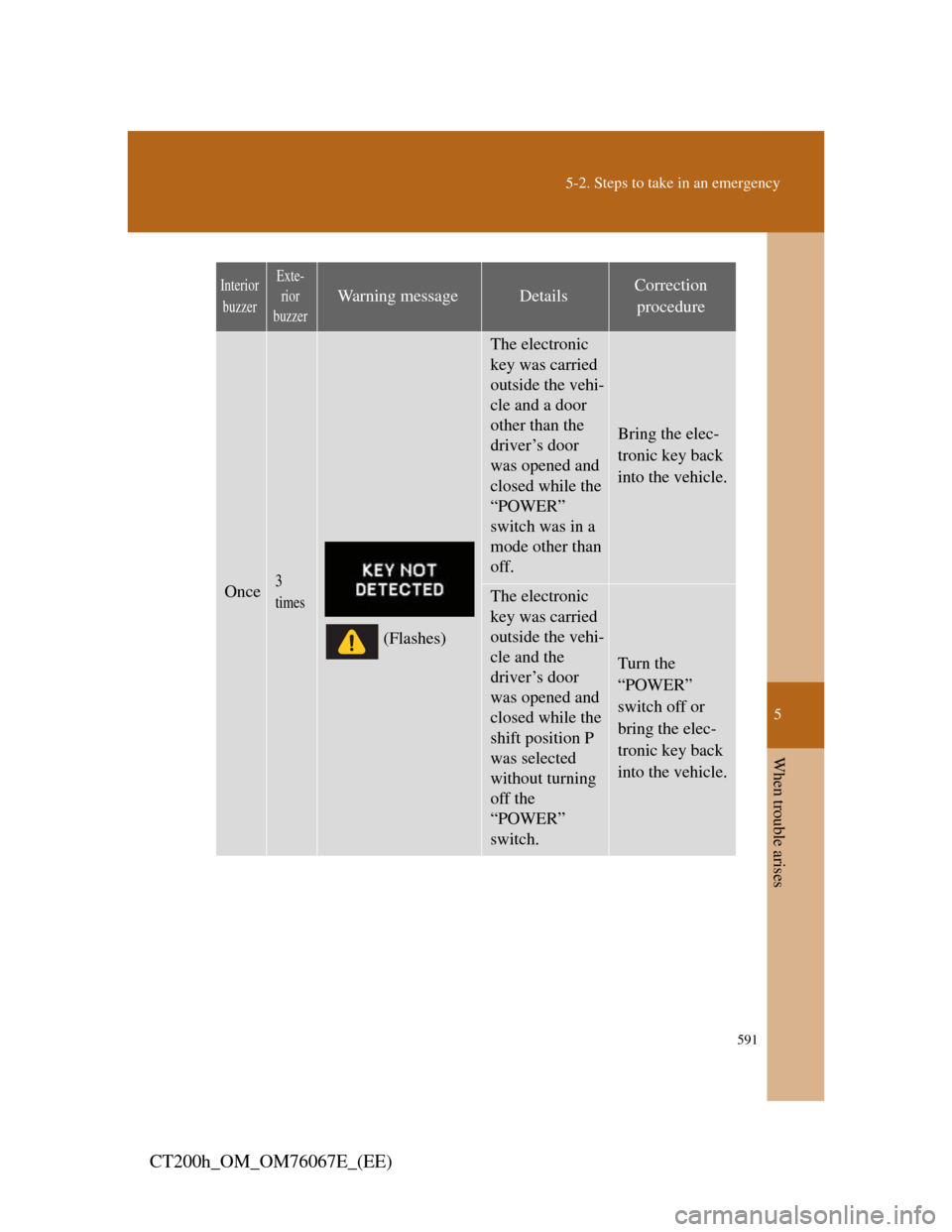

591
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Interior
buzzerExte-
rior
buzzer
Warning messageDetailsCorrection
procedure
Once3
times
(Flashes)
The electronic
key was carried
outside the vehi-
cle and a door
other than the
driver’s door
was opened and
closed while the
“POWER”
switch was in a
mode other than
off.
Bring the elec-
tronic key back
into the vehicle.
The electronic
key was carried
outside the vehi-
cle and the
driver’s door
was opened and
closed while the
shift position P
was selected
without turning
off the
“POWER”
switch.
Turn the
“POWER”
switch off or
bring the elec-
tronic key back
into the vehicle.

5
593
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Interior
buzzerExte-
rior
buzzer
Warning messageDetailsCorrection
procedure
Con-
tinu-
ous

(Flashes)
The driver’s
door was opened
while any shift
position other
than P was
selected without
turning off the
“POWER”
switch.
Shift the shift
position to P.
Con-
tinu-
ousCon-
tinu-
ous
(Displayed alter-
nately)
(Flashes)
The electronic
key was carried
outside the vehi-
cle and the
driver’s door
was opened and
closed while any
shift position
other than P was
selected without
turning off the
“POWER”
switch.
• Shift the shift
position to P.
• Bring the elec-
tronic key back
into the vehi-
cle.

594
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Interior
buzzerExte-
rior
buzzer
Warning messageDetailsCorrection
procedure
Once
Con-
tinu-
ous
(Flashes)
• An attempt was
made to lock
the doors using
the smart entry
& start system
while the elec-
tronic key was
still inside the
vehicle.
• An attempt was
made to lock
either front
door by open-
ing a door and
putting the
inside lock but-
ton into the
lock position,
then closing
the door by
pulling on the
outside door
handle with the
electronic key
still inside the
vehicle.
Retrieve the
electronic key
from the vehicle
and lock the
doors again.

5
597
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Interior
buzzerExte-
rior
buzzer
Warning messageDetailsCorrection
procedure
Once
(Flashes)
The driver’s
door was opened
and closed with
the “POWER”
switch turned
off and then the
“POWER”
switch was put
in ACCES-
SORY mode
twice without
the hybrid sys-
tem being
started.
Press the
“POWER”
switch while
depressing the
brake pedal.
During a hybrid
system starting
procedure in the
event that the
electronic key
was not func-
tioning properly
(P. 630), the
“POWER”
switch was
touched with the
electronic key.
Press the
“POWER”
switch within 10
seconds of the
buzzer sound-
ing.

616
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Before performing emergency repair
Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and disenable emer-
gency repair with the kit.
• To avoid sealant leakage,
move the vehicle until the
area of the puncture, if
known, is positioned at the
top of the tire.
