2-2. Instrument cluster
CT200h_OM_OM76067E_(EE)
Hybrid System Indicator
Hybrid System Indicator is displayed when the driving mode is other
than the sport mode.
By keeping the indicator needle within Eco area, more Eco-friendly driv-
ing can be achieved.
Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
*:When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
Eco area
Shows that the vehicle is being driven
in an Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Charge area
Shows that energy is being recovered

223
2-2. Instrument cluster
2
When driving
CT200h_OM_OM76067E_(EE)
ECO lamp and SPORT lamp (if equipped)
When sport mode is selected, the SPORT lamp (red) will illuminate.
When all of the following conditions are satisfied and the Eco-friendly
driving, the ECO lamp (blue) will illuminate:
• When driving with the shift position in D
• When either normal mode or Eco mode are selected, and EV drive
mode is not in use
• The vehicle speed is 130 km/h (80 mph) or below.
Tachometer (if equipped)
Hybrid System Indicator automatically switches to the tachometer when the
driving mode is set to the sport mode. However, while the cruise control or
dynamic radar cruise control is active, Hybrid System Indicator will not
automatically switch to the tachometer. When the cruise control or dynamic
radar cruise control is activated while the tachometer is displayed, the
tachometer will automatically switch to Hybrid System Indicator.
Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When stopped, or driving at low speeds (less than 20 km/h [12 mph])
When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

226
2-2. Instrument cluster
CT200h_OM_OM76067E_(EE)
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 216)“ECO MODE” indica-
tor (P. 209)
Tail light indicator
(P. 235)“SPORT MODE” indi-
cator (P. 209)
Headlight high beam
indicator (P. 236)
(if equipped)
Cruise control indicator
(P. 250, 255)
(if equipped)
Front fog light indicator
(P. 239)
(if equipped)
Radar cruise control
indicator (P. 255)
Rear fog light indicator
(P. 239)
(if equipped)
Lexus parking assist-
sensor indicator (P.
273)
“READY” indicator
(P. 198)Slip indicator
(P. 293, 296)
EV indicator (P. 4 0 )
(if equipped)
“PCS” warning
(P. 300)
EV drive mode indica-
tor (P. 204)
*1,
*1,

227
2-2. Instrument cluster
2
When driving
CT200h_OM_OM76067E_(EE)
*1: These lights turn on when the “POWER” switch is turned to the
ON mode to indicate that a system check is being performed. They
will turn off after the hybrid system is on, or after a few seconds.
There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light
fl h f t th l t i di t th t th t i ti
Shift position indicators
(P. 207)SRS airbag on-
off
indicator *

228
2-2. Instrument cluster
CT200h_OM_OM76067E_(EE)
CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning light
not come on when you start the hybrid system, this could mean that these
systems are not available to help protect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional immediately if this occurs.
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 571)
*1: These lights turn on when the “POWER” switch is turned to ON
mode to indicate that a system check is being performed. They
will turn off after the hybrid system is on, or after a few seconds.
There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
*2Th li h fl h i di lf i
(if equipped)
(if equipped)
*1*1*1*1*1
*1*1*1*1,*1*1
*1*1

245
2-3. Operating the lights and windshield wipers
2
When driving
CT200h_OM_OM76067E_(EE)
Raindrop sensor (vehicles with rain-sensing windshield wipers)
If the wiper switch is turned to the “AUTO” position while the
“POWER” switch is in ON mode, the wipers will operate once to show
that AUTO mode is activated.
If the temperature of the raindrop sensor is 90 C (194 F) or higher, or -
15 C (5 F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid tank.
CAUTION
Caution regarding the use of windshield wipers in “AUTO” mode (vehicles
with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers etc. do not become caught in the windshield wipers.
The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from
the rising or setting of the sun intermit-
tently strikes the windshield, or if bugs
etc. are present on the windshield.

256
2-4. Using other driving systems
CT200h_OM_OM76067E_(EE)

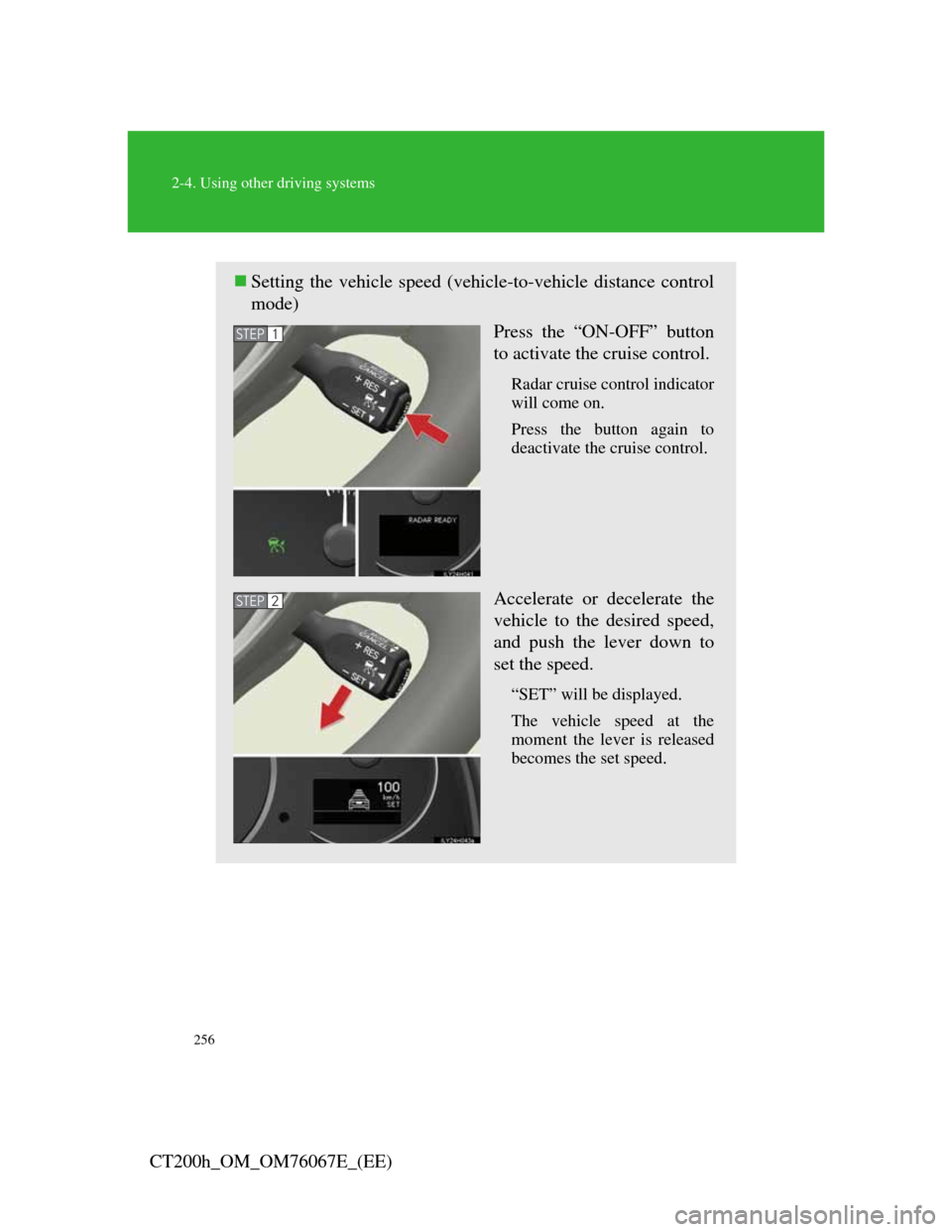

Setting the vehicle speed (vehicle-to-vehicle distance control
mode)
Press the “ON-OFF” button
to activate the cruise control.
Radar cruise control indicator
will come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to
set the speed.
“SET” will be displayed.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP1
STEP2

257
2-4. Using other driving systems
2
When driving
CT200h_OM_OM76067E_(EE)

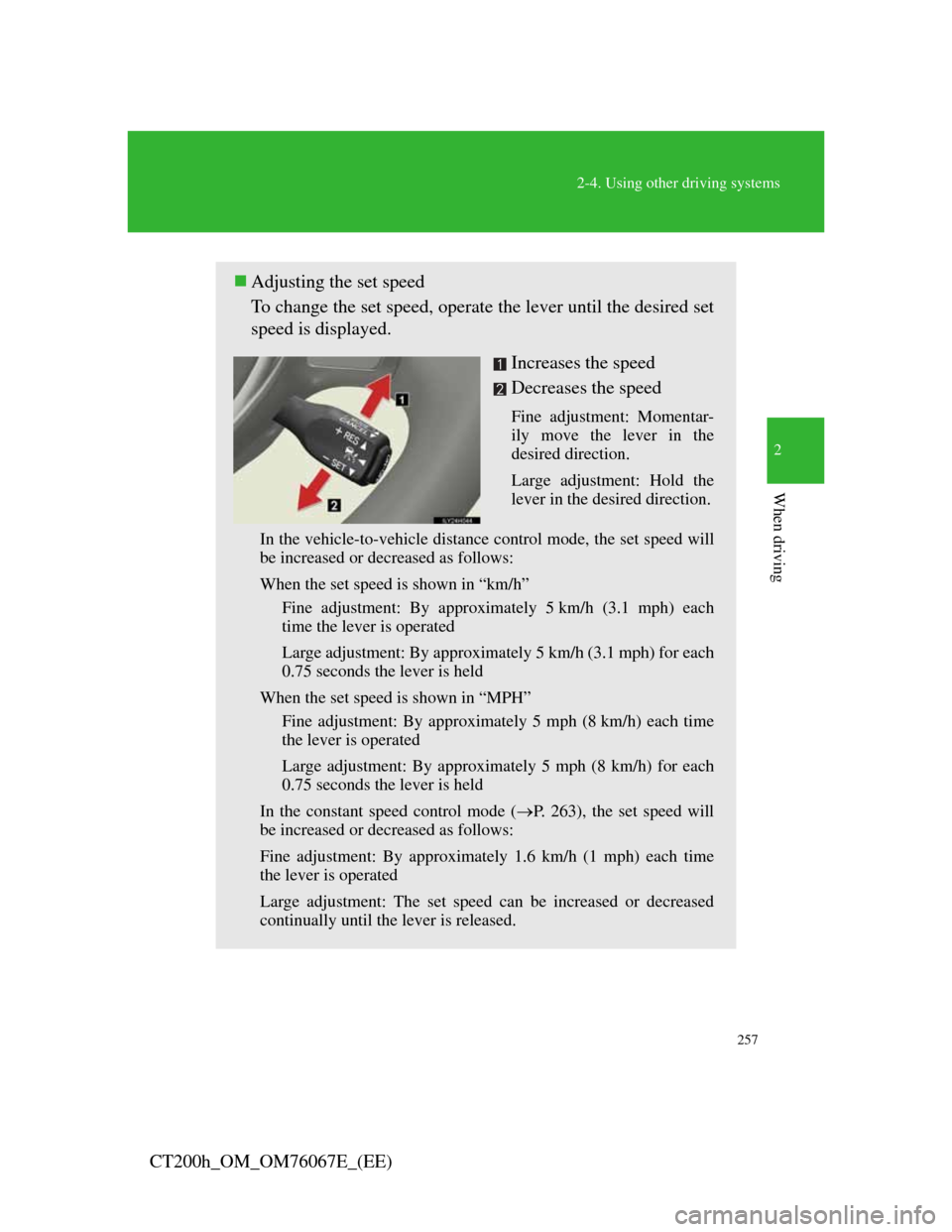

Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is displayed.
Increases the speed
Decreases the speed
Fine adjustment: Momentar-
ily move the lever in the
desired direction.
Large adjustment: Hold the
lever in the desired direction.
In the vehicle-to-vehicle distance control mode, the set speed will
be increased or decreased as follows:
When the set speed is shown in “km/h”
Fine adjustment: By approximately 5 km/h (3.1 mph) each
time the lever is operated
Large adjustment: By approximately 5 km/h (3.1 mph) for each
0.75 seconds the lever is held
When the set speed is shown in “MPH”
Fine adjustment: By approximately 5 mph (8 km/h) each time
the lever is operated
Large adjustment: By approximately 5 mph (8 km/h) for each
0.75 seconds the lever is held
In the constant speed control mode (P. 263), the set speed will
be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time
the lever is operated
Large adjustment: The set speed can be increased or decreased
continually until the lever is released.

263
2-4. Using other driving systems
2
When driving
CT200h_OM_OM76067E_(EE)
Selecting conventional constant speed control mode
Constant speed control mode differs from vehicle-to-vehicle dis-
tance control mode. When constant speed control mode is selected,
your vehicle will maintain a set speed regardless of whether or not
there are other vehicles in the lane ahead.
Press the “ON-OFF” button
to activate the cruise control.
Press the button again to deacti-
vate the cruise control.
Switch to constant speed
control mode.
(Push the lever forward and
hold for approximately one
second.)
Cruise control indicator will
come on.
When in constant speed control
mode, to return to vehicle-to-
vehicle distance control mode,
push the lever forward again
and hold for approximately 1
second.

283
2-4. Using other driving systems
2
When driving
CT200h_OM_OM76067E_(EE)
When using the rear view monitor system
The anti-glare function of the inside rear view mirror will be canceled.
Automatic shut off
The display will be turned off automatically after 5 minutes.
Display mode
The rear view monitor display mode can be adjusted when the “POWER”
switch is in ON mode and the shift position is in R.
To permanently disable the monitor.
Push and hold the “AUTO” button for 12 to 15 seconds.
The monitor will turn off and on after 6 seconds. Continue holding the
button down until the display turns back off.
The indicator should flash orange.
The monitor will not automatically turn on again after the “POWER”
switch is turned OFF and ON.
To manually turn on the monitor when it is turned off.
Push the “AUTO” button. The indicator should turn green.
Displayed area
The area covered by the camera is lim-
ited. Objects which are close to either
corner of the bumper or under the bumper
cannot be seen on the screen.
The area displayed on the screen may
vary according to vehicle orientation or
road conditions.
Corners of
