73
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_OM_OM76067E_(EE)
Certification for the smart entry & start system
Hereby, Tokai Rika Co., Ltd., declares that this B81UA is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.

74
1-3. Opening, closing and locking the doors
CT200h_OM_OM76067E_(EE)
Hereby, Tokai Rika Co., Ltd., declares that this B74EA is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.

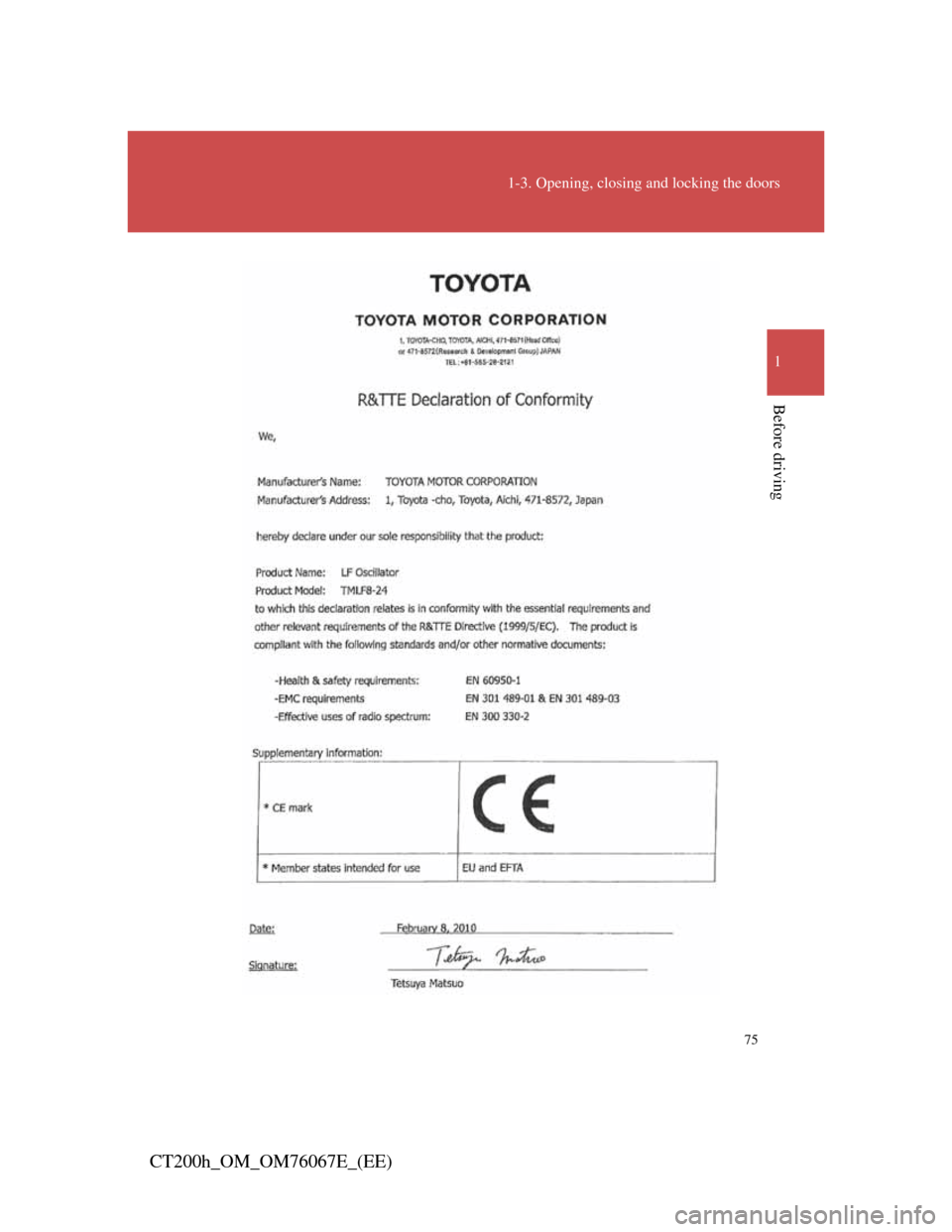

75
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_OM_OM76067E_(EE)

76
1-3. Opening, closing and locking the doors
CT200h_OM_OM76067E_(EE)

77
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_OM_OM76067E_(EE)

78
1-3. Opening, closing and locking the doors
CT200h_OM_OM76067E_(EE)
Hereby, DENSO CORPORATION declares that this 14AEC is in compli-
ance with the essential requirements and other relevant provisions of Direc-
tive 1999/5/EC.
Hereby, DENSO CORPORATION declares that this 14AEX is in compli-
ance with the essential requirements and other relevant provisions of Direc-
tive 1999/5/EC.
-Replace only with the same or equivalent type recommended by the manu-
facturer.
-Dispose of used batteries according to the local laws.
CAUTION
Caution regarding interference with electronic devices
People with implanted pacemakers or cardiac defibrillators should keep
away from the smart entry & start system antennas. (P. 6 5 )
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of emitting the radio
waves. Then, consult your doctor to see if you should disable the entry
function.
Users of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of
the device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such med-
ical devices.
Ask any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for details on disabling the entry function.

79
1
1-3. Opening, closing and locking the doors
Before driving
CT200h_OM_OM76067E_(EE)
Push-button start system
: If equipped
Starting and stopping the hybrid system can be performed simply by
carrying the electronic key on your person, for example in your
pocket.
(P. 198)
(The driver should always carry the electronic key.)

80
1-3. Opening, closing and locking the doors
CT200h_OM_OM76067E_(EE)
Antenna location and effective range
Antenna location
Antenna inside the cabin
Antenna inside the luggage
compartment
Effective range (areas within which the electronic key is
detected)
When starting the hybrid sys-
tem or changing “POWER”
switch modes
The system can be operated when
the electronic key is inside the
vehicle.

81
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_OM_OM76067E_(EE)
Conditions affecting operation
P. 8 6
Electronic key battery depletion
P. 8 7
To operate the system properly
Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not
function.)
Note for the push-button start system
Even when the electronic key is within the effective range (detection
areas), the system may not operate properly.
For example, the electronic key is on the instrument panel, luggage
cover, floor or in the glove box when the hybrid system is started or
“POWER” switch modes are changed.
Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.

82
1-3. Opening, closing and locking the doors
CT200h_OM_OM76067E_(EE)
Alarms and warning messages
An interior alarm is used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures
according to the warning message shown on the multi-information display.
(P. 578)
The following table describes circumstances and correction procedures
when only alarms are sounded.
If the push-button start system does not operate properly
P. 6 3 1
When the electronic key battery is fully depleted
P. 5 2 7
Customization
Settings (e.g. push-button start system) can be changed.
(Customizable features P. 667)
AlarmSituationCorrection procedure
Interior alarm
pings repeatedly
The “POWER” switch was
turned to ACCESSORY
mode while the driver’s
door was open (The
driver’s door was opened
when the “POWER”
switch was in ACCES-
SORY mode)
Turn the “POWER”
switch off and close
the driver’s door.
