5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
CAUTION
When using the compact spare tire
Remember that the spare tire provided is specifically designed for use
with your vehicle. Do not use your spare tire on another vehicle.
Do not use more than one spare tire simultaneously.
Replace the spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
ABS & Brake assist
VSC
TRC
Cruise control (if equipped)
Dynamic radar cruise control (if equipped)
PCS (Pre-Crash Safety system) (if equipped)
EPS
Rear view monitor system (if equipped)
Lexus parking assist monitor (if equipped)
Lexus parking assist-sensor (if equipped)
Navigation system (if equipped)

610
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
CAUTION
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle while it is supported
by the jack.
Do not start or run the hybrid system while your vehicle is supported by
the jack.
Do not raise the vehicle while someone is inside.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace the
tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one work-
ing on or near the vehicle may be injured.

5
611
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
CAUTION
Replacing a flat tire
Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N•m
(10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads
or bolt holes of the wheel, have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped
professional.
• When installing the wheel nuts, be sure to install then with the tapered
ends facing inward. (P. 522)

612
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
CAUTION
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a colli-
sion or sudden braking.
When stowing the flat tire
Make sure the rear seatbacks are in their original position.
Secure it using a tire tie-down belt. Otherwise, the flat tire may fly out in
case of sudden braking or an accident, resulting in death or serious injury.
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Be careful when driving over bumps with the compact spare tire installed on
the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.

5
613
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
If you have a flat tire (vehicles without a spare tire)
Your vehicle is equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can
be repaired temporarily with the emergency tire puncture repair kit.
Before repairing the vehicle
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Shift the shift position to P.
Stop the hybrid system.
Turn on the emergency flashers.
Location of the emergency tire puncture repair kit, jack and
tools
Center auxil-
iary
Jack*Towing eye-
Wheel
nut
Jack han-
Emergency tire
puncture repair

614
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Taking out the emergency tire puncture repair kit
Remove the center deck board.
Emergency tire puncture repair kit components
Insertion keyPower plug
Hose
Stickers
Air release
Compres-
sor switch Air pressureBottle
STEP1

5
615
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)Remove the center auxiliary
box.
Take out the emergency tire
puncture repair kit.

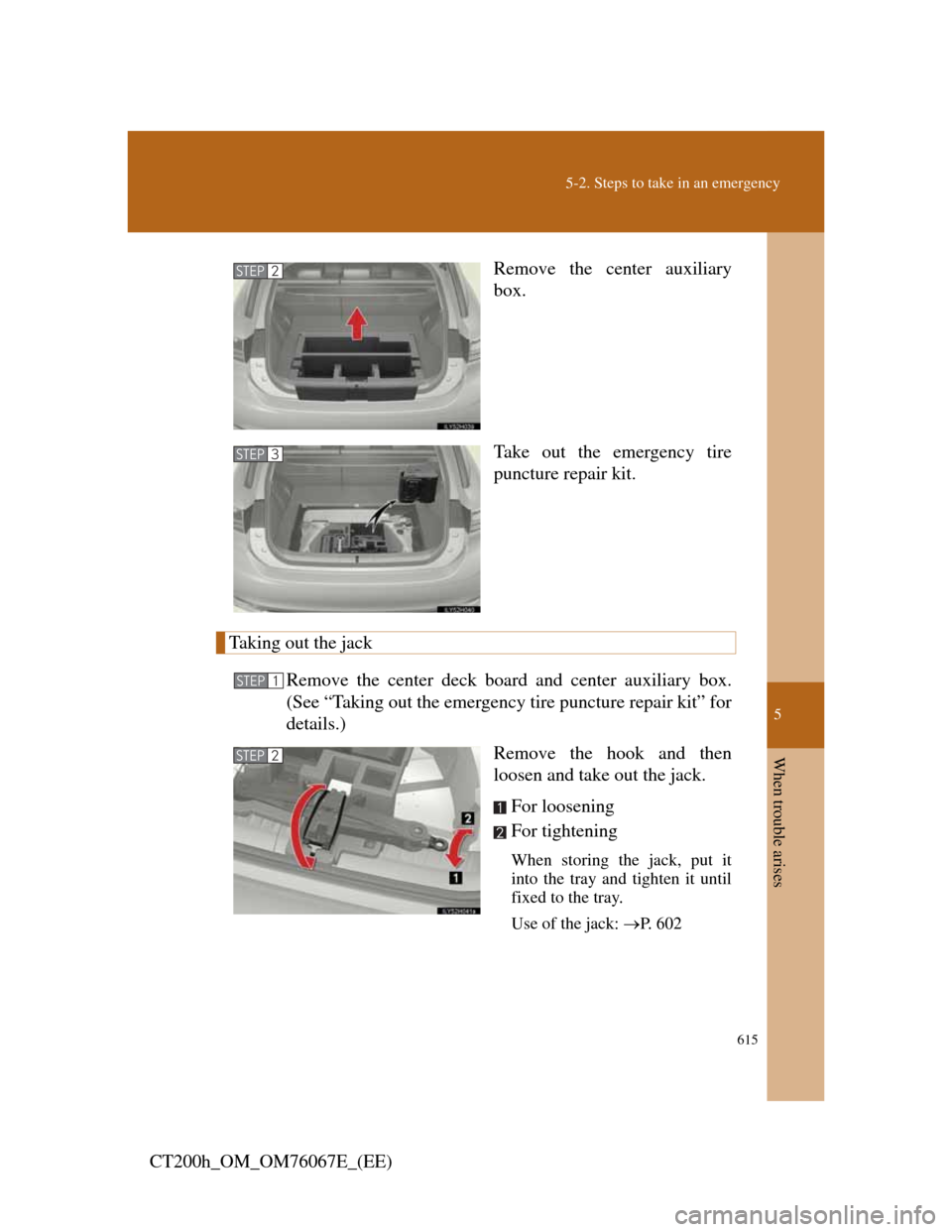

Taking out the jack
Remove the center deck board and center auxiliary box.
(See “Taking out the emergency tire puncture repair kit” for
details.)
Remove the hook and then
loosen and take out the jack.
For loosening
For tightening
When storing the jack, put it
into the tray and tighten it until
fixed to the tray.
Use of the jack: P. 6 0 2
STEP2
STEP3
STEP1
STEP2

616
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Before performing emergency repair
Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and disenable emer-
gency repair with the kit.
• To avoid sealant leakage,
move the vehicle until the
area of the puncture, if
known, is positioned at the
top of the tire.

5
617
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Emergency repair method
Pull the insertion key out of the
kit.
Place the kit with the bottom
facing upward.
Peel off the label, and push in
the insertion key until a click is
heard.
Return the kit to an upright
position and make sure that the
compressor switch is off.
Use the kit with the top facing
upward.
Connect the power plug to the
power outlet socket. (P. 460)
STEP1
STEP2
STEP3
STEP4

618
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)Remove the valve cap from the
valve of the punctured tire.
Remove the air release cap
from the hose.
Connect the hose to the valve.
Screw the end of the hose
clockwise as far as possible.
Check the specified tire infla-
tion pressure.
Tire inflation pressure is speci-
fied on the label as shown. (P.
661)
Start the hybrid system. (P. 198)
STEP5
STEP6
STEP7
STEP8
STEP9
