6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicles with 16-inch and 17-inch tires
*3: Vehicles with 15-inch tires
Overall length4320 mm (170.1 in.)
Overall width1765 mm (69.5 in.)
Overall height*11440 mm (56.7 in.)*2
1430 mm (56.3 in)*3
Wheelbase2600 mm (102.4 in.)
Tread
Front1525 mm (60.0 in.)*2
1535 mm (60.4 in.)*3
Rear1520 mm (59.8 in.)*2
1530 mm (60.2 in.)*3
Gross vehicle mass1845 kg (4068 lb.)*2
1790 kg (3946 lb.)*3
Maximum
permissible
axle capacityFront1060 kg (2337 lb.)
Rear1010 kg (2227 lb.)*2
980 kg (2161 lb.)*3

651
6-1. Specifications
6
Vehicle specifica-
CT200h_OM_OM76067E_(EE)
Vehicle identification
Vehicle identification number

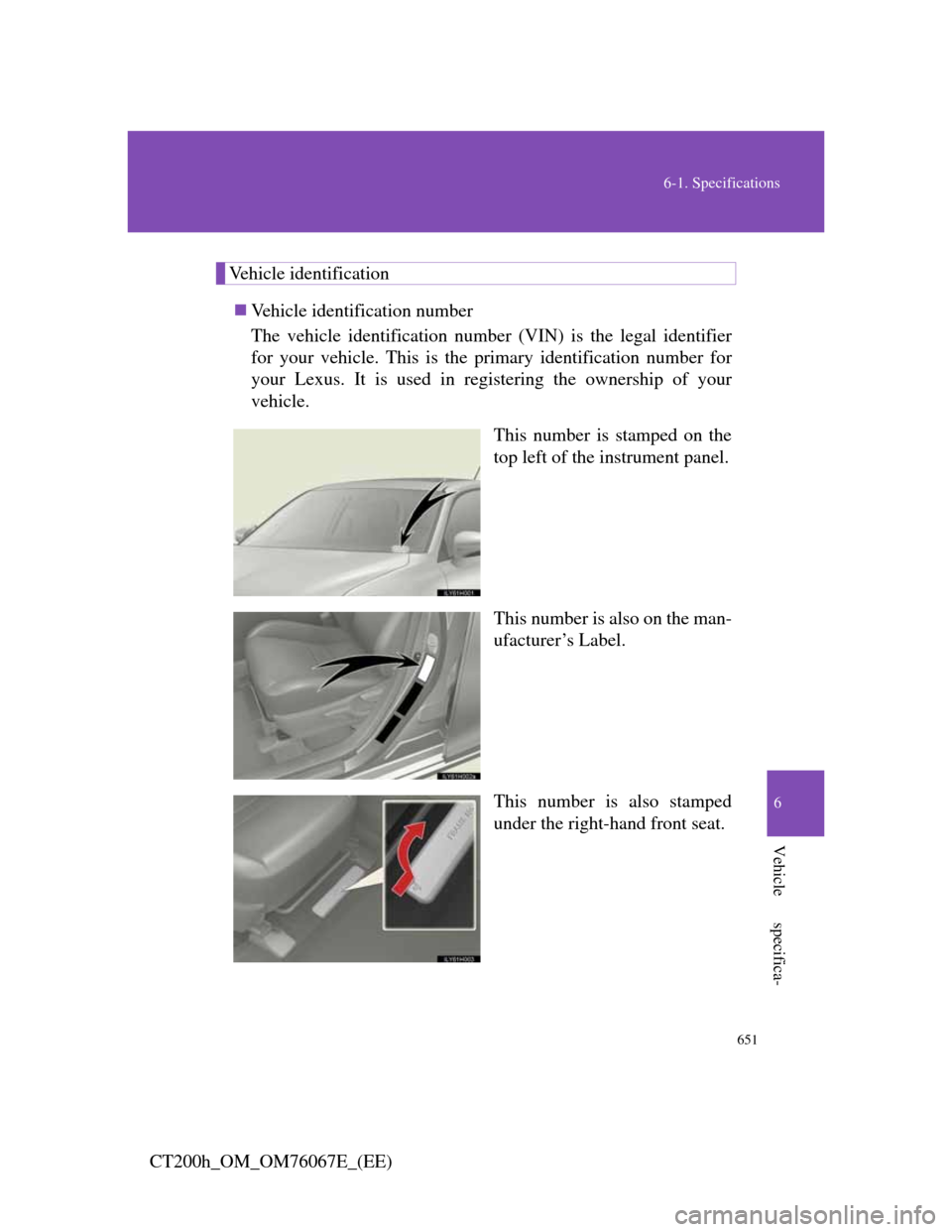

The vehicle identification number (VIN) is the legal identifier
for your vehicle. This is the primary identification number for
your Lexus. It is used in registering the ownership of your
vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the man-
ufacturer’s Label.
This number is also stamped
under the right-hand front seat.

652
6-1. Specifications
CT200h_OM_OM76067E_(EE)Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  88.3 mm (3.17  3.48 in.)
Displacement1798 cm3 (109.7 cu.in.)
Valve clearance
(engine cold)Automatic adjustment

653
6-1. Specifications
6
Vehicle specifica-
CT200h_OM_OM76067E_(EE)
Fuel
Electric motor (traction motor)
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only.
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)45 L (11.9 gal., 9.9 lmp.gal.)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)

654
6-1. Specifications
CT200h_OM_OM76067E_(EE)
Hybrid battery (traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchang-
ing. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Oil capacity
(Drain and refill
 reference
*)
With filter
Without filter
4.2 L (4.4 qt., 3.7 lmp.qt.)
3.9 L (4.1 qt., 3.4 lmp.qt.)

655
6-1. Specifications
6
Vehicle specifica-
CT200h_OM_OM76067E_(EE)Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”,
SN “Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Lexus vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at
the next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become diffi-
cult to start, so SAE 5W-30 or
lower viscosity engine oil is
recommended.
Temperature range anticipated
before
Preferred

656
6-1. Specifications
CT200h_OM_OM76067E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality des-
ignation by API (American
Petroleum Institute) (SN)
Center portion: The SAE vis-
cosity grade (SAE 0W-20)
Lower portion:
“Resource-Conserving” means
that the oil has fuel saving and
environmental protection capa-
bilities.
ILSAC Certification Mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certifica-
tion Mark is displayed on the
front of the container.

657
6-1. Specifications
6
Vehicle specifica-
CT200h_OM_OM76067E_(EE)
Cooling system
Capacity
Gasoline
engine
With an exhaust heat recirculator system
6.9 L (7.3 qt., 6.1 Imp.qt.)
Without exhaust heat recirculator system
6.5 L (6.9 qt., 5.7 Imp.qt.)
Power
control
unit
2.1 L (2.2 qt., 1.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.

658
6-1. Specifications
CT200h_OM_OM76067E_(EE)
Ignition system
Electrical system
Spark plug
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
12-volt battery
12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)Open voltage
at 20 C (68 F):
Charging rates
With a navigation system or alarm
4.2 A max.
Without a navigation system and alarm
3.5 A max.
