Lexus CT200h 2013 Owner's Manual (in English)

1513-2. Opening, closing and locking the doors
3
Operation of each component
CT200h_OM_OM76102E_(EE)

1523-2. Opening, closing and locking the doors
CT200h_OM_OM76102E_(EE)

1533-2. Opening, closing and locking the doors
3
Operation of each component
CT200h_OM_OM76102E_(EE)

1543-2. Opening, closing and locking the doors
CT200h_OM_OM76102E_(EE)

1553-2. Opening, closing and locking the doors
3
Operation of each component

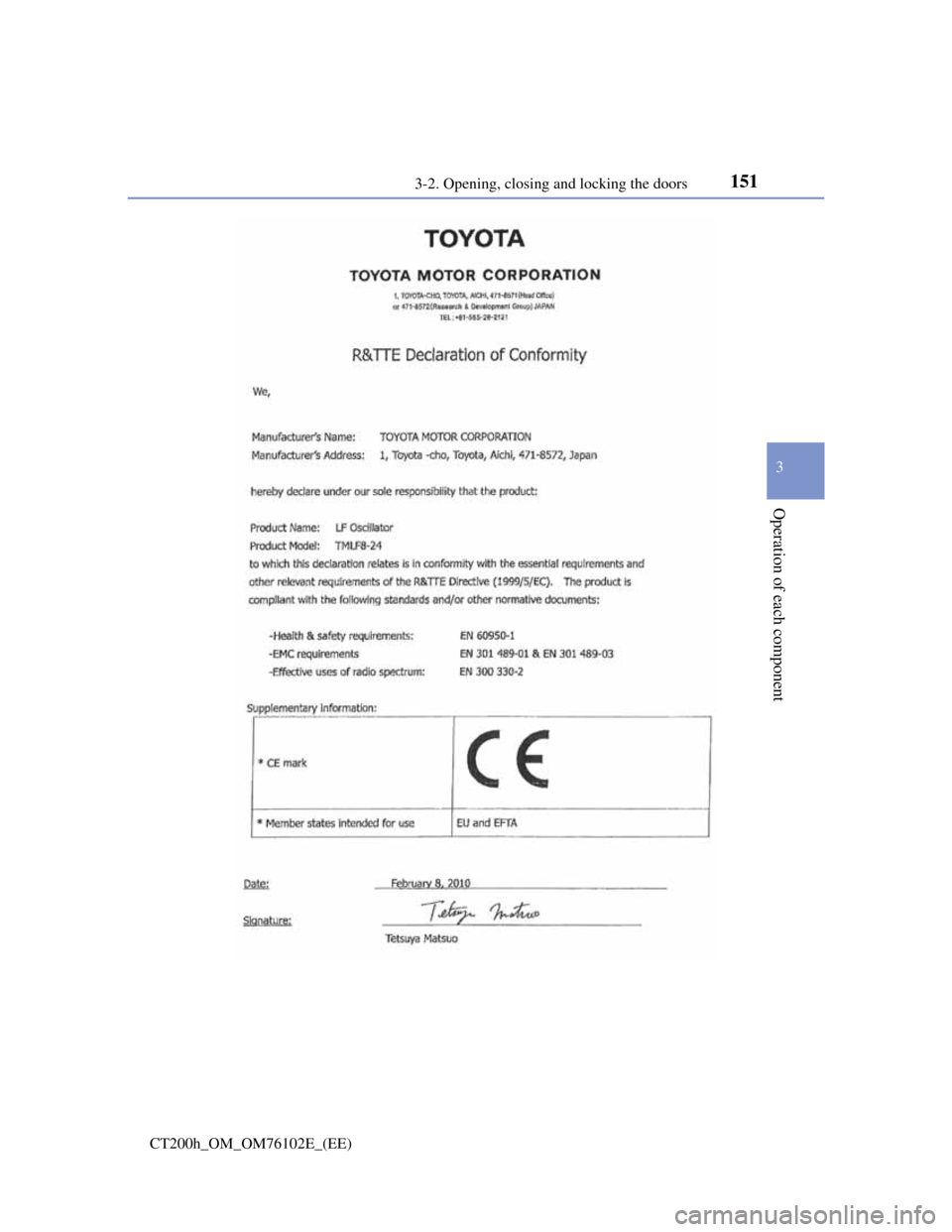

CT200h_OM_OM76102E_(EE)The DECLARATION of CONFORMITY (DoC) is available at the following
address:
http://www.tokai-rika.co.jp/pc/

1563-2. Opening, closing and locking the doors
CT200h_OM_OM76102E_(EE)

1573-2. Opening, closing and locking the doors
3
Operation of each component
CT200h_OM_OM76102E_(EE)The DECLARATION of CONFORMITY (DoC) is available at the following
address:
http://www.tokai-rika.co.jp/pc/

1583-2. Opening, closing and locking the doors
CT200h_OM_OM76102E_(EE)
WA R N I N G
Caution regarding interference with electronic devices
People with implantable cardiac pacemakers, cardiac resynchronization ther-
apy-pacemakers or implantable cardioverter defibrillators should keep away
from the smart entry & start system antennas. (P. 143)
The radio waves may affect the operation of such devices. If necessary, the
entry function can be disabled. Ask any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional for details, such as the
frequency of radio waves and timing of the emitted radio waves. Then, con-
sult your doctor to see if you should disable the entry function.
Users of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable cardio-
verter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
Ask any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for details on disabling the entry function.

159
3 3-3. Adjusting the seats
Operation of each component
CT200h_OM_OM76102E_(EE)
Front seats
Manual seat
Seat position adjustment lever
Seatback angle adjustment lever
Vertical height adjustment lever
(if equipped for driver’s side)
Power seat
Seat position adjustment switch
Seat cushion (front) angle adjust-
ment switch (for driver’s side)
Vertical height adjustment switch
(for driver’s side)
Seatback angle adjustment
switch
Lumbar support adjustment
switch (for driver’s side)
Adjustment procedure
1
2
3
1
2
3
4
5

1603-3. Adjusting the seats
CT200h_OM_OM76102E_(EE)
WA R N I N G
When adjusting the seat position
Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the shoul-
der belt, increasing the risk of death or serious injury in the event of an acci-
dent.
Adjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
After adjusting the seat, make sure that the seat is locked in position. (manual
seat)
