5177-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
7
Maintenance and care

5187-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)

5197-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
7
Maintenance and care

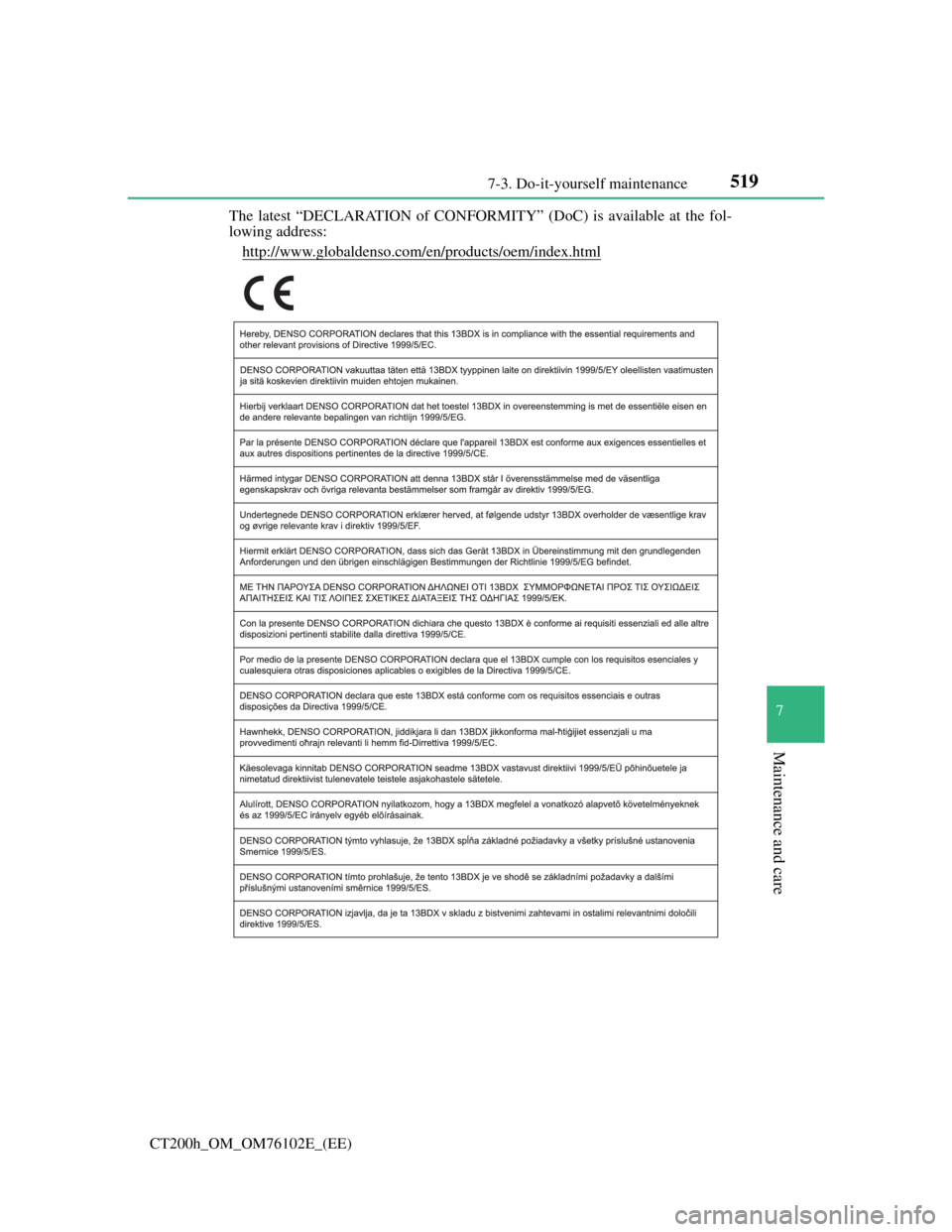

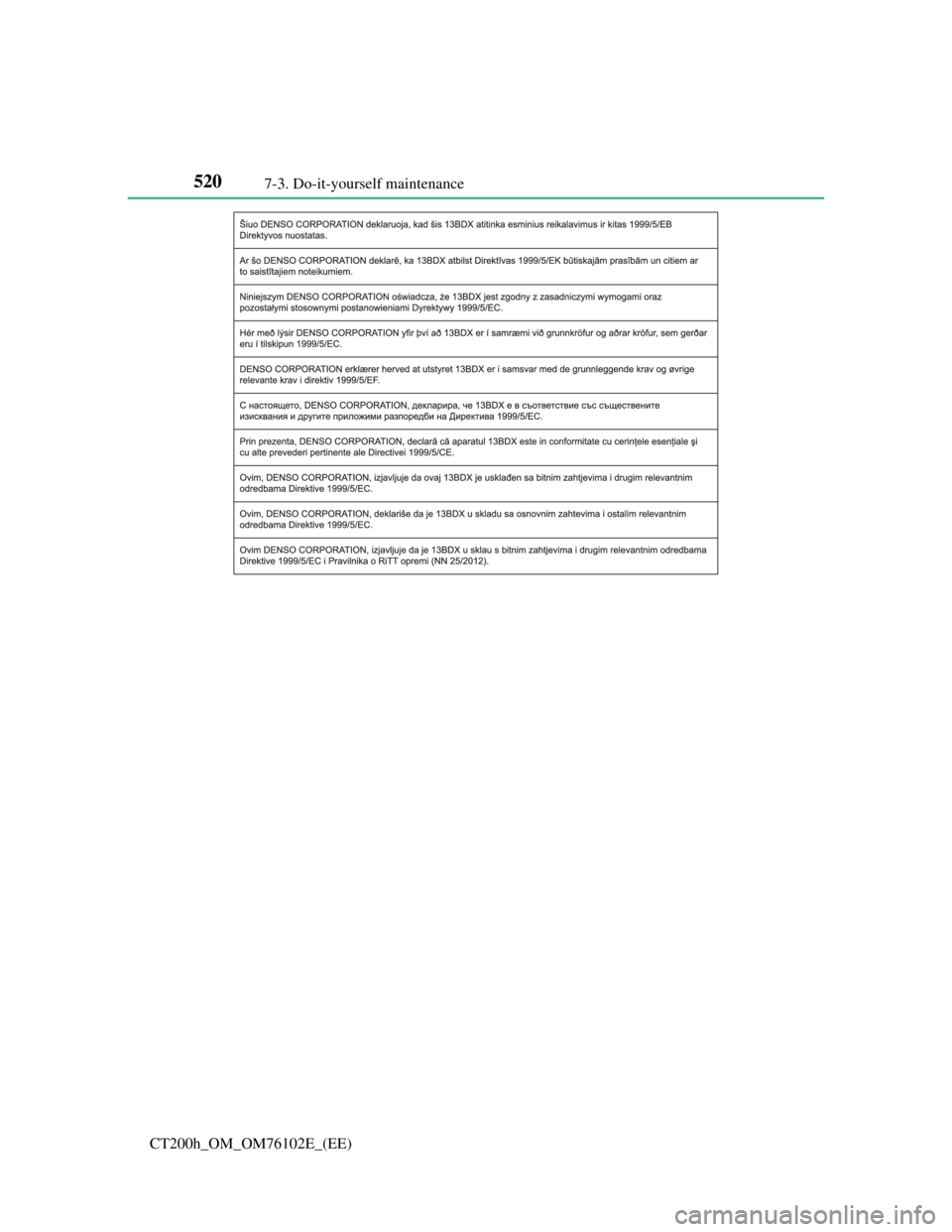

The latest “DECLARATION of CONFORMITY” (DoC) is available at the fol-
lowing address:
http://www.globaldenso.com/en/products/oem/index.html

5207-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)

5217-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
7
Maintenance and care
WA R N I N G
When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as danger-
ous handling characteristics, which may lead to an accident resulting in death
or serious injury.
Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
Do not use tire sizes other than those recommended by Lexus.
Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Do not mix summer, all season and snow tires.
Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
Vehicles with a compact spare tire: Do not tow if your vehicle has a compact
spare tire installed.
Vehicles with an emergency tire puncture repair kit: Do not tow anything if a
tire that has been repaired using the emergency tire puncture repair kit is
installed. The load on the tire may cause unexpected damage to the tire.
When initializing the tire pressure warning system
Do not operate the tire pressure warning reset switch without first adjusting the
tire inflation pressure to the specified level. Otherwise, the tire pressure warn-
ing light may not come on even if the tire inflation pressure is low, or it may
come on when the tire inflation pressure is actually normal.

5227-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
NOTICE
Repairing or replacing tires, wheels, tire pressure warning valves, transmitters
and tire valve caps
When removing or fitting the wheels, tires or the tire pressure warning valves
and transmitters, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valves
and transmitters may be damaged if not handled correctly.
Make sure to install the tire valve caps. If the tire valve caps are not installed,
water could enter the tire pressure warning valves and the tire pressure warn-
ing valves could be bound.
When replacing tire valve caps, do not use tire valve caps other than those
specified.
The cap may become stuck.
To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional or other qualified service shop as soon as possible. Make sure to
replace the tire pressure warning valve and transmitter when replacing the tire.
(P. 511)
Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the cush-
ioning ability of the tires. In addition, driving on rough roads may cause dam-
age to the tires themselves, as well as the vehicle’s wheels and body.
Low profile tires (vehicles with 17 inch tires)
Low profile tires may cause greater damage than usual to the tire wheel when
sustaining impact from the road surface. Therefore, pay attention to the follow-
ing:
Be sure to use proper tire inflation pressure. If tires are under-inflated, they
may be damaged more severely.
Avoid potholes, uneven pavement, curbs and other road hazards. Failure to do
so may lead to severe tire and wheel damage.
If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

5237-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
7
Maintenance and care
Tire inflation pressure
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
Reduced fuel efficiency
Reduced driving comfort and tire life
Reduced safety
Damage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for
more than 1.5 km or 1 mile, you will get an accurate cold tire inflation pressure
reading.
Always use a tire pressure gauge.
The appearance of the tire can be misleading. In addition, tire inflation pressure
that is even just a few pounds off can affect ride quality and handling.
Do not reduce tire inflation pressure after driving. It is normal for tire inflation
pressure to be higher after driving.
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is balanced.
Make sure to maintain proper tire inflation pressure. Tire inflation pres-
sure should be checked at least once per month. However, Lexus recom-
mends that tire inflation pressure be checked once every two weeks.
(P. 645)

5247-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
WA R N I N G
Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the following conditions may
occur and result in an accident causing death or serious injury:
Excessive wear
Uneven wear
Poor handling
Possibility of blowouts resulting from overheated tires
Poor sealing of the tire bead
Wheel deformation and/or tire separation
A greater possibility of tire damage from road hazards
NOTICE
When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
Without the valve caps, dirt or moisture could get into the valve and cause air
leakage, which could result in an accident. If the caps are lost, replace them as
soon as possible.

5257-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
7
Maintenance and care
Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*.
Replacement wheels are available at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Use only Lexus wheel nuts and wrenches designed for use with your
aluminum wheels.
When rotating, repairing or changing your tires, check that the wheel
nuts are still tight after driving 1600 km (1000 miles).
Be careful not to damage the aluminum wheels when using tire chains.
Use only Lexus genuine balance weights or equivalent and a plastic or
rubber hammer when balancing your wheels.
When replacing wheels (vehicles with the tire pressure warning system)
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressure warning system to provide advance warn-
ing in the event of a loss in tire inflation pressure. Whenever wheels are replaced,
tire pressure warning valves and transmitters must be installed. (P. 5 1 1 )
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
Wheel selection
Aluminum wheel precautions

5267-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
WA R N I N G
When replacing wheels
Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
Never use an inner tube in a leaking wheel which is designed for a tubeless
tire. Doing so may result in an accident, causing death or serious injury.
Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.
NOTICE
Replacing tire pressure warning valves and transmitters (vehicles with the tire
pressure warning system)
Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional or
other qualified service shop. In addition, make sure to purchase your tire pres-
sure warning valves and transmitters at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with
non-genuine wheels.
