TABLE OF CONTENTS8
CT200h_OM_OM76102E_(EE)
8-2. Steps to take in an emergency
If your vehicle needs to be
towed................................562
If you think something is
wrong...............................567
If a warning light turns on or a
warning buzzer
sounds................................568
If a warning message is dis-
played...............................575
If you have a flat tire (vehicles
with a spare tire................590
If you have a flat tire (vehicles
without a spare
tire....................................604
If the hybrid system will not
start.................................619
If the electronic key does not
operate properly................621
If the 12-volt battery is dis-
charged..............................623
If your vehicle overheats ... 628
If the vehicle becomes
stuck.................................6329-1. Specifications
Maintenance data (fuel, oil
level,
etc)....................................636
Fuel information................ 648
9-2. Customization
Customizable features ....... 650
9-3. Initialization
Items to initialize............... 661
What to do if... (Troubleshoot-
ing).............................................664
Alphabetical index ..................... 6689Vehicle specifications
Index
For vehicles with a navigation system, refer to the “NAVIGATION
SYSTEM OWNER’S MANUAL” for information regarding the equip-
ment listed below.
• Navigation system
Lkiitit• Audio/visual system
Page 514 of 688
5107-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
Tires
New tread
Treadwear indicator
Wo r n t r e a d
The location of treadwear indicators
is shown by the “TWI” or “”
marks, etc., molded on the sidewall
of each tire.
Check spare tire condition and pres-
sure if not rotated.
Rotate the tires in the order shown.
To equalize tire wear and help
extend tire life, Lexus recommends
that tire rotation is carried out
approximately every 10000 km
(6000 miles).
Do not fail to initialize the tire pres-
sure warning system after tire rota-
tion.
(vehicle with the tire pressure warn-
ing system)
Replace or rotate tires in accordance with maintenance schedules and
treadwear.

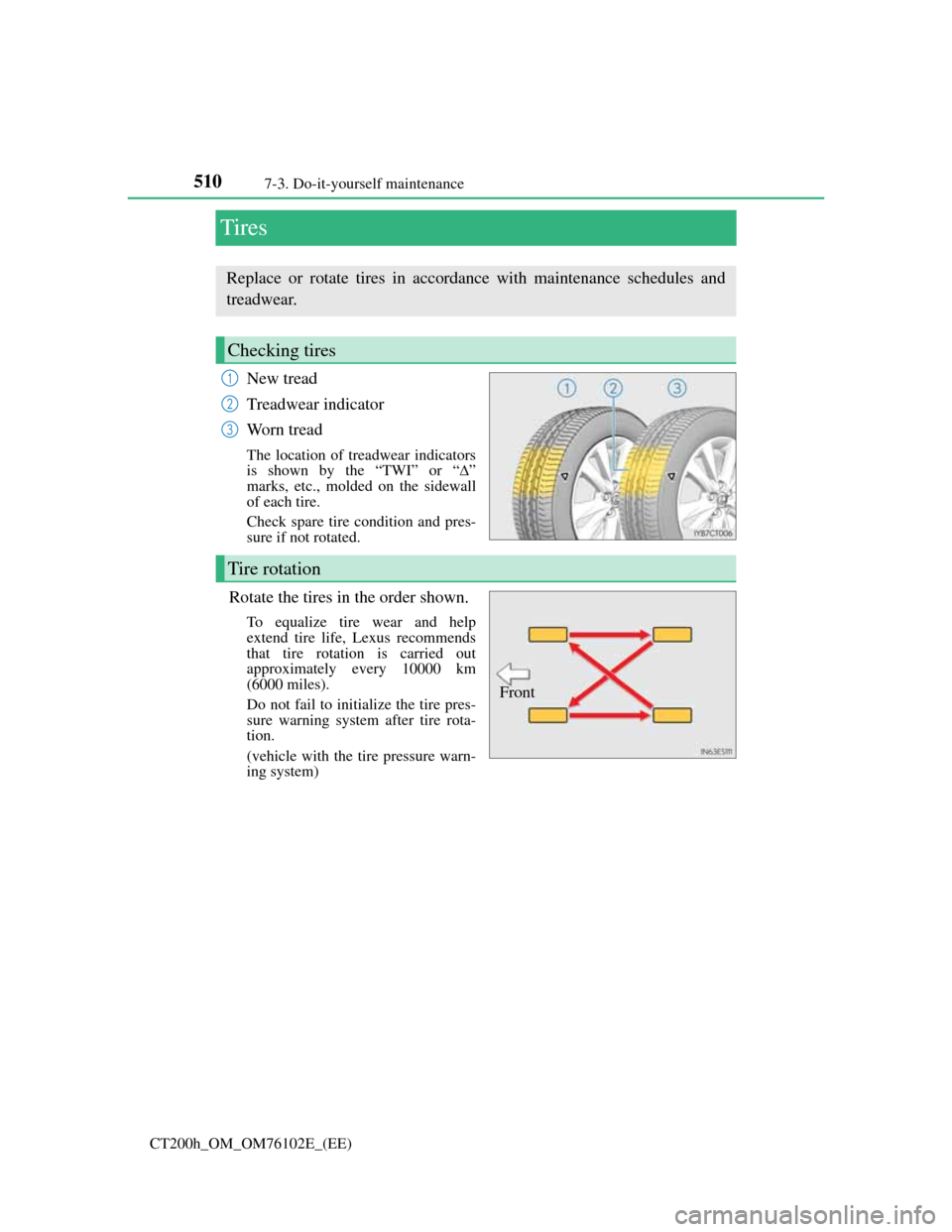

Checking tires
1
2
3
Tire rotation
Front
Page 525 of 688
5217-3. Do-it-yourself maintenance
CT200h_OM_OM76102E_(EE)
7
Maintenance and care
WA R N I N G
When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as danger-
ous handling characteristics, which may lead to an accident resulting in death
or serious injury.
Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
Do not use tire sizes other than those recommended by Lexus.
Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Do not mix summer, all season and snow tires.
Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
Vehicles with a compact spare tire: Do not tow if your vehicle has a compact
spare tire installed.
Vehicles with an emergency tire puncture repair kit: Do not tow anything if a
tire that has been repaired using the emergency tire puncture repair kit is
installed. The load on the tire may cause unexpected damage to the tire.
When initializing the tire pressure warning system
Do not operate the tire pressure warning reset switch without first adjusting the
tire inflation pressure to the specified level. Otherwise, the tire pressure warn-
ing light may not come on even if the tire inflation pressure is low, or it may
come on when the tire inflation pressure is actually normal.
Page 563 of 688
559
8When trouble arises
CT200h_OM_OM76102E_(EE)
8-1. Essential information
Emergency flashers........... 560
If your vehicle has to
be stopped in an
emergency....................... 561
8-2. Steps to take in an emergency
If your vehicle needs to be
towed .............................. 562
If you think something is
wrong .............................. 567
If a warning light turns on
or a warning buzzer
sounds ............................. 568
If a warning message is
displayed ......................... 575
If you have a flat tire (vehicles
with a spare tire) ............. 590
If you have a flat tire (vehicles
without a spare tire) ........ 604
If the hybrid system will not
start ................................. 619
If the electronic key does not
operate properly .............. 621
If the 12-volt battery is
discharged ....................... 623
If your vehicle overheats .. 628
If the vehicle becomes
stuck................................ 632
Page 577 of 688
5738-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
When a tire is replaced with a spare tire (vehicles with a compact spare tire and
the tire pressure warning system)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off even
though the flat tire has been replaced with the spare tire. Replace the spare tire
with the repaired tire and adjust the tire inflation pressure. The tire pressure
warning light will go off after a few minutes.
Conditions that the tire pressure warning system may not function properly (vehi-
cles with the tire pressure warning system)
P. 514
If the tire pressure warning light frequently comes on after blinking for 1 minute
(vehicles with the tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1 minute
when the power switch is turned to ON mode, have it checked by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or
audio sound.
WA R N I N G
If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or serious injury.
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly
and operate using more force than usual.
Page 578 of 688
5748-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
WA R N I N G
If the tire pressure warning light comes on (vehicles with the tire pressure warn-
ing system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation
pressure immediately.
Vehicles with a spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat tire.
Check the tires. If a tire is flat, change it with the spare tire and have the flat
tire repaired by the nearest any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
Vehicles with an emergency tire puncture repair kit: If the tire pressure warn-
ing light comes on even after tire inflation pressure adjustment, it is probable
that you have a flat tire. Check the tires. If a tire is flat, repair the flat tire by
using emergency tire puncture repair kit.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
If a blowout or sudden air leakage should occur (vehicles with the tire pressure
warning system)
The tire pressure warning system may not activate immediately.
NOTICE
To ensure the tire pressure warning system operates properly (vehicles with the
tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pressure
warning system may not operate properly.
Page 595 of 688
5918-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
If you have a flat tire (vehicles with a spare tire)
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift position to P.
Stop the hybrid system.
Turn on the emergency flashers. (P. 5 6 0 )
Your vehicle is equipped with a spare tire. The flat tire can be replaced
with the spare tire.
For details about tires: P. 5 1 0
WA R N I N G
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair, which could result in an accident.
Before jacking up the vehicle
Page 596 of 688
5928-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)

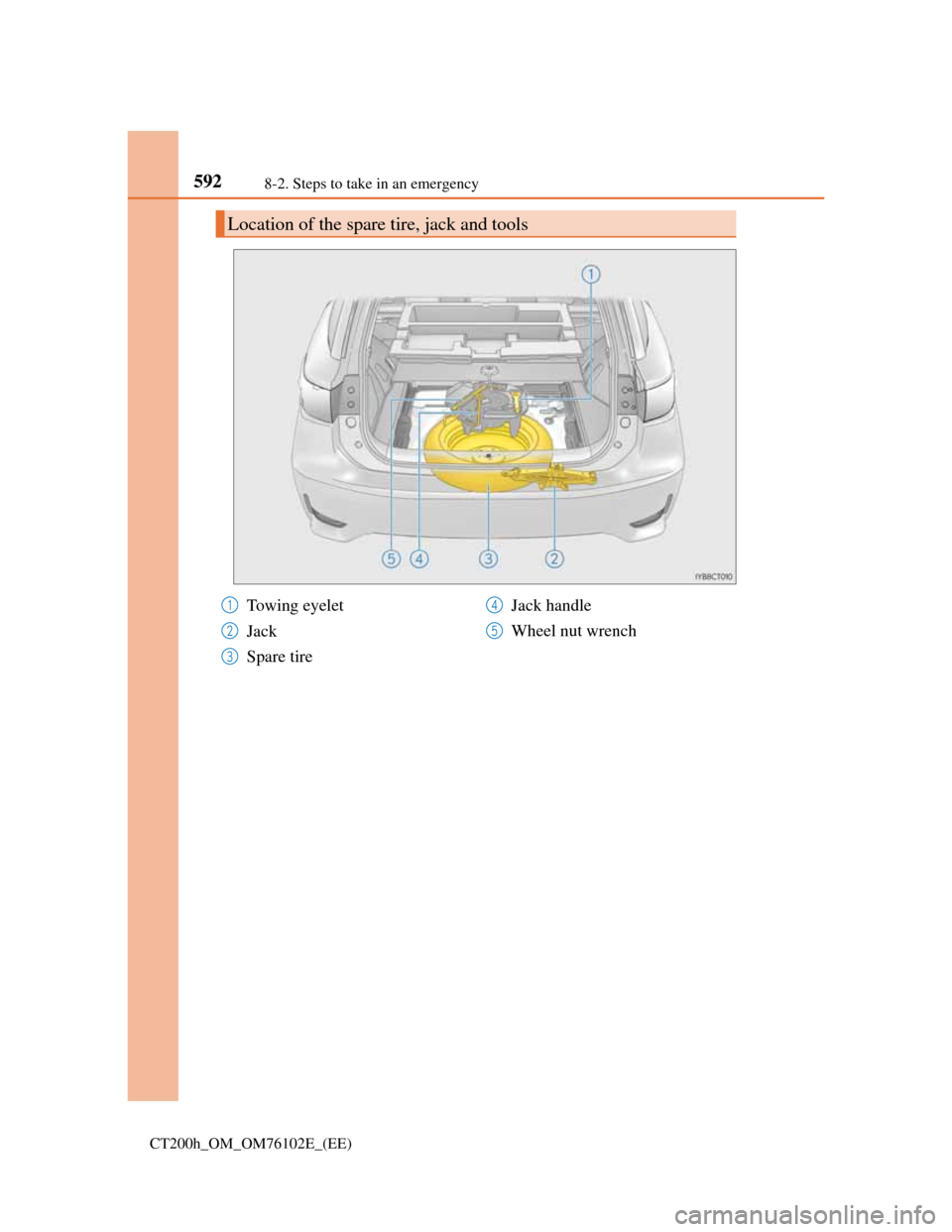

Location of the spare tire, jack and tools
Towing eyelet
Jack
Spare tireJack handle
Wheel nut wrench1
2
3
4
5
Page 599 of 688
5958-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
Remove the center deck board and center auxiliary box. (P. 594)
Loosen the center fastener that
secures the spare tire.

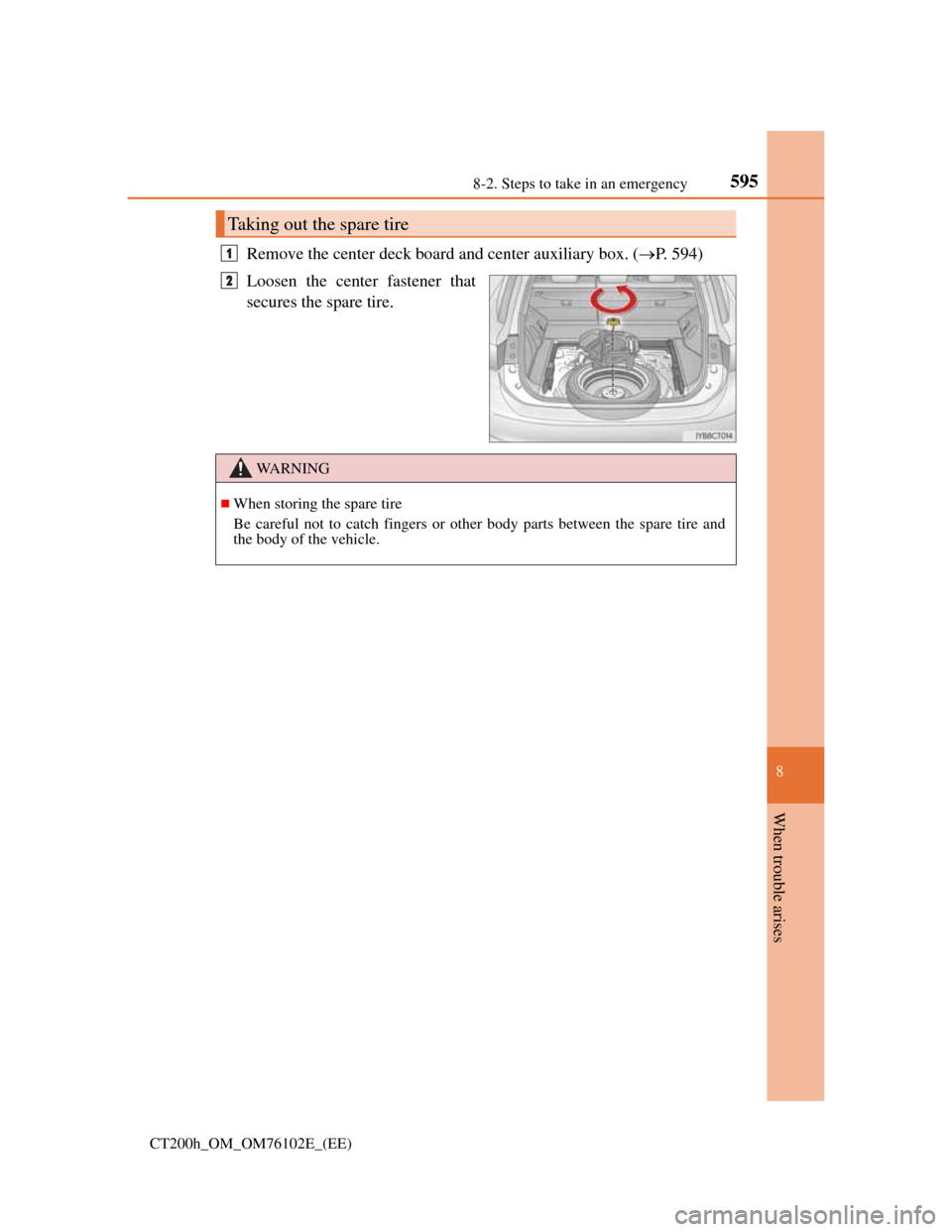

Taking out the spare tire
1
2
WA R N I N G
When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and
the body of the vehicle.
Page 603 of 688
5998-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel con-
tact surface, the wheel nuts may
loosen while the vehicle is in
motion, causing the tire to come off.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into loose
contact with the disc wheel seat.
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.

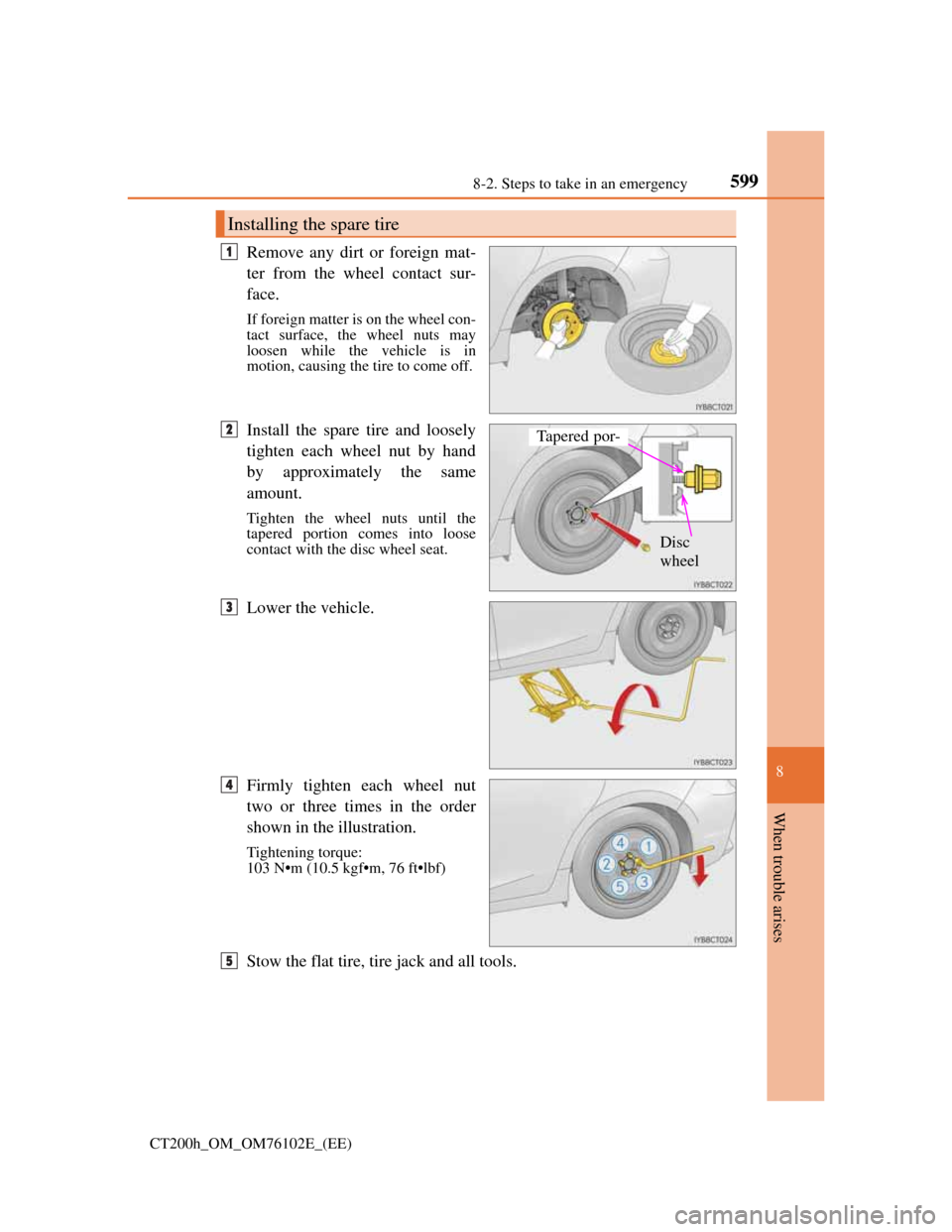

Installing the spare tire
1
Disc
wheel
Tapered por-2
3
4
5
