639
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than
5 minutes, and check the oil level on the dipstick.

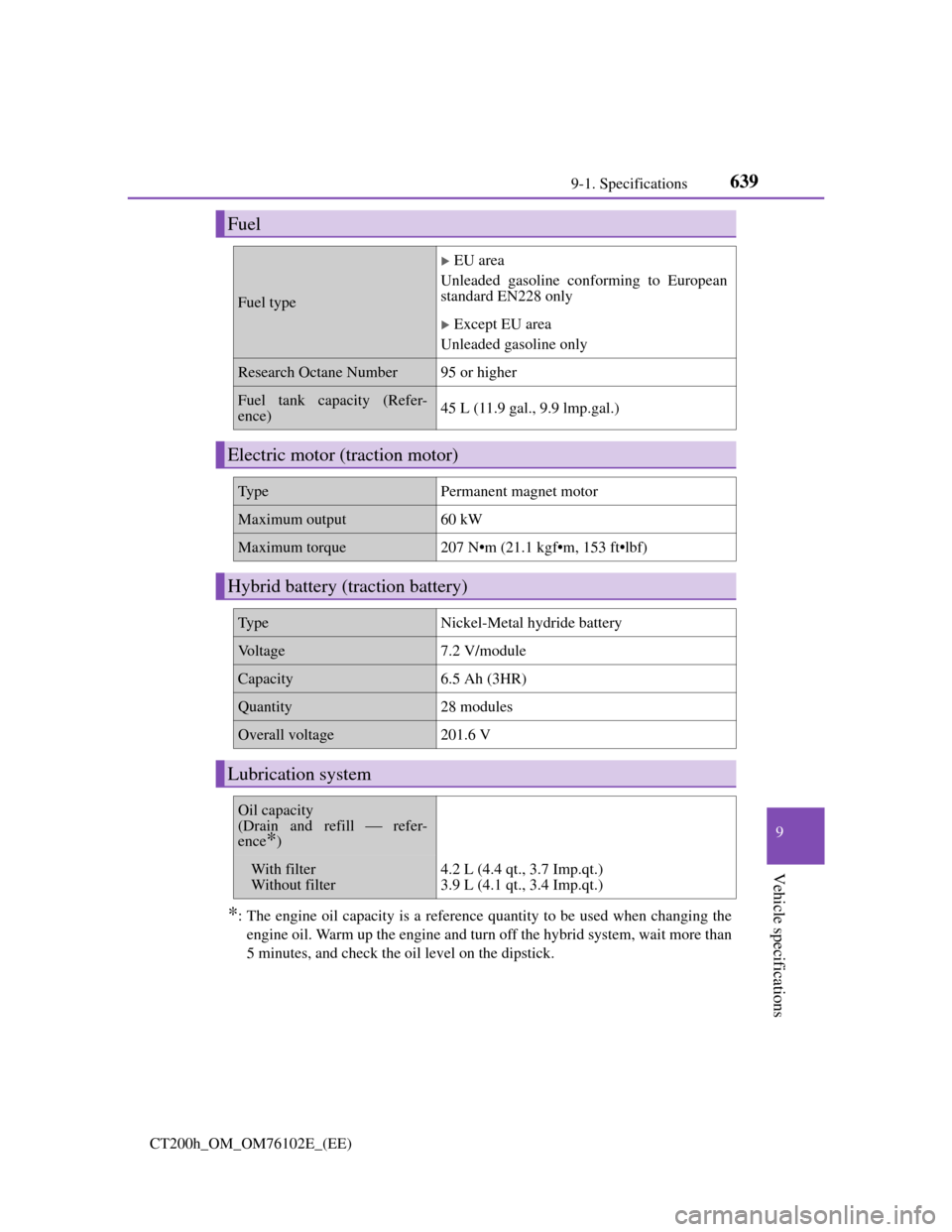

Fuel
Fuel type
EU area
Unleaded gasoline conforming to European
standard EN228 only
Except EU area
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity (Refer-
ence)45 L (11.9 gal., 9.9 lmp.gal.)
Electric motor (traction motor)
TypePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Lubrication system
Oil capacity
(Drain and refill refer-
ence
*)
With filter
Without filter4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)

643
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Electrical system
12-volt battery
Open voltage at 20C (68F):12.5 V or higher: Fully charged
11.0 — 12.4 V: Half charged
10.9 V or lower: Discharged
(Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates
With a S46B24R battery
4.2 A max.
With a S34B20R battery
3.5 A max.
Transmission
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

671Alphabetical index
CT200h_OM_OM76102E_(EE)
Moon roof precautions .........183
Power window lock switch...178
Power window precautions...180
Rear door child-protectors ....136
Removed key battery
precautions .........................533
Seat belt precautions ...............44
Seat heater precautions .........459
Child-protectors.........................136
Cleaning ............................480, 484
Aluminum wheels.................481
Exterior .................................480
Interior ..................................484
Seat belts...............................485
Clock .........................................474
Condenser ..................................502
Console box ...............................465
Coolant
Capacity ................................642
Checking ...............................501
Preparing and checking
before winter ......................284
Cooling system ..........................501
Hybrid system overheating ...629
Consumption screen ..................117
Cruise control
Cruise control .......................228
Dynamic radar cruise
control ................................231
Cup holders ...............................466
Curtain shield airbags ..................45
Customizable features ...............650Daytime running light system .. 214
Defogger
Outside rear view
mirrors ....................... 447, 454
Rear window ................ 447, 454
Windshield ................... 447, 454
Dimension ................................ 636
Display
Drive information ........ 110, 115
Dynamic radar cruise
control ............................... 231
Energy monitor .................... 117
Multi-information
display ....................... 109, 112
Warning messages ............... 575D

679Alphabetical index
CT200h_OM_OM76102E_(EE)
Rear passenger’s seat belt
reminder light..........................570
Rear seat
Folding down the rear
seatbacks ............................161
Rear turn signal lights
Replacing light bulbs ............550
Turn signal lever ...................209
Wattage .................................647
Rear view mirror
Inside rear view mirror .........172
Outside rear view mirrors .....174
Rear view monitor system .........254
Rear window defogger ......447, 454
Rear window wiper ...................222
Refueling ...................................224
Capacity ................................639
Fuel types .............................639
Opening the fuel tank cap .....224
When the fuel filler door
cannot be opened................226
Regenerative braking...................78
Remote Touch
*........117, 250, 444
Replacing
Electronic key battery ...........530
Fuses .....................................534
Light bulbs ............................538
Tires ..............................591, 605
Road accident cautions ................85Seat belts..................................... 40
Adjusting the seat belt ........... 41
Child restraint system
installation ........................... 68
Cleaning and maintaining
the seat belt........................ 485
Emergency Locking
Retractor .............................. 42
How to wear your seat belt .... 40
How your child should wear
the seat belt.......................... 42
Pre-crash seat belts ................ 41
Pregnant women,
proper seat belt use .............. 43
Reminder light and
buzzer ................................ 570
Seat belt pretensioners ........... 41
SRS warning light................ 569
Seat heaters ............................... 459
Seat position memory ............... 163
Seats
Adjustment........................... 159
Adjustment precautions ....... 160
Child seats/child restraint
system installation ......... 59, 67
Cleaning ............................... 484
Driving position memory..... 163
S
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
