284
1. INFORMATION DISPLAY
CT200h_Navi_OM76146U_(U)14.06.17 09:48
2. DATA SERVICES SETTINGS
1Press the “MENU” button on the
Remote Touch.
2Select “Setup” .
3Select “Data Services Settings” .
4Select the desired item to be set.
zSelect a checkbox on the right to set.
SETTING DOWNLOAD
METHODS
Data service information, which is com-
prised of traffic information and weather
information, can be received via the HD
Radio and by the LEXUS App Suite ap-
plication on a Bluetooth
® phone. The
receiving method can be set to both or
only via the HD Radio. For details about
the LEXUS App Suite application:
→ P.356
No.Function
Select to receive data service infor-
mation via both the HD Radio and
the LEXUS App Suite application on
a Bluetooth
® phone. When both
methods are available, the HD Radio
will be selected.
Select to receive data only via the
HD Radio.

8

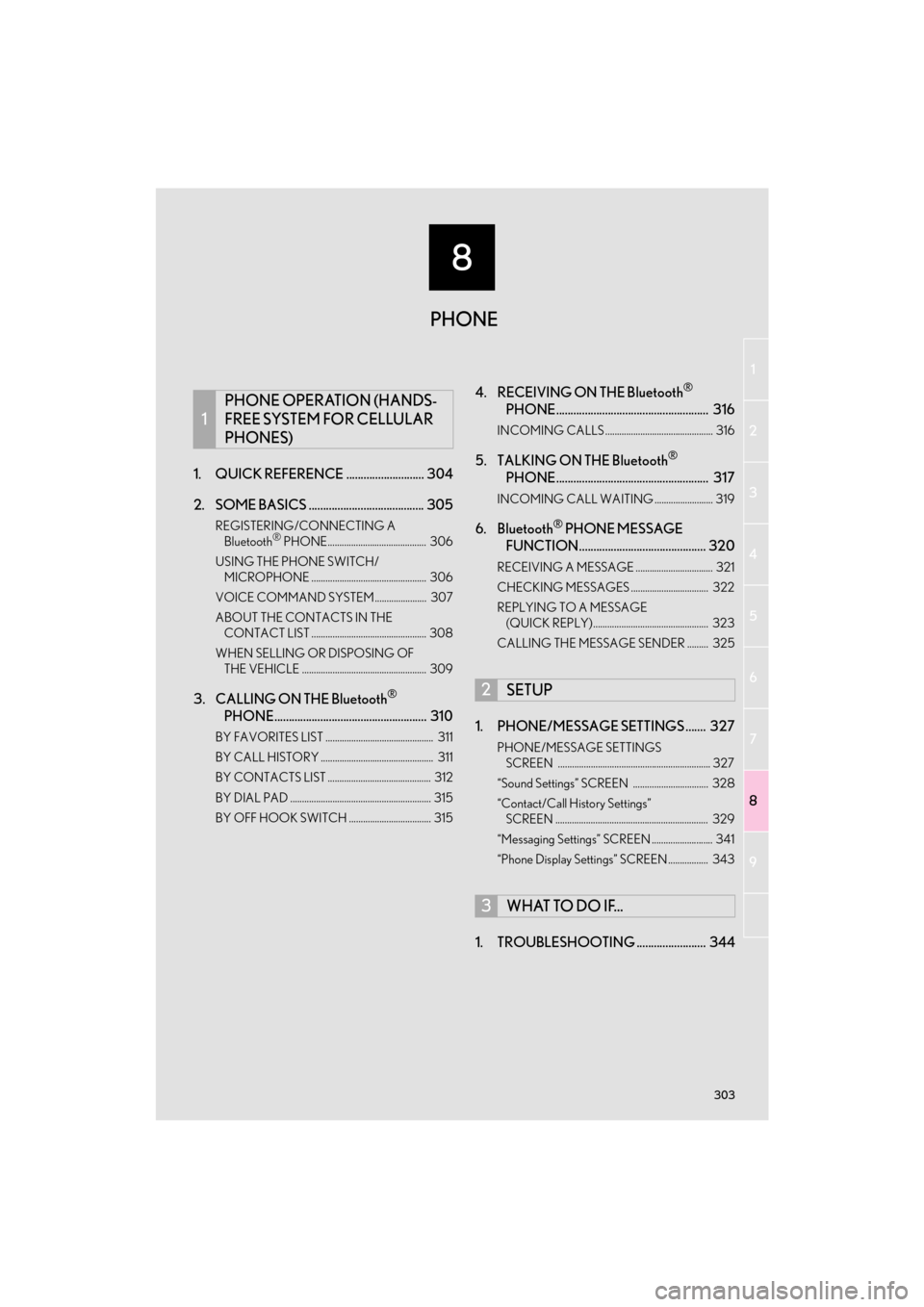

303
1
2
3
4
5
6
7
8
9
CT200h_Navi_OM76146U_(U)14.06.04 18:41
1. QUICK REFERENCE ........................... 304
2. SOME BASICS ........................................ 305
REGISTERING/CONNECTING A Bluetooth® PHONE.......................................... 306
USING THE PHONE SWITCH/ MICROPHONE ................................................. 306
VOICE COMMAND SYSTEM...................... 307
ABOUT THE CONTACTS IN THE CONTACT LIST ................................................. 308
WHEN SELLING OR DISPOSING OF THE VEHICLE ..................................................... 309
3. CALLING ON THE Bluetooth®
PHONE..................................................... 310
BY FAVORITES LIST .............................................. 311
BY CALL HISTORY ................................................ 311
BY CONTACTS LIST ............................................ 312
BY DIAL PAD ............................................................ 315
BY OFF HOOK SWITCH ................................... 315
4. RECEIVING ON THE Bluetooth®
PHONE..................................................... 316
INCOMING CALLS .............................................. 316
5. TALKING ON THE Bluetooth®
PHONE..................................................... 317
INCOMING CALL WAITING ......................... 319
6. Bluetooth® PHONE MESSAGE
FUNCTION............................................ 320
RECEIVING A MESSAGE ................................. 321
CHECKING MESSAGES ................................. 322
REPLYING TO A MESSAGE
(QUICK REPLY)................................................. 323
CALLING THE MESSAGE SENDER ......... 325
1. PHONE/MESSAGE SETTINGS ....... 327
PHONE/MESSAGE SETTINGS SCREEN ................................................................. 327
“Sound Settings” SCREEN ................................ 328
“Contact/Call History Settings” SCREEN ................................................................. 329
“Messaging Settings” SCREEN .......................... 341
“Phone Display Settings” SCREEN ................. 343
1. TROUBLESHOOTING ........................ 344
1
PHONE OPERATION (HANDS-
FREE SYSTEM FOR CELLULAR
PHONES)
2SETUP
3WHAT TO DO IF...
PHONE

304
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
1. QUICK REFERENCE
The phone top screen can be used to make a phone call. To display the hands-free op-
eration screen, press the “MENU” button on the Remote Touch and select “Phone”,
or the switch on the steering wheel.
Several functions are available to operate on each screen that is displayed by selecting
the 4 tabs.
FunctionPage
Phone operation
Registering/connecting Bluetooth® device46
Calling on the Bluetooth® phone310
Receiving on the Bluetooth® phone316
Talking on the Bluetooth® phone317
Message functionUsing the Bluetooth® phone message function320
Setting up a phonePhone settings327
Bluetooth® settings54

305
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
CT200h_Navi_OM76146U_(U)14.06.17 09:48
8
PHONE
2. SOME BASICS
The hands-free system enables calls to
be made and received without having to
take your hands off the steering wheel.
This system supports Bluetooth
®.
Bluetooth® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the phone is
explained here.
WA R N I N G
●While driving, do not use a cellular phone
or connect the Bluetooth® phone.
●Your audio unit is fitted with Bluetooth®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroniza-
tion therapy-pacemakers or implantable
cardioverter defibrillators should main-
tain a reasonable distance between
themselves and the Bluetooth
® antennas.
The radio waves may affect the operation
of such devices.
●Before using Bluetooth® devices, users
of any electrical medical device other
than implantable cardiac pacemakers,
cardiac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manufac-
turer of the device for information about
its operation under the influence of radio
waves. Radio waves could have unex-
pected effects on the operation of such
medical devices.
NOTICE
●Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the phone.
INFORMATION
●
If your cellular phone does not support
Bluetooth®, this system cannot function.
●In the following conditions, the system
may not function:
• The cellular phone is turned off.
• The current position is outside the com- munication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
●When using Bluetooth® audio and
hands-free system at the same time, the
following problems may occur:
• The Bluetooth
® connection may be cut.
• Noise may be heard on the Bluetooth
®
audio playback.

306
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
CT200h_Navi_OM76146U_(U)14.06.17 09:48
XSteering switch
Volume control switch
z Press the “+” side to increase the volume.
z Press the “-” side to decrease the volume.
Off hook switch
On hook switch
REGISTERING/
CONNECTING A Bluetooth®
PHONE
To use the hands-free system for cellular
phones, it is necessary to register a cel-
lular phone with the system. ( →P.46)
Bluetooth® PHONE
CONDITION DISPLAY
The condition of the Bluetooth
® phone
appears on the upper right side of the
screen. ( →P.16)
USING THE PHONE SWITCH/
MICROPHONE
By pressing the phone switch, a call can
be received or ended without taking
your hands off the steering wheel.

310
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
CT200h_Navi_OM76146U_(U)14.06.17 09:48
3. CALLING ON THE Bluetooth® PHONE
1Press the “MENU” button on the
Remote Touch.
2Select “Phone” .
3Select the desired tab to call from.
zThe phone top screen can be displayed by
pressing the
switch on the steering
wheel.
After a Bluetooth® phone has been reg-
istered, a call can be made using the
hands-free system. There are several
methods by which a call can be made, as
described below.
How to make a call listPage
By favorites list311
By call history311
By contacts list*312
By dial pad*315
By e-mail/SMS/MMS325
By POI call97
By off hook switch315
By LEXUS App Suite*369
By voice command system270
*: The operation cannot be performed while driving.

8
PHONE
313
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
CT200h_Navi_OM76146U_(U)14.06.17 09:48
■FOR PBAP COMPATIBLE
Bluetooth
® PHONES
X When “Automatic Contact/History
Transfer” is set to on ( →P.329)
1Select the “Contacts” tab.
zContacts are transferred automatically.
2Check that a confirmation screen is dis-
played when the operation is complete. X
When “Automatic Contact/History
Transfer” is set to off ( →P.329)
1Select the “Contacts” tab.
2Select the desired item.
3Check that a confirmation screen is dis-
played when the operation is complete.
WHEN THE CONTACT IS
EMPTY
No.Function
Select to always transfer all the con-
tacts from a connected cellular
phone automatically.
Select to transfer all the contacts
from a connected cellular phone
only once.
Select to cancel transferring.

314
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
CT200h_Navi_OM76146U_(U)14.06.17 09:48
■FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Select the “Contacts” tab.
2Select the desired item. X
When “Transfer” is selected
3Follow the steps in “FOR PBAP
INCOMPATIBLE BUT OPP
COMPATIBLE Bluetooth
® PHONES”
from “STEP 3”. ( →P.332)
X When “Add” is selected
3Follow the steps in “REGISTERING A
NEW CONTACT TO THE
CONTACTS LIST” from “STEP 2”.
(→ P.334)
No.Function
Select to transfer the contacts from
the connected cellular phone.
Select to add a new contact manual-
ly.
Select to cancel transferring.
INFORMATION
●Manual transfer operation cannot be per-
formed while driving.
● If your cellular phone is neither PBAP nor
OPP compatible, the contacts cannot be
transferred.
● Depending on the type of Bluetooth
®
phone:
• It may be necessary to perform addi-
tional steps on the phone when transfer-
ring contact data.
• The registered image in the contact list may not transfer depending on the type
of Bluetooth
® phone connected.

8
PHONE
315
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Display the phone top screen.
(→ P.310)
2Select the “Dial Pad” tab and enter the
phone number.
3Select or press the switch on
the steering wheel.
4Check that the “Call” screen is dis-
played.
1Press the switch on the steering
wheel to display the phone top screen.
2Press the switch on the steering
wheel to display the “Call History”
screen.
3Press the switch on the steering
wheel to call the latest history item.
4Check that the “Call” screen is dis-
played.
BY DIAL PAD
INFORMATION
● Depending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.
BY OFF HOOK SWITCH
Calls can be made using the latest call
history item.

316
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
CT200h_Navi_OM76146U_(U)14.06.17 09:48
4. RECEIVING ON THE Bluetooth® PHONE
1Select or press the switch on
the steering wheel to talk on the phone.
To refuse to receive the call: Select
or press the switch on the steering
wheel.
To adjust the volume of a received call :
Turn the “PWR·VOL” knob, or use the vol-
ume control switch on the steering wheel.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
INFORMATION
● During international phone calls, the
other party’s name or number may not be
displayed correctly depending on the
type of cellular phone you have.
● The incoming call display mode can be
set. ( →P. 3 4 3 )
● The ringtone that has been set in the
“Sound Settings” screen sounds when
there is an incoming call. Depending on
the type of Bluetooth
® phone, both the
navigation system and Bluetooth® phone
may sound simultaneously when there is
an incoming call. ( →P. 3 2 8 )
