USB Lexus CT200h 2015 Navigation Manual (in English)

1
2
3
4
5
6
7
8
9
7
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1. BASIC OPERATION ................................... 168
QUICK REFERENCE .......................................168
SOME BASICS ..................................................... 170
2. RADIO OPERATION ................................ 179
AM/FM RADIO ................................................... 179
XM Satellite Radio ............................................... 192
INTERNET RADIO ........................................... 200
3. MEDIA OPERATION ................................ 201
CD ............................................................................... 201
DVD...........................................................................207
USB MEMORY .................................................... 214
iPod ............................................................................. 219
Bluetooth
® AUDIO ...........................................226
AUX ..........................................................................232
VTR ........................................................................... 235
4. AUDIO/VISUAL REMOTE CONTROLS ............................................. 238
STEERING SWITCHES.................................. 238
5. SETUP .............................................................240
AUDIO SETTINGS........................................... 240
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ...................249
OPERATING INFORMATION..................249
1. VOICE COMMAND SYSTEM OPERATION............................................. 264
VOICE COMMAND SYSTEM .................. 264
CASUAL SPEECH RECOGNIZATION ................ 272
COMMAND LIST ............................................. 274
2. MOBILE ASSISTANT OPERATION............................................. 278
MOBILE ASSISTANT ...................................... 278
1. INFORMATION DISPLAY ......................282
RECEIVING DOPPLER WEATHER INFORMATION ............................................. 282
DATA SERVICES SETTINGS...................... 284
1. LEXUS PARKING ASSIST MONITOR .................................................286
LEXUS PARKING ASSIST MONITOR.........................................................286
ESTIMATED COURSE LINE DISPLAY MODE ................................................................... 291
PARKING ASSIST GUIDE LINE DISPLAY MODE ............................................ 293
LEXUS PARKING ASSIST MONITOR PRECAUTIONS ............................................. 295
THINGS YOU SHOULD KNOW ........... 300
4AUDIO/VISUAL SYSTEM5VOICE COMMAND SYSTEM
6INFORMATION
7PERIPHERAL MONITORING
SYSTEM

68

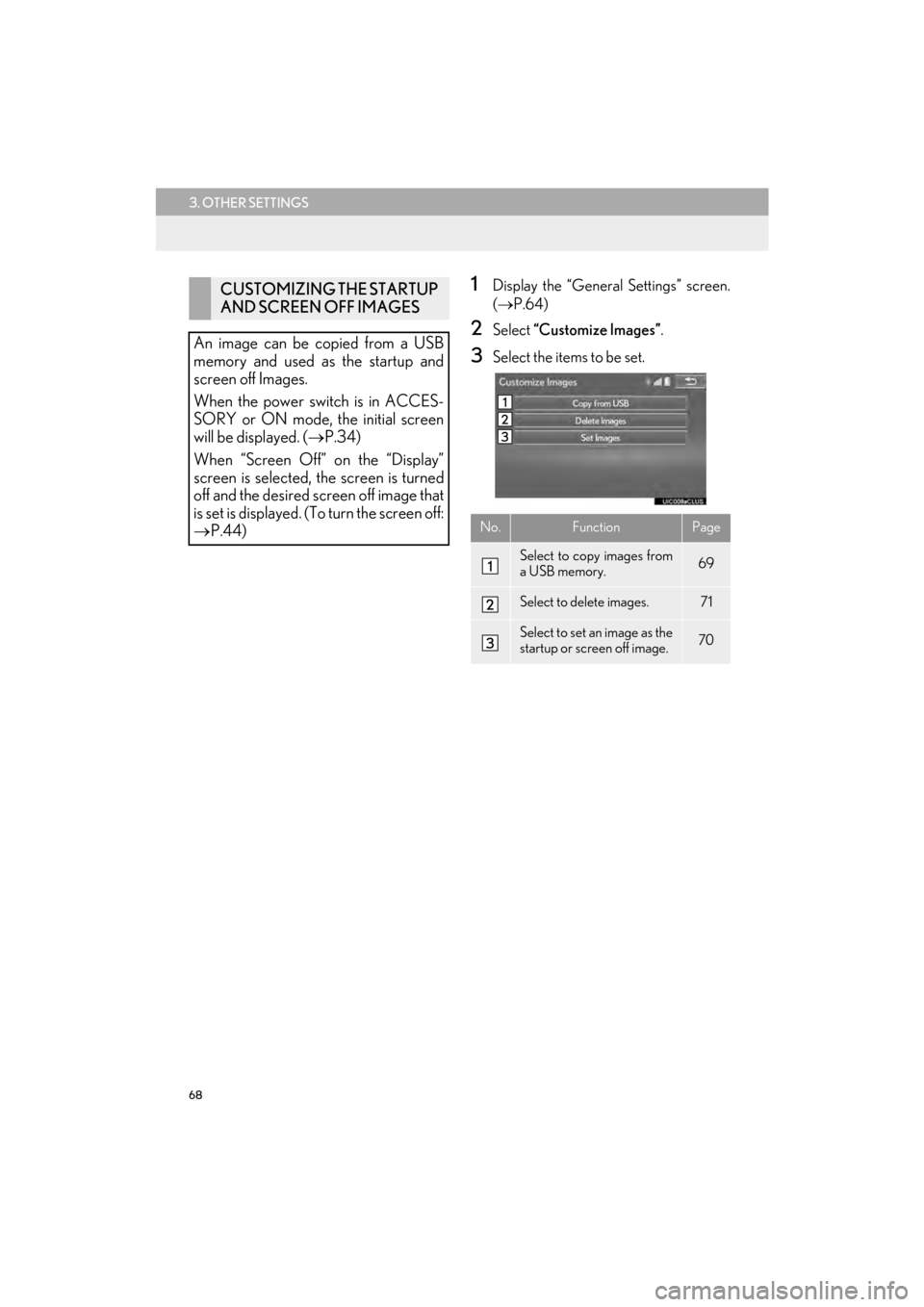

3. OTHER SETTINGS
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Display the “General Settings” screen.
(→ P.64)
2Select “Customize Images” .
3Select the items to be set.
CUSTOMIZING THE STARTUP
AND SCREEN OFF IMAGES
An image can be copied from a USB
memory and used as the startup and
screen off Images.
When the power switch is in ACCES-
SORY or ON mode, the initial screen
will be displayed. ( →P.34)
When “Screen Off” on the “Display”
screen is selected, the screen is turned
off and the desired screen off image that
is set is displayed. (To turn the screen off:
→ P.44)
No.FunctionPage
Select to copy images from
a USB memory.69
Select to delete images.71
Select to set an image as the
startup or screen off image.70

69
3. OTHER SETTINGS
2
BASIC FUNCTION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
■TRANSFERRING IMAGES
1Press the lid.
2Open the cover and connect a USB
memory.
zTurn on the power of the USB memory if it
is not turned on.
3Select “Copy from USB” .
4Select the desired images from the list
and then select “Copy”.
zThe selected image is displayed on the
right side of the screen. If the selected
image file is broken or incompatible,
will be displayed.
z The remaining number of image files that
can be transferred is displayed at the bot-
tom of the screen.
5Select “Yes” when the confirmation
screen appears.

70
3. OTHER SETTINGS
CT200h_Navi_OM76146U_(U)14.06.17 09:48
■SETTING THE STARTUP AND
SCREEN OFF IMAGES
1Select “Set Images” .
2Select the desired image.
3Select the desired items to be set.
INFORMATION
●
When saving image files to a USB mem-
ory to be transferred to the navigation
system, save the images in a folder
named “Image” (I-m-a-g-e, case sensi-
tive). If a different folder name is used, the
navigation system will not recognize the
image files.
●The compatible file extensions are JPG
and JPEG.
●An image’s file name, including file exten-
sion, can be up to 32 characters.
●Image files of 10 MB or less can be trans-
ferred.
●Up to 10 images can be transferred to the
navigation system.
No.Function
Select to set an image as the startup
image.
Select to set an image as the screen
off image.
Select to set an image as both the
startup and screen off image.

166
CT200h_Navi_OM76146U_(U)14.06.17 09:44
1. QUICK REFERENCE ............................. 168
2. SOME BASICS .......................................... 170
TURNING THE SYSTEM ON AND OFF ... 170
SELECTING AN AUDIO SOURCE ............... 171
DISC SLOT ................................................................. 172
USB/AUX PORT ..................................................... 173
SOUND SETTINGS ............................................... 174
AUDIO SCREEN ADJUSTMENT .................. 176
VOICE COMMAND SYSTEM........................ 178
1. AM/FM RADIO ........................................ 179
OVERVIEW ................................................................ 179
PRESETTING A STATION ................................. 183
SELECTING A STATION FROM THE LIST ................................................................... 183
CACHING A RADIO PROGRAM ............... 185
RADIO BROADCAST DATA SYSTEM ...... 186
TRAFFIC ANNOUNCEMENT (FM RADIO) .......................................................... 188
USING HD Radio™ TECHNOLOGY......... 188
AVAILABLE HD Radio™ TECHNOLOGY.................................................. 189
TROUBLESHOOTING GUIDE ....................... 191
2. XM Satellite Radio .................................... 192
OVERVIEW ................................................................ 192
HOW TO SUBSCRIBE TO AN XM Satellite Radio.......................................................... 195
DISPLAYING THE RADIO ID .......................... 197
PRESETTING A CHANNEL.............................. 197
SELECTING A CHANNEL FROM THE LIST ................................................................... 198
IF THE SATELLITE RADIO TUNER MALFUNCTIONS .............................................. 199
3. INTERNET RADIO................................. 200
LISTENING TO INTERNET RADIO ............ 200
1BASIC OPERATION2RADIO OPERATION

4
167
1
2
3
4
5
6
7
8
9
CT200h_Navi_OM76146U_(U)14.06.17 09:44
1. CD .................................................................. 201
OVERVIEW................................................................ 201
PLAYING AN AUDIO CD .............................. 205
PLAYING AN MP3/WMA/AAC DISC ... 206
2. DVD.............................................................. 207
OVERVIEW............................................................... 207
DVD OPTIONS .......................................................... 211
3. USB MEMORY......................................... 214
OVERVIEW................................................................ 214
USB AUDIO ............................................................... 218
4. iPod ................................................................ 219
OVERVIEW................................................................ 219
iPod AUDIO .............................................................. 224
iPod VIDEO ............................................................... 225
5. Bluetooth® AUDIO ................................ 226
OVERVIEW............................................................... 226
CONNECTING A Bluetooth® DEVICE ... 230
LISTENING TO Bluetooth® AUDIO ........... 230
6. AUX ............................................................. 232
OVERVIEW............................................................... 232
7. VTR ............................................................... 235
OVERVIEW.............................................................. 235
VTR OPTIONS......................................................... 237
1. STEERING SWITCHES ........................ 238
1. AUDIO SETTINGS ................................. 240
AUDIO SETTINGS SCREEN ............................ 241
1. OPERATING INFORMATION......... 249
RADIO......................................................................... 249
DVD PLAYER AND DISC .................................. 251
iPod................................................................................ 256
FILE INFORMATION ........................................... 257
TERMS ......................................................................... 259
ERROR MESSAGES.............................................. 261
3MEDIA OPERATION4AUDIO/VISUAL REMOTE
CONTROLS
5SETUP
6TIPS FOR OPERATING THE
AUDIO/VISUAL SYSTEM
AUDIO/VISUAL SYSTEM

169
1. BASIC OPERATION
4
AUDIO/VISUAL SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48

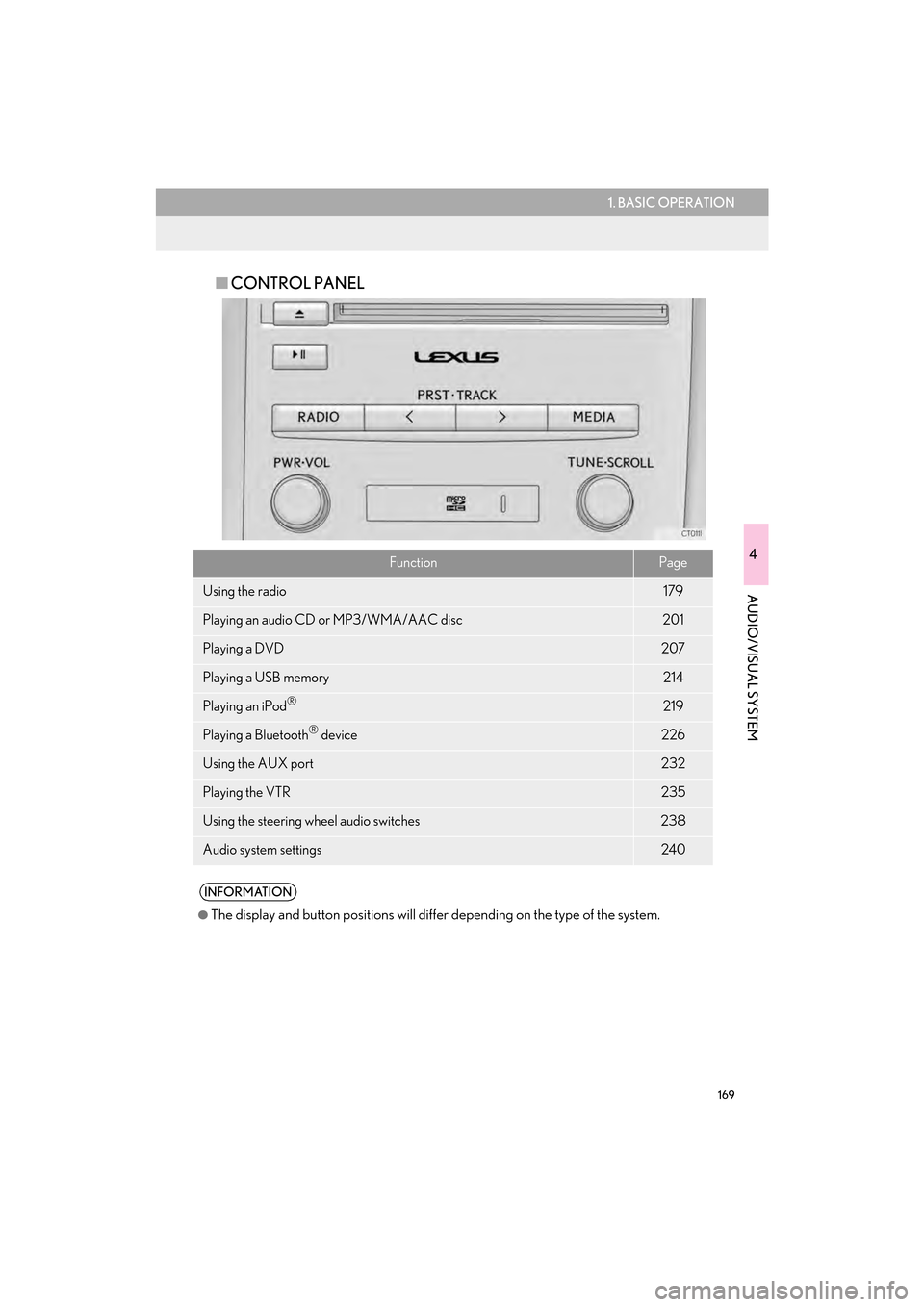

■CONTROL PANEL
FunctionPage
Using the radio179
Playing an audio CD or MP3/WMA/AAC disc201
Playing a DVD207
Playing a USB memory214
Playing an iPod®219
Playing a Bluetooth® device226
Using the AUX port232
Playing the VTR235
Using the steering wheel audio switches238
Audio system settings240
INFORMATION
●
The display and button positions will diffe r depending on the type of the system.

173
1. BASIC OPERATION
4
AUDIO/VISUAL SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Press the “” button and remove the
disc.
1Press the lid.
2Open the cover and connect a device.
z Turn on the power of the device if it is not
turned on.
EJECTING A DISC
NOTICE
●Never try to disassemble or oil any part of
the DVD player. Do not insert anything
other than a disc into the slot.
INFORMATION
●
The player is intended for use with 4.7 in.
(12 cm) discs only.
●When inserting a disc, gently insert the
disc with the label facing up.
USB/AUX PORT
There are 2 USB ports and an AUX port
in the console box.

174
1. BASIC OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Select .
INFORMATION
●
Up to two portable players can be con-
nected to the USB port at the same time.
SOUND SETTINGS
DSP CONTROL

200
2. RADIO OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
3. INTERNET RADIO
1Select the desired application screen
button.
zThe internet radio application screen is dis-
played.
z Perform operations according to the dis-
played application screen.
z For the instrument panel operation method
and the Remote Touch operation method:
→ P.1 7 1
z By pressing the “RADIO” button, the
“Audio” screen can be returned to.
LISTENING TO INTERNET
RADIO
One of LEXUS App Suite’s features is
the ability to listen to internet radio. In or-
der to use this service, a compatible
phone and the navigation system needs
to be set up. For details: →P.362
INFORMATION
●Other applications can be activated
while listening to internet radio.
● An iPhone cannot be connected via
Bluetooth
® and USB connection at the
same time. However, it is possible to
recharge an iPhone while using applica-
tions by connecting via USB. The system
uses the connection method that was
used last. Therefore, if connected via
USB after Bluetooth
® connection, it is
necessary to reconnect the iPhone via
Bluetooth
®.
● Some parts of applications can be
adjusted using the switches on the steer-
ing wheel.
● For additional information, refer to
http://www.lexus.com/enform/
or call
1-800-255-3987.
