For detailed information, refer to the description given in each section.
2.
PICTORIAL INDEX
2Page
1
Door lock switch and power window
switches 14, 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
2 Headlight, turn signal and fog light switch 17
. . . . . . . . . . . .
3 Power rear view mirror control switch 63
. . . . . . . . . . . . . . .
4 Instrument panel light control 35
. . . . . . . . . . . . . . . . . . . . . .
5 Trunk lid opener 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Fuel filler door opener 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Hood lock release lever 50
. . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Parking brake 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Windshield wiper and washer switch 20
. . . . . . . . . . . . . . . . .
10 Cruise control switch 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
11 Traction control system off switch
34
. . . . . . . . . . . . . . . . . . .
12 Emergency flasher switch 25
. . . . . . . . . . . . . . . . . . . . . . . . .
13 Clock 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
14 Car audio 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
15 Automatic air conditioning controls 103
. . . . . . . . . . . . . . . .
16 Ashtray 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
17 Automatic transmission selector lever 137
. . . . . . . . . . . . . . .
18 Seat heater switches 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Electronic modulated suspension
control switch 146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20 Glovebox/CD automatic changer 41/122
. . . . . . . . . . . . . . . . .

EXTERIOR EQUIPMENT
50
HOOD
15E001±2

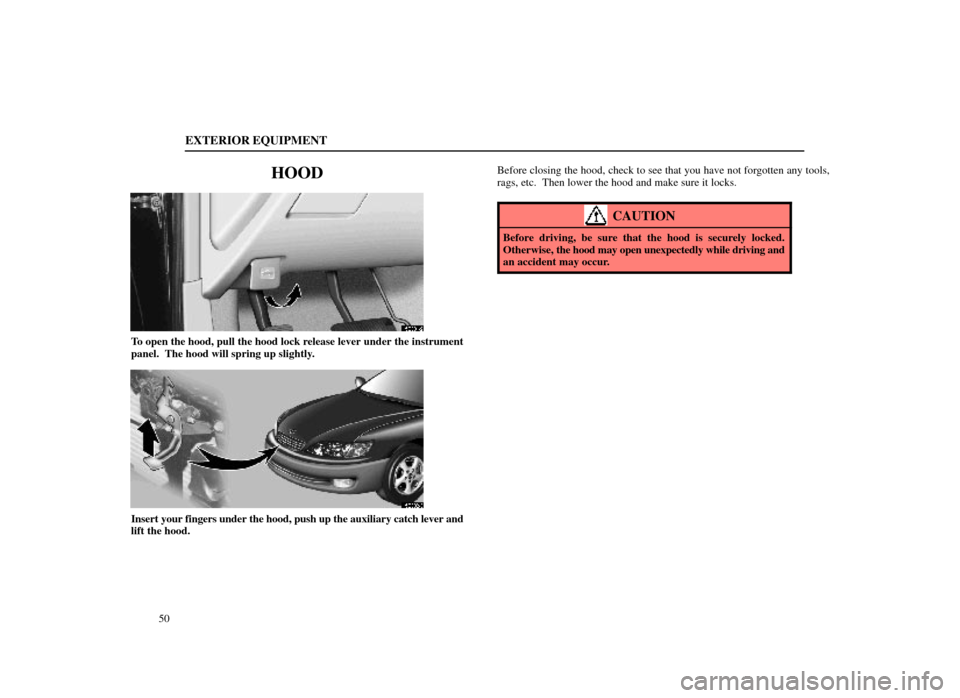

To open the hood, pull the hood lock release lever under the instrument
panel. The hood will spring up slightly.
15E002±3
Insert your fingers under the hood, push up the auxiliary catch lever and
lift the hood.Before closing the hood, check to see that you have not forgotten any tools,
rags, etc. Then lower the hood and make sure it locks.
CAUTION
Before driving, be sure that the hood is securely locked.
Otherwise,
the hood may open unexpectedly while driving and
an accident may occur.

THEFT DETERRENT99
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to give an alarm if\
any
of the doors, trunk or hood is forcibly unlocked or the battery terminal
is disconnected and then reconnected while the vehicle is locked.
The alarm blows the horn intermittently and flashes the headlights, tail li\
ghts
and other exterior lights.
17E001±1
Setting the system
1. Turn the ignition key to the ºLOCKº position and remove it.
2. Close and lock all the doors, trunk and hood using an ignition key or
wireless remote control. If you lock them with wireless remote control, the turn signals flash on\
ce.
The indicator light will come on when all the doors, trunk and hood are clo\
sed
and locked.
3. After 30 seconds, the indicator flashes and the system is set.
Cancelling the system
When you unlock any door or trunk using an ignition key or wireless
remote control, the system is cancelled.
If you unlock any door or trunk with wireless remote control, the turn sig\
nals
flash twice.
Activating the system
The alarm sounds for 60 seconds if any of the following are operated:


Unlocking any door or trunk without using an ignition key or wireless
remote control.

Opening the hood forcibly.

Reconnecting the battery.
If any door is unlocked and the ignition key is not in the ignition switch\
during
the alarm sounding, its door is automatically locked.

THEFT DETERRENT
100
To stop the alarm: Use either of the following methods.


Unlock the door or trunk using an ignition key or wireless remote control.

Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or wireless remote
control. Be sure to wait until the indicator light starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless remote control to
cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated when the batte\
ry
terminal is disconnected and then reconnected.
If the system does not work properly, have it checked by your Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of information you
have set in the computer memory. After reconnecting the battery, check
that the memorized data has been retained. If it has been erased, input
it into the computer once more.
