GAUGES, METERS AND SERVICE REMINDER INDICATORS
28

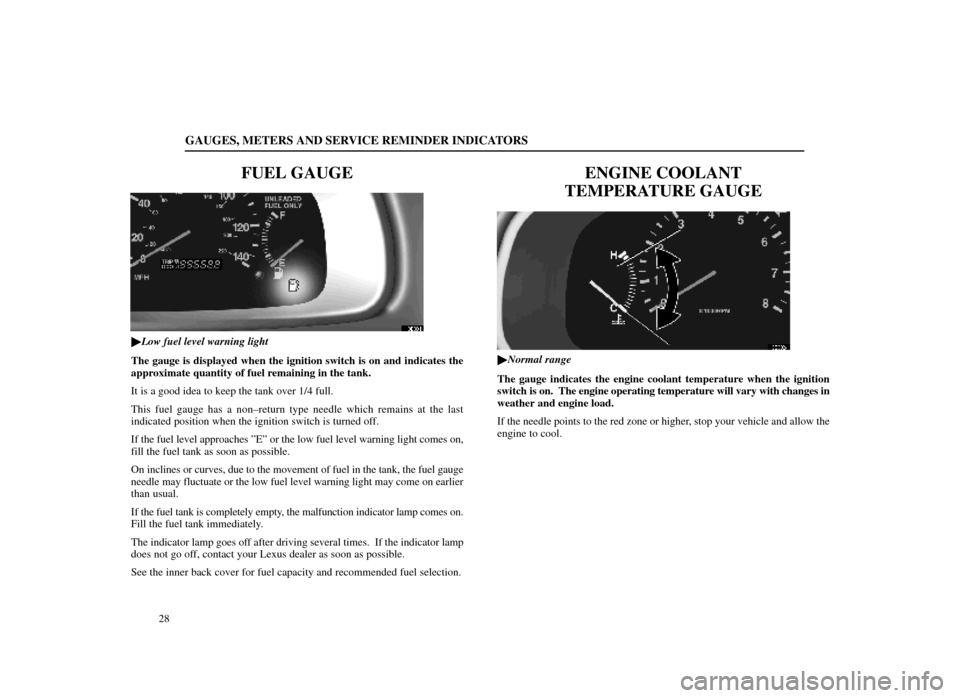

FUEL GAUGE
13E001
Low fuel level warning light
The gauge is displayed when the ignition switch is on and indicates the
approximate quantity of fuel remaining in the tank.
It is a good idea to keep the tank over 1/4 full.
This fuel gauge has a non±return type needle which remains at the last
indicated position when the ignition switch is turned off.
If the fuel level approaches ºEº or the low fuel level warning light\
comes on,
fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank, the fuel g\
auge
needle may fluctuate or the low fuel level warning light may come on earlier
than usual.
If the fuel tank is completely empty, the malfunction indicator lamp comes on.
Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the indicator lamp
does not go off, contact your Lexus dealer as soon as possible.
See the inner back cover for fuel capacity and recommended fuel selectio\
n.
ENGINE COOLANT
TEMPERATURE GAUGE
13E002±1
Normal range
The gauge indicates the engine coolant temperature when the ignition
switch is on. The engine operating temperature will vary with changes in
weather and engine load.
If the needle points to the red zone or higher, stop your vehicle and allow the
engine to cool.
Page 37 of 249
GAUGES, METERS AND SERVICE REMINDER INDICATORS29
Your vehicle may overheat during severe operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high speed driving.
Idling for a long period with the air conditioning on in stop±and±go traf\
fic.
Towing a trailer.
NOTICE
Do not remove the thermostat in the engine cooling system as this may
cause the engine to overheat. The thermostat is designed to control the
flow of coolant to keep the temperature of the engine within the
specified operating range.
Do not continue driving with an overheated engine. See ºIf your
vehicle overheatsº on page 166.
TACHOMETER
13E003
The tachometer indicates engine speed in thousands of rpm (revolutions
per minute). Use it while driving to prevent engine overrevving.
Driving with the engine running too fast causes excessive engine wear and
poor fuel economy. Remember, in most cases the slower the engine speed, the
greater the fuel economy.
NOTICE
Do not let the indicator needle get into the red zone. This may cause
severe engine damage.
Page 38 of 249
GAUGES, METERS AND SERVICE REMINDER INDICATORS
30
ODOMETER AND TRIP METER
13E004
ºODO/TRIPº knob
This meter displays the odometer and two trip meters. To change the
mode indication, push the ºODO/TRIPº knob briefly. Each time you
push the knob, the mode changes in order from the odometer to trip meter
A to trip meter B, then back to the odometer, etc.
The odometer records the total distance the vehicle has been driven. The
twin trip meter records two different distances independently.
For example, you can use one meter to calculate the fuel economy and the\
other to measure the distance on each trip.
To set the A trip meter to zero, display the A meter reading, push the knob
and hold it. The same applies for the B trip meter.
The data of trip meters will be cancelled if the electrical power source is\
disconnected.

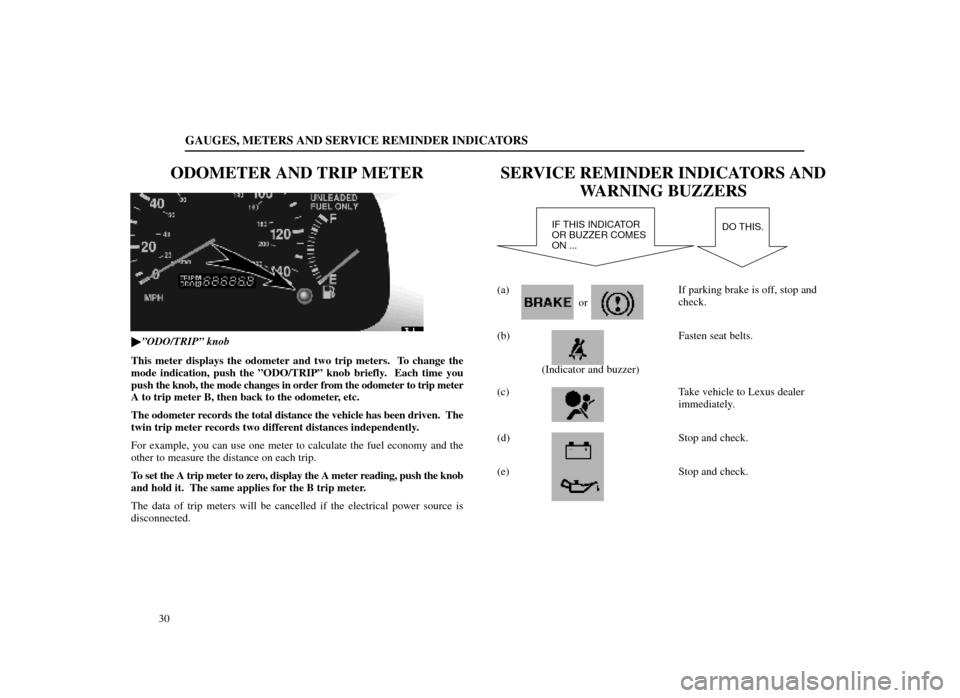

SERVICE REMINDER INDICATORS AND WARNING BUZZERS
IF THIS INDICATOR
OR BUZZER COMES
ON ... DO THIS.
(a)
If parking brake is off, stop and
check.
(b) Fasten seat belts.
(Indicator and buzzer)
(c) Take vehicle to Lexus dealer
immediately.
(d) Stop and check.
(e) Stop and check.
or
Page 39 of 249
GAUGES, METERS AND SERVICE REMINDER INDICATORS31
(f) Add engine oil.
(g) Take vehicle to Lexus dealer.
(h) Take vehicle to Lexus dealer.
(i) Close all doors.
(j) Replace bulb.
(k) Take vehicle to Lexus dealer.
(l) Add washer fluid.
(m) Low fuel level Fill up tank.
warning light
(n) Key reminder buzzer Remove key.
(a) Brake System Warning Light
This light has the following two functions:
Parking brake reminder
If this light is on, make sure the parking brake is fully released. The\
light
should go off.
Low brake fluid level warning
If this light comes on and stays on while you are driving, slow down and p\
ull
off the road. Then stop the vehicle carefully. Remember that stopping
distance and pedal effort may be increased. There may be a problem
somewhere in the brake system. Check the fluid level of the see±through
reservoir.
To make sure the parking brake has not caused the warning light to come on\
,
check to see that the parking brake is fully released.
If the brake fluid level is low ...
At a safe place, test your brakes by starting and stopping.
If you judge that the brakes still work adequately, drive cautiously to your
nearest dealer or shop for repairs.
If the brakes are not working, have the vehicle towed in for repairs. (\
For
towing information, see page 173.)
CAUTION
It is dangerous to continue driving normally when the brake
fluid level is low.
or
Page 40 of 249
GAUGES, METERS AND SERVICE REMINDER INDICATORS
32
If the brake fluid level is correct ...
Have the warning system checked by your Lexus dealer.
(b) Seat Belt Reminder Light and Buzzer
Once the ignition key is turned to ºONº or ºSTARTº, the reminder light and
buzzer come on if the driver's seat belt is not fastened. Unless the driver
fastens the belt, the light stays on and the buzzer stops after about 4 to 8
seconds.
(c) SRS Warning Light
The indicator comes on when the ignition key is turned to the ºACCº o\
r
ºONº position. It goes off after about 6 seconds. This means the SRS is
operating properly.
The SRS warning light system monitors the airbag sensor assemblies,
inflators, seat belt pretensioners, warning light, interconnecting wiring and
power sources.
If either of the following conditions occurs, this indicates a malfunction
somewhere in the parts monitored by the warning light system. Contact your
Lexus dealer as soon as possible to service the vehicle.
The light does not come on as described above.
The light stays on or flashes.
The light comes on or starts flashing while driving.
If the light stays on, it indicates that the driver and front passenger air\
bags fail.
If the light flashes, the side airbags and/or seat belt pretensioners fa\
il.
(d) Discharge Warning Light
This light warns that the battery is being discharged.
If it comes on while you are driving, stop the vehicle, turn off the engine, and
check for the cause. Look first at the engine drive belt.
If it is loose or broken, the generator will not charge the battery properly.
If the belt is O.K., there is a problem somewhere in the charging system.
The engine ignition will continue to operate, however, until the battery is
discharged. Turn off the air conditioning, blower, radio, etc., and drive
directly to the nearest Lexus dealer or repair shop.
NOTICE
Do not continue driving if the engine drive belt is broken or loose.
Page 41 of 249
GAUGES, METERS AND SERVICE REMINDER INDICATORS33
(e) Low Oil Pressure Warning Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are driving, pull off the road to a safe place
and stop the engine immediately. Call a Lexus dealer or qualified repair shop
for assistance.
The light may occasionally flicker when the engine is idling or it may c\
ome
on briefly after a hard stop. There is no cause for concern if it then go\
es out
when the engine is accelerated slightly.
The light may come on when the oil level is extremely low. It is not designed
to indicate low oil level, and the oil level must be checked using the oil\
level
dipstick.
NOTICE
Do not drive the vehicle with the warning light on ± even for one block\
.
It may ruin the engine.
(f) Low Engine Oil Level Warning Light
This light warns that the engine oil level is too low. Add oil as soon as possible.
(For instructions, see ºChecking the engine oil levelº on page 19\
8.)
While driving on steep inclines or rough roads which causes the vehicle to
substantially sway or on curves, this light may come on due to the movement
of engine oil in the engine.
NOTICE
Continued engine operation with low engine oil will damage the engine.
(g) Malfunction Indicator Lamp
This lamp comes on in the following cases.
a. The fuel tank is completely empty. (See ºFuel gaugeº on page 28 for
instructions.)
b. The fuel tank cap is not tightened securely. (See ºFuel tank capº on page
52 for instructions.)
c. There is a problem somewhere in your engine or automatic transmission
electrical system.
If it comes on while you are driving in case c., have your vehicle
checked/repaired by your Lexus dealer as soon as possible.
(h) ºABSº Warning Light
This light warns that there is a problem somewhere in your anti±lock \
brake
system.
If the light comes on while you are driving, have your vehicle checked by \
your
Lexus dealer as soon as possible.
The light will come on when the ignition key is turned to ºONº, and w\
ill go
off after about a few seconds.
Page 42 of 249
GAUGES, METERS AND SERVICE REMINDER INDICATORS
34
When the ºABSº warning light is on (and the brake system warning light is
off), the brake system operates conventionally but anti±lock brake system i\
s
not assisting brake performance so that the wheels could lock up during a
sudden brake or braking on slippery road surfaces.
(i) Open Door Warning Light
This light remains on until all the doors are completely closed.
(j) Rear Light Failure Warning Light
If this light comes on when the headlight switch is turned on (at the f\
irst or
second
clickstop), it indicates that one or more of the tail lights are burned\
out.
If it comes on when the brake pedal is depressed, one or more stop light\
s are
burned out.
Have defective bulbs replaced as soon as possible.
(k) ºTRAC OFFº Indicator/Warning Light
This light comes on when the ignition key is turned to ºONº, and will \
go off
after 3 seconds. This means that the system is operating properly.
If the light flashes, this indicates a malfunction in the traction control\
system.
Contact your Lexus dealer as soon as possible to service the vehicle.
(l) Low Washer Fluid Warning Light
This light comes on when the fluid level in the tank becomes nearly empt\
y.
Fill the tank as soon as possible.
(m) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank becomes nearly empty. Fill
the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank, the low fu\
el
level warning light may come on earlier than usual.
(n) Key Reminder Buzzer
This buzzer reminds you to remove the key when you open the driver's door
with the ignition key in the ºACCº or ºLOCKº position.
Page 43 of 249
GAUGES, METERS AND SERVICE REMINDER INDICATORS35
How to check all the service reminder indicators
(except the low fuel level warning light):
1. Apply the parking brake.
2. Open the door.
The following service reminder indicator should come on. It goes off when
you close the door completely.
3. Turn the ignition key to ºACCº.
The following service reminder indicator should come on. It goes off after 6
seconds.
4. Turn the ignition key to ºONº.
The following service reminder indicators should come on.
or
or
The following service reminder indicators go off after a few seconds.
or
5. Turn the ignition key to ºSTARTº.
The following service reminder indicators should come on.
If any service reminder indicator or warning buzzer does not function, e\
ither
the bulb is burned out or circuit is in need of repair. Have it checked by your
Lexus dealer as soon as possible.
INSTRUMENT PANEL LIGHT CONTROL
13E005
To adjust the brightness of the instrument panel lights, turn the knob.
Page 87 of 249
COMFORT ADJUSTMENT79

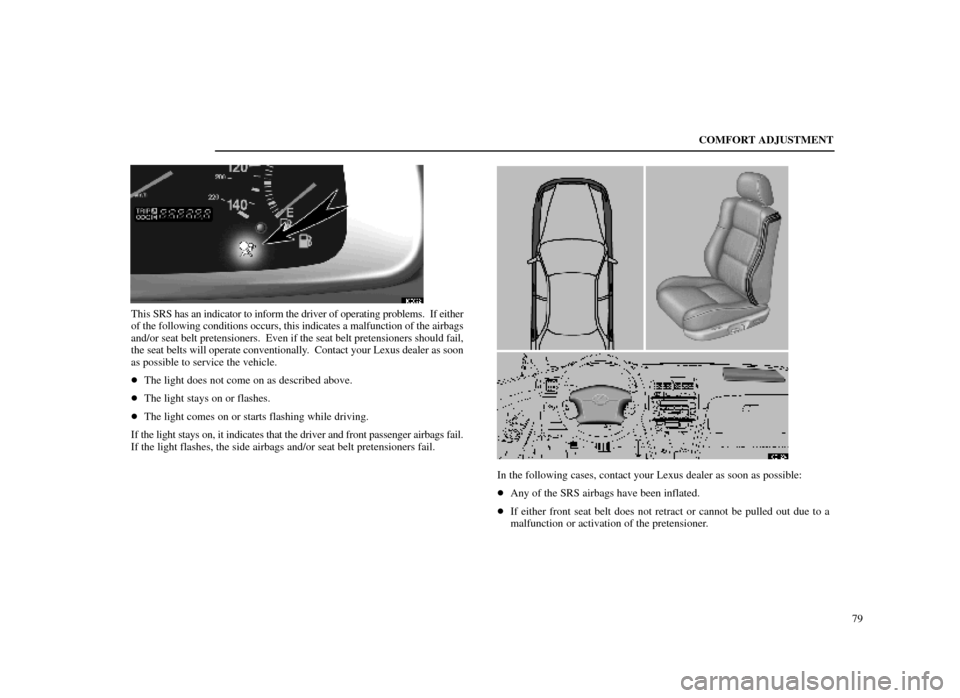

16E022
This SRS has an indicator to inform the driver of operating problems. If either
of the following conditions occurs, this indicates a malfunction of the ai\
rbags
and/or seat belt pretensioners. Even if the seat belt pretensioners should fa\
il,
the seat belts will operate conventionally. Contact your Lexus dealer as soon
as possible to service the vehicle.
The light does not come on as described above.
The light stays on or flashes.
The light comes on or starts flashing while driving.
If the light stays on, it indicates that the driver and front passenger air\
bags fail.
If the light flashes, the side airbags and/or seat belt pretensioners fa\
il.16E128±1
In the following cases, contact your Lexus dealer as soon as possible:
Any of the SRS airbags have been inflated.
If either front seat belt does not retract or cannot be pulled out due t\
o a
malfunction or activation of the pretensioner.
