GAUGES, METERS AND SERVICE REMINDER INDICATORS
61
(d) Discharge Warning Light
This light warns that the battery is being discharged.
If it comes on while you are driving, stop the vehicle, turn
off the engine, and check for the cause. Look first at the
engine drive belt.
If it is loose or broken, the generator will not charge
the battery properly.
 If the belt is O.K., there is a problem somewhere in the
charging system.
The engine ignition will continue to operate, however,
until the battery is discharged. Turn off the air
conditioning, blower, radio, etc., and drive directly to the
nearest Lexus dealer or repair shop.
NOTICE
Do not continue driving if the engine drive belt is broken or loose.
(e) Low Oil Pressure Warning Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are driving, pull off the
road to a safe place and stop the engine immediately.
Call a Lexus dealer or qualified repair shop for
assistance.
The light may occasionally flicker when the engine is
idling or it may come on briefly after a hard stop. There
is no cause for concern if it then goes out when the
engine is accelerated slightly.
The light may come on when the oil level is extremely
low. It is not designed to indicate low oil level, and the
oil level must be checked using the oil level dipstick.
NOTICE
Do not drive the vehicle with the warning light on± even for one block. It may ruin the engine.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
62
(f) Low Engine Oil Level Warning Light
This light warns that the engine oil level is too low. Add
oil as soon as possible. (For instructions, see ºChecking
the engine oil levelº on page 378.)
While driving on steep inclines or rough roads which
causes the vehicle to substantially sway or on curves,
this light may come on due to the movement of engine
oil in the engine.
NOTICE
Continued engine operation with low engine oilwill damage the engine.
(g) Malfunction Indicator Lamp
This lamp comes on in the following cases.
a. The fuel tank is completely empty. (See ºFuel gaugeº
on page 50 for instructions.)
b. The fuel tank cap is not tightened securely. (See
ºFuel tank capº on page 100 for instructions.)
c. There is a problem somewhere in your engine or
automatic transmission electrical system.
If it comes on while you are driving in case ºc.º, have your
vehicle checked/repaired by your Lexus dealer as soon
as possible.
(h) ºABSº Warning Light
This light warns that there is a problem somewhere in
your anti±lock brake system.
If the light comes on while you are driving, have your
vehicle checked by your Lexus dealer as soon as
possible.
The light will come on when the ignition key is turned to
ºONº, and will go off after about a few seconds.
When the ºABSº warning light is on (and the brake
system warning light is off), the brake system operates
conventionally but anti±lock brake system is not
assisting brake performance so that the wheels could
lock up during a sudden brake or braking on slippery
road surfaces.
(i) Open Door Warning Light
This light remains on until all the doors are completely
closed.
(j) Rear Light Failure Warning Light
If this light comes on when the headlight switch is turned
on (at the first or second clickstop), it indicates that one
or more of the tail lights are burned out.
If it comes on when the brake pedal is depressed, one
or more stop lights are burned out.
Have defective bulbs replaced as soon as possible.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
63
(k) Vehicle Skid Control System WarningLights (Vehicles with Vehicle Skid
Control System only)
These lights warn that when there is a problem
somewhere in the vehicle skid control system or traction
control system.
If the ºVSCº warning light and ºVSC OFFº indicator light
come on, have your vehicle checked by Lexus dealer as
soon as possible.
The lights will come on when the ignition key is turned to
ºONº, and will go off after about a few seconds.
If the ºVSCº warning light and ºVSC OFFº indicator light
come on, the vehicle skid control system and traction
control system do not work. However, as conventional
braking operates when applied, there is no problem to
continue your driving.
(l) ºTRAC OFFº Indicator/Warning Light (Vehicles with Traction Control
System only)
This light comes on when the ignition key is turned to
ºONº, and will go off after a few seconds. This means
that the system is operating properly.
If the light comes on or flashes, this indicates a
malfunction in the traction control system. Contact your
Lexus dealer as soon as possible to service the vehicle.
(m) Low Washer Fluid Warning Light
This light comes on when the fluid level in the tank
becomes nearly empty. F ill the tank as soon as possible.
(n) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank
becomes nearly empty. F ill the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the
tank, the low fuel level warning light may come on earlier
than usual.
(o) Key Reminder Buzzer
This buzzer reminds you to remove the key when you
open the driver's door with the ignition key in the ºACCº
or ºLOCKº position.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
64
How to check all the service reminder
indicators
(except the low fuel level warning light):
1. Apply the parking brake.
2. Open the door.
The following service reminder indicator should come
on. It goes off when you close the door completely.
3. Turn the ignition key to ºACCº.
The following service reminder indicator should come
on. It goes off after 6 seconds.
4. Turn the ignition key to ºONº.
The following service reminder indicators should come
on.
or

or
w069

and
The following service reminder indicators go off after a
few seconds.
or

and
w069
5. Turn the ignition key to ºSTARTº.
The following service reminder indicators should come
on.

If any service reminder indicator or warning buzzer does
not function, either the bulb is burned out or circuit is in
need of repair. Have it checked by your Lexus dealer as
soon as possible.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
65

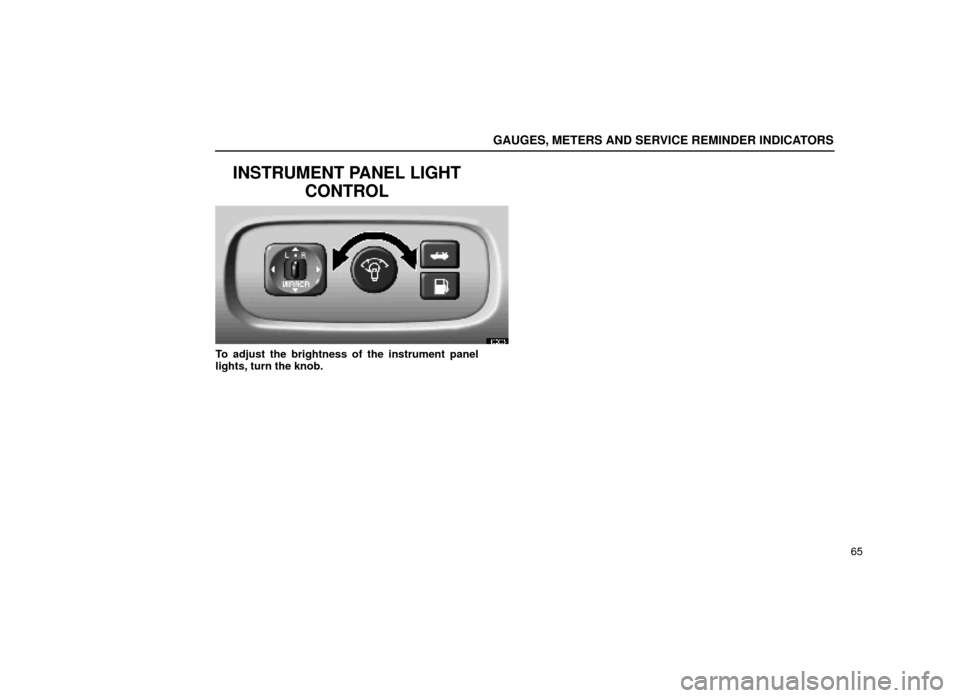

INSTRUMENT PANEL LIGHTCONTROL
13E005
To adjust the brightness of the instrument panel
lights, turn the knob.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
66

SECTION 1 ± 4
67
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal light 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Cigarette lighter and ashtray 76
. . . . . . . . . . . . . . . . . . . . .
Power outlet 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glovebox 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Garage door opener 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead console box 88
. . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Luggage stowage precautions 92
. . . . . . . . . . . . . . . . . . .
VANITY MIRRORS

INTERIOR EQUIPMENT
68
14E001±1

Sun visor on the vehicle equipped with garagedoor opener

INTERIOR EQUIPMENT
69
14E047

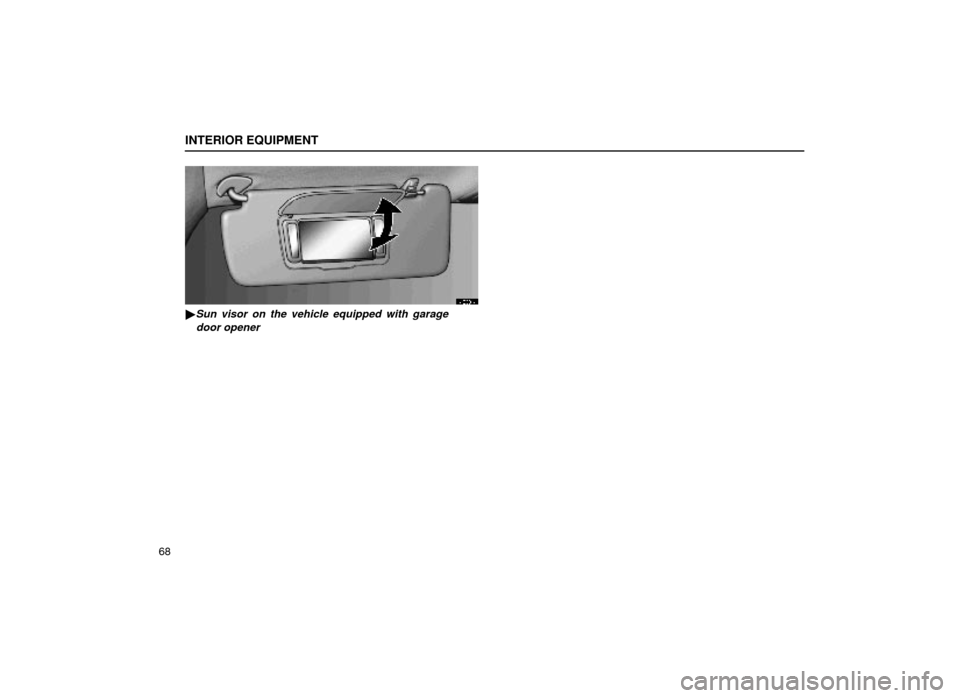

Sun visor on the vehicle not equipped with garagedoor opener
To use the vanity mirrors, swing the sun visor down
and open the cover.
The vanity lights come on when you open the cover.
Sun visors
14E002±1

INTERIOR EQUIPMENT
70

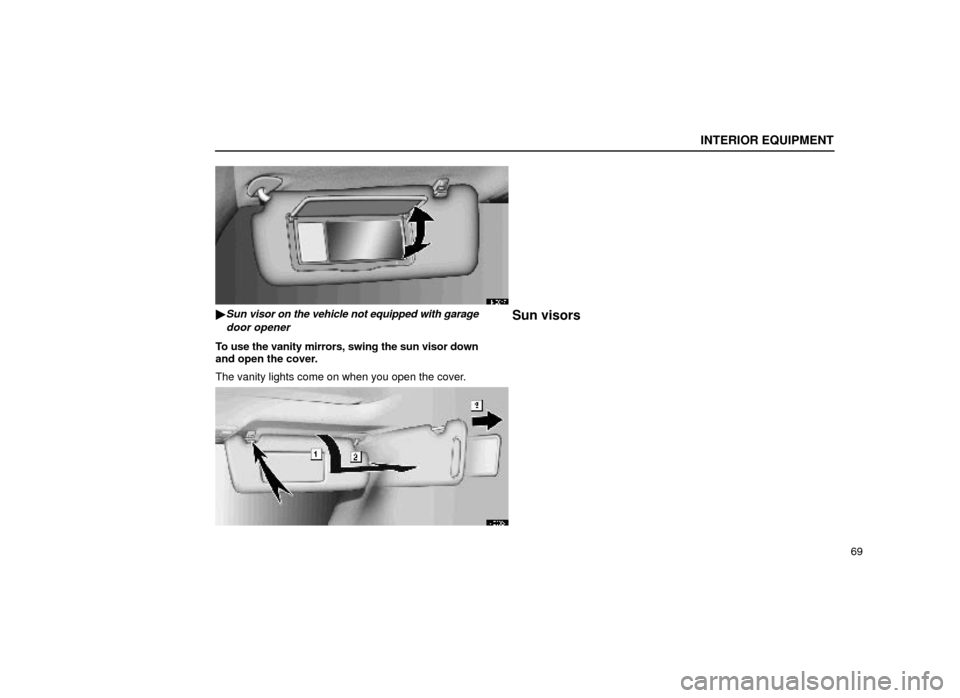

1To block out glare from the front , swing the sun
visor down.
2To block out glare from the side, remove the
sun visor from the hook and swing it to the side.
3To block out glare coming obliquely from
behind you, pull out an extension plate from the
inside of the sun visor.
NOTICE
Take care not to swing back the sun visor without pushing back the extension plate so as not todamage the extension plate.
