SWITCHES
41
REAR WINDOW AND OUTSIDEREAR VIEW MIRRORDEFOGGER SWITCH
12E043
To turn the electric rear window and outside rear
view mirror defogger on, push the switch.
The ignition key must be in the ªONº position.
The thin heater wires on the inside of the rear window
and the heater panels in the outside rear view mirrors will
quickly clear the surface. An indicator light is on when
the defogger is operating.
The system will automatically shut off when the defogger
has operated about 15 minutes.

SWITCHES
42
CAUTION
Since the mirror surfaces can get hot, keep your hands
off them when the rear window and outside rear view
mirror defogger switch is on.
If further defrosting or defogging is desired, simply
actuate the switch again. When the surface has cleared,
push the switch once again to turn the defogger off.
Continuous use may cause the battery to discharge,
especially during stop±and±go driving. The defogger is
not designed to dry rain water or to melt snow.
If the outside rear view mirrors are heavily coated with
ice, use a spray de±icer before operating the switch.
NOTICE
When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires.
To prevent the battery from being discharged,do not operate the defogger continuouslylonger than necessary.
POWER WINDOW SWITCHES
12E012±2

SWITCHES
43


1For driver's window
2For front passenger's window
3For left rear window
4For right rear window
To raise or lower the windows, use the switch on
each door. The passengers' windows can also be
controlled by the switches on the driver's door.
The power windows work when the ignition key is in the
ªONº position.
Key off operation:
Even if the ignition key is turned to
the ªACCº or ªLOCKº position with all the doors closed,
the window can be operated until a front door is opened
(or for 43 seconds).
12L010

SWITCHES
44
Operating the driver's and front
passenger's switch
To lower the window, push the switch halfway down.
Pull it up to raise the window. The window glass
moves as long as the switch is operated.
Automatic operation: To fully raise or lower the
window automatically, pull the switch fully up or push it
fully down.
To stop the window partway, lightly push or pull the
switch in the opposite direction and then release it.
Operating the rear passengers' switches
To lower the window, push the switch down. Pull it
up to raise the window. The window moves as long
as the switch is operated.
Operating the window lock switch
12E013±2

Indicator light
With the window lock switch pressed in, only the
driver's window can be raised or lowered.
The indicator lights on the switch tell you which of the
switches can be operated.

SWITCHES
45
Operating the driver's and front
passenger's windows from outside the
vehicle

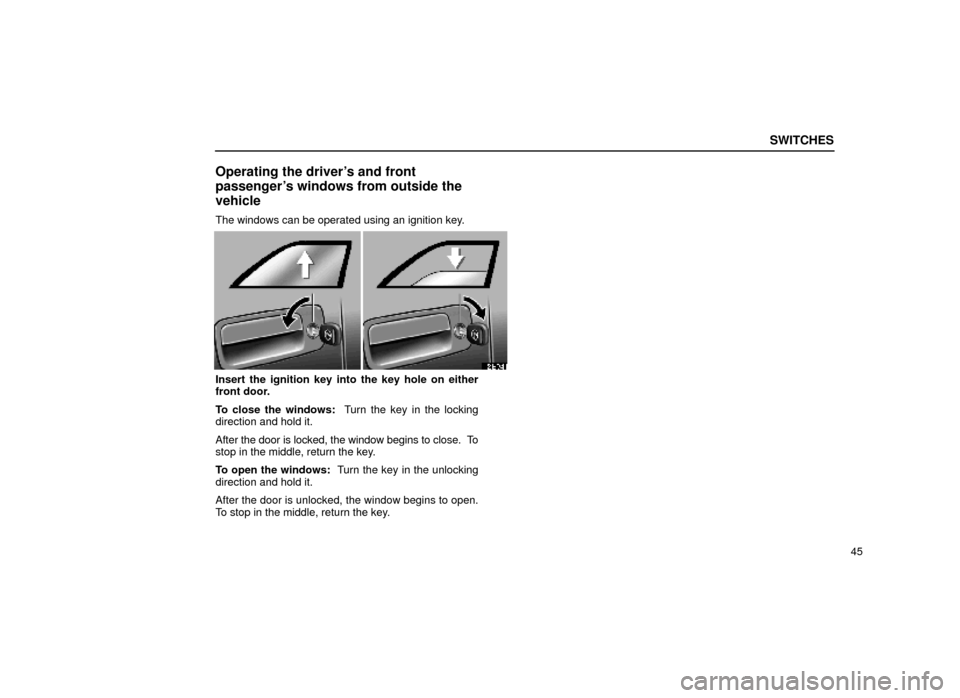

The windows can be operated using an ignition key.
12E041
Insert the ignition key into the key hole on either
front door.
To close the windows: Turn the key in the locking
direction and hold it.
After the door is locked, the window begins to close. To
stop in the middle, return the key.
To open the windows: Turn the key in the unlocking
direction and hold it.
After the door is unlocked, the window begins to open.
To stop in the middle, return the key.

SWITCHES
46
Jam protection function
During automatic raising operation, key off raising
operation or raising operation using the ignition key from
the outside, the window stops and is lowered if
something gets caught between the window and window
frame.
If the window receives a strong impact, this function may
work even if nothing is caught.

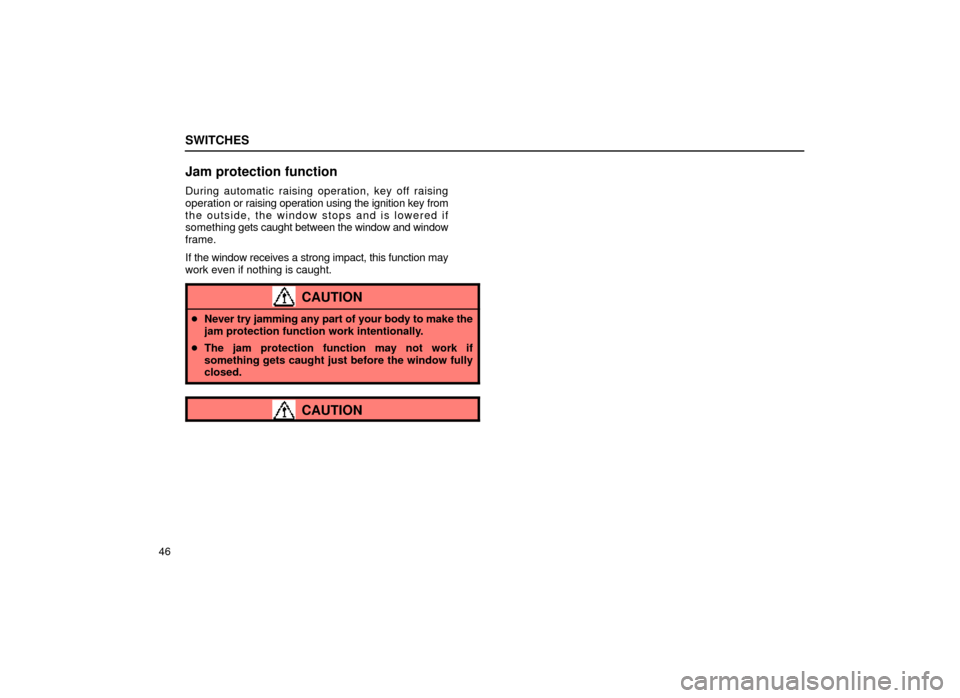

CAUTION
 Never try jamming any part of your body to make the
jam protection function work intentionally.
 The jam protection function may not work if
something gets caught just before the window fully
closed.
CAUTION

SWITCHES
47

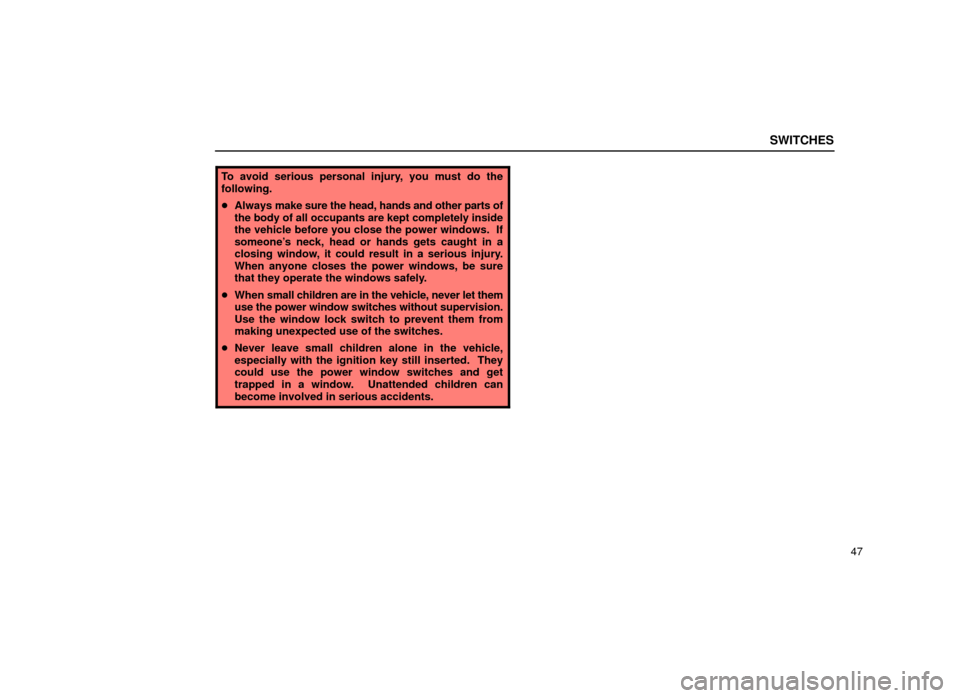

To avoid serious personal injury, you must do the
following.
Always m ake sure the head, hands and other parts of
the body of all occupants are kept completely inside
the vehicle before you close the power windows. If
someone's neck, head or hands gets caught in a
closing window, it could result in a serious injury.
When anyone closes the power windows, be sure
that they operate the windows safely.
 When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.
 Never leave small children alone in the vehicle,
especially with the ignition key still inserted. They
could use the power window switches and get
trapped in a window. Unattended children can
become involved in serious accidents.

SWITCHES
48

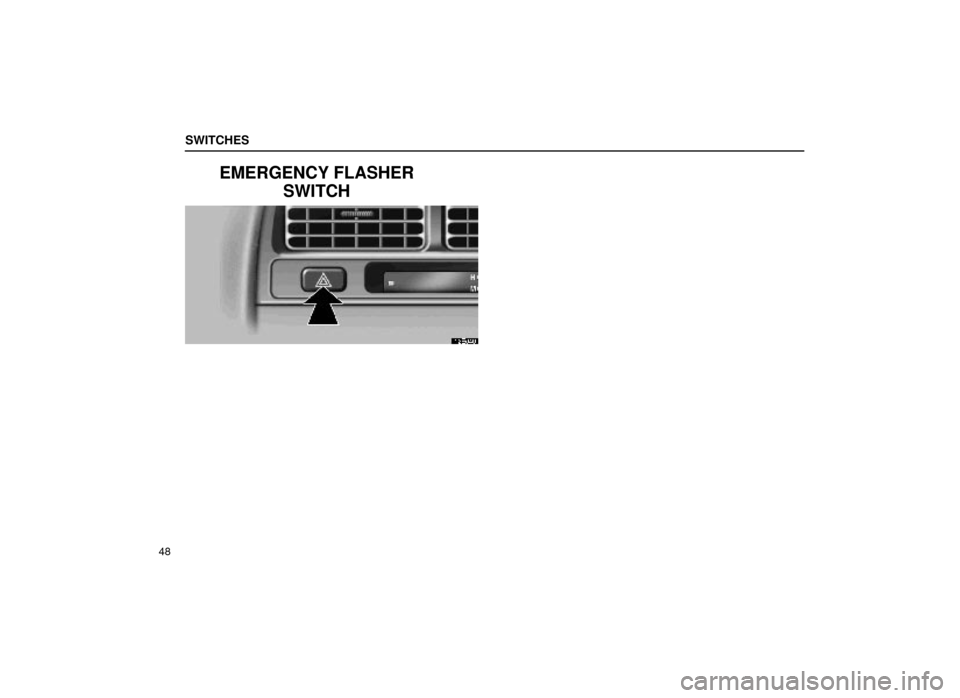

EMERGENCY FLASHERSWITCH
12E040

SWITCHES
49
To turn on the emergency flashers, push the switch.
All the turn signal lights will flash. The emergency
flashers
will work with the engine running or off and with
or without the ignition key.
Turn on the emergency flashers to warn other drivers if
you must stop your vehicle where it might be a traffic
hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the
emergency flashers are in operation.
NOTICE
To prevent the battery from being discharged, do not leave the switch on longer than necessarywhen the engine is not running.
SEAT HEATER SWITCHES
12E042

SWITCHES
50

1For driver's seat 2For front passenger's
seat
3High heating temperature
4Low heating temperature
To turn on the seat heater, push the switch to ªHIº
(high temperature) or ªLOº (low temperature).
Pushing lightly on the opposite side will turn it off.
The ignition key must be in the ªONº position.
