COMFORT ADJUSTMENT
194
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
your child from injury.
16E191
2. Fully extend the shoulder belt to put it in the lock
mode. When the belt is then retracted slightly, it cannot
be extended.
To hold the convertible seat securely, make sure the belt
is in the lock mode before letting the belt retract.

COMFORT ADJUSTMENT
195
16E192

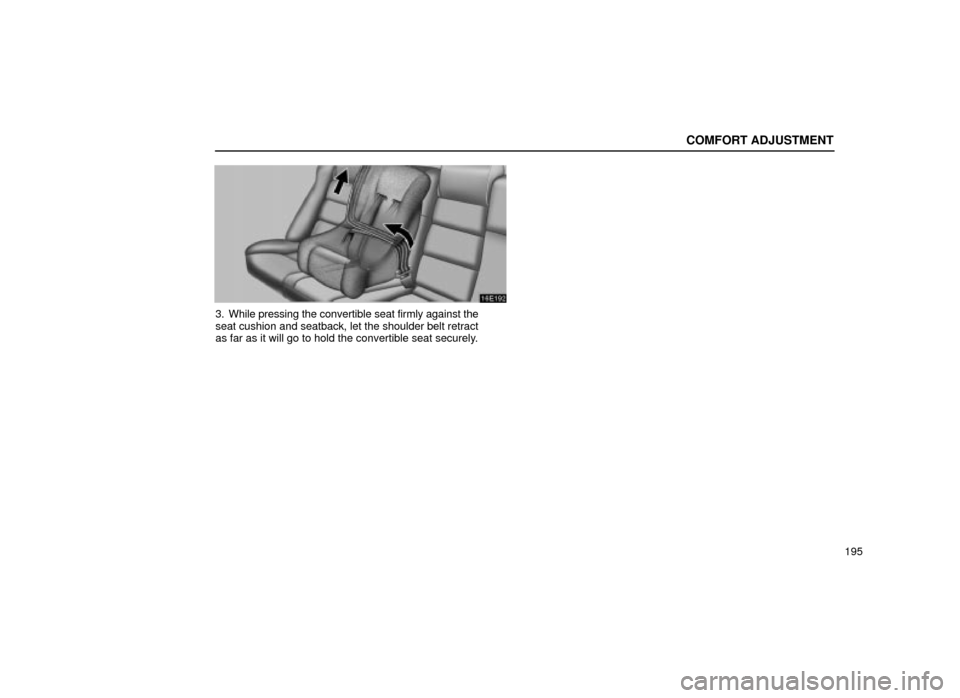

3. While pressing the convertible seat firmly against the
seat cushion and seatback, let the shoulder belt retract
as far as it will go to hold the convertible seat securely.

COMFORT ADJUSTMENT
196
16E193

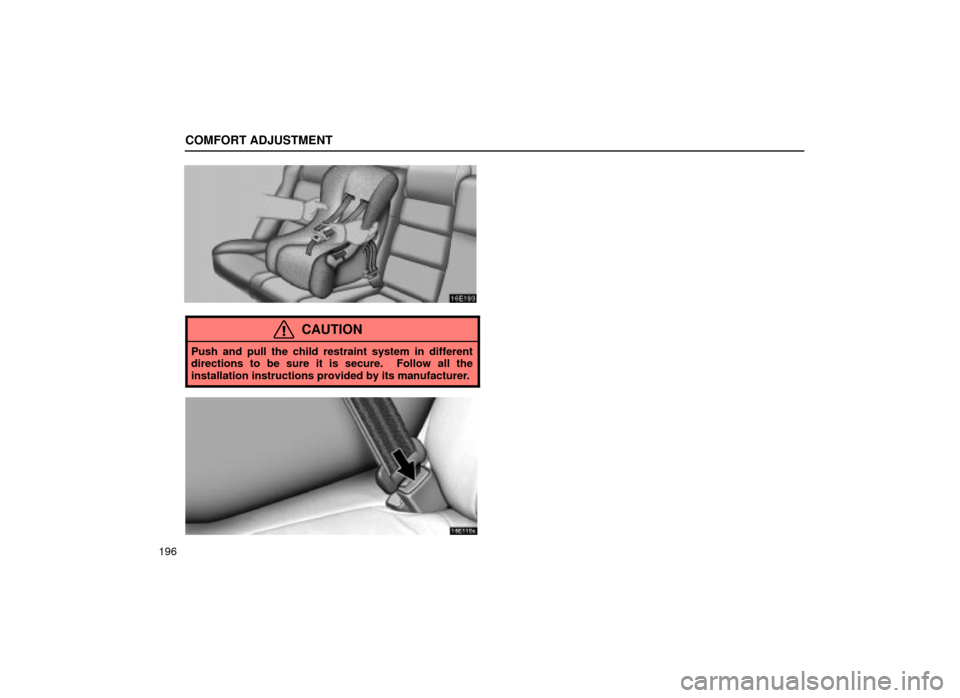

CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.
16E115c

COMFORT ADJUSTMENT
197
4. To remove the convertible seat, press the
buckle±release button and allow the belt to retract
completely. The belt will move freely again and be ready
to work for an adult or older child passenger.
(C) Booster seat installation
16E194
A booster seat is used in forward±facing position only.

COMFORT ADJUSTMENT
198
16L152

Move seat fully back

COMFORT ADJUSTMENT
199

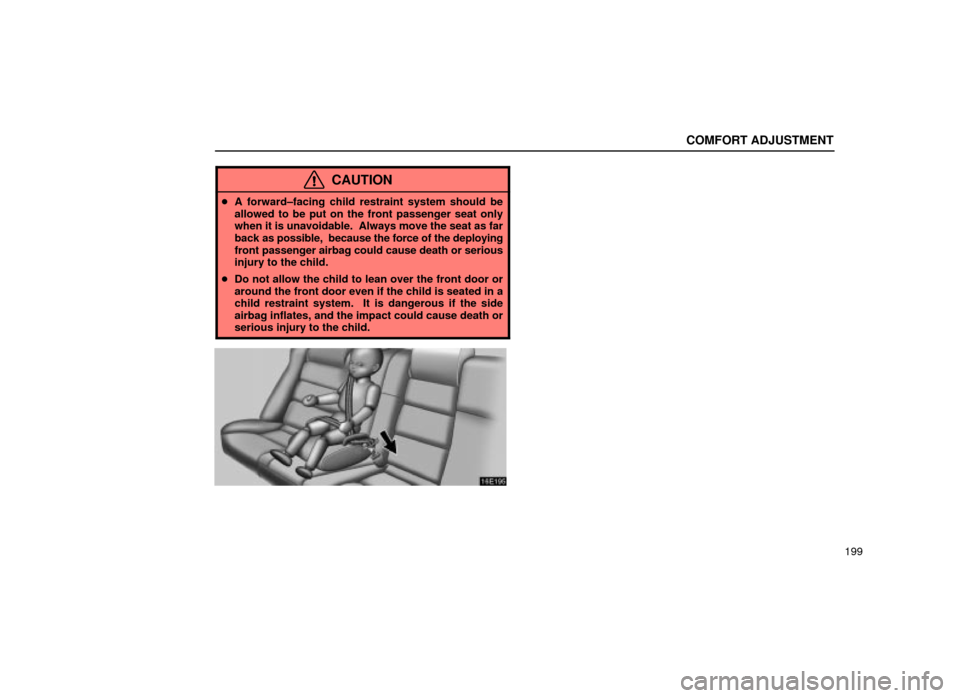

CAUTION
A forward±facing child restraint system should be
allowed to be put on the front passenger seat only
when it is unavoidable. Always move the seat as far
back as possible, because the force of the deploying
front passenger airbag could cause death or serious
injury to the child.
 Do not allow the child to lean over the front door or
around the front door even if the child is seated in a
child restraint system. It is dangerous if the side
airbag inflates, and the impact could cause death or
serious injury to the child.
16E195

COMFORT ADJUSTMENT
2001. Sit the child on a booster seat. Run the lap and
shoulder belt through or around the booster seat and
child following the instructions provided by its
manufacturer and insert the tab into the buckle.
Make sure the shoulder belt is correctly across the
child's
shoulder and that the lap belt is positioned as low
as possible on child's hips. See ªSeat beltsº on page 136
for details.

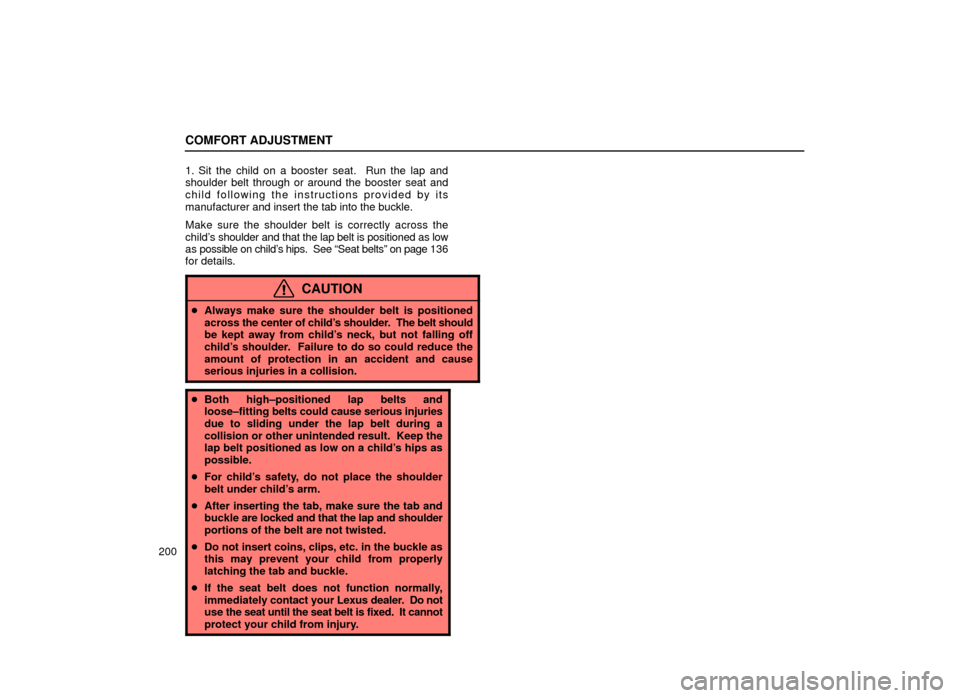

CAUTION
 Always make sure the shoulder belt is positioned
across the center of child's shoulder. The b elt should
be kept away from child's neck, but not falling off
child's shoulder. Failure to do so could reduce the
amount of protection in an accident and cause
serious injuries in a collision.
 Both high±positioned lap belts and
loose±fitting belts could cause serious injuries
due to sliding under the lap belt during a
collision or other unintended result. Keep the
lap belt positioned as low on a child's hips as
possible.
 For child's safety, do not place the shoulder
belt under child's arm.
 After inserting the tab, make sure the tab and
buckle are l ocked and that the lap and shoulder
portions of the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as
this may prevent your child from properly
latching the tab and buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not
use the seat until the seat belt is fixed. It cannot
protect your child from injury.

COMFORT ADJUSTMENT
201
16E117c

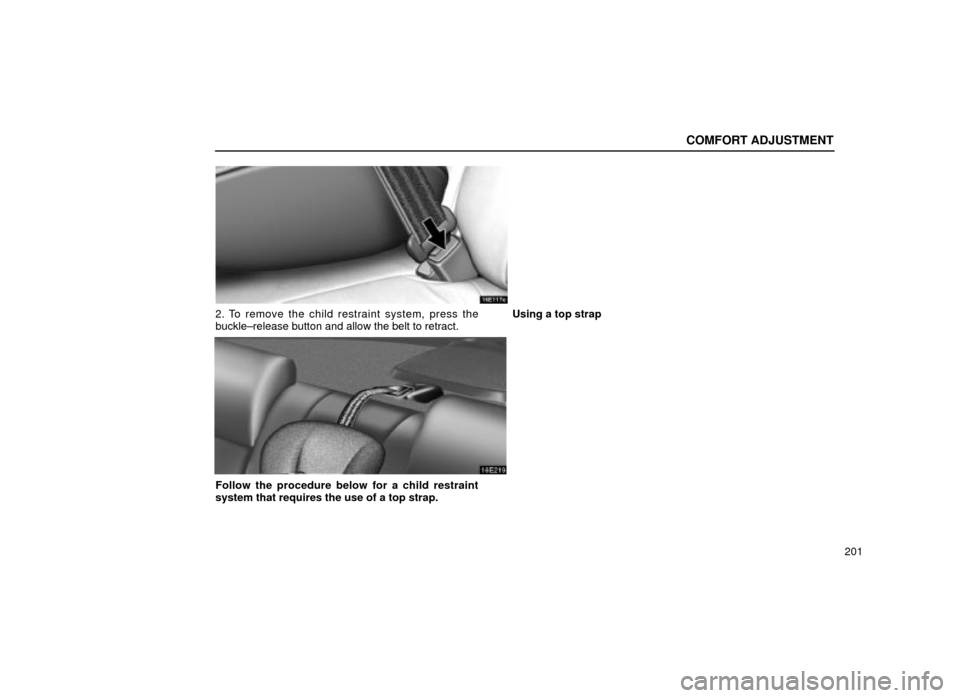

2. To remove the child restraint system, press the
buckle±release button and allow the belt to retract.Using a top strap
16E219
Follow the procedure below for a child restraint
system that requires the use of a top strap.

COMFORT ADJUSTMENT
202
16E248

Anchor bracket
Use the anchor bracket on the package tray behind the
rear seat to attach the top strap.
Anchor brackets are installed for each rear seating
position.

COMFORT ADJUSTMENT
203
16E211

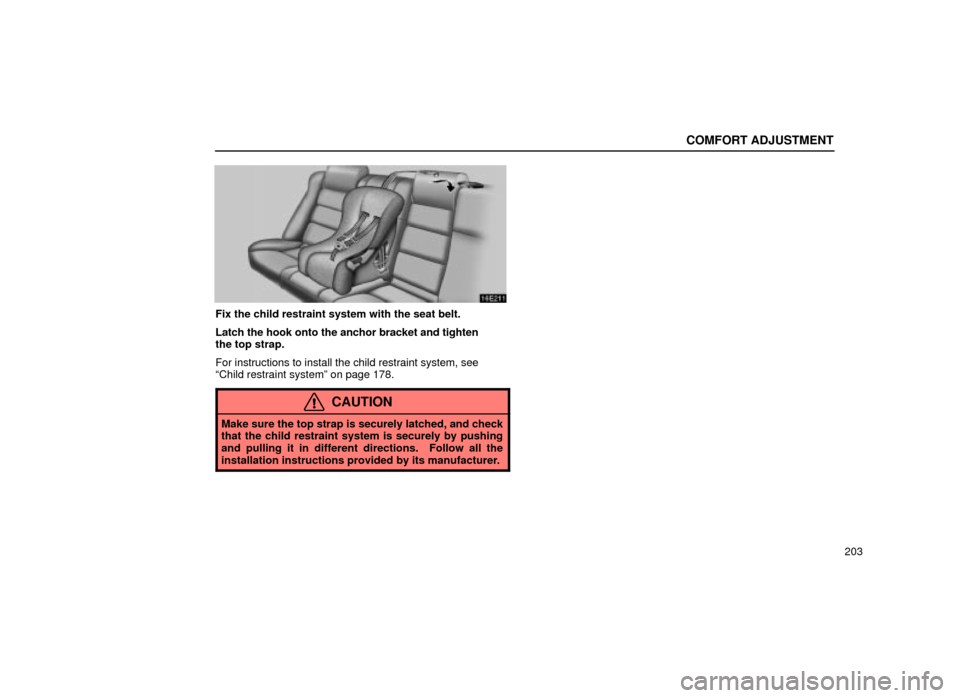

Fix the child restraint system with the seat belt.
Latch the hook onto the anchor bracket and tighten
the top strap.
For instructions to install the child restraint system, see
ªChild restraint systemº on page 178.
CAUTION
Make sure the top strap is securely latched, and check
that the child restraint system is securely by pushing
and pulling it in different directions. Follow all the
installation instructions provided by its manufacturer.
