KEYS AND DOORS
24
NOTICE
Make sure the positive side and negative sideof the battery should be faced correctly.
Be careful not to bend the electrode of thebattery insertion and that dust or oils do notadhere to the inside of the module.
Take care not to lose the screws and O±ring.
5. Install the lid with the 2 screws.
NOTICE
Take care not to damage or bend the O±ring wheninstalling.
6. Install the module into the key frame and secure the
cover with the screw.
7. When pushing any button on the wireless key, make
sure the indicator light comes on.
DOORS

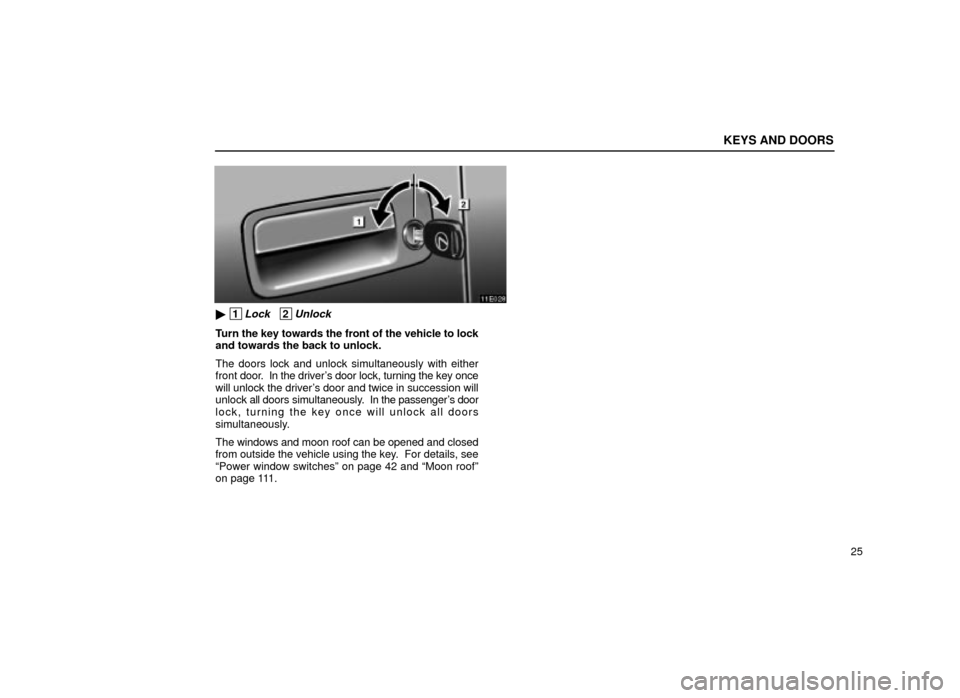

Locking with key

KEYS AND DOORS
25
11E028

1Lock 2Unlock
Turn the key towards the front of the vehicle to lock
and towards the back to unlock.
The doors lock and unlock simultaneously with either
front door. In the driver's door lock, turning the key once
will unlock the driver's door and twice in succession will
unlock all doors simultaneously. In the passenger's door
lock, turning the key once will unlock all doors
simultaneously.
The windows and moon roof can be opened and closed
from outside the vehicle using the key. For details, see
ªPower window switchesº on page 42 and ªMoon roofº
on page 111.

KEYS AND DOORS
26

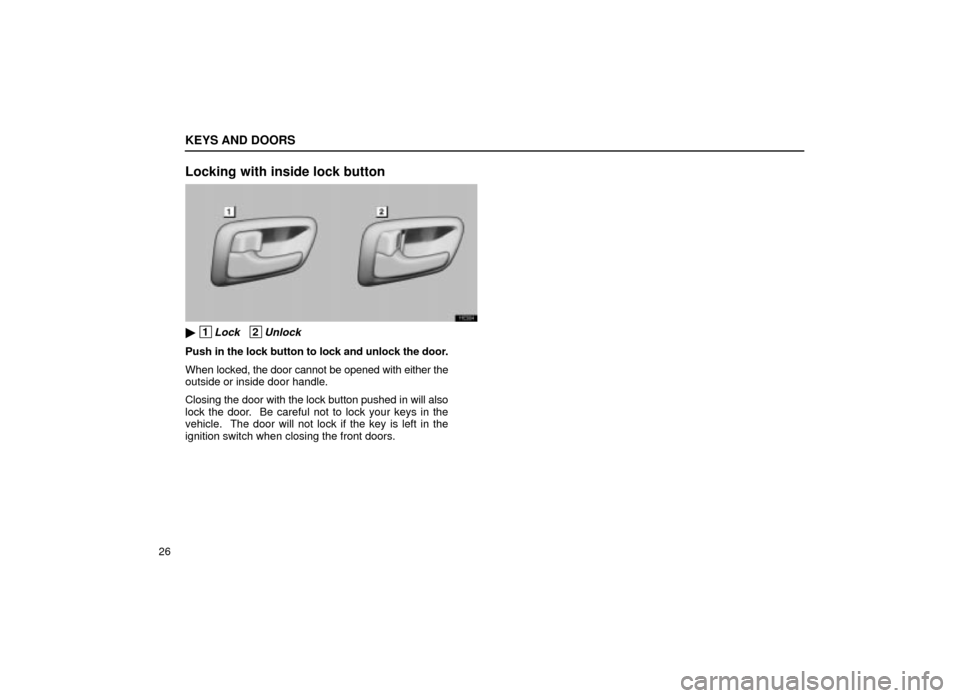

Locking with inside lock button
11E004

1Lock 2Unlock
Push in the lock button to lock and unlock the door.
When locked, the door cannot be opened with either the
outside or inside door handle.
Closing the door with the lock button pushed in will also
lock the door. Be careful not to lock your keys in the
vehicle. The door will not lock if the key is left in the
ignition switch when closing the front doors.

KEYS AND DOORS
27

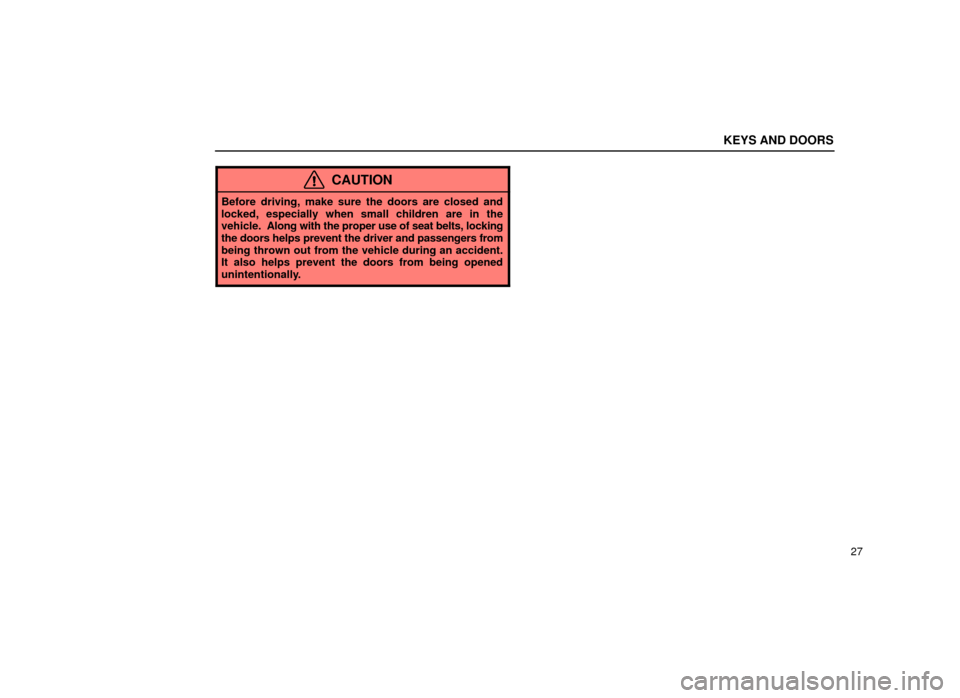

CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.

KEYS AND DOORS
28

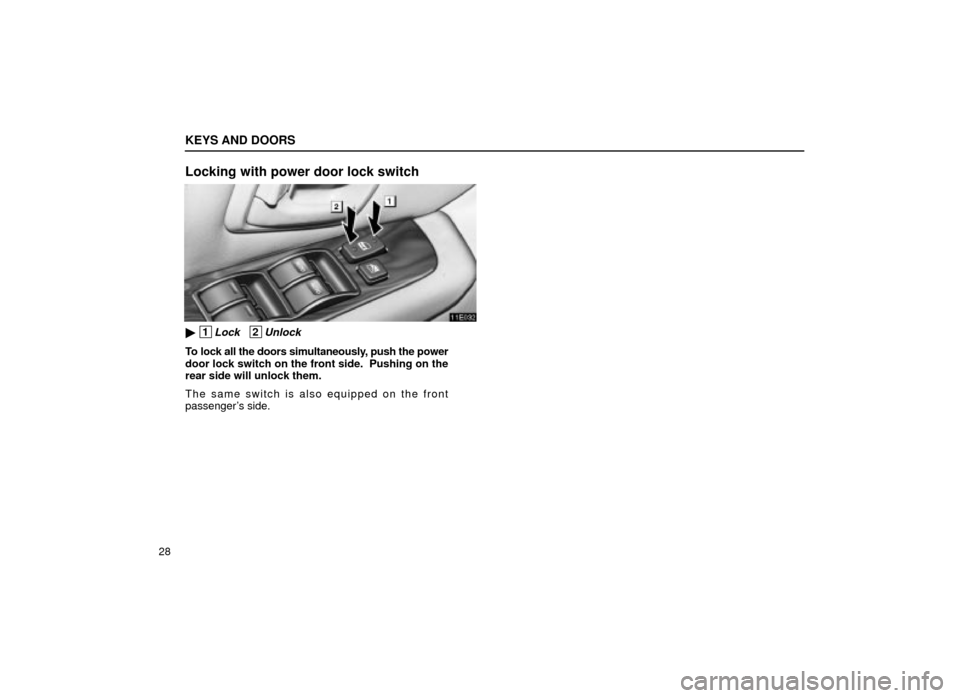

Locking with power door lock switch
11E032

1Lock 2Unlock
To lock all the doors simultaneously, push the power
door lock switch on the front side. Pushing on the
rear side will unlock them.
The same switch is also equipped on the front
passenger's side.

KEYS AND DOORS
29

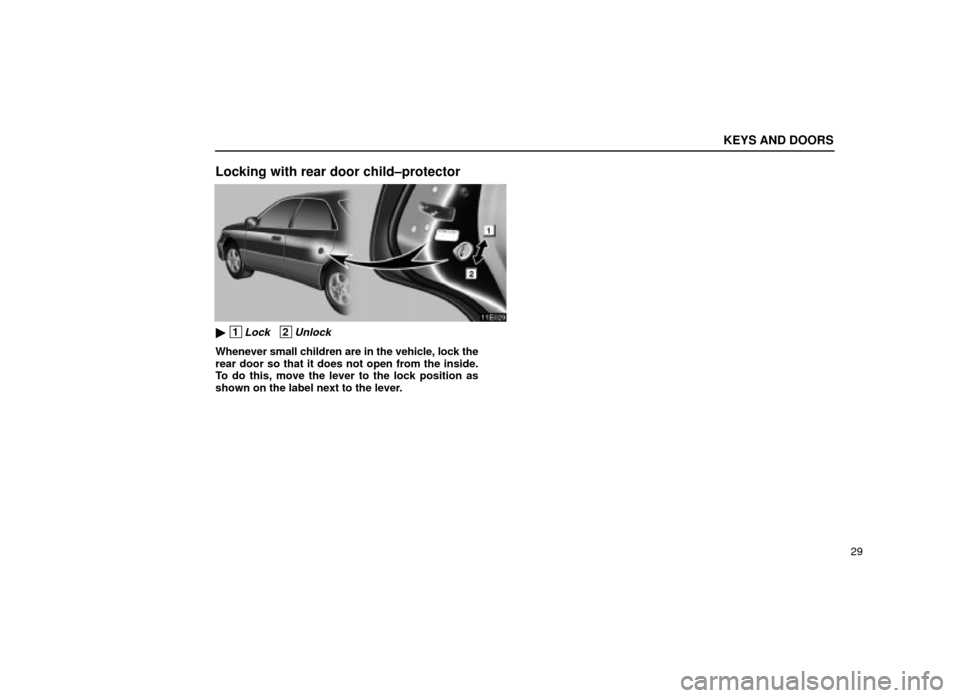

Locking with rear door child±protector
11E029

1Lock 2Unlock
Whenever small children are in the vehicle, lock the
rear door so that it does not open from the inside.
To do this, move the lever to the lock position as
shown on the label next to the lever.

KEYS AND DOORS
30

SECTION 1 ± 2
31
INSTRUMENTS AND CONTROLS
Switches
Headlight switch31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 34
. . . . . . . . . .
Fog light switch 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 36
. . . . . . . . . . . . . .
Rear window and outside rear view mirror defogger
switch 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Power window switches 42
. . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 48
. . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 49
. . . . . . . . . . . . . . . . . . . . . . . . . . .

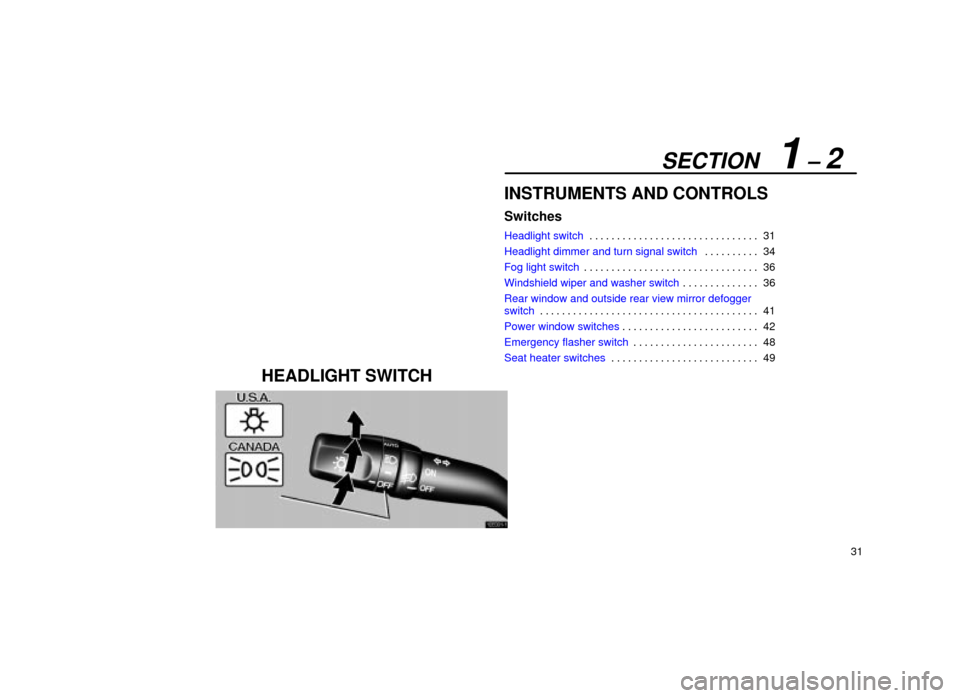

HEADLIGHT SWITCH
12E001±1

SWITCHES
32To turn the lights on, twist the knob on the end of the
lever.
FIRST CLICKSTOP: Only the parking, tail, license
plate, side marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (ªAUTOº): The headlights and all
other lights automatically turn on depending on the
darkness of the surroundings.
Vehicles sold in U.S.A.:
When the headlights are on,
the headlight indicator lights up in the instrument cluster.
Vehicles sold in Canada: When the tail lights are on,
the tail light indicator lights up in the instrument cluster.
Manually twist the knob to the second clickstop to
turn on the headlights if they are needed
immediately when entering a dark tunnel, parking
structure, etc. When
the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control
knob is turned fully on.
12E045

SWITCHES
33

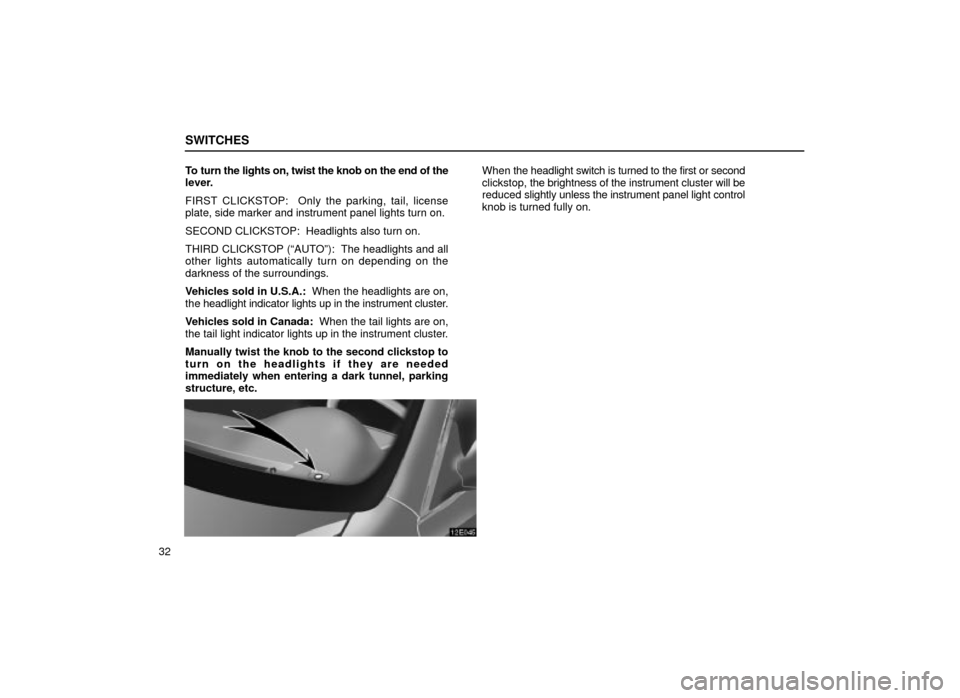

The automatic light control sensor is on top of the
driver's side instrument panel.
Do not place anything on the instrument panel, and/or do
not affix anything on the windshield to block this sensor.
When the headlights come on, the lights automatically
turn off about 30 seconds after any of the doors is
opened and closed with the ignition key turned to the
ªACCº or ªLOCKº position. To turn them on again, turn
the ignition key to the ªONº position, or turn the headlight
switch off
and then twist the knob until the first or second
clickstop. If you are going to park for over one week,
make sure the headlight switch is off. Daytime Running Light System
The headlights turn on at reduced intensity when the
parking brake is released with the engine started, even
with the light switch in the ªOFFº position. They will not
go off until the ignition switch is turned off.
To turn on the other exterior lights and instrument panel
lights, twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the
headlights to full intensity for driving at night.
When setting the knob to the third clickstop (ªAUTOº),
the headlights will automatically adjust to full intensity
and/or turn on the other lights depending on the
darkness of the surroundings. Likewise, as the
surroundings
become brighter, the headlights will turn to
reduced intensity, ultimately turning off the other lights.
NOTICE
To prevent the battery from being discharged, do not leave the lights on longer than necessarywhen the engine is not running.
