AUDIO
198(e) Your automatic changer
Your automatic changer can store up to 6 discs and play
selected discs or continuously play all the discs set in the
player.
When
you set discs into the player, make sure their labels face
up. If not, the player will display “ERROR1” and the disc
number.
NOTICE
 Never try to disassemble or oil any part of the
compact disc player. Do not insert anything except
a compact disc into the slot.
 Do not insert a disc upon another one.
The player is intended for use with 12 cm (4.7 in.) discs only.
Radio operation
(a) Listening to the radio
Push these buttons to choose either an AM or FM station.
“AM”, “FM1”, “FM2” or “FM TYPE” appears on the d\
isplay.

AUDIO
199
Turn this knob to the right to step up the station band or
to the left to step down.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. “ST” appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, “ST”
disappears from the display.(b) Presetting a station
1. Tune in the desired station.
2. Push
one of the station selector buttons ( 16 ) and hold
it until a beep is heard. This sets the station to the button
and the button number ( 16 ) appears on the display.
Each button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse.

AUDIO
200(c) Selecting a station
Your Lexus has an electronic tuning radio (ETR). Tune in the
desired station using one of the following methods.
Seek tuning: Push the “SEEK” button. The radio will begin
seeking up
or down for a station of the nearest frequency and
will stop on reception. Each time you push the button, the
stations will be searched out one after another.
Preset tuning: Push the button ( 16 ) for the station you want.
The button number ( 16 ) and station frequency appear on the
display.
Manual tuning: Turn the “TUNE” knob. The radio will step up
or down to another frequency.
To scan all the frequencies: Push the “SCAN” button briefly.
“SCAN” appears on the display. The radio will find the next
station up the band, stay there for a few seconds, and then
scan again. To select a station, push the “SCAN” button a
second time.
To scan the preset stations: Push the “SCAN” button until
you hear a beep. “P .SCAN” appears on the display . The radio
will tune in the next preset station up the band, stay there for
a few seconds, and then move to the next preset station. To
select a station, push the “SCAN” button a second time.

AUDIO
201
(d) RDS (Radio Data System)
AF (Alternative Frequency) function: When the RDS is
turned on, a station providing good reception is
automatically selected if current reception worsens.
When you push the “RDS”
button briefly during FM reception,
the RDS turns on. “RDS” and “RDS SEARCH” appear on the
display and the radio starts to search RDS stations.
If no RDS stations can be found, “NOTHING” appears and the
display returns to the previous mode.
If RDS stations are found, “FOUND **ST” appears on the
display (** indicating the number of stations which are found)
in the FM TYPE mode and the RDS stations are preset by
program type.
To turn off the RDS, push the “RDS” button until you hear a
beep. TYPE (Program type):
When you push the “TYPE” button while receiving an RDS
station, the current program type appears on the display.
Each time you push the “TYPE” button, the program type
changes as in the following:

ROCK
 EASY LIS (Easy listening)
 CLS/JAZZ (Classical music and jazz)
 R&B (Rhythm and Blues)
 INFORM (Information)
 RELIGION
 MISC
 ALERT (Emergency message)

AUDIO

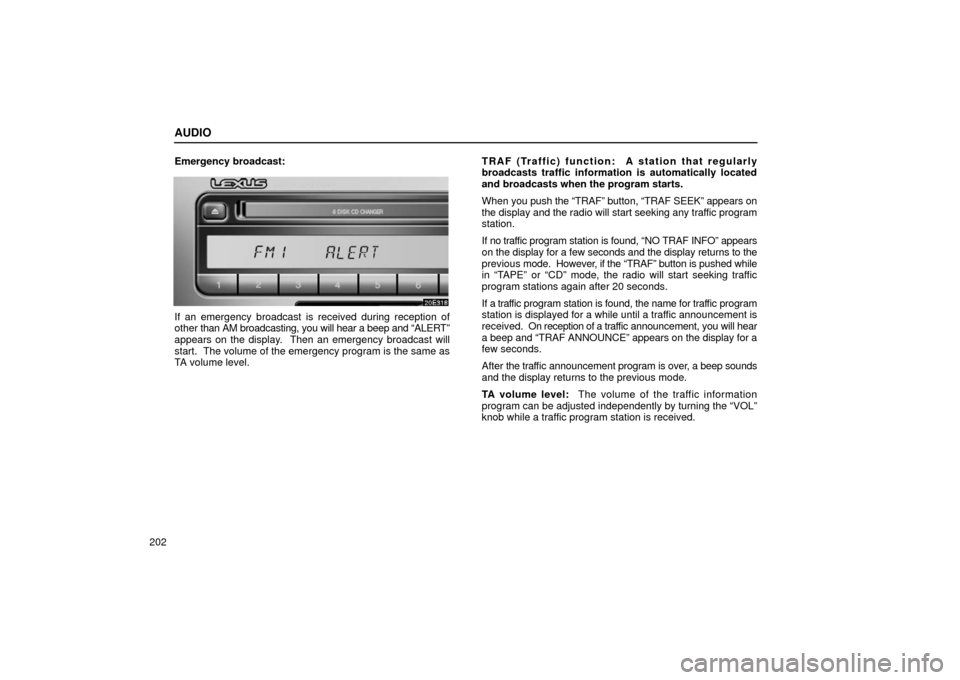

202Emergency broadcast:
If an emergency broadcast is received during reception of
other
than AM broadcasting, you will hear a beep and “ALERT”
appears on the display. Then an emergency broadcast will
start. The volume of the emergency program is the same as
TA volume level. TRAF (Traffic) function: A station that regularly
broadcasts traffic information is automatically located
and broadcasts when the program starts.
When you push the “TRAF” button, “TRAF SEEK” appears on
the display and the radio will start seeking any traffic program
station.
If no traf
fic program station is found, “NO TRAF INFO” appears
on the display for a few seconds and the display returns to the
previous mode. However, if the “TRAF” button is pushed while
in “TAPE” or “CD” mode, the radio will start seeking traffic
program stations again after 20 seconds.
If a traf fic program station is found, the name for traffic program
station is displayed for a while until a traffic announcement is
received. On reception of a traf fic announcement, you will hear
a beep and “TRAF ANNOUNCE” appears on the display for a
few seconds.
After the traffic announcement program is over , a beep sounds
and the display returns to the previous mode.
TA volume level: The volume of the traffic information
program can be adjusted independently by turning the “VOL”
knob while a traffic program station is received.

AUDIO
203

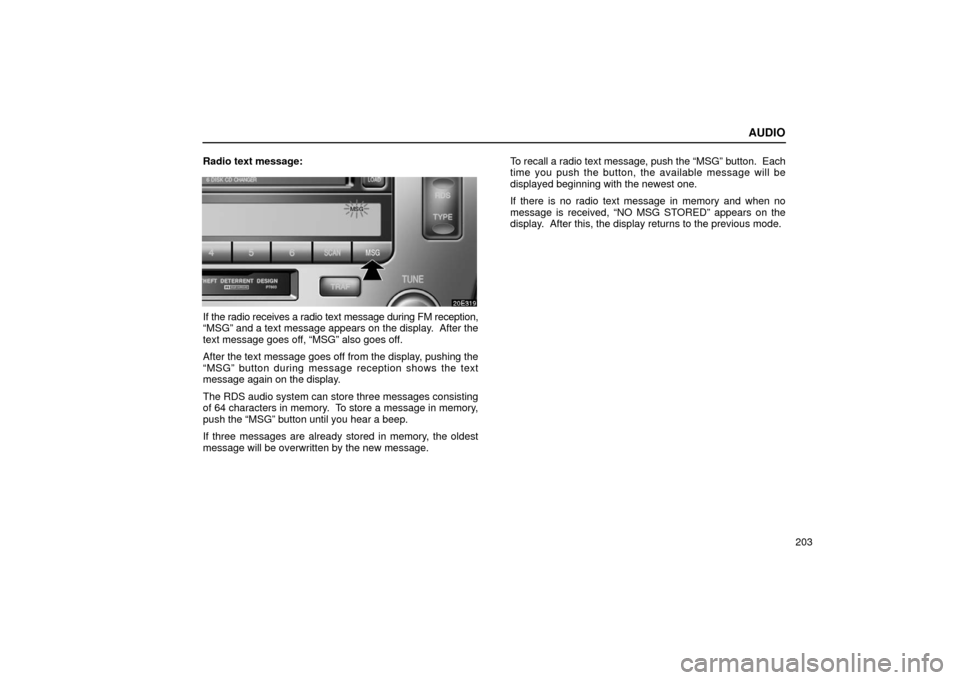

Radio text message:
If the radio receives a radio text message during FM reception,
“MSG” and a text message appears on the display. After the
text message goes off, “MSG” also goes off.
After the text message goes off from the display, pushing the
“MSG” button during message reception shows the text
message again on the display.
The RDS audio system can store three messages consisting
of 64 characters in memory. To store a message in memory,
push the “MSG” button until you hear a beep.
If three messages are already stored in memory, the oldest
message will be overwritten by the new message.
To recall a radio text message, push the “MSG” button. Each
time you push the button, the available message will be
displayed beginning with the newest one.
If there is no radio text message in memory and when no
message is received, “NO MSG STORED” appears on the
display. After this, the display returns to the previous mode.

AUDIO
204

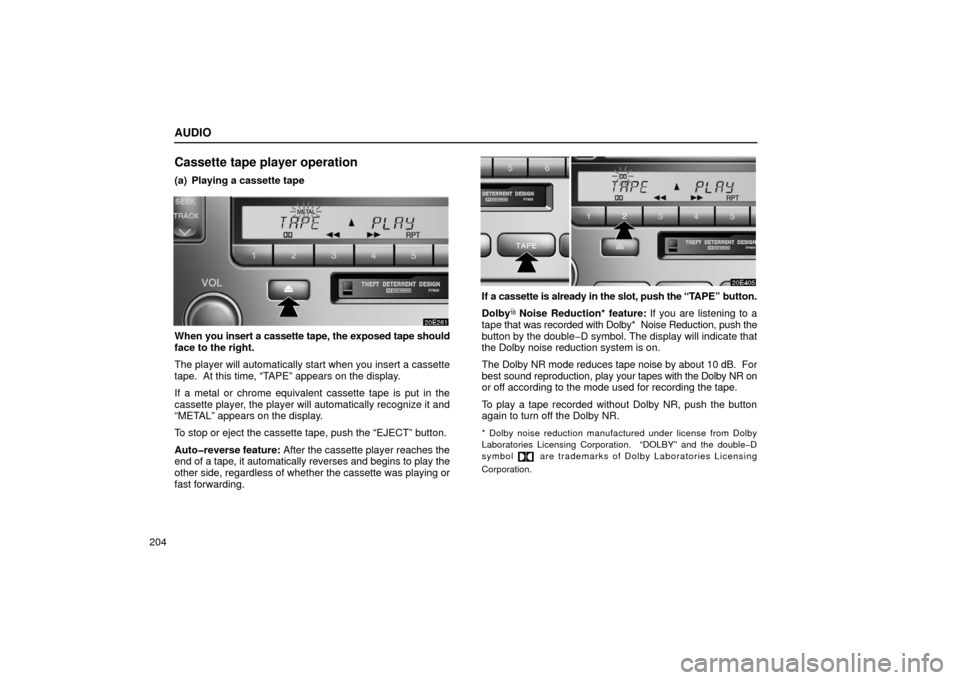

Cassette tape player operation
(a) Playing a cassette tape
When you insert a cassette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, “TAPE” appears on the display.
If a metal or chrome equivalent cassette tape is put in the
cassette player, the player will automatically recognize it and
“METAL” appears on the display.
To stop or eject the cassette tape, push the “EJECT” button.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.
If a cassette is already in the slot, push the “TAPE” button.
Dolby\b Noise Reduction* feature: If you are listening to a
tape that was recorded with Dolby* Noise Reduction, push the
button by the doubleD symbol. The display will indicate that
the Dolby noise reduction system is on.
The Dolby NR mode reduces tape noise by about 10 dB. For
best sound reproduction, play your tapes with the Dolby NR on
or off according to the mode used for recording the tape.
To play a tape recorded without Dolby NR, push the button
again to turn off the Dolby NR.
* Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporatio n. “DOLBY” and the doubleD
symbol
are trademarks of Dolby Laboratories Licensing
Corporation.

AUDIO
205

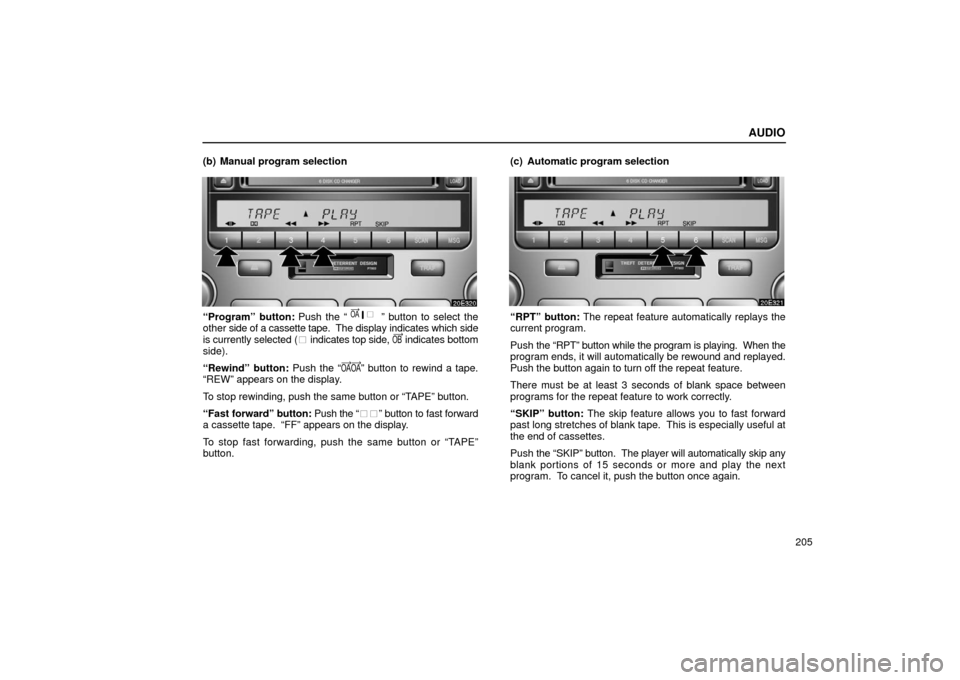

(b) Manual program selection
“Program” button:
Push the “” button to select the
other side of a cassette tape. The display indicates which side
is currently selected ( indicates top side,
indicates bottom
side).
“Rewind” button: Push the “” button to rewind a tape.
“REW” appears on the display.
To stop rewinding, push the same button or “TAPE” button.
“Fast forward” button: Push the “” button to fast forward
a cassette tape. “FF” appears on the display.
To stop fast forwarding, push the same button or “TAPE”
button. (c) Automatic program selection“RPT” button: The repeat feature automatically replays the
current program.
Push
the “RPT” button while the program is playing. When the
program ends, it will automatically be rewound and replayed.
Push the button again to turn off the repeat feature.
There must be at least 3 seconds of blank space between
programs for the repeat feature to work correctly.
“SKIP” button: The skip feature allows you to fast forward
past long stretches of blank tape. This is especially useful at
the end of cassettes.
Push the “SKIP” button. The player will automatically skip any
blank portions of 15 seconds or more and play the next
program. To cancel it, push the button once again.

AUDIO
206
“Automatic program selection” button: The automatic
program selection feature allows you to program your cassette
player to skip forward or backward to locate the song you want
to hear. You can skip up to 9 programs at a time.
Push this button on the upper side to skip forward. “FF” and
the number will appear on the display . Push the button until the
number you want to skip appears on the display. After that, the
player will automatically skip forward.
When the end of the tape is reached, the player automatically
reverses sides and resumes normal play. Push
this button on the lower side to skip backward. Push the
button until “REW” and the number you want to skip appear on
the display.
 If you set “REW 1”, the player will rewind to the beginning
of the current program.
 When counting the number of programs you want to rewind,
remember to count the current program as well. For
example, if you want to rewind to a song that is two before
the song you are listening to, push this button until “REW
3” appears on the display.
When the beginning of the tape is reached, the player
automatically resumes normal play.
There must be at least 3 seconds of blank space between
programs for this feature to work correctly.
“RPT”, “SKIP” or “Automatic program selection”
features: These features may not work well with some spoken
word, live or classical recordings.

AUDIO
207
Compact disc player operation
(a) Inserting or ejecting compact discs
The ignition switch must be in the “ACC” or “ON” position.
Your automatic changer can store up to 6 discs.
Setting a single compact disc:
1. Push the “LOAD” button briefly.
The green indicators of the slot start blinking and “WAIT”
appears on the display. After the blinking indicators stay on
and the “WAIT” changes to the “LOAD”, the CD door opens.
2. Insert only one disc, while the CD door is open.
You can set a disc at the lowest empty disc number.
After insertion, the set disc is automatically loaded.
If the label faces down, the disc cannot be played. In this case,
“ERROR 1” and disc number appear on the display. If you need to insert the next disc, repeat the same procedure
to insert another disc.

Setting all the discs:
1. Push the “LOAD” button until you hear a beep.
The green indicators of the slot start blinking and “WAIT”
appears on the display. After the blinking indicators stay on
and the “WAIT” changes to the “LOAD”, the CD door opens.
2. Insert only one disc, while the CD door is open.
The CD door closes and “WAIT” appears again.
3. Insert the next disc after the “WAIT” changes to the
“LOAD” and the CD door opens.
4. Repeat this procedure until you insert all the discs.
To cancel the operation, push the “LOAD” or “DISC” button.
If you do not insert discs within 15 seconds after pushing the
“LOAD” button and “LOAD” is displayed, the operation will be
canceled automatically.
NOTICE
Do not insert one disc stacked on top of another one or
feed them in continuously, to prevent discs from getting
stuck in the player.
