Lexus ES300 2002 Owner's Manuals (in English)

AUDIO
208

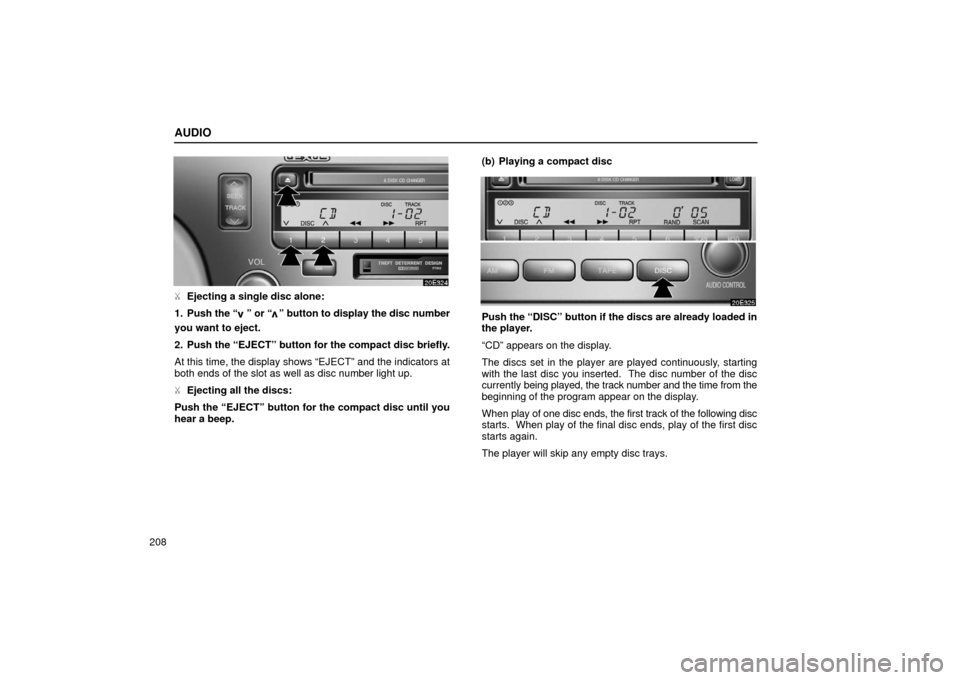

Ejecting a single disc alone:
1. Push the “
” or “” button to display the disc number
you want to eject.
2. Push the “EJECT” button for the compact disc briefly.
At this time, the display shows “EJECT” and the indicators at
both ends of the slot as well as disc number light up.
 Ejecting all the discs:
Push the “EJECT” button for the compact disc until you
hear a beep. (b) Playing a compact discPush the “DISC” button if the discs are already loaded in
the player.
“CD” appears on the display.
The discs set in the player are played continuously, starting
with the last disc you inserted. The disc number of the disc
currently
being played, the track number and the time from the
beginning of the program appear on the display.
When play of one disc ends, the first track of the following disc
starts. When play of the final disc ends, play of the first disc
starts again.
The player will skip any empty disc trays.

AUDIO
209

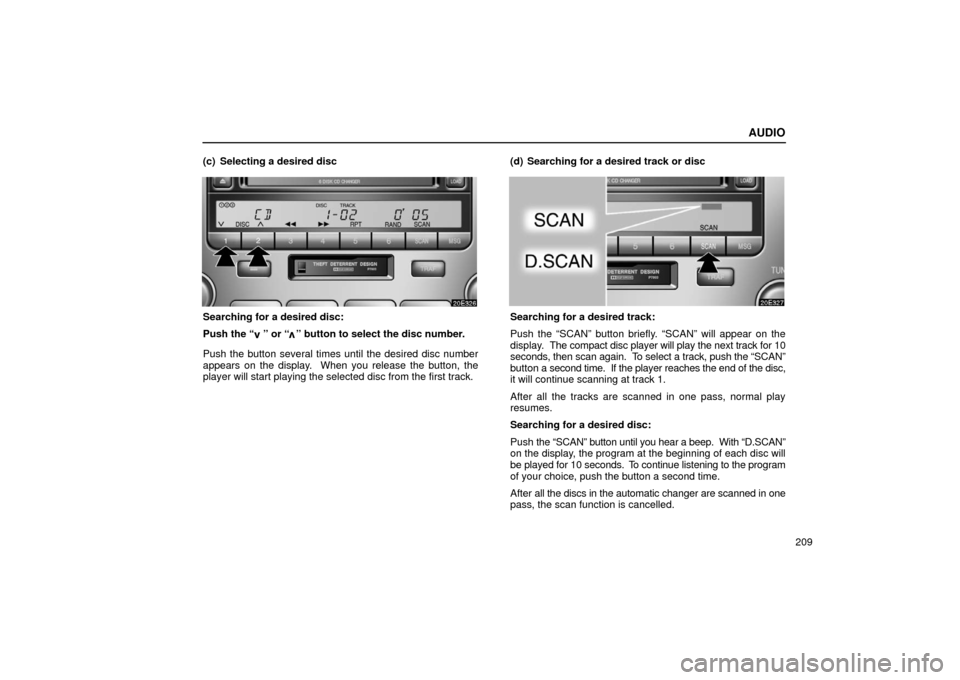

(c) Selecting a desired disc
Searching for a desired disc:
Push the “
” or “” button to select the disc number.
Push the button several times until the desired disc number
appears on the display. When you release the button, the
player will start playing the selected disc from the first track. (d) Searching for a desired track or disc
Searching for a desired track:
Push the “SCAN” button briefly. “SCAN” will appear on the
display.
The compact disc player will play the next track for 10
seconds, then scan again. To select a track, push the “SCAN”
button a second time. If the player reaches the end of the disc,
it will continue scanning at track 1.
After all the tracks are scanned in one pass, normal play
resumes.
Searching for a desired disc:
Push the “SCAN” button until you hear a beep. With “D.SCAN”
on the display, the program at the beginning of each disc will
be played for 10 seconds. To continue listening to the program
of your choice, push the button a second time.
After all the discs in the automatic changer are scanned in one
pass, the scan function is cancelled.

AUDIO

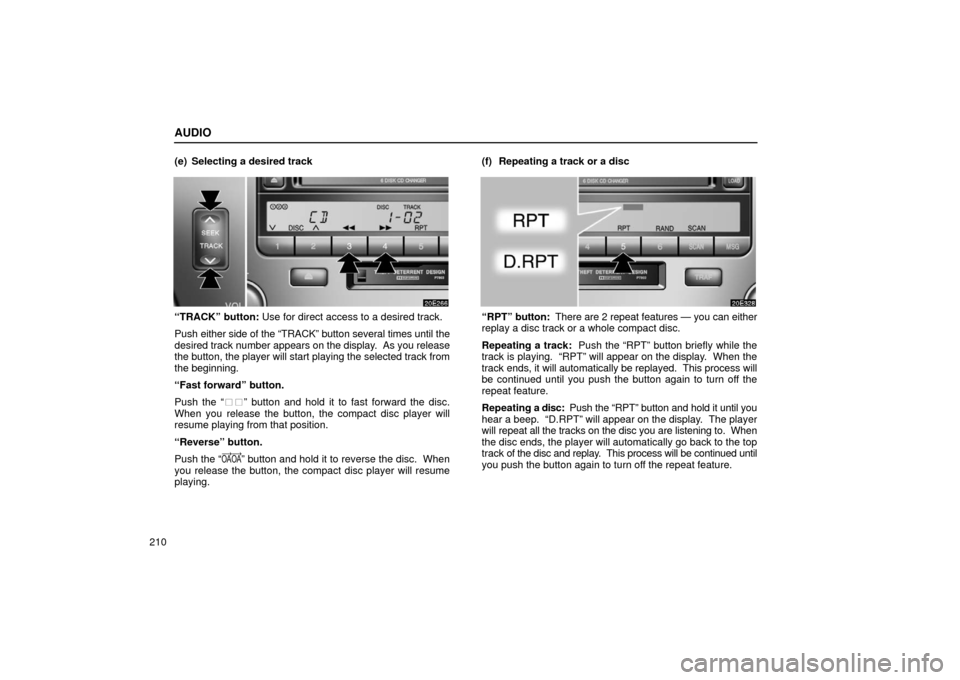

210(e) Selecting a desired track
“TRACK” button: Use for direct access to a desired track.
Push
either side of the “TRACK” button several times until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track from
the beginning.
“Fast forward” button.
Push the “” button and hold it to fast forward the disc.
When you release the button, the compact disc player will
resume playing from that position.
“Reverse” button.
Push the “” button and hold it to reverse the disc. When
you release the button, the compact disc player will resume
playing. (f) Repeating a track or a disc“RPT”
button: There are 2 repeat features — you can either
replay a disc track or a whole compact disc.
Repeating a track: Push the “RPT” button briefly while the
track is playing. “RPT” will appear on the display. When the
track ends, it will automatically be replayed. This process will
be continued until you push the button again to turn off the
repeat feature.
Repeating a disc: Push the “RPT” button and hold it until you
hear a beep. “D.RPT” will appear on the display. The player
will repeat all the tracks on the disc you are listening to. When
the disc ends, the player will automatically go back to the top
track of the disc and replay. This process will be continued until
you push the button again to turn off the repeat feature.

AUDIO
211

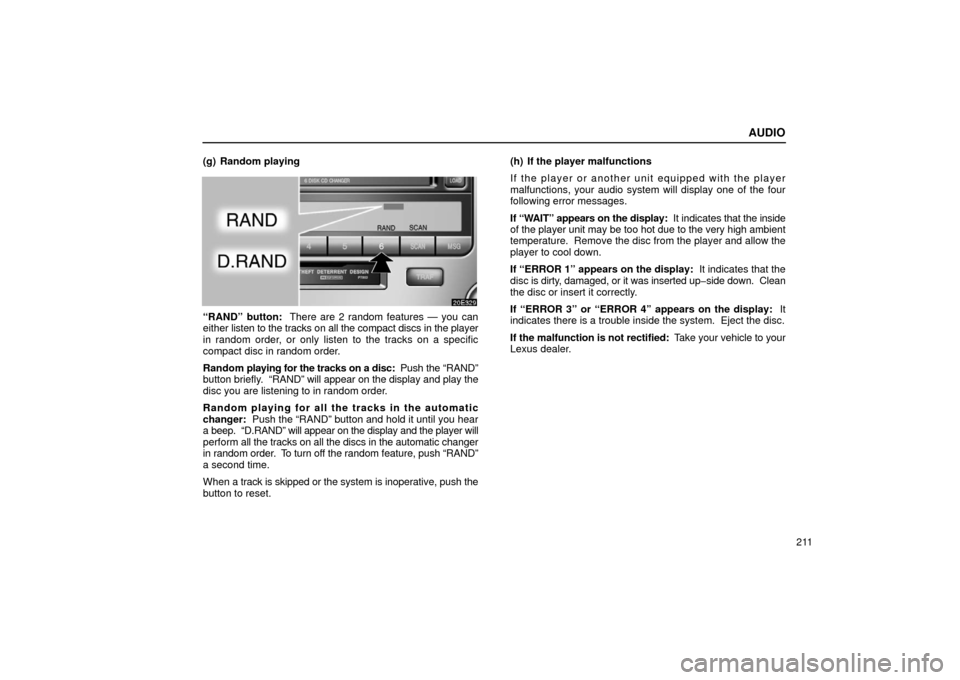

(g) Random playing
“RAND” button: There are 2 random features — you can
either
listen to the tracks on all the compact discs in the player
in random order, or only listen to the tracks on a specific
compact disc in random order.
Random playing for the tracks on a disc: Push the “RAND”
button briefly . “RAND” will appear on the display and play the
disc you are listening to in random order.
Random playing for all the tracks in the automatic
changer: Push the “RAND” button and hold it until you hear
a beep. “D.RAND” will appear on the display and the player will
perform all the tracks on all the discs in the automatic changer
in random order. To turn off the random feature, push “RAND”
a second time.
When a track is skipped or the system is inoperative, push the
button to reset. (h) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display one of the four
following error messages.
If “WAIT” appears on the display:
It indicates that the inside
of the player unit may be too hot due to the very high ambient
temperature. Remove the disc from the player and allow the
player to cool down.
If “ERROR 1” appears on the display: It indicates that the
disc is dirty, damaged, or it was inserted upside down. Clean
the disc or insert it correctly.
If “ERROR 3” or “ERROR 4” appears on the display: It
indicates there is a trouble inside the system. Eject the disc.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.

AUDIO
212
Car audio system operating hints
NOTICE
To ensure correct audio system operations:
Be careful not to spill beverages over the audio
system.
 Do not put anything other than a cassette tape or
compact disc into the cassette tape slot or compact
disc slot.
 The use of a cellular phone inside or near the vehicle
may cause a noise from the speakers of the audio
system which you are listening to. However, this
does not indicate a malfunction.
Radio reception
Usually, a problem with radio reception does not mean there
is a problem with your radio it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain can interfere with
FM reception. Power lines or telephone wires can interfere
with AM signals. And of course, radio signals have a limited
range. The farther you are from a station, the weaker its signal
will be. In addition, reception conditions change constantly as
your vehicle moves.
Here are some common reception problems that probably do
not indicate a problem with your radio: FM
Fading and drifting stations
Generally, the effective range
of FM is about 40 km (25 miles). Once outside this range, you
may notice fading and drifting, which increase with the
distance from the radio transmitter. They are often
accompanied by distortion.
Multipath FM signals are reflective, making it possible for
two signals to reach your antenna at the same time. If this
happens, the signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering These occur when signals are blocked
by buildings, trees, or other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping If the FM signal you are listening to is
interrupted or weakened, and there is another strong station
nearby on the FM band, your radio may tune in the second
station until the original signal can be picked up again.

AUDIO
213
AM
Fading
AM broadcasts are reflected by the upper
atmosphere especially at night. These reflected signals can
interfere with those received directly from the radio station,
causing the radio station to sound alternately strong and weak.
Station interference When a reflected signal and a signal
received directly from a radio station are very nearly the same
frequency, they can interfere with each other, making it dif ficult
to hear the broadcast.
Static AM is easily affected by external sources of electrical
noise, such as high tension power lines, lightening, or electrical
motors. This results in static.
Caring for your cassette player and tapes
For the best performance for your cassette player and tapes:
Clean the tape head and other parts regularly.
 A dirty tape head or tape path can decrease sound quality
and tangle your cassette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet type is
recommended.) Use highquality cassettes:

Lowquality cassette tapes can cause many problems,
including poor sound, inconsistent playing speed, and
constant autoreversing. They can also get stuck or
tangled in the cassette player.
 Do not use a cassette if it has been damaged or tangled or
if its label is peeling off.
 Do not leave a cassette in the player if you are not listening
to it, especially if it is hot outside.
 Store cassettes in their cases and out of direct sunlight.
 Avoid using cassettes with a total playing time longer than
100 minutes (50 minutes per side). The tape used in these
cassettes is thin and could get stuck or tangled in the
cassette player.

AUDIO

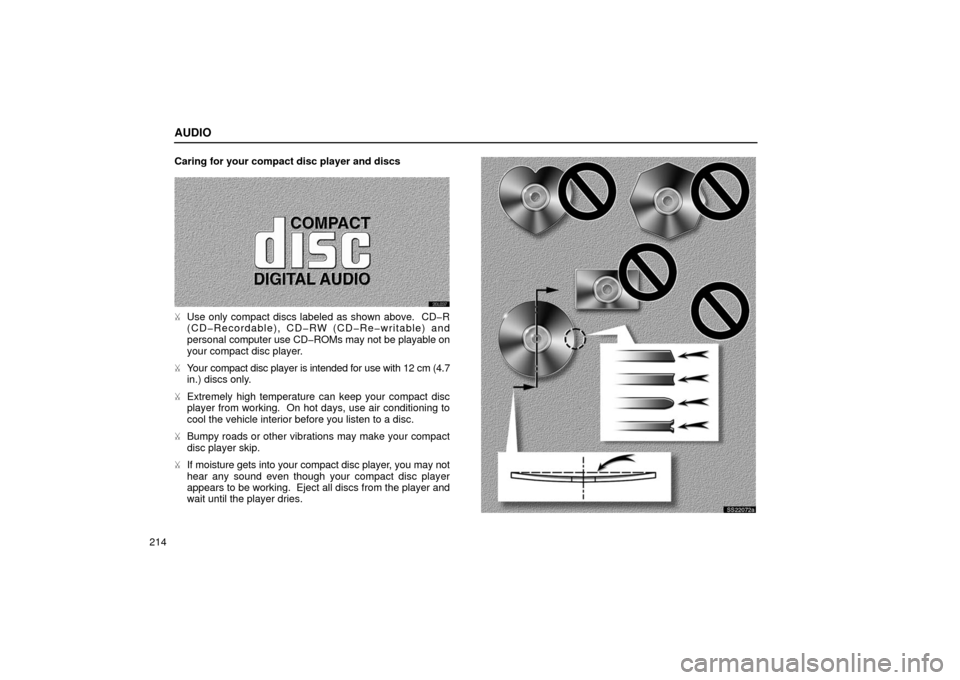

214Caring for your compact disc player and discs
20L037

Use only compact discs labeled as shown above. CDR
(CDRecordable), CDRW (CDRewritable) and
personal computer use CDROMs may not be playable on
your compact disc player.
 Your compact disc player is intended for use with 12 cm (4.7
in.) discs only.
 Extremely high temperature can keep your compact disc
player from working. On hot days, use air conditioning to
cool the vehicle interior before you listen to a disc.
 Bumpy roads or other vibrations may make your compact
disc player skip.
 If moisture gets into your compact disc player, you may not
hear any sound even though your compact disc player
appears to be working. Eject all discs from the player and
wait until the player dries.ss22072a

AUDIO
215
Your automatic changer cannot play special shaped or
lowquality
compact discs such as those shown here. Do not
use them as the changer could be damaged.
20L038
Correct Wrong

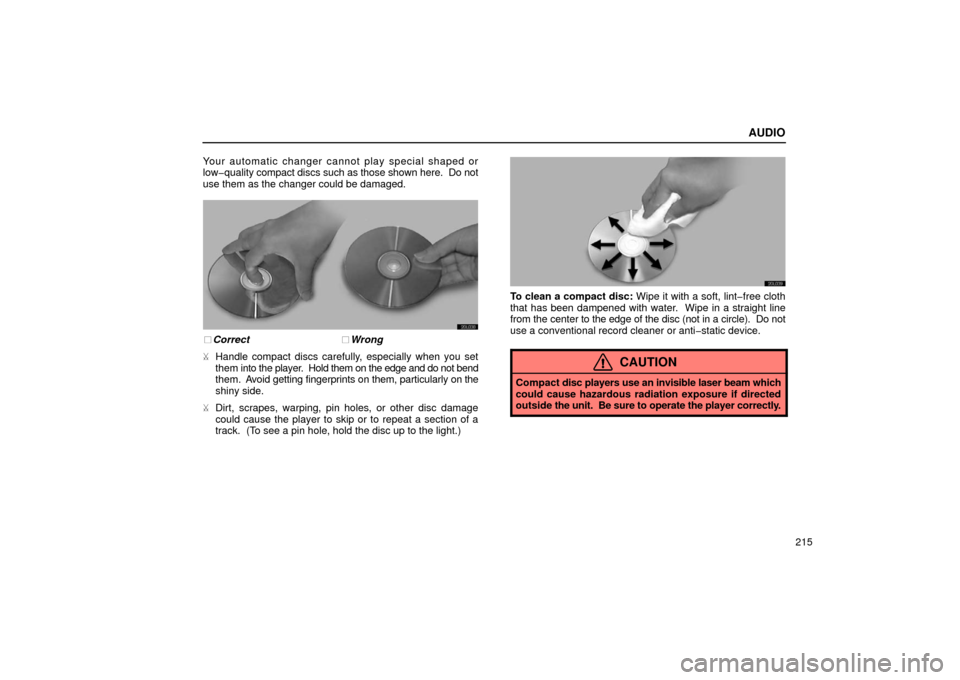

 Handle compact discs carefully, especially when you set
them into the player. Hold them on the edge and do not bend
them. A void getting fingerprints on them, particularly on the
shiny side.
 Dirt, scrapes, warping, pin holes, or other disc damage
could cause the player to skip or to repeat a section of a
track. (To see a pin hole, hold the disc up to the light.)
20L039
To clean a compact disc: Wipe it with a soft, lintfree cloth
that has been dampened with water. Wipe in a straight line
from the center to the edge of the disc (not in a circle). Do not
use a conventional record cleaner or antistatic device.
CAUTION
Compact disc players use an invisible laser beam which
could cause hazardous radiation exposure if directed
outside the unit. Be sure to operate the player correctly.

AUDIO
216
