COMFORT ADJUSTMENT
147
2. To remove the child restraint system, press the
buckle−release button and allow the belt to retract.
Using a top strap
Follow the procedure below for a child restraint system
that requires the use of a top strap.

COMFORT ADJUSTMENT
148
 1Anchor brackets 2Symbol mark
Use the anchor bracket on the package tray behind the rear
seat to attach the top strap.
Anchor brackets are installed for each rear seating position.
This symbol indicates the locations of user ready anchor
bracket.TO USE THE ANCHOR BRACKET
1. Outside anchor brackets only—Remove the head
restraint.
2. Pull up the lid of the anchor bracket.

COMFORT ADJUSTMENT
149
3. Fix the child restraint system with the seat belt.
4. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see “Child
restraint system” on page 134.
CAUTION
 Make sure the top strap is securely latched, and
check that the child restraint system is securely by
pushing and pulling it in different directions.
 Follow all the installation instructions provided by its
manufacturer.
5. Outside anchor brackets only—Replace the head
restraint.

COMFORT ADJUSTMENT
150

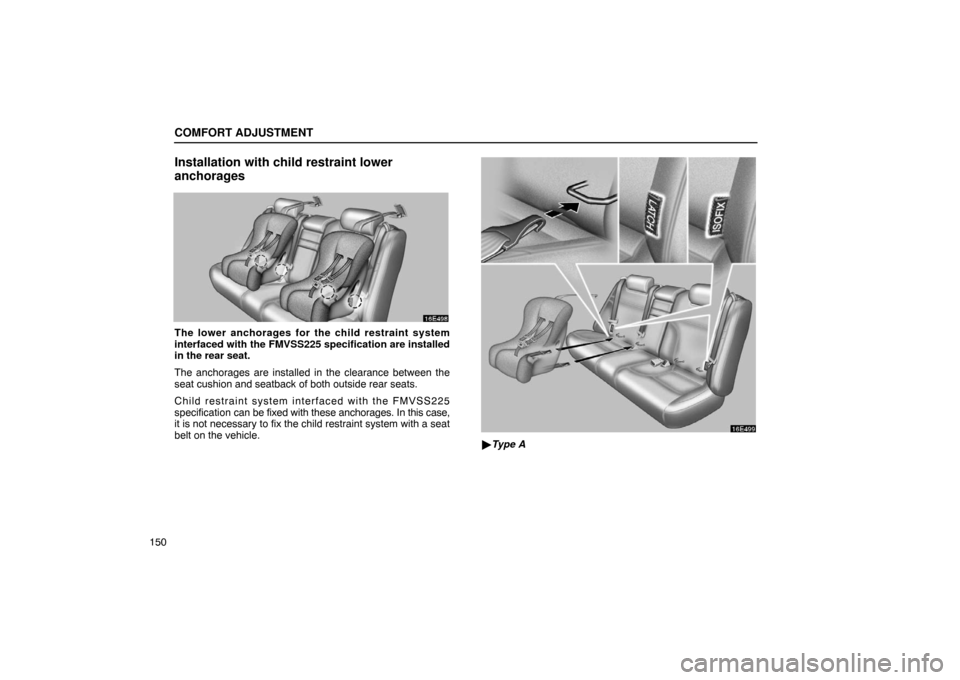

Installation with child restraint lower
anchorages
The lower anchorages for the child restraint system
interfaced with the FMVSS225 specification are installed
in the rear seat.
The anchorages are installed in the clearance between the
seat cushion and seatback of both outside rear seats.
Child restraint system interfaced with the FMVSS225
specification can be fixed with these anchorages. In this case,
it is not necessary to fix the child restraint system with a seat
belt on the vehicle.
16E499
 Type A

COMFORT ADJUSTMENT
151
16E500
Type B CHILD RESTRAINT SYSTEM INSTALLATION
Type A—
1. Widen the clearance between the seat cushion and
seatback a little and confirm the position of the lower
anchorages below the tag in the seatback.
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
Type B—
1. Widen the clearance between the seat cushion and
seatback a little and confirm the position of the lower
anchorages below the tag in the seatback.
2. Latch the buckles onto the anchorages.
If your child restraint system has a top strap, it should be
anchored. (For
the installation of the top strap, see “Using a top
strap” on page 147.)
For the installation details, refer to the instruction manual
equipped with each product.

COMFORT ADJUSTMENT
152
CAUTION
When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
 Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.
 Do not install a child restraint system on the rear seat
if it interferes with the lock mechanism of the front
seats. This can cause death or serious injury to the
child and front passenger in case of sudden braking
or a collision.
DRIVING POSITION MEMORY SYSTEM
The microcomputer can memorize the positions of the driver’s
seat and outside rear view mirrors. Two different driving
position profiles can be entered into the computer’s memory.
Recording a driving position in the computer’s memory can
only be done when the ignition key is in the “ON” position and
the selector lever is in the “P” position.

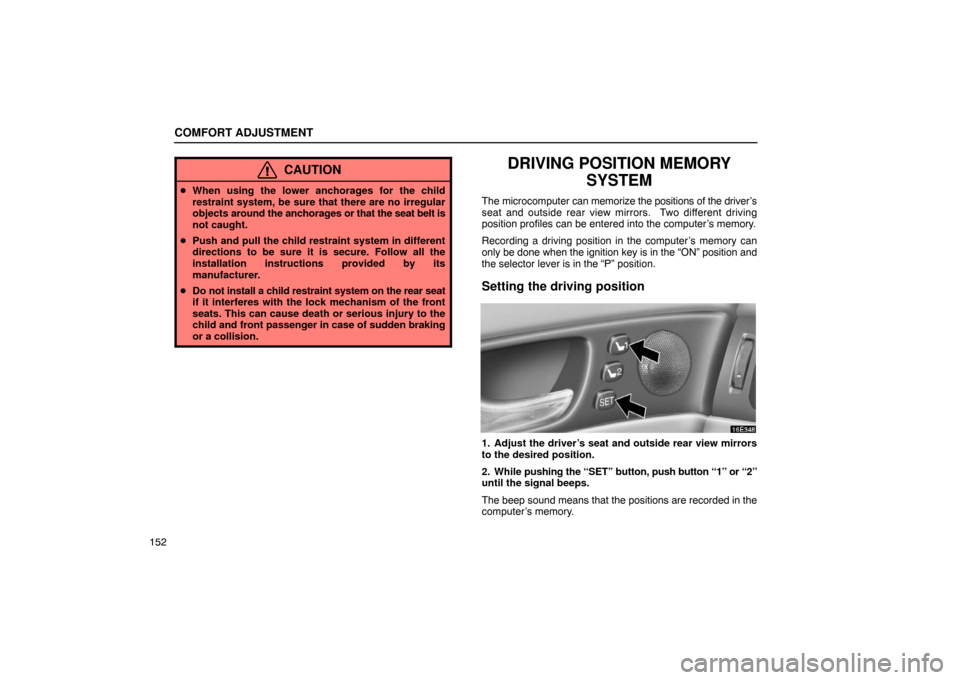

Setting the driving position
1. Adjust the driver’s seat and outside rear view mirrors
to the desired position.
2. While pushing the “SET” button, push button “1” or “2”
until the signal beeps.
The beep sound means that the positions are recorded in the
computer’s memory.

COMFORT ADJUSTMENT
153
By repeating these two steps
and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
When you push button “1” or “2”, the driving position will
be automatically adjusted to the position recorded for that
button. Conditions for memorized position activation

Ignition key “ON” and selector lever in “P” position.
 Ignition switch off and within 30 seconds of opening driver’s
door.
If any driving position memory switch is pushed while one of
the memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (“1” or “2”)\
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle’s battery is disconnected, the computer’s
memory wi ll be erased and the memorized positions will have
to be set again.
CAUTION
 Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.

COMFORT ADJUSTMENT
154

SECTION 1 – 7
155
INSTRUMENTS AND CONTROLS
Theft deterrent
Theft deterrent system156
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

THEFT DETERRENT
156
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or the battery terminal is disconnected
and then reconnected while the vehicle is locked.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and turn signal lights.
Further more when the interior light switch is in the “DOOR”
position, the interior light turns on.
After the alarm is activated, when you unlock any door using
an ignition key or wireless remote control, the tail lights turn on
for about 2 seconds to inform you that the system was
activated.
 Security indicator light
Setting the system
1. Turn the ignition key to the “LOCK” position and
remove it.
The engine immobiliser system causes the indicator light to
flash.
2. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control.
If you lock them with wireless remote control, the turn signal
lights flash once.
The flashing indicator light will remain on when all the doors,
trunk and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
